1gd1

STRUCTURE OF HOLO-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE FROM BACILLUS STEAROTHERMOPHILUS AT 1.8 ANGSTROMS RESOLUTION

Method: X-RAY DIFFRACTION D_max: 92.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

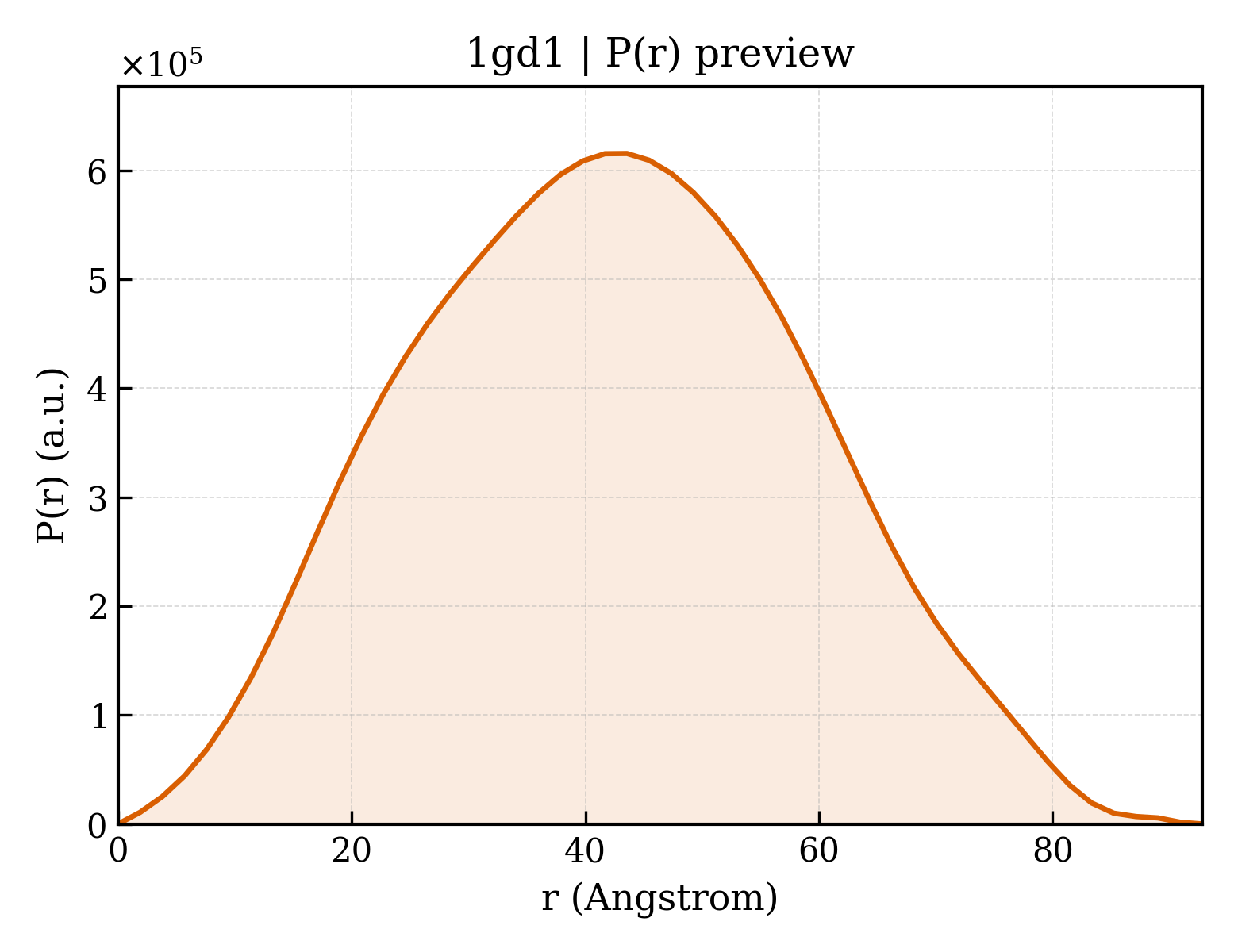

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gd1
沉积日期 deposition_date	1987-06-22
结构标题 title	STRUCTURE OF HOLO-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE FROM BACILLUS STEAROTHERMOPHILUS AT 1.8 ANGSTROMS RESOLUTION
关键词 keywords	OXIDOREDUCTASE(ALDEHYDE(D)-NAD(A)); OXIDOREDUCTASE(ALDEHYDE(D)-NAD(A))
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.30 Å
回转半径 Rg (电子) rg_electron	31.72 Å
零角强度 I(0) i0	348734000.00
分子量 molecular_weight	147180.0 kDa
排除体积 excluded_volume	183210 Å³
包络体积 envelope_volume	217670 Å³
水化壳体积 shell_volume	54075 Å³
包络直径 envelope_diameter	98.6 Å
壳层 Rg shell_rg	41.11 Å
包络 Rg envelope_rg	31.77 Å
形状 Rg shape_rg	31.74 Å
总 Rg total_rg	32.34 Å
总原子数 total_atoms	10316
残基数 n_residues	1336
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	92.8 Å
Rg (实空间) rg_real	32.04 Å
Rg 误差 (实空间) rg_real_error	0.37 Å
I(0) (实空间) i0_real	3.4870e+08
I(0) 误差 (实空间) i0_real_error	4.1910e+06
Rg (倒空间) rg_reciprocal	32.15 Å
I(0) (倒空间) i0_reciprocal	348800000.0000
解质量估计 total_estimate	0.8971
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.6 Å
偏度 Skewness skewness	0.075
峰度 Kurtosis kurtosis	-0.561
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	396000000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.760

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	HOLO-D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE
分子量 formula_weight	35991.0 kDa
EC 编号 ec_number	1.2.1.12
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P,Q,R
原子数 atom_count	10984

AVKVGINGFGRIGRNVFRAALKNPDIEVVAVNDLTDANTLAHLLKYDSVHGRLDAEVSVNGNNLVVNGKEIIVKAERDPENLAWGEIGVDIVVESTGRFTKREDAAKHLEAGAKKVIISAPAKNEDITIVMGVNQDKYDPKAHHVISNASCTTNCLAPFAKVLHEQFGIVRGMMTTVHSYTNDQRILDLPHKDLRRARAAAESIIPTTTGAAKAVALVLPELKGKLNGMAMRVPTPNVSVVDLVAELEKEVTVEEVNAALKAAAEGELKGILAYSEEPLVSRDYNGSTVSSTIDALSTMVIDGKMVKVVSWYDNETGYSHRVVDLAAYIASKGL

来源 Source

来源生物 organism	Geobacillus stearothermophilus
NCBI 分类编号 ncbi_taxonomy_id	1422

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	668

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1gd1o1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1gd1o2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

结构域编号 domain_id	d1gd1p1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1gd1p2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

结构域编号 domain_id	d1gd1q1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1gd1q2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

结构域编号 domain_id	d1gd1r1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1gd1r2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.1 — GAPDH-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1gd1O01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gd1O02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1gd1P01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gd1P02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1gd1Q01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gd1Q02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1gd1R01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gd1R02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

7. 引用文献 (10)

Structure of holo-glyceraldehyde-3-phosphate dehydrogenase from Bacillus stearothermophilus at 1.8 A resolution.

J.Mol.Biol. (1987)

PMID: 3586018 · DOI: 10.1016/0022-2836(87)90635-8 PRIMARY

;Nucleotide Sequence Determination of the DNA Region Coding for Bacillus Stearothermophilus Glyceraldehyde-3-Phosphate Dehydrogenase and of the Flanking DNA Regions Required for its Expression Escherichia Coli ;

Gene (1989)

Coenzyme-Induced Conformational Changes in Glyceraldehyde-3-Phosphate Dehydrogenase from Bacillus Stearothermophillus

J.Mol.Biol. (1988)

Structural Evidence for Ligand-Induced Sequential Conformational Changes in Glyceraldehyde 3-Phosphate Dehydrogenase

J.Mol.Biol. (1984)

Coenzyme Binding in Crystals of Glyceraldehyde-3-Phosphate Dehydrogenase

J.Mol.Biol. (1983)

Glyceraldehyde-3-Phosphate Dehydrogenase

Philos.Trans.R.Soc.London,Ser.B (1981)

Enzymes from Thermophilic Bacteria

Proc.FEBS Meet. (1978)

Sequence and Structure of D-Glyceraldehyde 3-Phosphate Dehydrogenase from Bacillus Stearothermophilus

Nature (1977)

Coenzyme Binding and Co-Operativity in D-Glyceraldehyde 3-Phosphate Dehydrogenase

Biochem.Soc.Trans. (1977)

Glyceraldehyde-3-Phosphate Dehydrogenase from Bacillus Stearothermophilus

FEBS Lett. (1971)

▶

晶胞边长 a length_a	82.440 Å
晶胞边长 b length_b	124.100 Å
晶胞边长 c length_c	82.540 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	108.98 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	0.1770
R_work r_work	—
R_free r_free	—
