1nqa
Glyceraldehyde-3-Phosphate Dehydrogenase Mutant With Cys 149 Replaced By Ala Complexed With Nad+ and D-Glyceraldehyde-3-Phosphate
SAXS 散射曲线 SAXS Profile

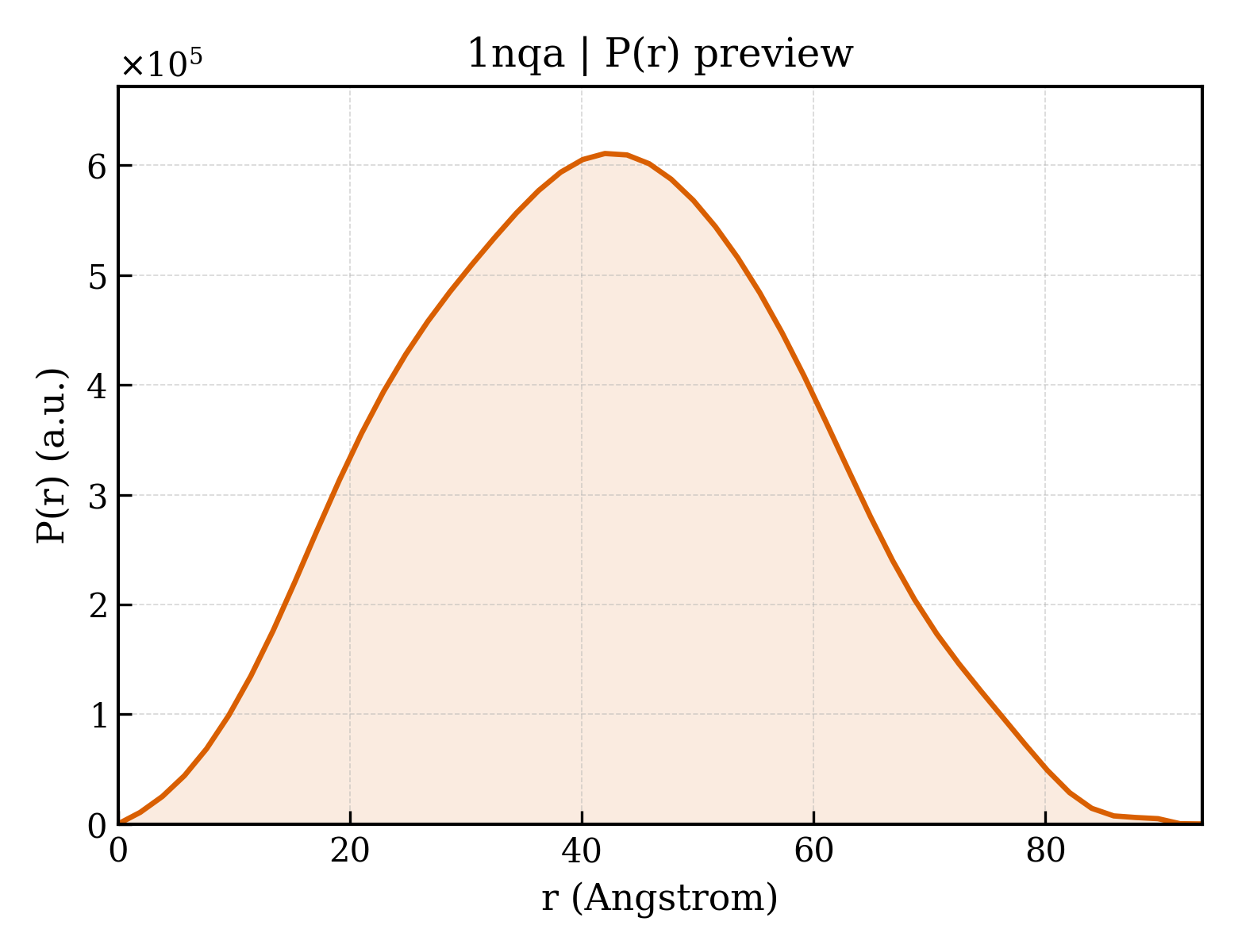

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1nqa |
| 沉积日期 deposition_date | 2003-01-21 |
| 结构标题 title | Glyceraldehyde-3-Phosphate Dehydrogenase Mutant With Cys 149 Replaced By Ala Complexed With Nad+ and D-Glyceraldehyde-3-Phosphate |
| 关键词 keywords | Glycolysis, Oxidoreductase, NAD; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 32.26 Å |
| 回转半径 Rg (电子) rg_electron | 31.64 Å |
| 零角强度 I(0) i0 | 344535000.00 |
| 分子量 molecular_weight | 146960.0 kDa |
| 排除体积 excluded_volume | 183270 ų |
| 包络体积 envelope_volume | 216040 ų |
| 水化壳体积 shell_volume | 53793 ų |
| 包络直径 envelope_diameter | 99.0 Å |
| 壳层 Rg shell_rg | 40.98 Å |
| 包络 Rg envelope_rg | 31.69 Å |
| 形状 Rg shape_rg | 31.65 Å |
| 总 Rg total_rg | 32.27 Å |
| 总原子数 total_atoms | 10312 |
| 残基数 n_residues | 1328 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 93.5 Å |
| Rg (实空间) rg_real | 32.00 Å |
| Rg 误差 (实空间) rg_real_error | 0.43 Å |
| I(0) (实空间) i0_real | 3.4450e+08 |
| I(0) 误差 (实空间) i0_real_error | 4.6060e+06 |
| Rg (倒空间) rg_reciprocal | 32.11 Å |
| I(0) (倒空间) i0_reciprocal | 344600000.0000 |
| 解质量估计 total_estimate | 0.8901 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 42.0 Å |
| 偏度 Skewness skewness | 0.076 |
| 峰度 Kurtosis kurtosis | -0.561 |
| 角度范围 angular_range | — – 0.2450 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 365600000.0000 |
| 实空间数据点数 n_real_points | 50 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.969; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.686 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 16 domains
SCOP 2.08 (8 domains)
| 结构域编号 domain_id | d1nqao1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1nqao2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.81 — FwdE/GAPDH domain-like |
| 超家族 Superfamily superfamily | d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain |
| 家族 Family family | d.81.1.1 — GAPDH-like |
| 结构域编号 domain_id | d1nqap1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1nqap2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.81 — FwdE/GAPDH domain-like |
| 超家族 Superfamily superfamily | d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain |
| 家族 Family family | d.81.1.1 — GAPDH-like |
| 结构域编号 domain_id | d1nqaq1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1nqaq2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.81 — FwdE/GAPDH domain-like |
| 超家族 Superfamily superfamily | d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain |
| 家族 Family family | d.81.1.1 — GAPDH-like |
| 结构域编号 domain_id | d1nqar1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1nqar2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.81 — FwdE/GAPDH domain-like |
| 超家族 Superfamily superfamily | d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain |
| 家族 Family family | d.81.1.1 — GAPDH-like |
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 1nqaO01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1nqaO02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 360 — Dihydrodipicolinate Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Dihydrodipicolinate Reductase; domain 2 |
| 结构域编号 domain_id | 1nqaP01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1nqaP02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 360 — Dihydrodipicolinate Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Dihydrodipicolinate Reductase; domain 2 |
| 结构域编号 domain_id | 1nqaQ01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1nqaQ02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 360 — Dihydrodipicolinate Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Dihydrodipicolinate Reductase; domain 2 |
| 结构域编号 domain_id | 1nqaR01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1nqaR02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 360 — Dihydrodipicolinate Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Dihydrodipicolinate Reductase; domain 2 |
