CLOSTRIDIUM THERMOCELLUM
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | SULFATE ION × 1 SODIUM ION × 1 CALCIUM ION × 1 water × 1 | Consistent with protein count |
| UniProt name | O52780 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–133； UniProt 248–380 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1gmm |
| Deposition date deposition_date | 2001-09-19 |
| Structure title title | Carbohydrate binding module CBM6 from xylanase U Clostridium thermocellum |
| Keywords keywords | XYLANASE, CARBOHYDRATE BINDING MODULE, CBM FAMILY 6, XYLAN BINDING; XYLANASE |
| Experimental Method method | X-RAY DIFFRACTION |

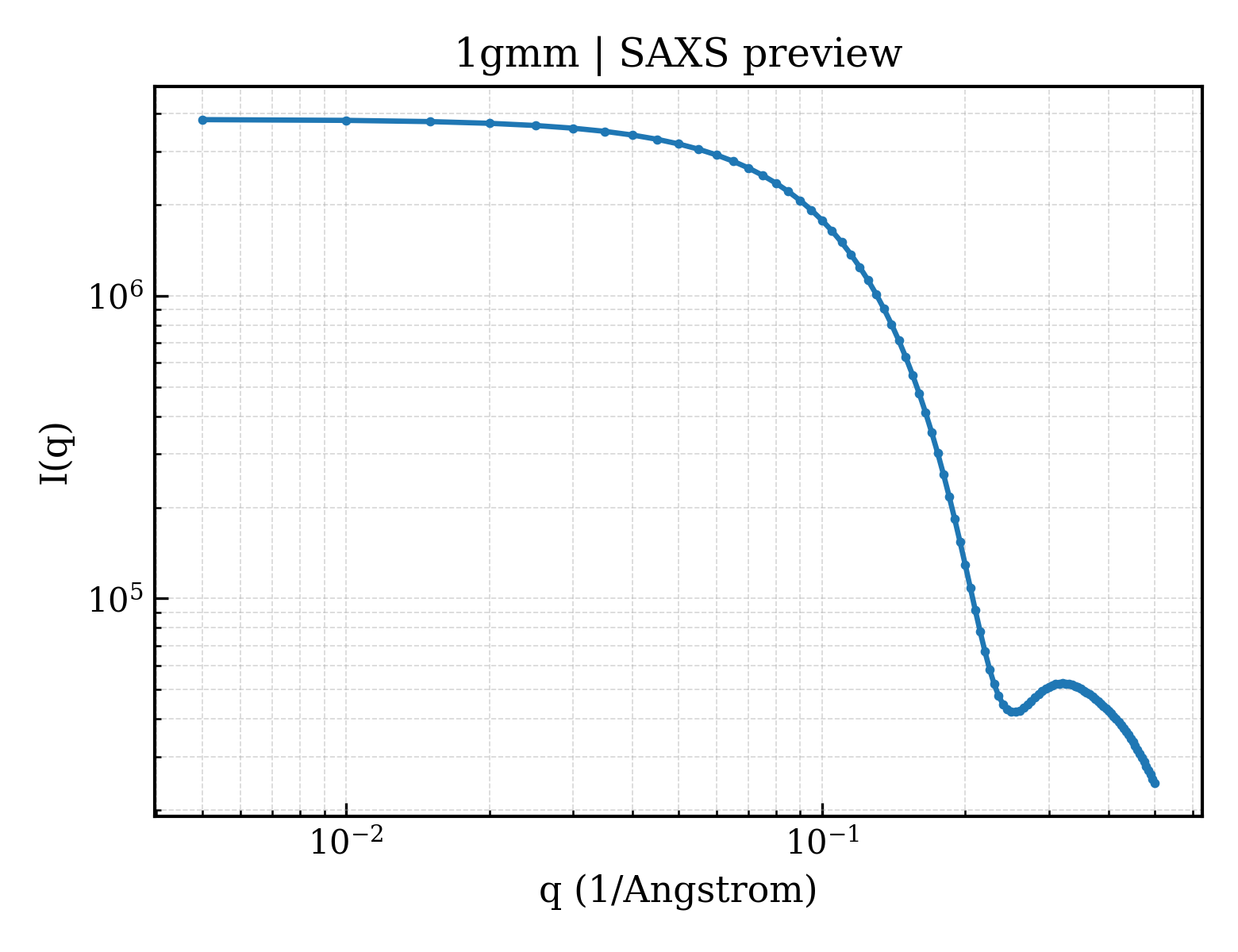

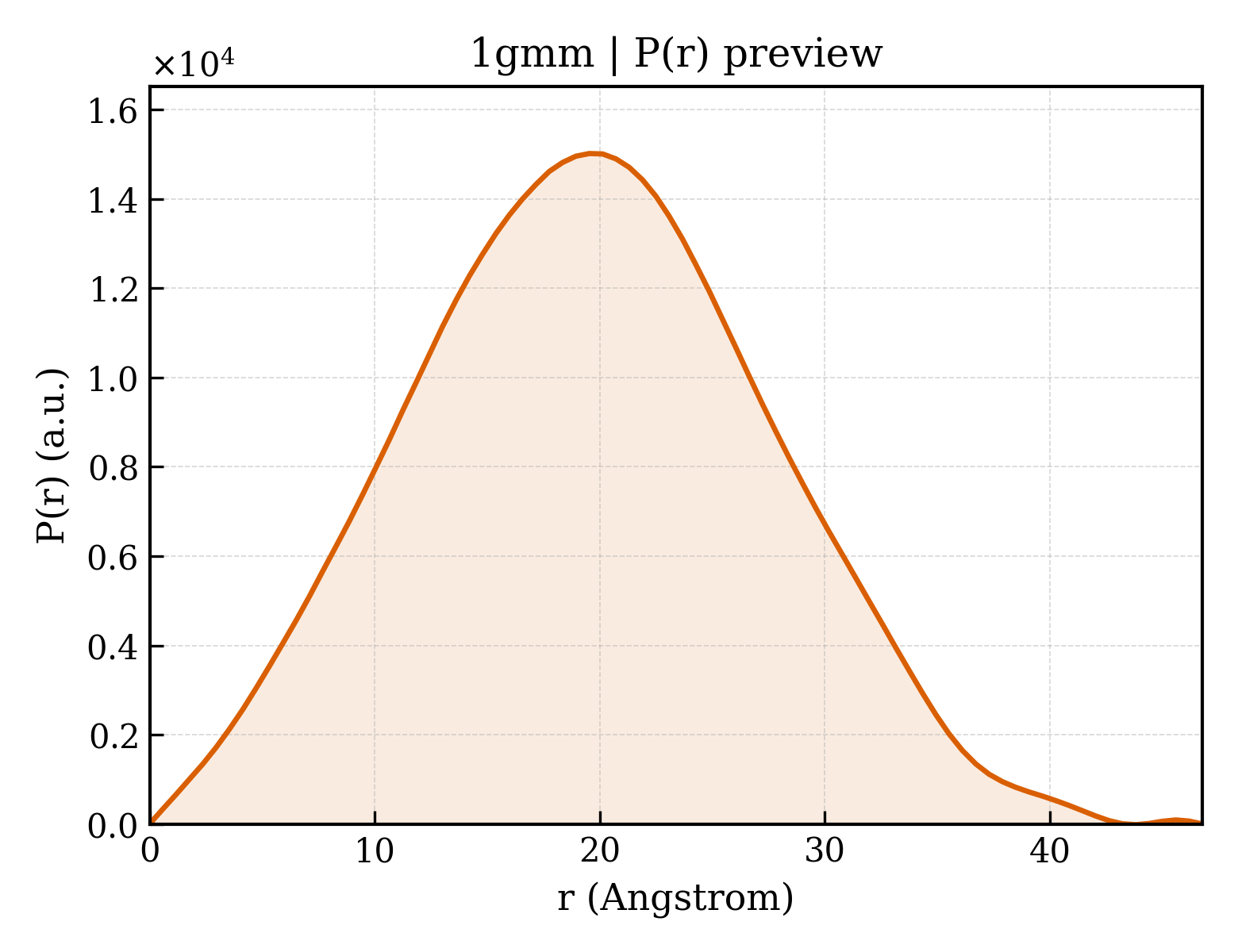

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.01 Å |
| Rg (electron density) | 13.30 Å |
| Total Rg | 14.51 Å |
| Atom count | 949 |
| Residues | 126 |
| Excluded volume | 16666 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1gmma_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.18 — Galactose-binding domain-like |
| Superfamily Superfamily superfamily | b.18.1 — Galactose-binding domain-like |
| Family Family family | b.18.1.10 — Family 6 carbohydrate binding module, CBM6 |
| Domain ID domain_id | 1gmmA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 120 — Jelly Rolls |
| Homologous superfamily homologous superfamily | 260 — Galactose-binding domain-like |
