SAXSdb — 1uxx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

XYLANASE U

CLOSTRIDIUM THERMOCELLUM

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O52780
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–133； UniProt 248–380

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uxx
Deposition date deposition_date	2004-03-01
Structure title title	CBM6ct from Clostridium thermocellum in complex with xylopentaose
Keywords keywords	CARBOHYDRATE BINDING MODULE, CBM6, XYLOPENTAOSE BINDING, XYLAN DEGRADATION; CARBOHYDRATE BINDING MODULE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uxx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1uxx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

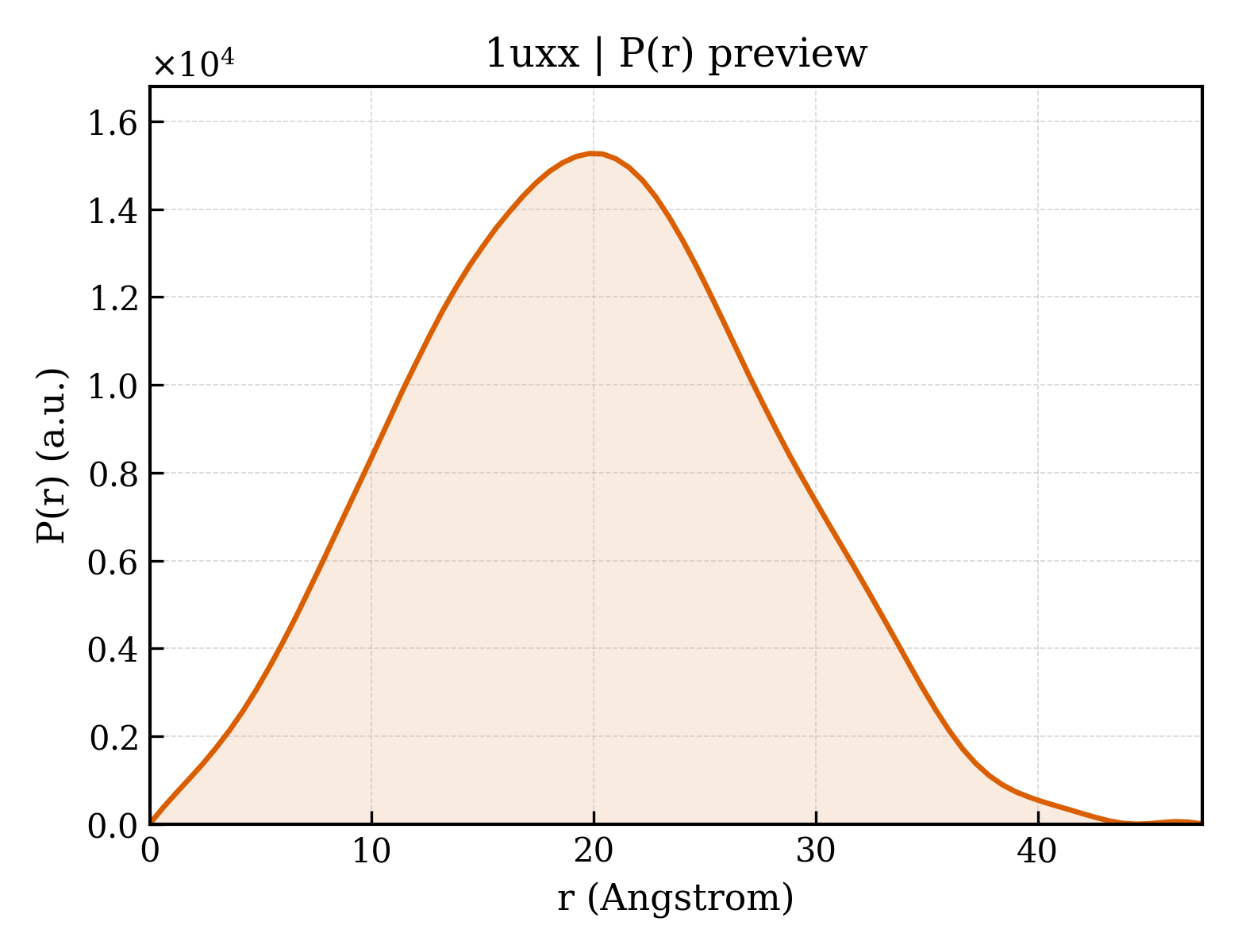

1uxx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.17 Å
Rg (electron density)	13.54 Å
Total Rg	14.71 Å
Atom count	978
Residues	125
Excluded volume	17216 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uxx__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	XYLANASE U
Molecular weight formula_weight	14115.3 kDa
EC 编号 ec_number	3.2.1.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	1086

RSAFSKIESEEYNSLKSSTIQTIGTSDGGSGIGYIESGDYLVFNKINFGNGANSFKARVASGADTPTNIQLRLGSPTGTLIGTLTVASTGGWNNYEEKSCSITNTTGQHDLYLVFSGPVNIDYFIFDSNGVNP

Source Source

Source organism organism	CLOSTRIDIUM THERMOCELLUM
NCBI taxonomy ID ncbi_taxonomy_id	1515
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose-(1-4)-beta-D-xylopyranose
Molecular weight formula_weight	678.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	108

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1uxxx_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.10 — Family 6 carbohydrate binding module, CBM6

CATH v4.4 (1 domains)

Domain ID domain_id	1uxxX00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	27.480 Å
Unit-cell length b length_b	51.680 Å
Unit-cell length c length_c	36.130 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	102.78 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	51.990 Å
R factor r_factor	0.1820
R_work r_work	0.1800
R_free r_free	0.2220
