1gxb

ANTHRANILATE PHOSPHORIBOSYLTRANSFERASE IN COMPLEX WITH PYROPHOSPHATE AND MAGNESIUM

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ANTHRANILATE PHOSPHORIBOSYLTRANSFERASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 PYROPHOSPHATE 2- × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 1 PYROPHOSPHATE 2- × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPD_SULSO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–345； UniProt 1–345 Author chain B； PDBConstruct 1–345； UniProt 1–345 Author chain C； PDBConstruct 1–345； UniProt 1–345 Author chain D； PDBConstruct 1–345； UniProt 1–345

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gxb
Deposition date deposition_date	2002-04-02
Structure title title	ANTHRANILATE PHOSPHORIBOSYLTRANSFERASE IN COMPLEX WITH PYROPHOSPHATE AND MAGNESIUM
Keywords keywords	TRANSFERASE, TRYPTOPHANE BIOSYNTHESIS, ANTHRANILATE PHOSPHORIBOSYL TRANSFERASE, PRPP, MG2+, PYROPHOSPHATE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gxb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gxb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

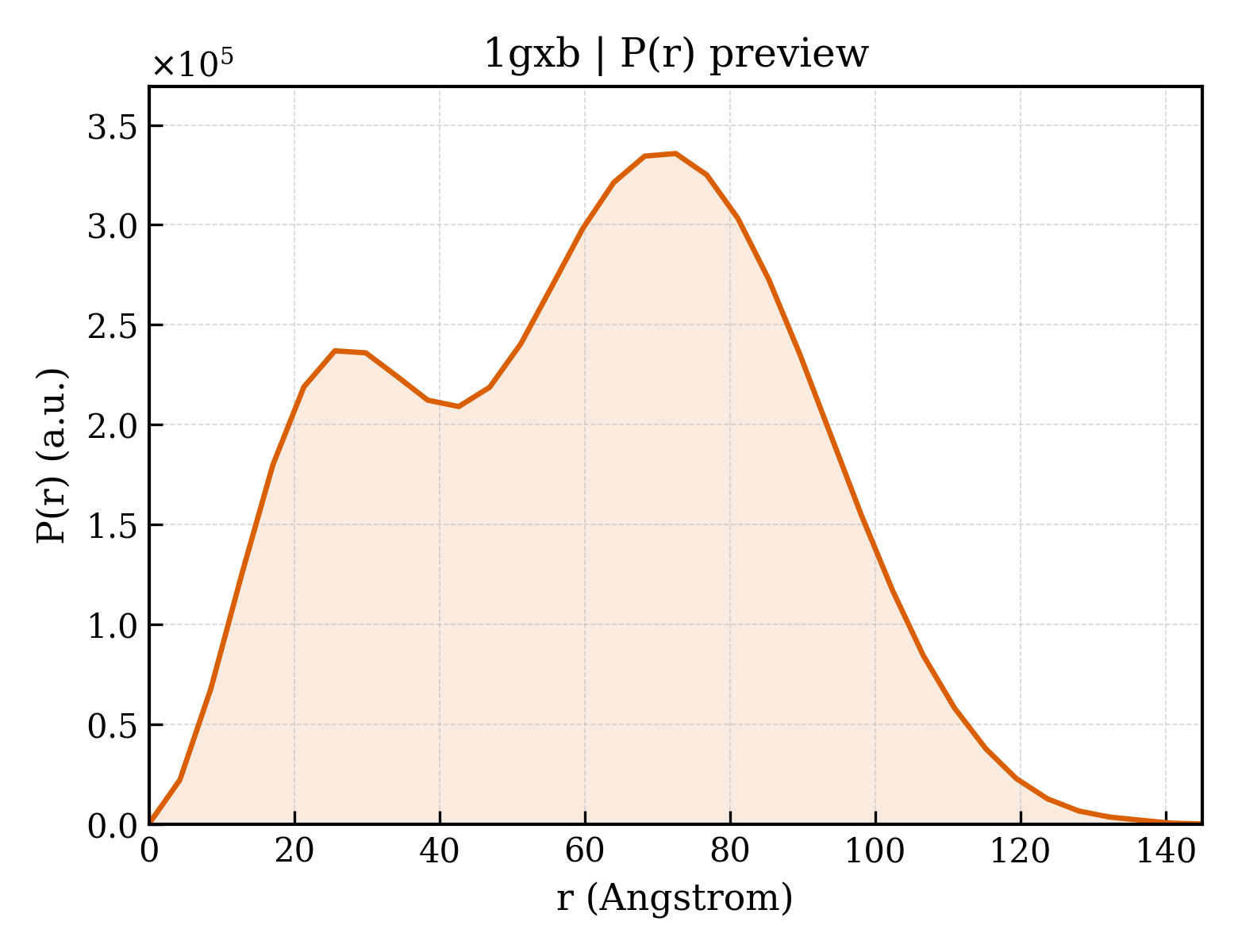

1gxb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.74 Å
Rg (electron density)	33.73 Å
Total Rg	33.92 Å
Atom count	5271
Residues	685
Excluded volume	95343 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gxb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gxb__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ANTHRANILATE PHOSPHORIBOSYLTRANSFERASE
Molecular weight formula_weight	37619.5 kDa
EC 编号 ec_number	2.4.2.18
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10753

MNINEILKKLINKSDLEINEAEELAKAIIRGEVPEILVSAILVALRMKGESKNEIVGFARAMRELAIKIDVPNAIDTAGTGGDGLGTVNVSTASAILLSLVNPVAKHGNRAVSGKSGSADVLEALGYNIIVPPERAKELVNKTNFVFLFAQYYHPAMKNVANVRKTLGIRTIFNILGPLTNPANAKYQLMGVFSKDHLDLLSKSAYELDFNKIILVYGEPGIDEVSPIGNTFMKIVSKRGIEEVKLNVTDFGISPIPIEKLIVNSAEDSAIKIVRAFLGKDEHVAEFIKINTAVALFALDRVGDFREGYEYADHLIEKSLDKLNEIISMNGDVTKLKTIVVKSSG

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	PYROPHOSPHATE 2-
Molecular weight formula_weight	176.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	233

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1gxba1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1gxba2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1gxbb1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1gxbb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1gxbc1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1gxbc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1gxbd1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1gxbd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

CATH v4.4 (8 domains)

Domain ID domain_id	1gxbA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1gxbA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1gxbB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1gxbB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1gxbC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1gxbC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1gxbD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1gxbD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

▶

Unit-cell length a length_a	90.845 Å
Unit-cell length b length_b	65.467 Å
Unit-cell length c length_c	115.372 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.25 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 2 1
Space-group number int_tables_number	3
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2970
