1zxy

Anthranilate Phosphoribosyltransferase from Sulfolobus solfataricus in complex with PRPP and Magnesium

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Anthranilate phosphoribosyltransferase

Sulfolobus solfataricus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 4 1-O-pyrophosphono-5-O-phosphono-alpha-D-ribofuranose × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 4 1-O-pyrophosphono-5-O-phosphono-alpha-D-ribofuranose × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPD_SULSO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–345； UniProt 1–345 Author chain B； PDBConstruct 1–345； UniProt 1–345 Author chain C； PDBConstruct 1–345； UniProt 1–345 Author chain D； PDBConstruct 1–345； UniProt 1–345

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zxy
Deposition date deposition_date	2005-06-09
Structure title title	Anthranilate Phosphoribosyltransferase from Sulfolobus solfataricus in complex with PRPP and Magnesium
Keywords keywords	Anthranilate Posphoribosyltransferase, TrpD, PRPP, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zxy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

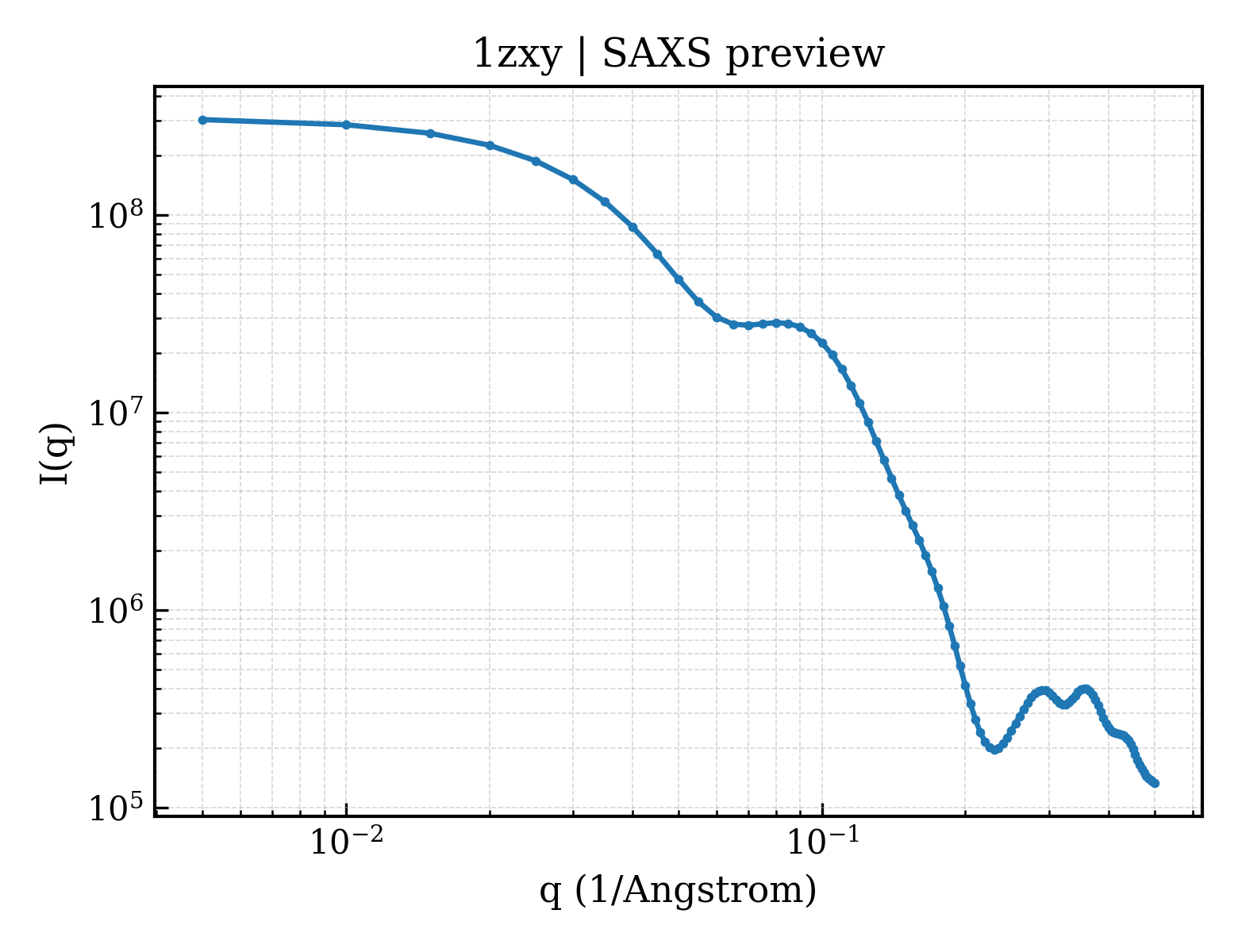

1zxy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

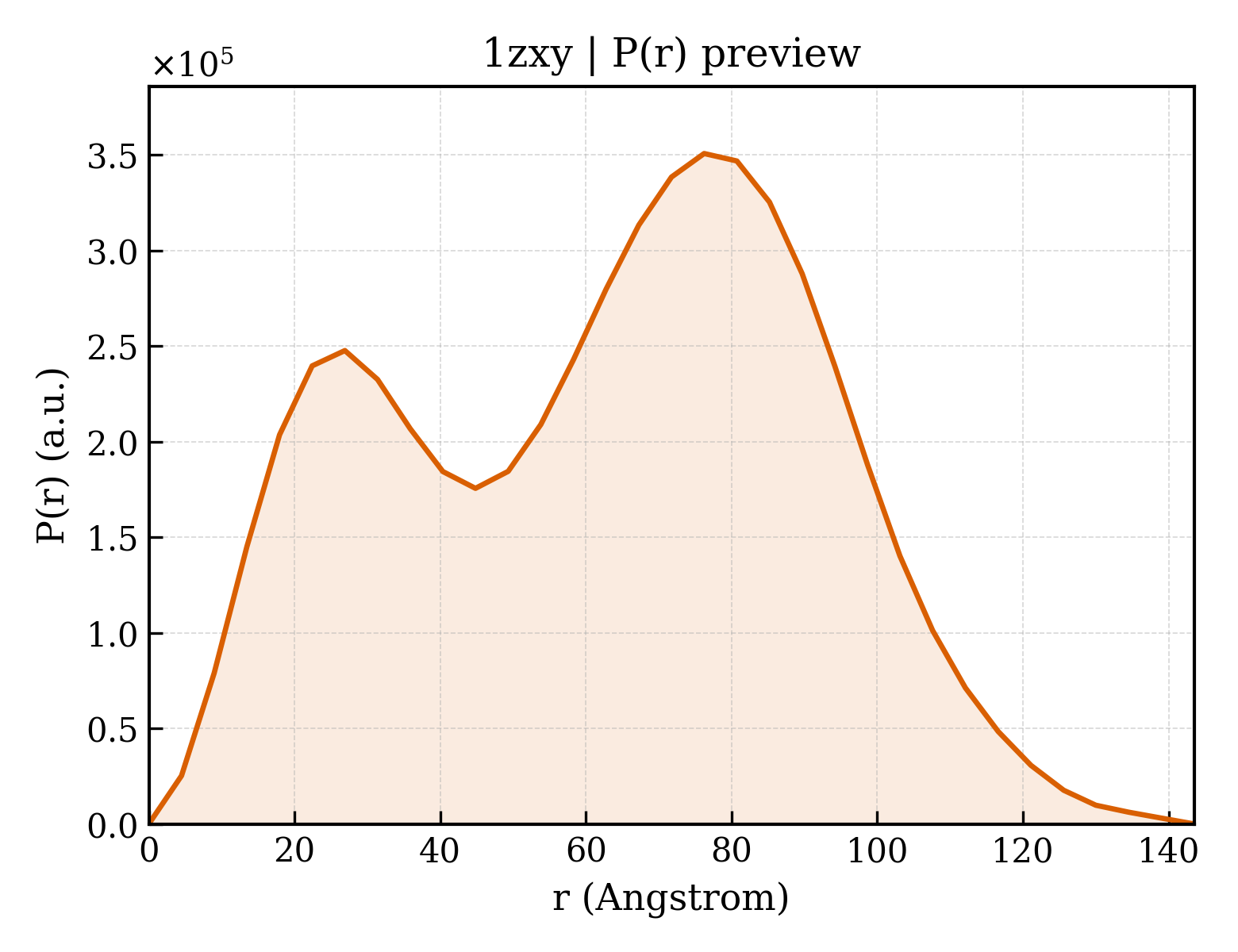

1zxy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.58 Å
Rg (electron density)	33.59 Å
Total Rg	33.78 Å
Atom count	5328
Residues	688
Excluded volume	96253 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zxy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1zxy__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Anthranilate phosphoribosyltransferase
Molecular weight formula_weight	37619.5 kDa
EC 编号 ec_number	2.4.2.18
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10748

MNINEILKKLINKSDLEINEAEELAKAIIRGEVPEILVSAILVALRMKGESKNEIVGFARAMRELAIKIDVPNAIDTAGTGGDGLGTVNVSTASAILLSLVNPVAKHGNRAVSGKSGSADVLEALGYNIIVPPERAKELVNKTNFVFLFAQYYHPAMKNVANVRKTLGIRTIFNILGPLTNPANAKYQLMGVFSKDHLDLLSKSAYELDFNKIILVYGEPGIDEVSPIGNTFMKIVSKRGIEEVKLNVTDFGISPIPIEKLIVNSAEDSAIKIVRAFLGKDEHVAEFIKINTAVALFALDRVGDFREGYEYADHLIEKSLDKLNEIISMNGDVTKLKTIVVKSSG

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	1-O-pyrophosphono-5-O-phosphono-alpha-D-ribofuranose
Molecular weight formula_weight	390.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	92

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1zxya1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1zxya2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1zxyb1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1zxyb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1zxyc1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1zxyc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1zxyd1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1zxyd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

CATH v4.4 (8 domains)

Domain ID domain_id	1zxyA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1zxyA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1zxyB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1zxyB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1zxyC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1zxyC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1zxyD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1zxyD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

▶

Unit-cell length a length_a	92.694 Å
Unit-cell length b length_b	65.806 Å
Unit-cell length c length_c	116.722 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.80 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 2 1
Space-group number int_tables_number	3
Crystal system crystal_system	—

Resolution resolution	2.560 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2040
R_free r_free	0.2600
