SAXSdb — 1gyl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLYCOLATE OXIDASE

Spinacia oleracea

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	FLAVIN MONONUCLEOTIDE × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GOX_SPIOL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–369； UniProt 1–369 Author chain B； PDBConstruct 1–369； UniProt 1–369

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gyl
Deposition date deposition_date	1995-01-30
Structure title title	INVOLVEMENT OF TYR24 AND TRP108 IN SUBSTRATE BINDING AND SUBSTRATE SPECIFICITY OF GLYCOLATE OXIDASE
Keywords keywords	OXIDOREDUCTASE (FLAVOENZYME); OXIDOREDUCTASE (FLAVOENZYME)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gyl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gyl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

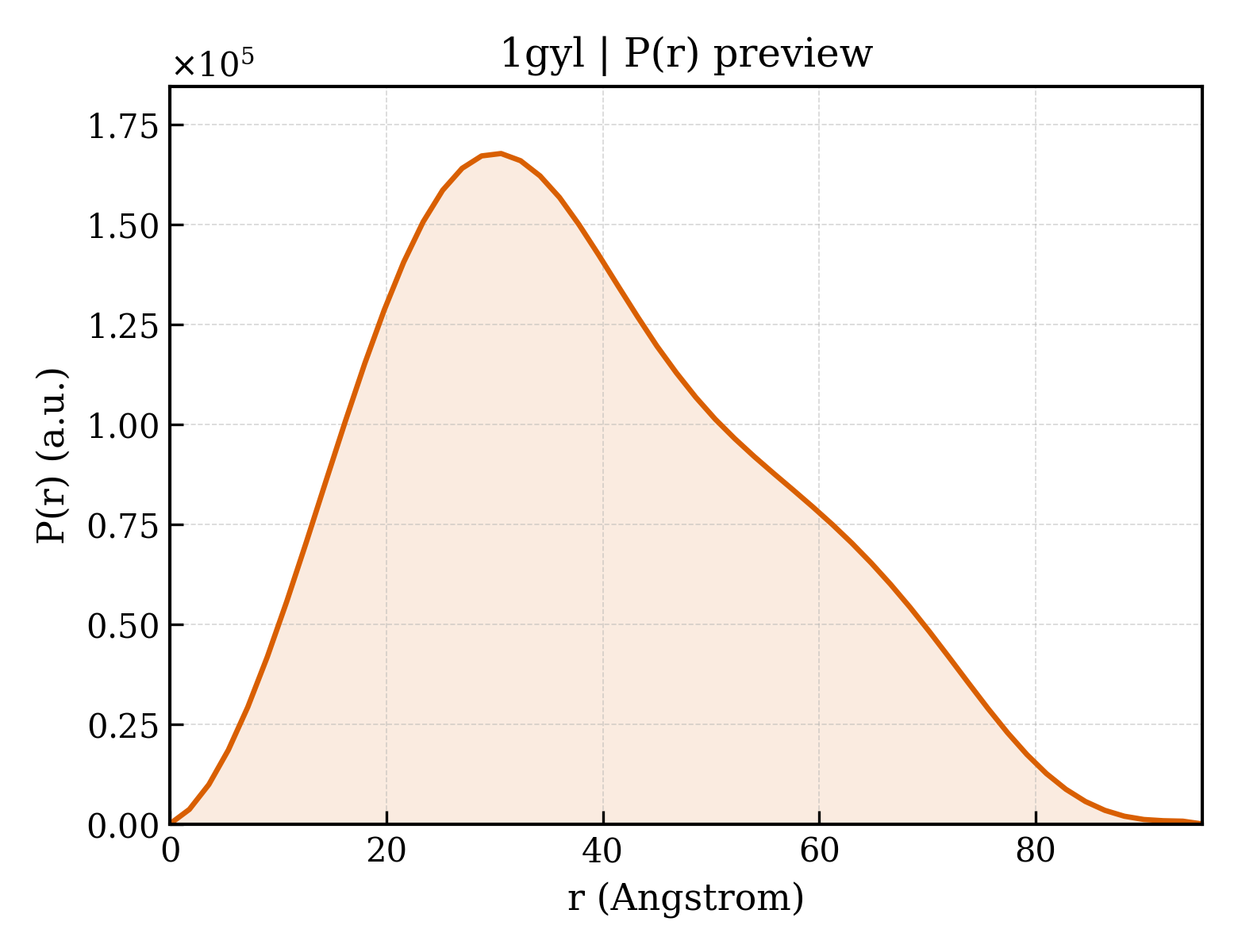

1gyl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	58.53 Å
Rg (electron density)	58.82 Å
Total Rg	58.74 Å
Atom count	21736
Residues	2808
Excluded volume	390180 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gyl__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLYCOLATE OXIDASE
Molecular weight formula_weight	40317.5 kDa
EC 编号 ec_number	1.1.3.15
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5436

MEITNVNEYEAIAKQKLPKMVYDFYASGAEDQWTLAENRNAFSRILFRPRILIDVTNIDMTTTILGFKISMPIMIAPTAMQKMAHPEGEYATARAASAAGTIMTLSSWATSSVEEVASTGPGIRFFQLYVYKDRNVVAQLVRRAERAGFKAIALTVDTPRLGRREADIKNRFVLPPFLTLKNFEGIDLGKMDKANDSGLSSYVAGQIDRSLSWKDVAWLQTITSLPILVKGVITAEDARLAVQHGAAGIIVSNHGARQLDYVPATIMALEEVVKAAQGRIPVFLDGGVRRGTDVFKALALGAAGVFIGRPVVFSLAAEGEAGVKKVLQMMRDEFELTMALSGCRSLKEISRSHIAADWDGPSSRAVARL

Source Source

Source organism organism	Spinacia oleracea
Common name common_name	spinach
NCBI taxonomy ID ncbi_taxonomy_id	3562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1gyla_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

Domain ID domain_id	d1gylb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

CATH v4.4 (2 domains)

Domain ID domain_id	1gylA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1gylB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	145.500 Å
Unit-cell length b length_b	145.500 Å
Unit-cell length c length_c	100.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4 2 2
Space-group number int_tables_number	89
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.2540
R_work r_work	0.2540
R_free r_free	—
