SAXSdb — 1huv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L(+)-MANDELATE DEHYDROGENASE

Spinacia oleracea

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 4	SULFATE ION × 4 FLAVIN MONONUCLEOTIDE × 4 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GOX_SPIOL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 177–196； UniProt 176–195

L(+)-MANDELATE DEHYDROGENASE

Spinacia oleracea

UniProt P20932

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 4	SULFATE ION × 4 FLAVIN MONONUCLEOTIDE × 4 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MDLB_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–176； UniProt 1–176 Author chain A； PDBConstruct 197–374； UniProt 216–393

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1huv
Deposition date deposition_date	2001-01-04
Structure title title	CRYSTAL STRUCTURE OF A SOLUBLE MUTANT OF THE MEMBRANE-ASSOCIATED (S)-MANDELATE DEHYDROGENASE FROM PSEUDOMONAS PUTIDA AT 2.15A RESOLUTION
Keywords keywords	TIM BARREL, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1huv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

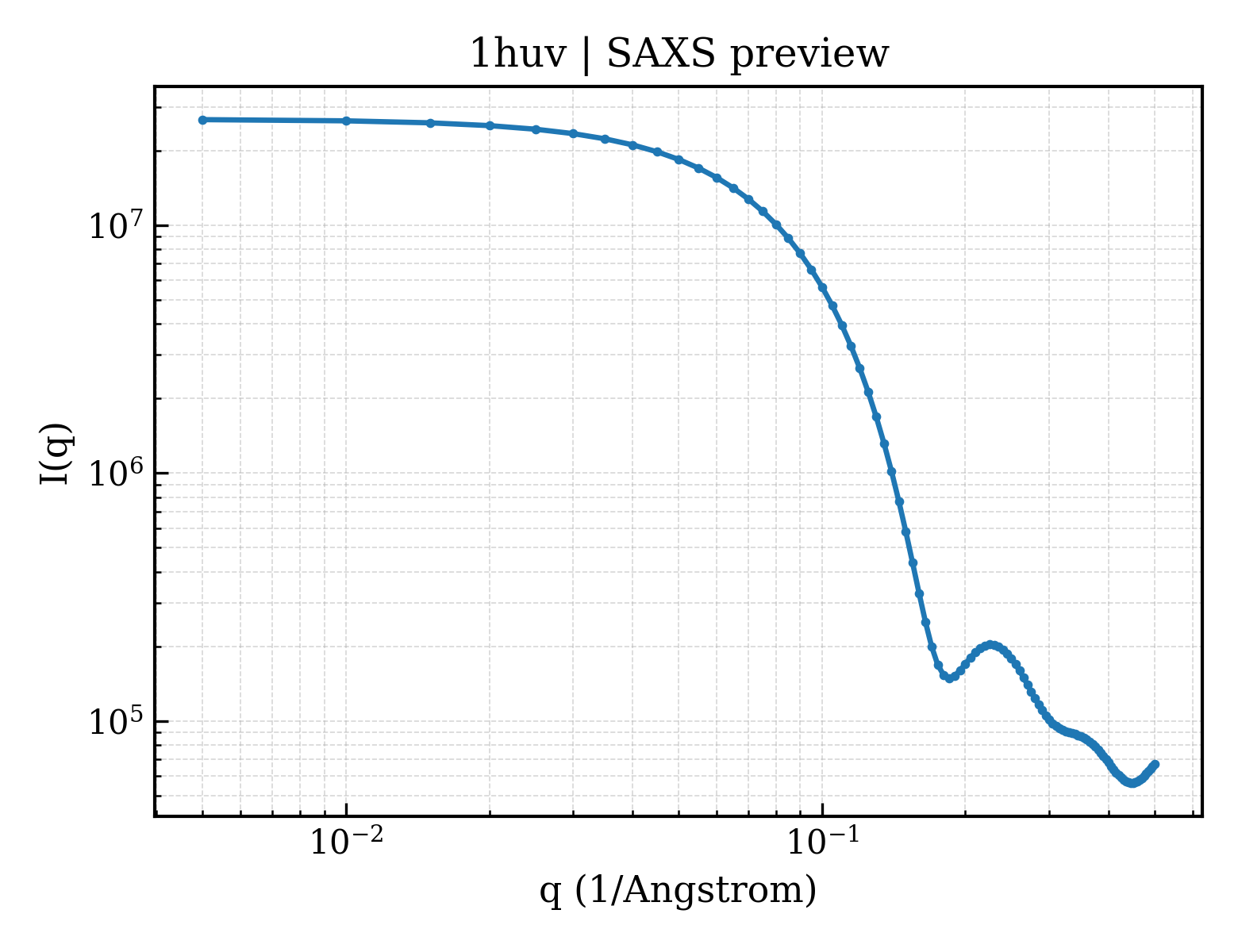

1huv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

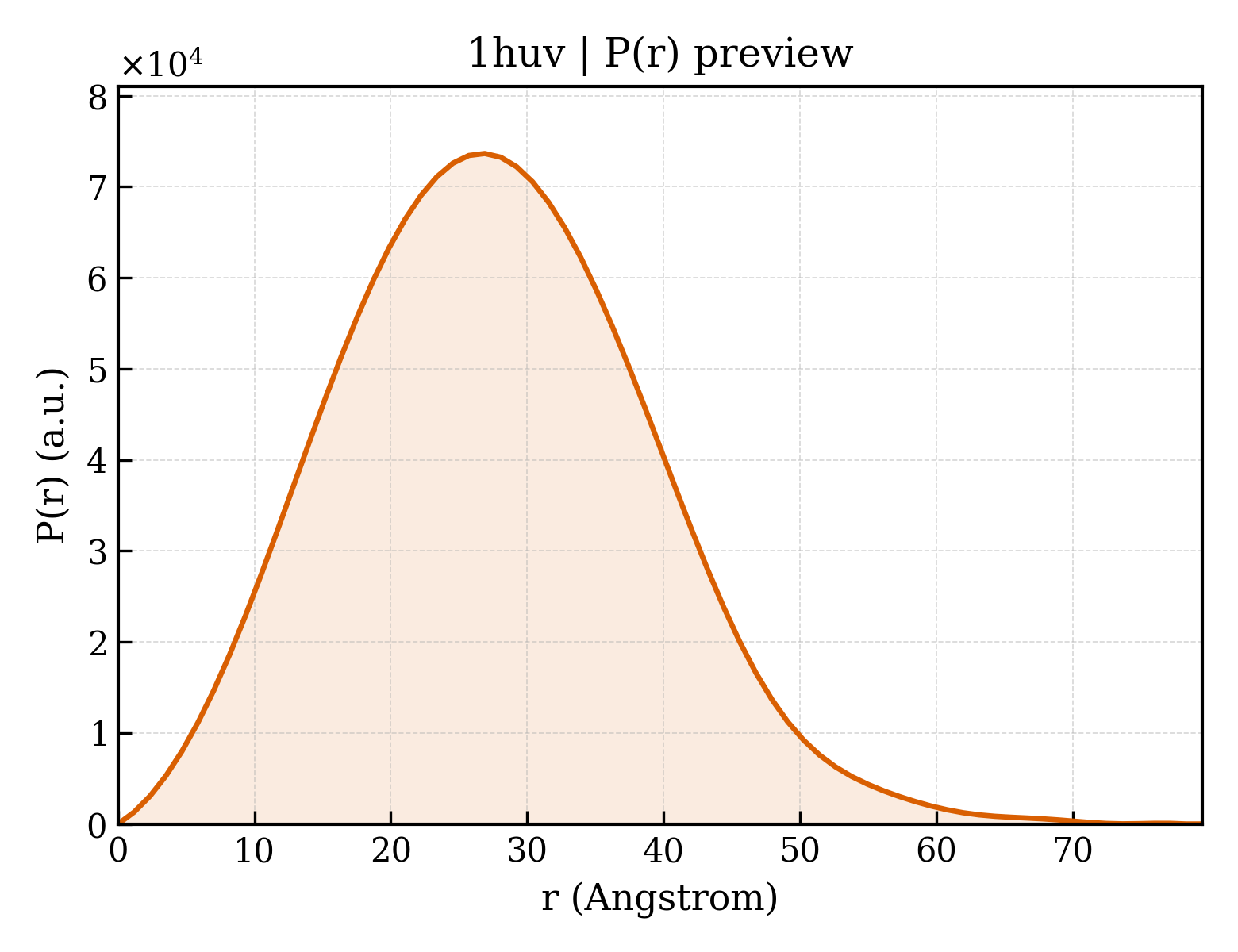

1huv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.07 Å
Rg (electron density)	36.53 Å
Total Rg	37.14 Å
Atom count	11076
Residues	1396
Excluded volume	197530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1huv__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	L(+)-MANDELATE DEHYDROGENASE
Molecular weight formula_weight	42132.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3060

MSQNLFNVEDYRKLAQKRLPKMVYDYLEGGAEDEYGVKHNRDVFQQWRFKPKRLVDVSRRSLQAEVLGKRQSMPLLIGPTGLNGALWPKGDLALARAATKAGIPFVLSTASNMSIEDLARQCDGDLWFQLYVIHREIAQGMVLKALHTGYTTLVLTTDVAVNGYRERDLHNRFKIPPFLTLKNFEGIDLGKMDKANLEMQAALMSRQMDASFNWEALRWLRDLWPHKLLVKGLLSAEDADRCIAEGADGVILSNHGGRQLDCAISPMEVLAQSVAKTGKPVLIDSGFRRGSDIVKALALGAEAVLLGRATLYGLAARGETGVDEVLTLLKADIDRTLAQIGCPDITSLSPDYLQNEGVTNTAPVDHLIGKGTHAHHHHHH

Source Source

Source organism organism	Spinacia oleracea
Common name common_name	Spinach
NCBI taxonomy ID ncbi_taxonomy_id	3562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	291

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1huva_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

CATH v4.4 (1 domains)

Domain ID domain_id	1huvA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	99.590 Å
Unit-cell length b length_b	99.590 Å
Unit-cell length c length_c	87.380 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	27.420 Å
R factor r_factor	0.1750
R_work r_work	0.1750
R_free r_free	0.2120

CRYSTAL STRUCTURE OF A SOLUBLE MUTANT OF THE MEMBRANE-ASSOCIATED (S)-MANDELATE DEHYDROGENASE FROM PSEUDOMONAS PUTIDA AT 2.15A RESOLUTION
