SAXSdb — 1h5r

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1h5r
沉积日期 deposition_date	2001-05-25
结构标题 title	Thymidylyltransferase complexed with Thimidine and Glucose-1-phospate
关键词 keywords	TRANSFERASE, PYROPHOSPHATASE, NUCLEOTIDE SUGAR METHABOLISM; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.17 Å
回转半径 Rg (电子) rg_electron	30.97 Å
零角强度 I(0) i0	266060000.00
分子量 molecular_weight	132560.0 kDa
排除体积 excluded_volume	166760 Å³
包络体积 envelope_volume	199940 Å³
水化壳体积 shell_volume	50967 Å³
包络直径 envelope_diameter	98.5 Å
壳层 Rg shell_rg	40.05 Å
包络 Rg envelope_rg	30.92 Å
形状 Rg shape_rg	30.94 Å
总 Rg total_rg	31.79 Å
总原子数 total_atoms	9318
残基数 n_residues	1160
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	97.3 Å
Rg (实空间) rg_real	31.92 Å
Rg 误差 (实空间) rg_real_error	0.46 Å
I(0) (实空间) i0_real	2.6610e+08
I(0) 误差 (实空间) i0_real_error	3.9260e+06
Rg (倒空间) rg_reciprocal	32.03 Å
I(0) (倒空间) i0_reciprocal	266100000.0000
解质量估计 total_estimate	0.6561
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.7 Å
偏度 Skewness skewness	0.076
峰度 Kurtosis kurtosis	-0.572
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	121500000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.976; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	GLUCOSE-1-PHOSPHATE THYMIDYLYLTRANSFERASE
分子量 formula_weight	32726.5 kDa
EC 编号 ec_number	2.7.7.24
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,D
原子数 atom_count	9791

MKMRKGIILAGGSGTRLYPVTMAVSKQLLPIYDKPMIYYPLSTLMLAGIRDILIISTPQDTPRFQQLLGDGSQWGLNLQYKVQPSPDGLAQAFIIGEEFIGGDDCALVLGDNIFYGHDLPKLMEAAVNKESGATVFAYHVNDPERYGVVEFDKNGTAISLEEKPLEPKSNYAVTGLYFYDNDVVQMAKNLKPSARGELEITDINRIYLEQGRLSVAMMGRGYAWLDTGTHQSLIEASNFIATIEERQGLKVSCPEEIAFRKGFIDVEQVRKLAVPLIKNNYGQYLYKMTKDSN

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	GLUCOSE-1-PHOSPHATE THYMIDYLYLTRANSFERASE
分子量 formula_weight	32705.4 kDa
EC 编号 ec_number	2.7.7.24
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MKMRKGIILAGGSGTRLYPVTMAVSKQLLPIYDKPMIYYPLSTLMLAGIRDILIISTPQDTPRFQQLLGDGSQWGLNLQYKVQPSPDGLAQAFIIGEEFIGGDDCALVLGDNIFYGHDLPKLMEAAVNKESGATVFAYHVNDPERYGVVEFDKNGTAISLEEKPLEPKSNYAVTGLYFYDNDVVQMAKNLKPSARGELEITDINRIYLEQGRLSVALMGRGYAWLDTGTHQSLIEASNFIATIEERQGLKVSCPEEIAFRKGFIDVEQVRKLAVPLIKNNYGQYLYKQTKDSN

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 non-polymer

描述 description	THYMIDINE
分子量 formula_weight	242.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 non-polymer

描述 description	1-O-phosphono-alpha-D-glucopyranose
分子量 formula_weight	260.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	473

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1h5ra_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

结构域编号 domain_id	d1h5rb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

结构域编号 domain_id	d1h5rc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

结构域编号 domain_id	d1h5rd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

CATH v4.4 (4 domains)

结构域编号 domain_id	1h5rA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1h5rB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1h5rC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1h5rD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	72.810 Å
晶胞边长 b length_b	118.960 Å
晶胞边长 c length_c	80.590 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	112.60 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	12.000 Å
R 因子 r_factor	—
R_work r_work	0.1730
R_free r_free	0.2340

fit	/app/data/saxs_computation/h5/1h5r/1h5r.fit
pddf	/app/data/pr_computation/h5/1h5r/1h5r.pr.out
profile	/app/data/saxs_computation/h5/1h5r/1h5r.dat

Thymidylyltransferase complexed with Thimidine and Glucose-1-phospate

SAXS 散射曲线 SAXS Profile

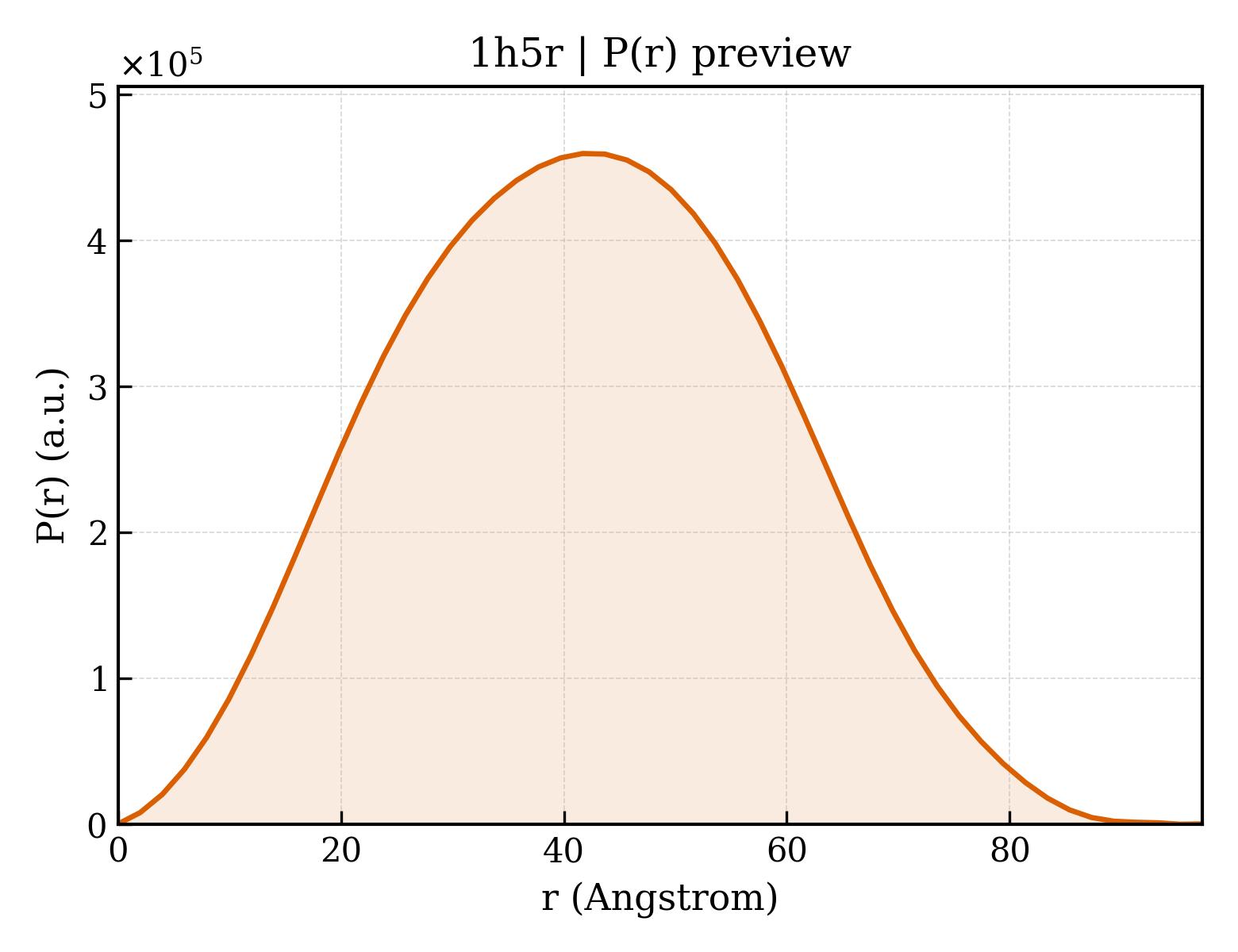

P(r) 距离分布 P(r) Distribution
