SAXSdb — 1h5s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucose-1-phosphate thymidylyltransferase 1

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	THYMIDINE-5'-PHOSPHATE × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RMLA1_ECOLI
Isoform	—
PDB entities	1, 2, 3, 4
Chains and sequence ranges	Author chain A； PDBConstruct 1–293； UniProt 1–293 Author chain B； PDBConstruct 1–293； UniProt 1–293 Author chain C； PDBConstruct 1–293； UniProt 1–293 Author chain D； PDBConstruct 1–293； UniProt 1–293

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h5s
Deposition date deposition_date	2001-05-25
Structure title title	Thymidylyltransferase complexed with TMP
Keywords keywords	TRANSFERASE, PYROPHOSPHATASE, NUCLEOTIDE SUGAR METHABOLISM; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h5s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h5s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

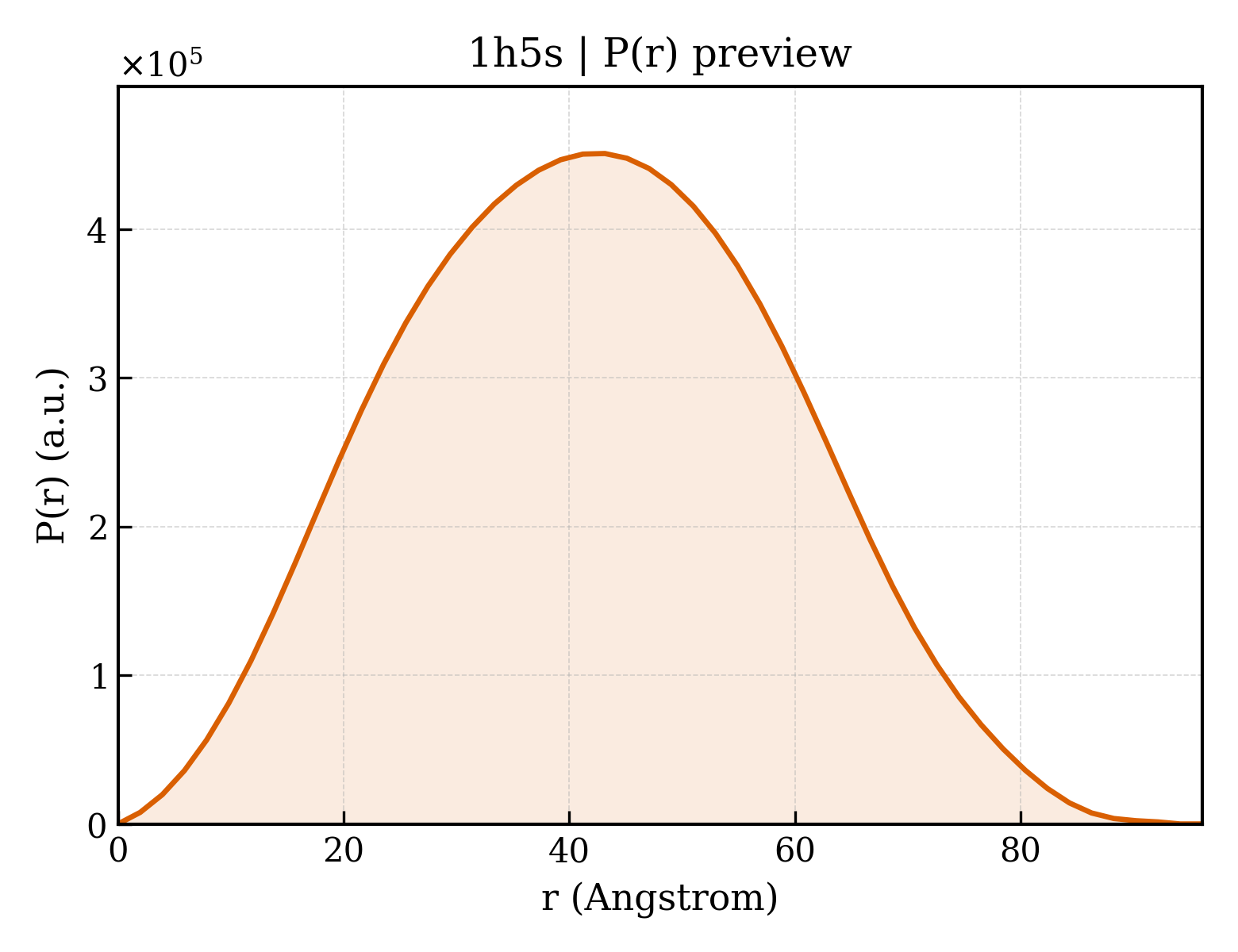

1h5s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.29 Å
Rg (electron density)	31.10 Å
Total Rg	31.95 Å
Atom count	9275
Residues	1161
Excluded volume	166050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h5s__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Glucose-1-phosphate thymidylyltransferase 1
Molecular weight formula_weight	32693.5 kDa
EC 编号 ec_number	2.7.7.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9667

MKMRKGIILAGGSGTRLYPVTMAVSKQLLPIYDKPMIYYPLSTLMLAGIRDILIISTPQDTPRFQQLLGDGSQWGLNLQYKVQPSPDGLAQAFIIGEEFIGGDDCALVLGDNIFYGHDLPKLMEAAVNKESGATVFAYHVNDPERYGVVEFDKNGTAISLEEKPLEPKSNYAVTGLYFYDNDVVLMAKNLKPSARGELEITDINRIYLEQGRLSVALMGRGYAWLDTGTHQSLIEASNFIATIEERQGLKVSCPEEIAFRKGFIDVEQVRKLAVPLIKNNYGQYLYKMTKDSN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Glucose-1-phosphate thymidylyltransferase 1
Molecular weight formula_weight	32705.4 kDa
EC 编号 ec_number	2.7.7.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKMRKGIILAGGSGTRLYPVTMAVSKQLLPIYDKPMIYYPLSTLMLAGIRDILIISTPQDTPRFQQLLGDGSQWGLNLQYKVQPSPDGLAQAFIIGEEFIGGDDCALVLGDNIFYGHDLPKLMEAAVNKESGATVFAYHVNDPERYGVVEFDKNGTAISLEEKPLEPKSNYAVTGLYFYDNDVVQMAKNLKPSARGELEITDINRIYLEQGRLSVALMGRGYAWLDTGTHQSLIEASNFIATIEERQGLKVSCPEEIAFRKGFIDVEQVRKLAVPLIKNNYGQYLYKQTKDSN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Glucose-1-phosphate thymidylyltransferase 1
Molecular weight formula_weight	32726.5 kDa
EC 编号 ec_number	2.7.7.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MKMRKGIILAGGSGTRLYPVTMAVSKQLLPIYDKPMIYYPLSTLMLAGIRDILIISTPQDTPRFQQLLGDGSQWGLNLQYKVQPSPDGLAQAFIIGEEFIGGDDCALVLGDNIFYGHDLPKLMEAAVNKESGATVFAYHVNDPERYGVVEFDKNGTAISLEEKPLEPKSNYAVTGLYFYDNDVVQMAKNLKPSARGELEITDINRIYLEQGRLSVAMMGRGYAWLDTGTHQSLIEASNFIATIEERQGLKVSCPEEIAFRKGFIDVEQVRKLAVPLIKNNYGQYLYKMTKDSN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Glucose-1-phosphate thymidylyltransferase 1
Molecular weight formula_weight	32722.5 kDa
EC 编号 ec_number	2.7.7.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MKMRKGIILAGGSGTRLYPVTMAVSKQLLPIYDKPMIYYPLSTLMLAGIRDILIISTPQDTPRFQQLLGDGSQWGLNLQYKVQPSPDGLAQAFIIGEEFIGADDCALVLGDNIFYGHDLPKLMEAAVNKESGATVFAYHVNDPERYGVVEFDKNGTAISLEEKPLEPKSNYAVTGLYFYDNDVVQMAKNLKPSARGELEITDINRIYLEQGRLSVALMGRGYAWLDTGTHQSLIEASNFIATIEERQGLKVSCPEEIAFRKGFIDVEQVRKLAVPLIKNNYGQYLYKMTKDSN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	THYMIDINE-5'-PHOSPHATE
Molecular weight formula_weight	322.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	392

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1h5sa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

Domain ID domain_id	d1h5sb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

Domain ID domain_id	d1h5sc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

Domain ID domain_id	d1h5sd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

CATH v4.4 (4 domains)

Domain ID domain_id	1h5sA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1h5sB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1h5sC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1h5sD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

Unit-cell length a length_a	73.100 Å
Unit-cell length b length_b	119.270 Å
Unit-cell length c length_c	81.110 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	112.66 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	—
R_work r_work	0.1760
R_free r_free	0.2570
