SAXSdb — 1h6h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NEUTROPHIL CYTOSOL FACTOR 4

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–144	Fragment：PX DOMAIN RESIDUES 2-144	PIB 2-(BUTANOYLOXY)-1-{[(HYDROXY{[2,3,4,6-TETRAHYDROXY-5-(PHOSPHONOOXY)CYCLOHEXYL]OXY}PHOSPHORYL)OXY]METHYL}ETHYL BUTANOATE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.50	Resolution 1.70 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H6H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 237–339（103 aa） Fragment：PB1 DOMAIN, RESIDUES 237-339	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 237–339（103 aa） Fragment：PB1 DOMAIN, RESIDUES 237-339	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 237–339（103 aa） Fragment：PB1 DOMAIN, RESIDUES 237-339	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 237–339（103 aa） Fragment：PB1 DOMAIN, RESIDUES 237-339	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1W6X SH3 domain of p40phox, component of the NADPH oxidase Deposited 2004-08-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 174–228（55 aa） Fragment：SH3 DOMAIN, RESIDUES 174-228	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；287 K；VAPOR DIFFUSION AT 14 DEGRE C, PROTEIN AT 14 MG/ML, 20 MM HEPES PH 7.5, 150 MM NACL MIXED WITH 40% PEG2K MME, 100 MM AS 200 MM NA AC PH 4.6.	Resolution 2.00 Å R-free 0.250
1W6X SH3 domain of p40phox, component of the NADPH oxidase Deposited 2004-08-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 174–228（55 aa） Fragment：SH3 DOMAIN, RESIDUES 174-228	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；287 K；VAPOR DIFFUSION AT 14 DEGRE C, PROTEIN AT 14 MG/ML, 20 MM HEPES PH 7.5, 150 MM NACL MIXED WITH 40% PEG2K MME, 100 MM AS 200 MM NA AC PH 4.6.	Resolution 2.00 Å R-free 0.250
1W70 SH3 domain of p40phox complexed with C-terminal polyProline region of p47phox Deposited 2004-08-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 174–228（55 aa） Fragment：SH3 DOMAIN, RESIDUES 174-228	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION AT 20 DEGRE C AT 14MG/ML OF P40PHOX SH3 WITH A1/5 RATIO WITH POLYPROLINE PEPTIDE, 20 MM HEPES PH 7.5, 150 MM NACL MIXED WITH 100 MM NA-CITRATE/CITRIC ACID PH5, 2.4 M SA	Resolution 1.46 Å R-free 0.207
1W70 SH3 domain of p40phox complexed with C-terminal polyProline region of p47phox Deposited 2004-08-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 174–228（55 aa） Fragment：SH3 DOMAIN, RESIDUES 174-228	Not recorded	SO4 SULFATE ION × 3 TFA trifluoroacetic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION AT 20 DEGRE C AT 14MG/ML OF P40PHOX SH3 WITH A1/5 RATIO WITH POLYPROLINE PEPTIDE, 20 MM HEPES PH 7.5, 150 MM NACL MIXED WITH 100 MM NA-CITRATE/CITRIC ACID PH5, 2.4 M SA	Resolution 1.46 Å R-free 0.207
1Z9Q Solution structure of SH3 domain of p40phox Deposited 2005-04-04	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–233（66 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure ambient NMR sample composition 0.5mM p40phoxSH3 U-13C, 15N; 50mM NaPi pH7.0; 150mM NaCl \| 90% H2O/10% D2O	Resolution not provided
2DYB The crystal structure of human p40(phox) Deposited 2006-09-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–339（339 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；5% PEG 20000, 200mM Bis-tris-HCl, 10mM sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.302
2DYB The crystal structure of human p40(phox) Deposited 2006-09-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–339（339 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；5% PEG 20000, 200mM Bis-tris-HCl, 10mM sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.302

5 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NCF4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–143； UniProt 2–144

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h6h
Deposition date deposition_date	2001-06-15
Structure title title	Structure of the PX domain from p40phox bound to phosphatidylinositol 3-phosphate
Keywords keywords	PX DOMAIN; PX DOMAIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.91 Å
Radius of gyration Rg (electron density) rg_electron	16.83 Å
Forward intensity I(0) i0	5410980.00
Molecular weight molecular_weight	16938.0 kDa
Excluded volume excluded_volume	21344 Å³
Envelope volume envelope_volume	26644 Å³
Hydration-shell volume shell_volume	13931 Å³
Envelope diameter envelope_diameter	63.3 Å
Shell Rg shell_rg	22.20 Å
Envelope Rg envelope_rg	17.37 Å
Shape Rg shape_rg	16.81 Å
Total Rg total_rg	17.96 Å
Total atoms total_atoms	1191
Residues n_residues	143
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

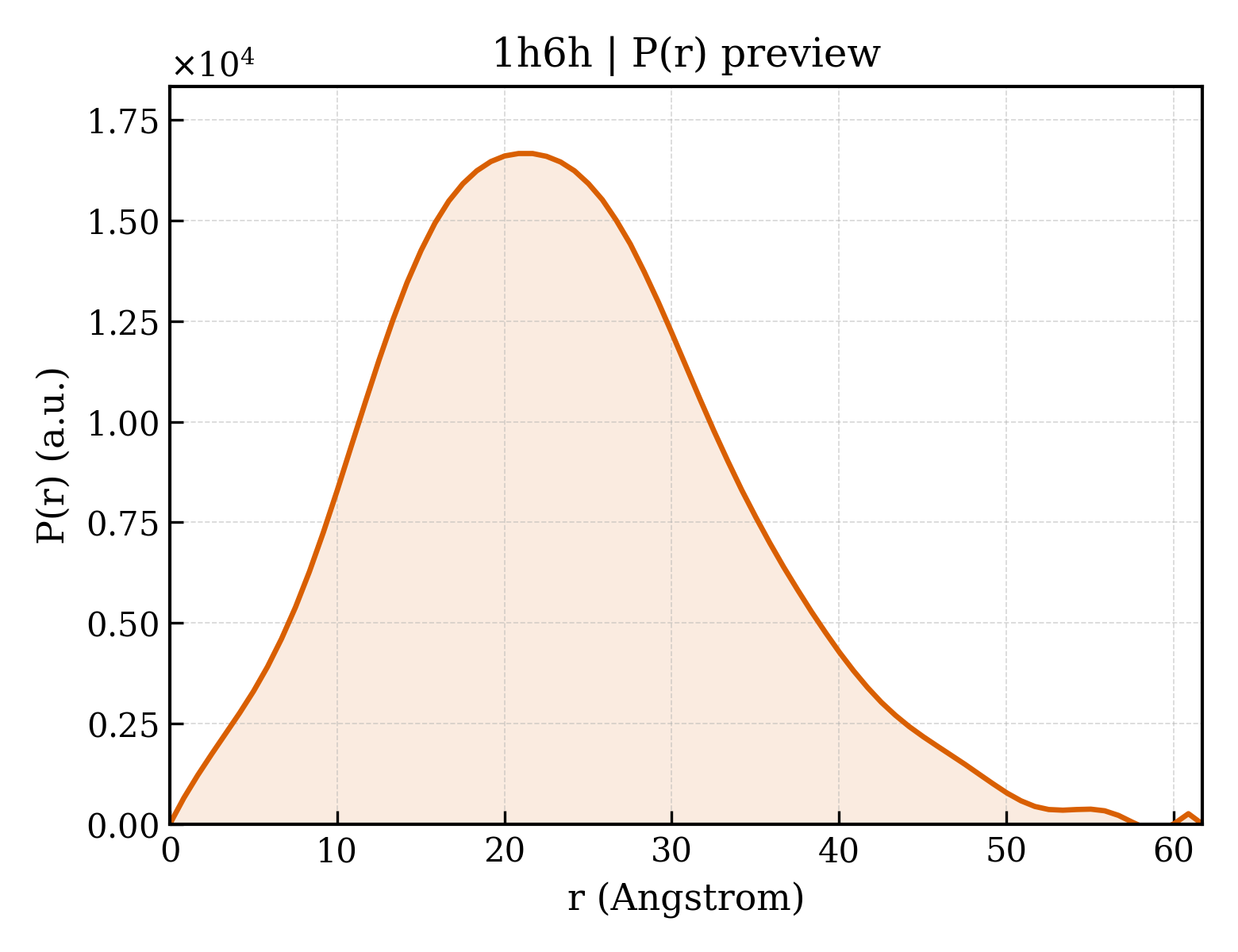

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.7 Å
Rg (real space) rg_real	17.91 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	5.4110e+06
I(0) uncertainty (real space) i0_real_error	6.4970e+04
Rg (reciprocal space) rg_reciprocal	17.91 Å
I(0) (reciprocal space) i0_reciprocal	5411000.0000
Solution quality estimate total_estimate	0.7894
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	55.1 Å
Skewness Skewness skewness	0.364
Kurtosis Kurtosis kurtosis	-0.121
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	809300.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.757; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NEUTROPHIL CYTOSOL FACTOR 4
Molecular weight formula_weight	16312.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1373

AVAQQLRAESDFEQLPDDVAISANIADIEEKRGFTSHFVFVIEVKTKGGSKYLIYRRYRQFHALQSKLEERFGPDSKSSALACTLPTLPAKVYVGVKQEIAEMRIPALNAYMKSLLSLPVWVLMDEDVRIFFYQSPYDSEQVP

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	2-(BUTANOYLOXY)-1-{[(HYDROXY{[2,3,4,6-TETRAHYDROXY-5-(PHOSPHONOOXY)CYCLOHEXYL]OXY}PHOSPHORYL)OXY]METHYL}ETHYL BUTANOATE
Molecular weight formula_weight	554.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	182

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1h6ha_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.189 — PX domain
Superfamily Superfamily superfamily	d.189.1 — PX domain
Family Family family	d.189.1.1 — PX domain

CATH v4.4 (1 domains)

Domain ID domain_id	1h6hA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1520 — PX Domain
Homologous superfamily homologous superfamily	10 — Phox-like domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	96.760 Å
Unit-cell length b length_b	33.642 Å
Unit-cell length c length_c	76.430 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	132.42 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	30.730 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2320
