1oey

Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NEUTROPHIL CYTOSOL FACTOR 2

HOMO SAPIENS

UniProt P19878

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 4 × 1 （Q15080） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 4 × 1 （Q15080） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 4 × 1 （Q15080） water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 4 × 1 （Q15080） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–83； UniProt 352–429 Author chain B； PDBConstruct 6–83； UniProt 352–429 Author chain C； PDBConstruct 6–83； UniProt 352–429 Author chain D； PDBConstruct 6–83； UniProt 352–429

NEUTROPHIL CYTOSOL FACTOR 4

HOMO SAPIENS

UniProt Q15080

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 2 × 1 （P19878） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 2 × 1 （P19878） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 2 × 1 （P19878） water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	NEUTROPHIL CYTOSOL FACTOR 2 × 1 （P19878） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCF4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain J； PDBConstruct 5–107； UniProt 237–339 Author chain K； PDBConstruct 5–107； UniProt 237–339 Author chain L； PDBConstruct 5–107； UniProt 237–339 Author chain M； PDBConstruct 5–107； UniProt 237–339

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oey
Deposition date deposition_date	2003-04-02
Structure title title	Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase
Keywords keywords	IMMUNE SYSTEM, PB1 HETERODIMER-COMPLEX, NADPH OXIDASE, PB1 DOMAIN, HETERODIMERIZATION; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oey__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

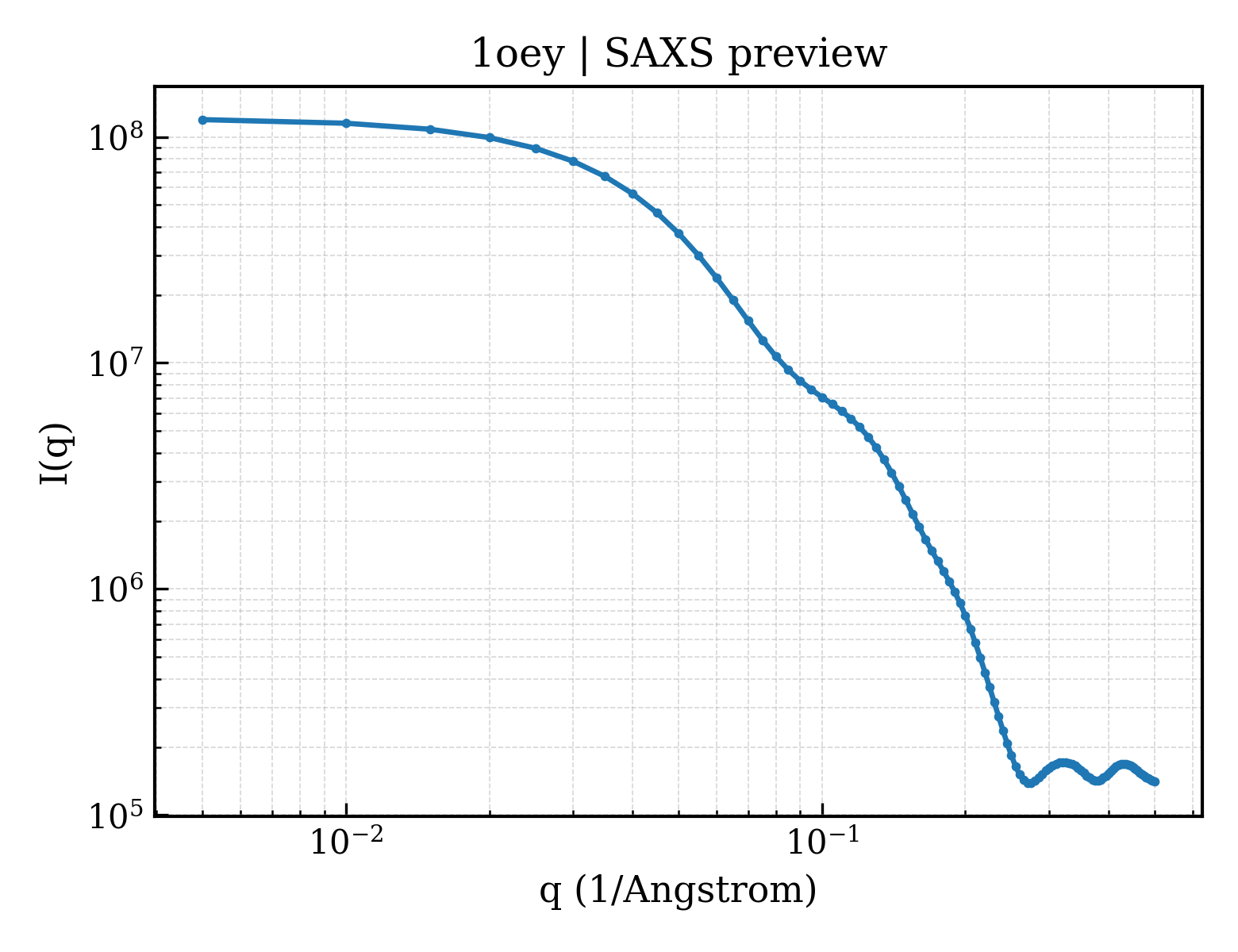

1oey__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1oey__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.40 Å
Rg (electron density)	18.22 Å
Total Rg	19.21 Å
Atom count	1558
Residues	180
Excluded volume	27876 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oey__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1oey__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1oey__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1oey__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NEUTROPHIL CYTOSOL FACTOR 2
Molecular weight formula_weight	9940.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6382

GSHMAYTLKVHYKYTVVMKTQPGLPYSQVRDMVSKKLELRLEHTKLSYRPRDSNELVPLSEDSMKDAWGQVKNYCLTLWCENT

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 2 Entity 2 polymer

Description description	NEUTROPHIL CYTOSOL FACTOR 4
Molecular weight formula_weight	12848.1 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,K,L,M

GSHMTNWLRVYYYEDTISTIKDIAVEEDLSSTPLLKDLLELTRREFQREDIALNYRDAEGDLVRLLSDEDVALMVRQARGLPSQKRLFPWKLHITQKDNYRVYNTMP

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	343

▼

6. Fold Classification (SCOP + CATH) 19 domains

SCOP 2.08 (11 domains)

Domain ID domain_id	d1oeya1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeya2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1oeyb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeyb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1oeyc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeyd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeyd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1oeyj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeyk_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeyl_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d1oeym_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

CATH v4.4 (8 domains)

Domain ID domain_id	1oeyA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyJ00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyK00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyL00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1oeyM00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	151.422 Å
Unit-cell length b length_b	151.422 Å
Unit-cell length c length_c	68.317 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2120
R_work r_work	0.2100
R_free r_free	0.2520
