SAXSdb — 1k4u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHAGOCYTE NADPH OXIDASE SUBUNIT P67PHOX

Homo sapiens

UniProt P19878

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain S； UniProt 455–516	Fragment：C-TERMINAL SH3 DOMAIN (RESIDUES 455-516) Mutation：C499S/C514S	PHAGOCYTE NADPH OXIDASE SUBUNIT P47PHOX × 1 （P14598）	SOLUTION NMR NMR measurement conditions：pH 7.1；298 K；Ionic strength (raw mmCIF value) 100mM KCl；Pressure 1 NMR sample composition：0.7mM p67SH3(C) U-15N,13C; 0.77mM p47 tail peptide; 5mM MOPSO buffer; 30 mM d10-DTT; 100mM KCl \| 90% H2O, 10% D2O; 100% D2O NMR sample composition：0.5mM p47 tail peptide U-15N,13C; 0.55mM p67SH3(C); 5mM MOPSO buffer; 30mM d10-DTT; 100mM KCl \| 90% H2O, 10% D2O; 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1K4U	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1E96 Structure of the Rac/p67phox complex Deposited 2000-10-10	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–203（203 aa） Fragment：YES	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 10.5；0.1 M CAPS PH 10.5, 0.2 M LI ACETATE, 0.8 M NAH2PO4, 1.2 M K2HPO4	Resolution 2.40 Å R-free 0.284
1HH8 The active N-terminal region of p67phox: Structure at 1.8 Angstrom resolution and biochemical characterizations of the A128V mutant implicated in chronic granulomatous disease Deposited 2000-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–213（213 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 1-213	Not recorded	FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；100 MM NA CITRATE PH 4.5, 17% PEG 2K MME, 10% GLYCEROL	Resolution 1.80 Å R-free 0.204
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 352–429（78 aa） Fragment：PB1 DOMAIN, RESIDUES 352-429	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 352–429（78 aa） Fragment：PB1 DOMAIN, RESIDUES 352-429	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 352–429（78 aa） Fragment：PB1 DOMAIN, RESIDUES 352-429	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1OEY Heterodimer of p40phox and p67phox PB1 domains from human NADPH oxidase Deposited 2003-04-02	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 352–429（78 aa） Fragment：PB1 DOMAIN, RESIDUES 352-429	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；18% PEG 3350, 17% PEG 400, 4.8% ISOPROPYL ALCOHOL, 0.1 M CAPSO PH 9.0	Resolution 2.00 Å R-free 0.252
1WM5 Crystal structure of the N-terminal TPR domain (1-203) of p67phox Deposited 2004-07-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–203（203 aa） Fragment：TPR domain	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；ammonium sulfate, HEPES, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.95 Å R-free 0.224
2DMO Refined solution structure of the 1st SH3 domain from human Neutrophil cytosol factor 2 (NCF-2) Deposited 2006-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 242–297（56 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.3mM SH3 domain U-15N,13C; 20mM d-Tris HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O \| 90% H2O/10% D2O	Resolution not provided

5 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NCF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain S； PDBConstruct 1–62； UniProt 455–516

PHAGOCYTE NADPH OXIDASE SUBUNIT P47PHOX

Homo sapiens

UniProt P14598

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 359–390	Fragment：TAIL PEPTIDE (RESIDUES 359-390)	PHAGOCYTE NADPH OXIDASE SUBUNIT P67PHOX × 1 （P19878）	SOLUTION NMR NMR measurement conditions：pH 7.1；298 K；Ionic strength (raw mmCIF value) 100mM KCl；Pressure 1 NMR sample composition：0.7mM p67SH3(C) U-15N,13C; 0.77mM p47 tail peptide; 5mM MOPSO buffer; 30 mM d10-DTT; 100mM KCl \| 90% H2O, 10% D2O; 100% D2O NMR sample composition：0.5mM p47 tail peptide U-15N,13C; 0.55mM p67SH3(C); 5mM MOPSO buffer; 30mM d10-DTT; 100mM KCl \| 90% H2O, 10% D2O; 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1K4U	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GD5 SOLUTION STRUCTURE OF THE PX DOMAIN FROM HUMAN P47PHOX NADPH OXIDASE Deposited 2000-09-14	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–128（128 aa） Fragment：PX DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；293 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 0.6mM PX domain U-15N,13C; 5mM Na-MES buffer; 95% H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
1KQ6 p47phox PX domain Deposited 2002-01-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–141（141 aa） Fragment：PX domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3 GOL GLYCEROL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；PEG 550 DME, glycerol, ammonium sulfate, natrium citrate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.18 Å R-free 0.185
1NG2 Structure of autoinhibited p47phox Deposited 2002-12-16	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 156–340（185 aa） Fragment：residues 156-340	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291 K；PEG 3000, sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.233
1NG2 Structure of autoinhibited p47phox Deposited 2002-12-16	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 156–340（185 aa） Fragment：residues 156-340	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291 K；PEG 3000, sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.233
1O7K human p47 PX domain complex with sulphates Deposited 2002-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–123（123 aa） Fragment：PX DOMAIN, RESIDUES 1-123 Chain B 1–123（123 aa） Fragment：PX DOMAIN, RESIDUES 1-123 Chain C 1–123（123 aa） Fragment：PX DOMAIN, RESIDUES 1-123	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；1 M AMMONIUM SULPHATE, 0.1M TRIS PH 8.5, 12% GLYCEROL	Resolution 2.00 Å R-free 0.254
1OV3 Structure of the p22phox-p47phox complex Deposited 2003-03-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 156–285（130 aa） Fragment：Residues 156-285 Chain B 156–285（130 aa） Fragment：Residues 156-285	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；1 M Na-Citrate, 0.1 M Na-cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.275
1OV3 Structure of the p22phox-p47phox complex Deposited 2003-03-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 156–285（130 aa） Fragment：Residues 156-285 Chain B 156–285（130 aa） Fragment：Residues 156-285	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；1 M Na-Citrate, 0.1 M Na-cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.275
1UEC Crystal structure of autoinhibited form of tandem SH3 domain of p47phox Deposited 2003-05-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 151–340（190 aa） Fragment：autoinhibited tandem SH3 domain, redidues 151-340	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；293 K；16% PEG 6000, 0.1M soduim citrate, 50mM sodium fluoride, pH 5.4, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.82 Å R-free 0.236
1UEC Crystal structure of autoinhibited form of tandem SH3 domain of p47phox Deposited 2003-05-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 151–340（190 aa） Fragment：autoinhibited tandem SH3 domain, redidues 151-340	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；293 K；16% PEG 6000, 0.1M soduim citrate, 50mM sodium fluoride, pH 5.4, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.82 Å R-free 0.236
1W70 SH3 domain of p40phox complexed with C-terminal polyProline region of p47phox Deposited 2004-08-26	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 360–372（13 aa） Fragment：POLYPROLINE MOTIF, RESIDUES 360-372	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION AT 20 DEGRE C AT 14MG/ML OF P40PHOX SH3 WITH A1/5 RATIO WITH POLYPROLINE PEPTIDE, 20 MM HEPES PH 7.5, 150 MM NACL MIXED WITH 100 MM NA-CITRATE/CITRIC ACID PH5, 2.4 M SA	Resolution 1.46 Å R-free 0.207
1W70 SH3 domain of p40phox complexed with C-terminal polyProline region of p47phox Deposited 2004-08-26	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 360–372（13 aa） Fragment：POLYPROLINE MOTIF, RESIDUES 360-372	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3 TFA trifluoroacetic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION AT 20 DEGRE C AT 14MG/ML OF P40PHOX SH3 WITH A1/5 RATIO WITH POLYPROLINE PEPTIDE, 20 MM HEPES PH 7.5, 150 MM NACL MIXED WITH 100 MM NA-CITRATE/CITRIC ACID PH5, 2.4 M SA	Resolution 1.46 Å R-free 0.207
1WLP Solution Structure Of The P22Phox-P47Phox Complex Deposited 2004-06-29	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 151–286（136 aa） Fragment：Tandem SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
7YXW Structure of the p22phox A200G mutant in complex with p47phox peptide Deposited 2022-02-16	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 156–285（130 aa）	Mutation：A200G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5, 1.2 M sodium citrate tribasic dihydrate, 1:1 protein:precipitant ratio	Resolution 2.50 Å R-free 0.269
8WEJ Structure of human phagocyte NADPH oxidase in the activated state Deposited 2023-09-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain C 1–286（286 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MG MAGNESIUM ION × 2 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FDA DIHYDROFLAVINE-ADENINE DINUCLEOTIDE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å

10 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NCF1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 1–32； UniProt 359–390

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k4u
Deposition date deposition_date	2001-10-08
Structure title title	Solution structure of the C-terminal SH3 domain of p67phox complexed with the C-terminal tail region of p47phox
Keywords keywords	P67PHOX, P47PHOX, SH3-PEPTIDE COMPLEX, HELIX-TURN-HELIX, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.74 Å
Radius of gyration Rg (electron density) rg_electron	12.50 Å
Forward intensity I(0) i0	690810000.00
Molecular weight molecular_weight	227630.0 kDa
Excluded volume excluded_volume	287080 Å³
Envelope volume envelope_volume	24217 Å³
Hydration-shell volume shell_volume	13685 Å³
Envelope diameter envelope_diameter	51.4 Å
Shell Rg shell_rg	20.74 Å
Envelope Rg envelope_rg	15.47 Å
Shape Rg shape_rg	12.45 Å
Total Rg total_rg	12.84 Å
Total atoms total_atoms	32296
Residues n_residues	2068
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.1 Å
Rg (real space) rg_real	12.69 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	6.9080e+08
I(0) uncertainty (real space) i0_real_error	7.3630e+06
Rg (reciprocal space) rg_reciprocal	12.69 Å
I(0) (reciprocal space) i0_reciprocal	690800000.0000
Solution quality estimate total_estimate	0.7811
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	14.7 Å
Skewness Skewness skewness	0.240
Kurtosis Kurtosis kurtosis	-0.160
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	348900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	PHAGOCYTE NADPH OXIDASE SUBUNIT P67PHOX
Molecular weight formula_weight	6937.7 kDa
Mutation mutation	C499S/C514S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S
Atom count atom_count	32296

QLKKGSQVEALFSYEATQPEDLEFQEGDIILVLSKVNEEWLEGESKGKVGIFPKVFVEDSAT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PHAGOCYTE NADPH OXIDASE SUBUNIT P47PHOX
Molecular weight formula_weight	3424.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

SKPQPAVPPRPSADLILNRCSESTKRKLASAV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1k4us_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

CATH v4.4 (1 domains)

Domain ID domain_id	1k4uS00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/k4/1k4u/1k4u.fit
pddf	/app/data/pr_computation/k4/1k4u/1k4u.pr.out
profile	/app/data/saxs_computation/k4/1k4u/1k4u.dat

Solution structure of the C-terminal SH3 domain of p67phox complexed with the C-terminal tail region of p47phox

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHAGOCYTE NADPH OXIDASE SUBUNIT P67PHOX

State in the Current Structure

Other States of the Same Protein in the Database

PHAGOCYTE NADPH OXIDASE SUBUNIT P47PHOX

State in the Current Structure

Other States of the Same Protein in the Database

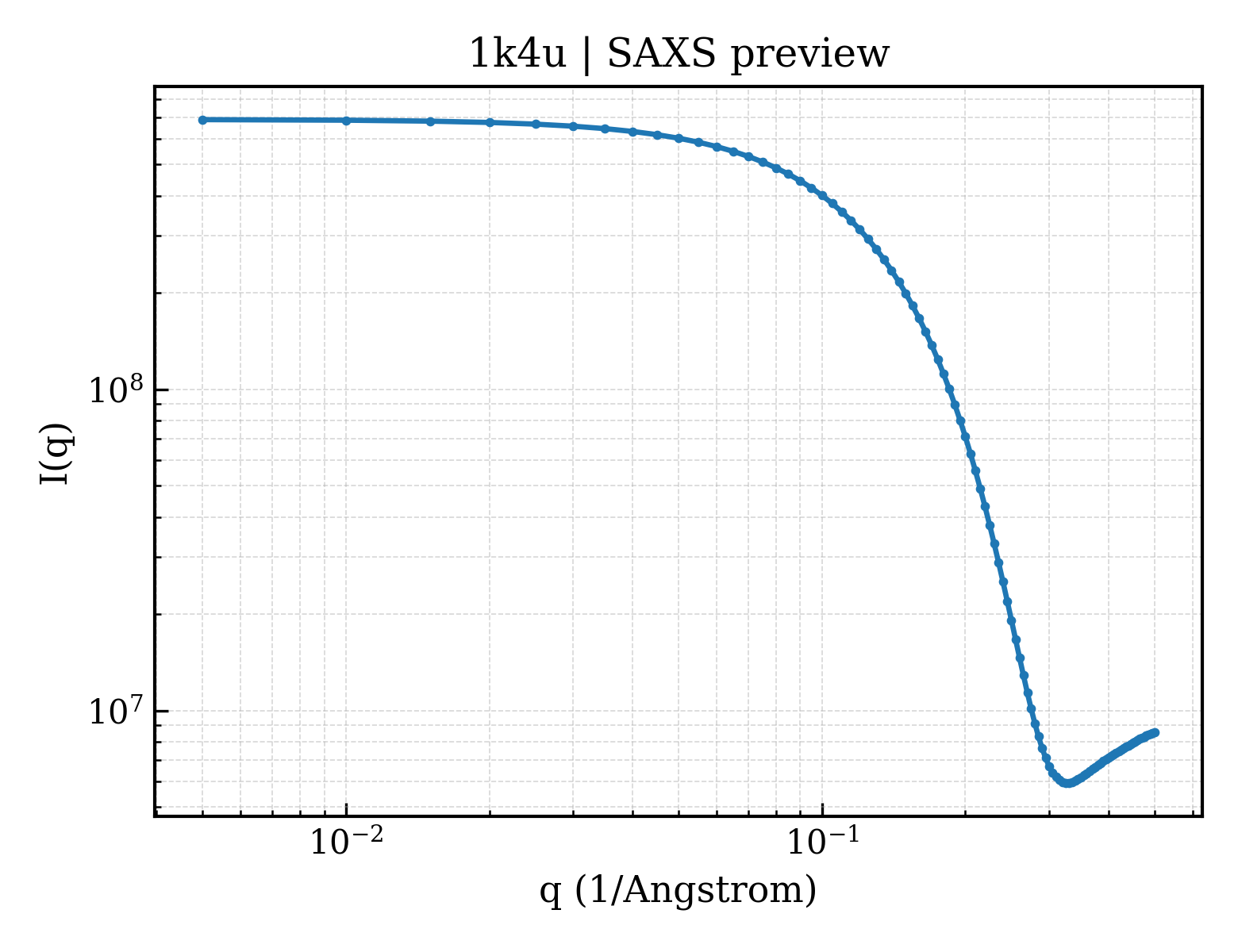

SAXS scattering curve SAXS Profile

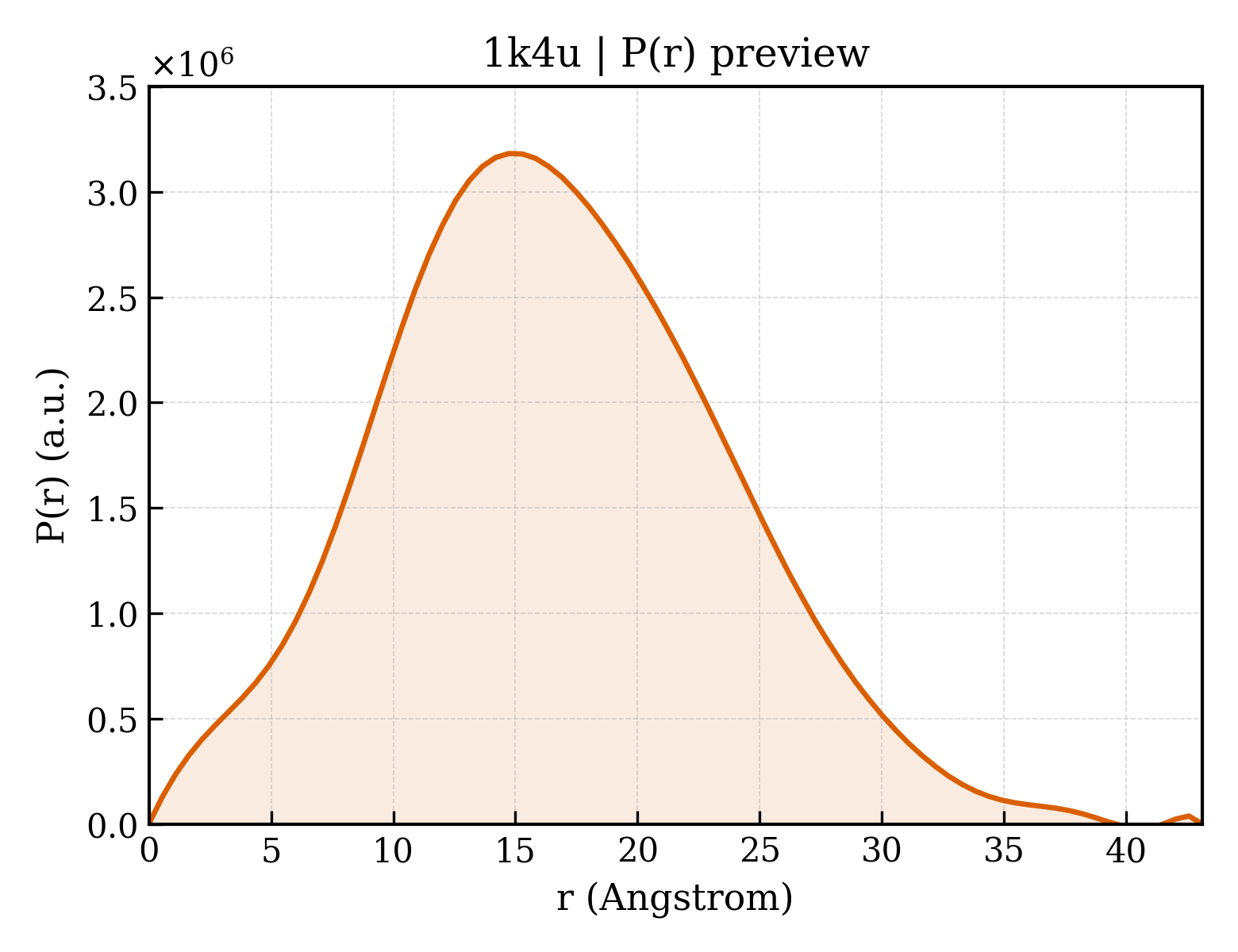

P(r) Distance Distribution P(r) Distribution
