SAXSdb — 1h7r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

5-AMINOLAEVULINIC ACID DEHYDRATASE

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–342	Not recorded	SHU 4,6-DIOXOHEPTANOIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；AS FOR 1AW5 WITH 6MM SUCCINYLACETONE PRESENT., pH 8.00	Resolution 2.00 Å R-free 0.310

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H7R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AW5 5-AMINOLEVULINATE DEHYDRATASE FROM SACCHAROMYCES CEREVISIAE Deposited 1997-10-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–340（340 aa）	Mutation：M272V Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；ENZYME CONCENTRATION 1 MG/ML, PH 7.0 - 8.5, BUFFER 0.2 M TRIS-HCL, PRECIPITANT PEG 6000 (<10%), 70 MICROMOLAR ZINC SULPHATE, 6 MM BETA-MERCAPTOETHANOL, HANGING DROPS., pH 8.0, vapor diffusion - hanging drop	Resolution 2.30 Å R-free 0.270
1EB3 YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE 4,7-DIOXOSEBACIC ACID COMPLEX Deposited 2001-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–340（340 aa）	Not recorded	DSB 4,7-DIOXOSEBACIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR PDB ENTRY 1AW5 WITH 5 MM 4,7-DIOXO-SEBACIC ACID IN DROP, pH 8.00	Resolution 1.75 Å R-free 0.308
1GJP SCHIFF-BASE COMPLEX OF YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE WITH 4-OXOSEBACIC ACID Deposited 2001-08-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–340（340 aa）	Not recorded	4OX 4-OXODECANEDIOIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR 1AW5 WITH 5MM 4-OXOSEBACIC ACID IN DROP, pH 8.00	Resolution 1.80 Å R-free 0.329
1H7N SCHIFF-BASE COMPLEX OF YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE WITH LAEVULINIC ACID AT 1.6 A RESOLUTION Deposited 2001-07-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	SHF LAEVULINIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR 1AW5 WITH 10MM LAEVULINIC ACID, pH 8.00	Resolution 1.60 Å R-free 0.265
1H7O SCHIFF-BASE COMPLEX OF YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE WITH 5-AMINOLAEVULINIC ACID AT 1.7 A RESOLUTION Deposited 2001-07-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–341（341 aa）	Not recorded	DAV DELTA-AMINO VALERIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR 1AW5, EXCEPT ENZYME WAS NOT GEL-FILTERED., pH 8.00	Resolution 1.75 Å R-free 0.353
1H7P SCHIFF-BASE COMPLEX OF YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE WITH 4-KETO-5-AMINO-HEXANOIC (KAH) AT 1.64 A RESOLUTION Deposited 2001-07-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	KAH 5-AMINO-4-HYDROXYHEXANOIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR 1AW5 WITH 1MM KAH PRESENT., pH 8.00	Resolution 1.64 Å R-free 0.301
1OHL YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE PUTATIVE CYCLIC REACTION INTERMEDIATE COMPLEX Deposited 2003-05-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	ZN ZINC ION × 8 BME BETA-MERCAPTOETHANOL × 8 PBG 3-[5-(AMINOMETHYL)-4-(CARBOXYMETHYL)-1H-PYRROL-3-YL]PROPANOIC ACID × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR PDB ENTRY 1AW5, pH 8.00	Resolution 1.60 Å R-free 0.241
1QML Hg complex of yeast 5-aminolaevulinic acid dehydratase Deposited 1999-10-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	HG MERCURY (II) ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR 1AW5 WITH 1MM HGCL, pH 8.00	Resolution 3.00 Å R-free 0.330
1QNV yeast 5-aminolaevulinic acid dehydratase Lead (Pb) complex Deposited 1999-10-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	PB LEAD (II) ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR PDB ENTRY 1AW5 WITH 1MM LEAD ACETATE, pH 8.00	Resolution 2.50 Å R-free 0.379
1W31 YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE 5-HYDROXYLAEVULINIC ACID COMPLEX Deposited 2004-07-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	SHO 5-HYDROXYLAEVULINIC ACID × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；ENZYME CONCENTRATION 1 MG/ML, PH 7.0 - 8.5, BUFFER 0.2 M TRIS-HCL, PRECIPITANT PEG 6000 (<10%), 70 MICROMOLAR ZINC SULPHATE, 6 MM BETA-MERCAPTOETHANOL, HANGING DROPS AS FOR PDB ENTRY 1AW5 WITH 10 MM 5-HYDROXYLAEVULINIC ACID IN DROP.	Resolution 1.90 Å R-free 0.249
1YLV SCHIFF-BASE COMPLEX OF YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE WITH LAEVULINIC ACID Deposited 1999-02-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–342（342 aa）	Not recorded	ZN ZINC ION × 8 SHF LAEVULINIC ACID × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；AS FOR 1AW5 WITH 10MM LAEVULINIC ACID, pH 8.0	Resolution 2.15 Å R-free 0.265

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HEM2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–342； UniProt 1–342

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h7r
Deposition date deposition_date	2001-07-09
Structure title title	SCHIFF-BASE COMPLEX OF YEAST 5-AMINOLAEVULINIC ACID DEHYDRATASE WITH SUCCINYLACETONE AT 2.0 A RESOLUTION.
Keywords keywords	LYASE, DEHYDRATASE, ALDOLASE, TIM BARREL, TETRAPYRROLE SYNTHESIS; DEHYDRATASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.01 Å
Radius of gyration Rg (electron density) rg_electron	22.20 Å
Forward intensity I(0) i0	24616800.00
Molecular weight molecular_weight	37941.0 kDa
Excluded volume excluded_volume	47525 Å³
Envelope volume envelope_volume	61600 Å³
Hydration-shell volume shell_volume	23410 Å³
Envelope diameter envelope_diameter	91.2 Å
Shell Rg shell_rg	28.31 Å
Envelope Rg envelope_rg	25.22 Å
Shape Rg shape_rg	22.21 Å
Total Rg total_rg	22.96 Å
Total atoms total_atoms	2666
Residues n_residues	342
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

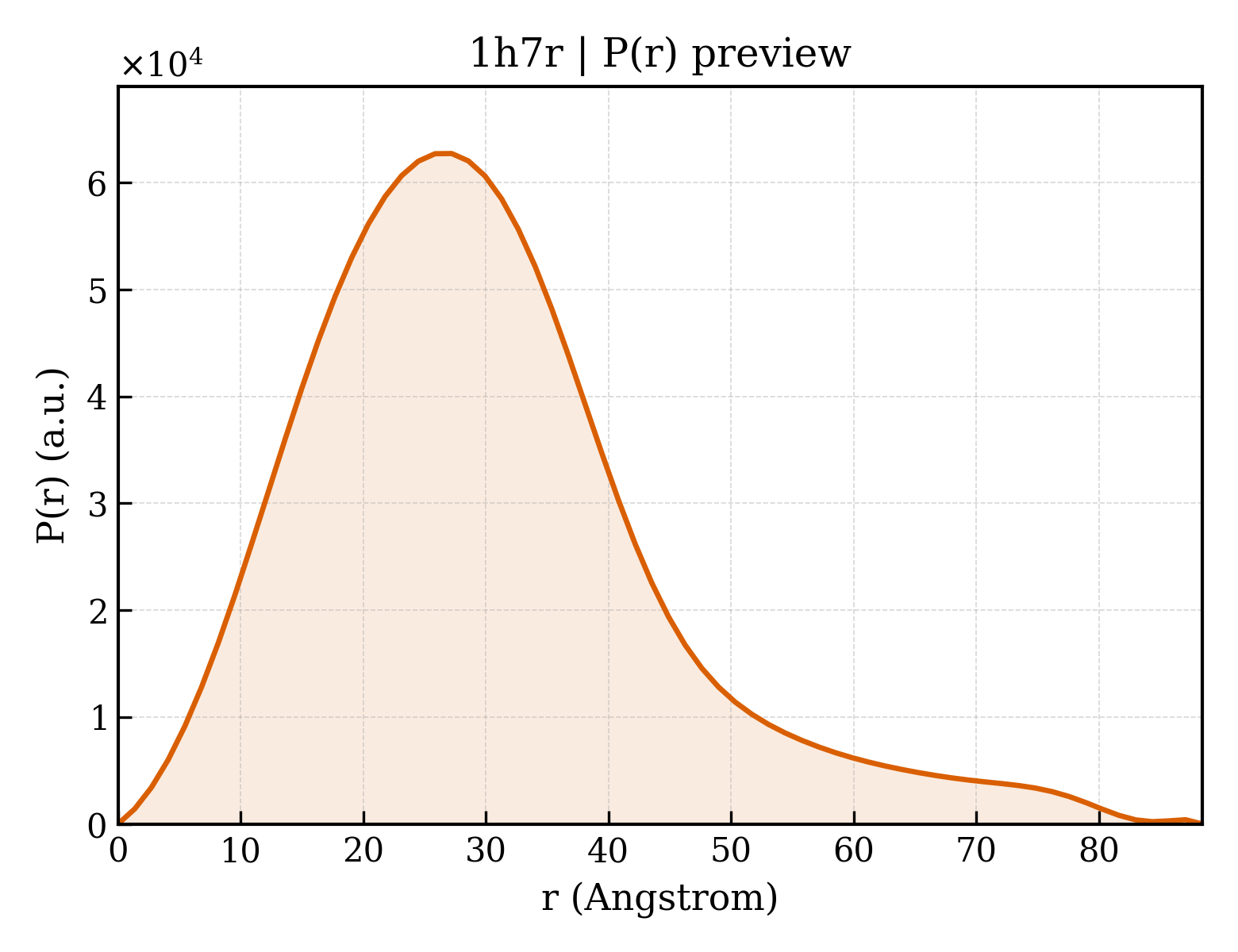

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	88.4 Å
Rg (real space) rg_real	23.32 Å
Rg uncertainty (real space) rg_real_error	0.80 Å
I(0) (real space) i0_real	2.4620e+07
I(0) uncertainty (real space) i0_real_error	3.4330e+05
Rg (reciprocal space) rg_reciprocal	23.24 Å
I(0) (reciprocal space) i0_reciprocal	24620000.0000
Solution quality estimate total_estimate	0.7559
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.2 Å
Skewness Skewness skewness	0.924
Kurtosis Kurtosis kurtosis	1.133
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6879000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.360; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.775; Smooth: 0.968

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	5-AMINOLAEVULINIC ACID DEHYDRATASE
Molecular weight formula_weight	37785.2 kDa
EC 编号 ec_number	4.2.1.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2952

MHTAEFLETEPTEISSVLAGGYNHPLLRQWQSERQLTKNMLIFPLFISDNPDDFTEIDSLPNINRIGVNRLKDYLKPLVAKGLRSVILFGVPLIPGTKDPVGTAADDPAGPVIQGIKFIREYFPELYIICDVCLCEYTSHGHCGVLYDDGTINRERSVSRLAAVAVNYAKAGAHCVAPSDMIDGRIRDIKRGLINANLAHKTFVLSYAAKFSGNLYGPFRDAACSAPSNGDRKCYQLPPAGRGLARRALERDMSEGADGIIVKPSTFYLDIMRDASEICKDLPICAYHVSGEYAMLHAAAEKGVVDLKTIAFESHQGFLRAGARLIITYLAPEFLDWLDEEN

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	4,6-DIOXOHEPTANOIC ACID
Molecular weight formula_weight	158.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	282

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1h7ra_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.3 — 5-aminolaevulinate dehydratase, ALAD (porphobilinogen synthase)

CATH v4.4 (1 domains)

Domain ID domain_id	1h7rA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

8. Citations (1)

▶

Unit-cell length a length_a	103.100 Å
Unit-cell length b length_b	103.100 Å
Unit-cell length c length_c	168.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	16.800 Å
R factor r_factor	—
R_work r_work	0.2390
R_free r_free	0.3100

fit	/app/data/saxs_computation/h7/1h7r/1h7r.fit
pddf	/app/data/pr_computation/h7/1h7r/1h7r.pr.out
profile	/app/data/saxs_computation/h7/1h7r/1h7r.dat
