SAXSdb — 1hbx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SERUM RESPONSE FACTOR

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain A； UniProt 132–223 Chain B； UniProt 132–223	Fragment：CORE RESIDUES 132-223	;5'-D(GPAPTPGPGPCPCPTPAPAPTPTPAP GPGPAPCPTPTPCPCPGPGPTPG)-3' ; × 1 ETS-DOMAIN PROTEIN ELK-4 × 1 （P28324） ;5'-D(CPAPCPAPCPCPGPGPAPAPGPTPCP* CPTPAPAPTPTPAPGPGPCPCPAPT)-3' ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；PEG 1500, NH4NO3, BIS-TRIS BUFFER, DTT, pH 6.50	Resolution 3.15 Å R-free 0.285
2	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain D； UniProt 132–223 Chain E； UniProt 132–223	Fragment：CORE RESIDUES 132-223	;5'-D(GPAPTPGPGPCPCPTPAPAPTPTPAP GPGPAPCPTPTPCPCPGPGPTPG)-3' ; × 1 ETS-DOMAIN PROTEIN ELK-4 × 1 （P28324） ;5'-D(CPAPCPAPCPCPGPGPAPAPGPTPCP* CPTPAPAPTPTPAPGPGPCPCPAPT)-3' ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；PEG 1500, NH4NO3, BIS-TRIS BUFFER, DTT, pH 6.50	Resolution 3.15 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HBX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1K6O Crystal Structure of a Ternary SAP-1/SRF/c-fos SRE DNA Complex Deposited 2001-10-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 133–235（103 aa） Fragment：133-235 Chain C 133–235（103 aa） Fragment：133-235	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；PEG 2000, pH 6.0, VAPOR DIFFUSION, HANGING DROP	Resolution 3.19 Å R-free 0.276
1SRS SERUM RESPONSE FACTOR (SRF) CORE COMPLEXED WITH SPECIFIC SRE DNA Deposited 1995-07-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 87–178（92 aa） Chain B 87–178（92 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 3.20 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SRF_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–92； UniProt 132–223 Author chain B； PDBConstruct 1–92； UniProt 132–223 Author chain D； PDBConstruct 1–92； UniProt 132–223 Author chain E； PDBConstruct 1–92； UniProt 132–223

ETS-DOMAIN PROTEIN ELK-4

HOMO SAPIENS

UniProt P28324

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain G； UniProt 2–156	Fragment：RESIDUES 2-156	SERUM RESPONSE FACTOR × 2 （P11831） ;5'-D(GPAPTPGPGPCPCPTPAPAPTPTPAP GPGPAPCPTPTPCPCPGPGPTPG)-3' ; × 1 ;5'-D(CPAPCPAPCPCPGPGPAPAPGPTPCP* CPTPAPAPTPTPAPGPGPCPCPAPT)-3' ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；PEG 1500, NH4NO3, BIS-TRIS BUFFER, DTT, pH 6.50	Resolution 3.15 Å R-free 0.285
2	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain H； UniProt 2–156	Fragment：RESIDUES 2-156	SERUM RESPONSE FACTOR × 2 （P11831） ;5'-D(GPAPTPGPGPCPCPTPAPAPTPTPAP GPGPAPCPTPTPCPCPGPGPTPG)-3' ; × 1 ;5'-D(CPAPCPAPCPCPGPGPAPAPGPTPCP* CPTPAPAPTPTPAPGPGPCPCPAPT)-3' ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；PEG 1500, NH4NO3, BIS-TRIS BUFFER, DTT, pH 6.50	Resolution 3.15 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HBX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BC7 SERUM RESPONSE FACTOR ACCESSORY PROTEIN 1A (SAP-1)/DNA COMPLEX Deposited 1998-05-05	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 1–93（93 aa） Fragment：ETS DOMAIN, RESIDUES 1-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；pH 5.8	Resolution 2.01 Å R-free 0.286
1BC8 STRUCTURES OF SAP-1 BOUND TO DNA SEQUENCES FROM THE E74 AND C-FOS PROMOTERS PROVIDE INSIGHTS INTO HOW ETS PROTEINS DISCRIMINATE BETWEEN RELATED DNA TARGETS Deposited 1998-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 1–93（93 aa） Fragment：ETS DOMAIN, RESIDUES 1-93	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；50 MM NA CACODYLATE (PH 6.0), 5.0% PEG8000, 20 MM ZINC ACETATE	Resolution 1.93 Å R-free 0.277
1K6O Crystal Structure of a Ternary SAP-1/SRF/c-fos SRE DNA Complex Deposited 2001-10-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 1–93（93 aa） Fragment：1-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；PEG 2000, pH 6.0, VAPOR DIFFUSION, HANGING DROP	Resolution 3.19 Å R-free 0.276

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ELK4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 3–157； UniProt 2–156 Author chain H； PDBConstruct 3–157； UniProt 2–156

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hbx
Deposition date deposition_date	2001-04-20
Structure title title	Ternary Complex of SAP-1 and SRF with specific SRE DNA
Keywords keywords	GENE REGULATION, TRANSCRIPTION COMPLEX, SERUM RESPONSE FACTOR, TERNARY COMPLEX FACTOR; GENE REGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.69 Å
Radius of gyration Rg (electron density) rg_electron	37.98 Å
Forward intensity I(0) i0	205761000.00
Molecular weight molecular_weight	96914.0 kDa
Excluded volume excluded_volume	113260 Å³
Envelope volume envelope_volume	163590 Å³
Hydration-shell volume shell_volume	37456 Å³
Envelope diameter envelope_diameter	139.2 Å
Shell Rg shell_rg	41.85 Å
Envelope Rg envelope_rg	37.24 Å
Shape Rg shape_rg	38.02 Å
Total Rg total_rg	38.10 Å
Total atoms total_atoms	6682
Residues n_residues	673
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

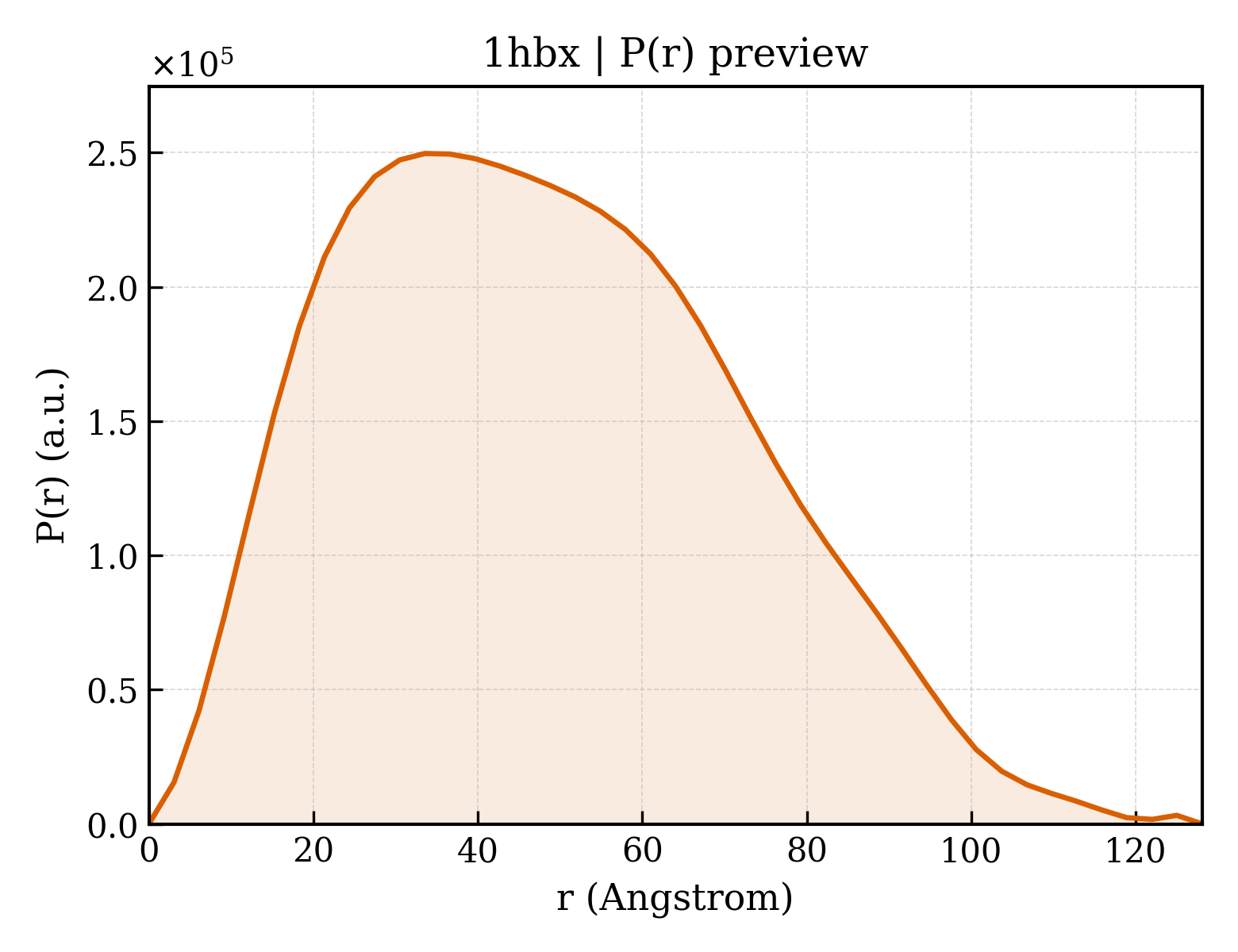

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.1 Å
Rg (real space) rg_real	37.90 Å
Rg uncertainty (real space) rg_real_error	1.31 Å
I(0) (real space) i0_real	2.0580e+08
I(0) uncertainty (real space) i0_real_error	3.9960e+06
Rg (reciprocal space) rg_reciprocal	37.77 Å
I(0) (reciprocal space) i0_reciprocal	205700000.0000
Solution quality estimate total_estimate	0.8718
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.5 Å
Skewness Skewness skewness	0.364
Kurtosis Kurtosis kurtosis	-0.491
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11090000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.879; Smooth: 0.839

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SERUM RESPONSE FACTOR
Molecular weight formula_weight	10300.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E
Atom count atom_count	6682

SGAKPGKKTRGRVKIKMEFIDNKLRRYTTFSKRKTGIMKKAYELSTLTGTQVLLLVASETGHVYTFATRKLQPMITSETGKALIQTCLNSPD

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	;5'-D(GPAPTPGPGPCPCPTPAPAPTPTPAP GPGPAPCPTPTPCPCPGPGPTP*G)-3' ;
Molecular weight formula_weight	8034.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,F

GATGGCCTAATTAGGACTTCCGGTGT

Entity 3 Entity 3 polymer

Description description	ETS-DOMAIN PROTEIN ELK-4
Molecular weight formula_weight	17973.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

GSDSAITLWQFLLQLLQKPQNKHMICWTSNDGQFKLLQAEEVARLWGIRKNKPNMNYDKLSRALRYYYVKNIIKKVNGQKFVYKFVSYPEILNMDPMTVGRIEGDCESLNFSEVSSSSKDVENGGKDKPPQPGAKTSSRNDYIHSGLYSSFTLNSLN

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 4 Entity 4 polymer

Description description	;5'-D(CPAPCPAPCPCPGPGPAPAPGPTPCP CPTPAPAPTPTPAPGPGPCPCPAPT)-3' ;
Molecular weight formula_weight	7941.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	W,X

CACACCGGAAGTCCTAATTAGGCCAT

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1hbxa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.88 — SRF-like
Superfamily Superfamily superfamily	d.88.1 — SRF-like
Family Family family	d.88.1.1 — SRF-like

Domain ID domain_id	d1hbxb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.88 — SRF-like
Superfamily Superfamily superfamily	d.88.1 — SRF-like
Family Family family	d.88.1.1 — SRF-like

Domain ID domain_id	d1hbxd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.88 — SRF-like
Superfamily Superfamily superfamily	d.88.1 — SRF-like
Family Family family	d.88.1.1 — SRF-like

Domain ID domain_id	d1hbxe_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.88 — SRF-like
Superfamily Superfamily superfamily	d.88.1 — SRF-like
Family Family family	d.88.1.1 — SRF-like

Domain ID domain_id	d1hbxg_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.21 — ets domain

Domain ID domain_id	d1hbxh_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.21 — ets domain

CATH v4.4 (6 domains)

Domain ID domain_id	1hbxA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1810 — SRF-like
Homologous superfamily homologous superfamily	10 — Transcription factor, MADS-box

Domain ID domain_id	1hbxB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1810 — SRF-like
Homologous superfamily homologous superfamily	10 — Transcription factor, MADS-box

Domain ID domain_id	1hbxD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1810 — SRF-like
Homologous superfamily homologous superfamily	10 — Transcription factor, MADS-box

Domain ID domain_id	1hbxE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1810 — SRF-like
Homologous superfamily homologous superfamily	10 — Transcription factor, MADS-box

Domain ID domain_id	1hbxG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1hbxH00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	142.680 Å
Unit-cell length b length_b	144.390 Å
Unit-cell length c length_c	75.930 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	51.000 Å
R factor r_factor	0.2520
R_work r_work	0.2520
R_free r_free	0.2850

fit	/app/data/saxs_computation/hb/1hbx/1hbx.fit
pddf	/app/data/pr_computation/hb/1hbx/1hbx.pr.out
profile	/app/data/saxs_computation/hb/1hbx/1hbx.dat
