SAXSdb — 1hfw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-ASPARAGINASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	GLUTAMIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASPG_ERWCH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–327； UniProt 22–348 Author chain B； PDBConstruct 1–327； UniProt 22–348 Author chain C； PDBConstruct 1–327； UniProt 22–348 Author chain D； PDBConstruct 1–327； UniProt 22–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hfw
Deposition date deposition_date	2000-12-08
Structure title title	X-ray structure of the complex between Erwinia chrysanthemi L-asparaginase and L-Glutamate
Keywords keywords	ASPARAGINASE, HYDROLASE, COMPLEX, D-ASPARTATE; ASPARAGINASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hfw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hfw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

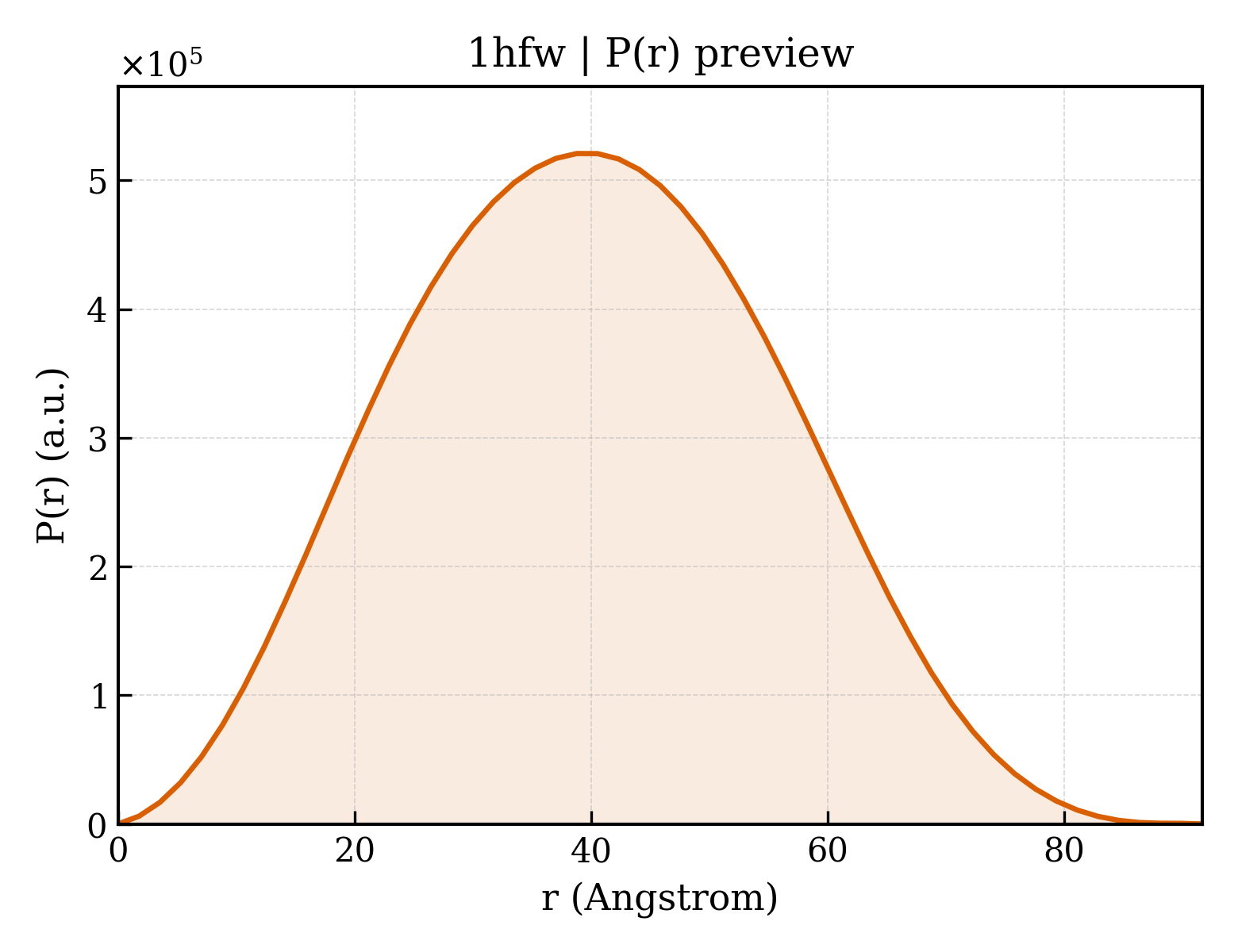

1hfw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.56 Å
Rg (electron density)	29.70 Å
Total Rg	30.60 Å
Atom count	9393
Residues	1229
Excluded volume	167830 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hfw__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	L-ASPARAGINASE
Molecular weight formula_weight	35123.0 kDa
EC 编号 ec_number	3.5.1.1
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10354

ADKLPNIVILATGGTIAGSAATGTQTTGYKAGALGVDTLINAVPEVKKLANVKGEQFSNMASENMTGDVVLKLSQRVNELLARDDVDGVVITHGTDTVEESAYFLHLTVKSDKPVVFVAAMRPATAISADGPMNLLEAVRVAGDKQSRGRGVMVVINDRIGSARYITKTNASTLDTFRANEEGYLGVIIGNRIYYQNRIDKLHTTRSVFDVRGLTSLPKVDILYGYQDDPEYLYDAAIQHGVKGIVYAGMGAGSVSVRGIAGMRKALEKGVVVMRSTRTGNGIVPPDEELPGLVSDSLNPAHARILLMLALTRTSDPKVIQEYFHTY

Entity 2 Entity 2 non-polymer

Description description	GLUTAMIC ACID
Molecular weight formula_weight	147.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	961

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1hfwa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1hfwb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1hfwc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1hfwd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

CATH v4.4 (8 domains)

Domain ID domain_id	1hfwA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1hfwA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1hfwB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1hfwB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1hfwC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1hfwC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1hfwD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1hfwD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	108.470 Å
Unit-cell length b length_b	91.700 Å
Unit-cell length c length_c	130.620 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.94 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1680
R_work r_work	0.1680
R_free r_free	0.1880

X-ray structure of the complex between Erwinia chrysanthemi L-asparaginase and L-Glutamate
