1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jsr
沉积日期 deposition_date	2001-08-17
结构标题 title	CRYSTAL STRUCTURE OF ERWINIA CHRYSANTHEMI L-ASPARAGINASE COMPLEXED WITH 6-HYDROXY-L-NORLEUCINE
关键词 keywords	ASPARAGINASE, HYDROLASE, COVALENT COMPLEX, 6-DIAZO-5-OXO-L-NORLEUCINE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.15 Å
回转半径 Rg (电子) rg_electron	29.27 Å
零角强度 I(0) i0	307076000.00
分子量 molecular_weight	140270.0 kDa
排除体积 excluded_volume	176000 Å³
包络体积 envelope_volume	200460 Å³
水化壳体积 shell_volume	52802 Å³
包络直径 envelope_diameter	92.9 Å
壳层 Rg shell_rg	39.46 Å
包络 Rg envelope_rg	29.45 Å
形状 Rg shape_rg	29.24 Å
总 Rg total_rg	30.19 Å
总原子数 total_atoms	9852
残基数 n_residues	1296
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	89.7 Å
Rg (实空间) rg_real	29.92 Å
Rg 误差 (实空间) rg_real_error	0.35 Å
I(0) (实空间) i0_real	3.0710e+08
I(0) 误差 (实空间) i0_real_error	4.2540e+06
Rg (倒空间) rg_reciprocal	30.02 Å
I(0) (倒空间) i0_reciprocal	307100000.0000
解质量估计 total_estimate	0.9030
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.9 Å
偏度 Skewness skewness	0.076
峰度 Kurtosis kurtosis	-0.546
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	294600000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.958

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	L-asparaginase
分子量 formula_weight	35123.0 kDa
EC 编号 ec_number	3.5.1.1
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	11357

ADKLPNIVILATGGTIAGSAATGTQTTGYKAGALGVDTLINAVPEVKKLANVKGEQFSNMASENMTGDVVLKLSQRVNELLARDDVDGVVITHGTDTVEESAYFLHLTVKSDKPVVFVAAMRPATAISADGPMNLLEAVRVAGDKQSRGRGVMVVINDRIGSARYITKTNASTLDTFRANEEGYLGVIIGNRIYYQNRIDKLHTTRSVFDVRGLTSLPKVDILYGYQDDPEYLYDAAIQHGVKGIVYAGMGAGSVSVRGIAGMRKALEKGVVVMRSTRTGNGIVPPDEELPGLVSDSLNPAHARILLMLALTRTSDPKVIQEYFHTY

Entity 2 non-polymer

描述 description	6-HYDROXY-L-NORLEUCINE
分子量 formula_weight	147.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	PENTAETHYLENE GLYCOL
分子量 formula_weight	238.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1083

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1jsra_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.88 — Glutaminase/Asparaginase
超家族 Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
家族 Family family	c.88.1.1 — Glutaminase/Asparaginase

结构域编号 domain_id	d1jsrb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.88 — Glutaminase/Asparaginase
超家族 Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
家族 Family family	c.88.1.1 — Glutaminase/Asparaginase

结构域编号 domain_id	d1jsrc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.88 — Glutaminase/Asparaginase
超家族 Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
家族 Family family	c.88.1.1 — Glutaminase/Asparaginase

结构域编号 domain_id	d1jsrd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.88 — Glutaminase/Asparaginase
超家族 Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
家族 Family family	c.88.1.1 — Glutaminase/Asparaginase

CATH v4.4 (8 domains)

结构域编号 domain_id	1jsrA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

结构域编号 domain_id	1jsrA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1jsrB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

结构域编号 domain_id	1jsrB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1jsrC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

结构域编号 domain_id	1jsrC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1jsrD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

结构域编号 domain_id	1jsrD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	40 —

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	106.065 Å
晶胞边长 b length_b	90.361 Å
晶胞边长 c length_c	127.406 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.35 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1900
R_work r_work	0.1825
R_free r_free	0.2094

fit	/app/data/saxs_computation/js/1jsr/1jsr.fit
pddf	/app/data/pr_computation/js/1jsr/1jsr.pr.out
profile	/app/data/saxs_computation/js/1jsr/1jsr.dat

CRYSTAL STRUCTURE OF ERWINIA CHRYSANTHEMI L-ASPARAGINASE COMPLEXED WITH 6-HYDROXY-L-NORLEUCINE

SAXS 散射曲线 SAXS Profile

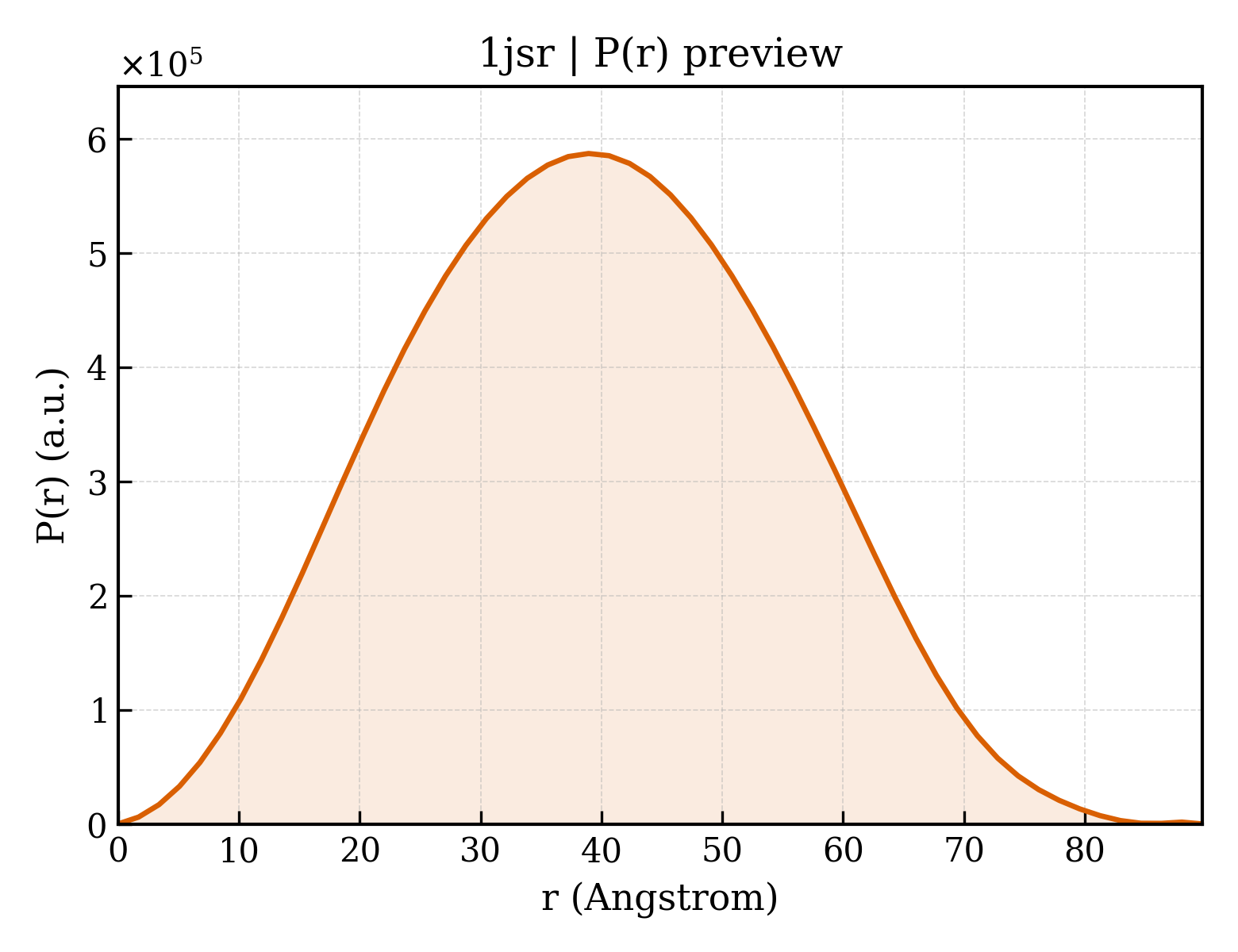

P(r) 距离分布 P(r) Distribution
