SAXSdb — 1i00

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THYMIDYLATE SYNTHASE

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;2'-DEOXYURIDINE 5'-MONOPHOSPHATE ; × 2 TOMUDEX × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TYSY_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–290； UniProt 1–313 Author chain B； PDBConstruct 1–290； UniProt 1–313

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i00
Deposition date deposition_date	2001-01-27
Structure title title	CRYSTAL STRUCTURE OF HUMAN THYMIDYLATE SYNTHASE, TERNARY COMPLEX WITH DUMP AND TOMUDEX
Keywords keywords	thymidylate synthase, human, ternary complex, dUMP, Tomudex, open conformation, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i00__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

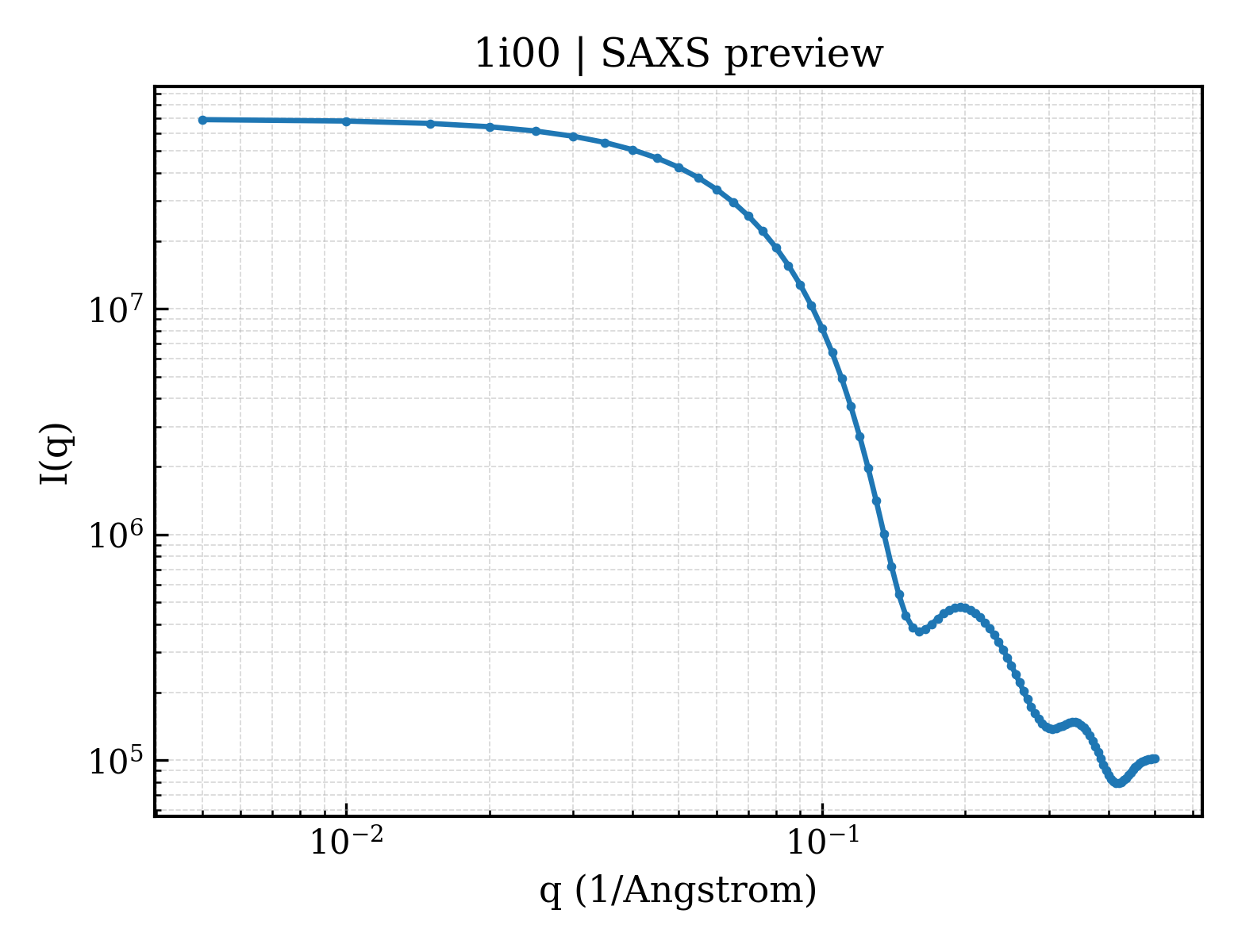

1i00__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1i00__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.17 Å
Rg (electron density)	22.98 Å
Total Rg	23.88 Å
Atom count	4600
Residues	556
Excluded volume	81644 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i00__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	THYMIDYLATE SYNTHASE
Molecular weight formula_weight	33189.1 kDa
EC 编号 ec_number	2.1.1.45
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4734

MPVAGSELQYLGQIQHILRCGVRKDDRTGTGTLSVFGMQARYSLRDEFPLLTTKRVFWKGVLEELLWFIKGSTNAKELSSKGVKIWDANGSRDFLDSLGFSTREEGDLGPVYGFQWRHFGAEYRDMESDYSGQGVDQLQRVIDTIKTNPDDRRIIMCAWNPRDLPLMALPPCHALCQFYVVNSELSCQLYQRSGDMGLGVPFNIASYALLTYMIAHITGLKPGDFIHTLGDAHIYLNHIEPLKIQLQREPRPFPKLRILRKVEKIDDFKAEDFQIEGYNPHPTIKMEMAV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;2'-DEOXYURIDINE 5'-MONOPHOSPHATE ;
Molecular weight formula_weight	308.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	TOMUDEX
Molecular weight formula_weight	458.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1i00a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.117 — Thymidylate synthase/dCMP hydroxymethylase
Superfamily Superfamily superfamily	d.117.1 — Thymidylate synthase/dCMP hydroxymethylase
Family Family family	d.117.1.1 — Thymidylate synthase/dCMP hydroxymethylase

Domain ID domain_id	d1i00b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.117 — Thymidylate synthase/dCMP hydroxymethylase
Superfamily Superfamily superfamily	d.117.1 — Thymidylate synthase/dCMP hydroxymethylase
Family Family family	d.117.1.1 — Thymidylate synthase/dCMP hydroxymethylase

CATH v4.4 (2 domains)

Domain ID domain_id	1i00A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	572 — Thymidylate Synthase; Chain A
Homologous superfamily homologous superfamily	10 — Thymidylate synthase/dCMP hydroxymethylase domain

Domain ID domain_id	1i00B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	572 — Thymidylate Synthase; Chain A
Homologous superfamily homologous superfamily	10 — Thymidylate synthase/dCMP hydroxymethylase domain

▶

Unit-cell length a length_a	89.689 Å
Unit-cell length b length_b	89.689 Å
Unit-cell length c length_c	142.129 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2070
R_free r_free	0.2620

CRYSTAL STRUCTURE OF HUMAN THYMIDYLATE SYNTHASE, TERNARY COMPLEX WITH DUMP AND TOMUDEX
