SAXSdb — 1i4t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ARFAPTIN 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1 × 1 （P63000） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1 × 1 （P63000） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARFP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–224； UniProt 118–341 Author chain B； PDBConstruct 1–224； UniProt 118–341

RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1

Homo sapiens

UniProt P63000

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	ARFAPTIN 2 × 2 （P53365） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	ARFAPTIN 2 × 2 （P53365） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAC1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–192； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i4t
Deposition date deposition_date	2001-02-23
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF RAC1-GMPPNP IN COMPLEX WITH ARFAPTIN
Keywords keywords	Signaling Protein, complex, coiled coil, G-protein; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i4t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1i4t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

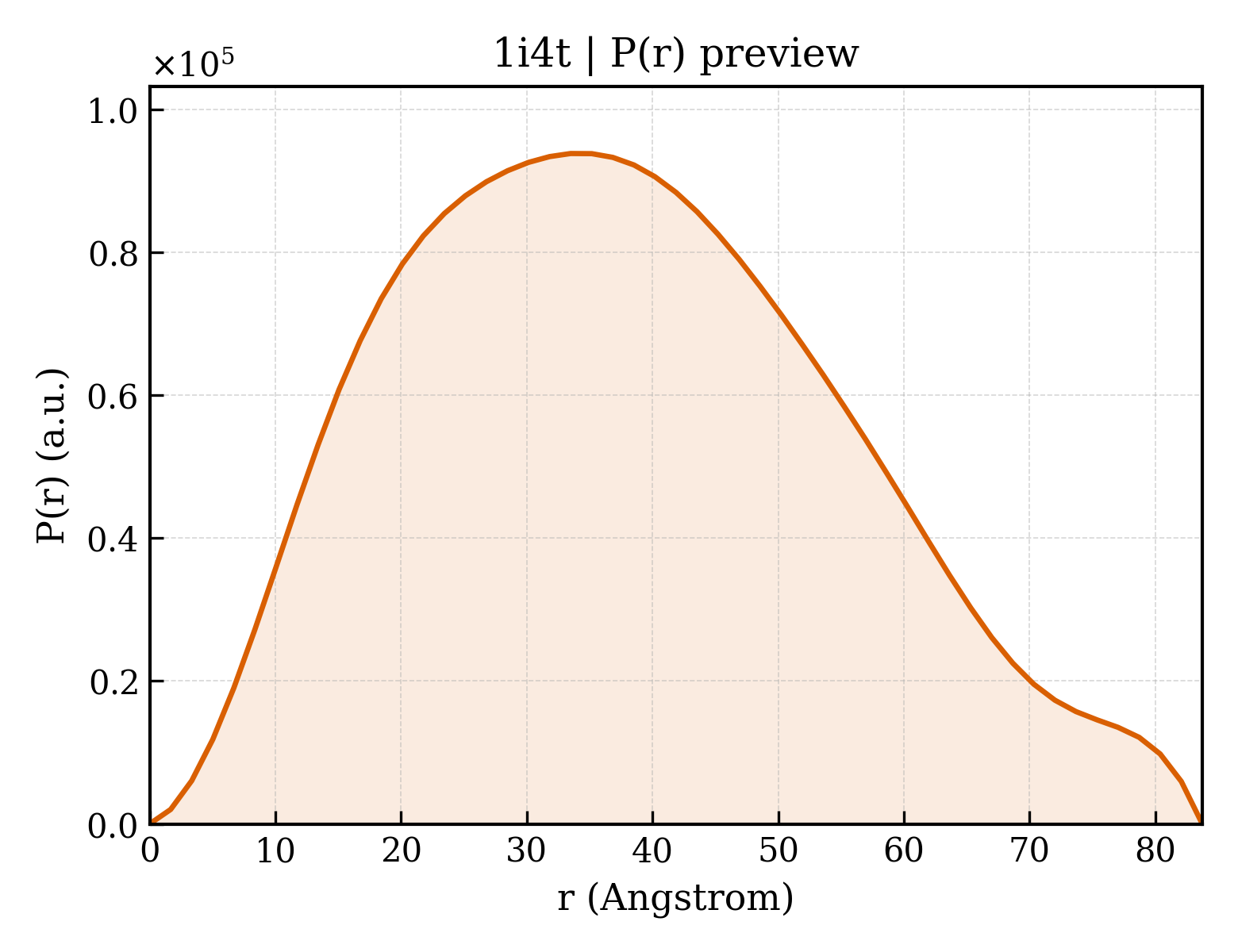

1i4t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.61 Å
Rg (electron density)	31.82 Å
Total Rg	32.02 Å
Atom count	4300
Residues	536
Excluded volume	77034 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i4t__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1i4t__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ARFAPTIN 2
Molecular weight formula_weight	25614.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4475

GSRTVDLELELQIELLRETKRKYESVLQLGRALTAHLYSLLQTQHALGDAFADLSQKSPELQEEFGYNAETQKLLCKNGETLLGAVNFFVSSINTLVTKTMEDTLMTVKQYEAARLEYDAYRTDLEELSLGPRDAGTRGRLESAQATFQAHRDKYEKLRGDVAIKLKFLEENKIKVMHKQLLLFHNAVSAYFAGNQKQLEQTLQQFNIKLRPPGAEKPSWLEEQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1
Molecular weight formula_weight	21463.1 kDa
Mutation mutation	Q61L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MQAIKCVVVGDGAVGKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGLEDYDRLRPLSYPQTDVFLICFSLVSPASFENVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVLCPPPVKKRKRKCLLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	175

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1i4ta_
Class class	a — All alpha proteins
Fold Fold fold	a.238 — BAR/IMD domain-like
Superfamily Superfamily superfamily	a.238.1 — BAR/IMD domain-like
Family Family family	a.238.1.2 — Arfaptin, Rac-binding fragment

Domain ID domain_id	d1i4tb_
Class class	a — All alpha proteins
Fold Fold fold	a.238 — BAR/IMD domain-like
Superfamily Superfamily superfamily	a.238.1 — BAR/IMD domain-like
Family Family family	a.238.1.2 — Arfaptin, Rac-binding fragment

Domain ID domain_id	d1i4td_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (3 domains)

Domain ID domain_id	1i4tA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

Domain ID domain_id	1i4tB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

Domain ID domain_id	1i4tD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	112.746 Å
Unit-cell length b length_b	112.746 Å
Unit-cell length c length_c	68.178 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2590
R_free r_free	0.3040
