1i7c

;HUMAN S-ADENOSYLMETHIONINE DECARBOXYLASE WITH COVALENTLY BOUND PYRUVOYL GROUP AND COMPLEXED WITH METHYLGLYOXAL BIS-(GUANYLHYDRAZONE) ;

Method: X-RAY DIFFRACTION D_max: 65.5 Å Quality: GOOD

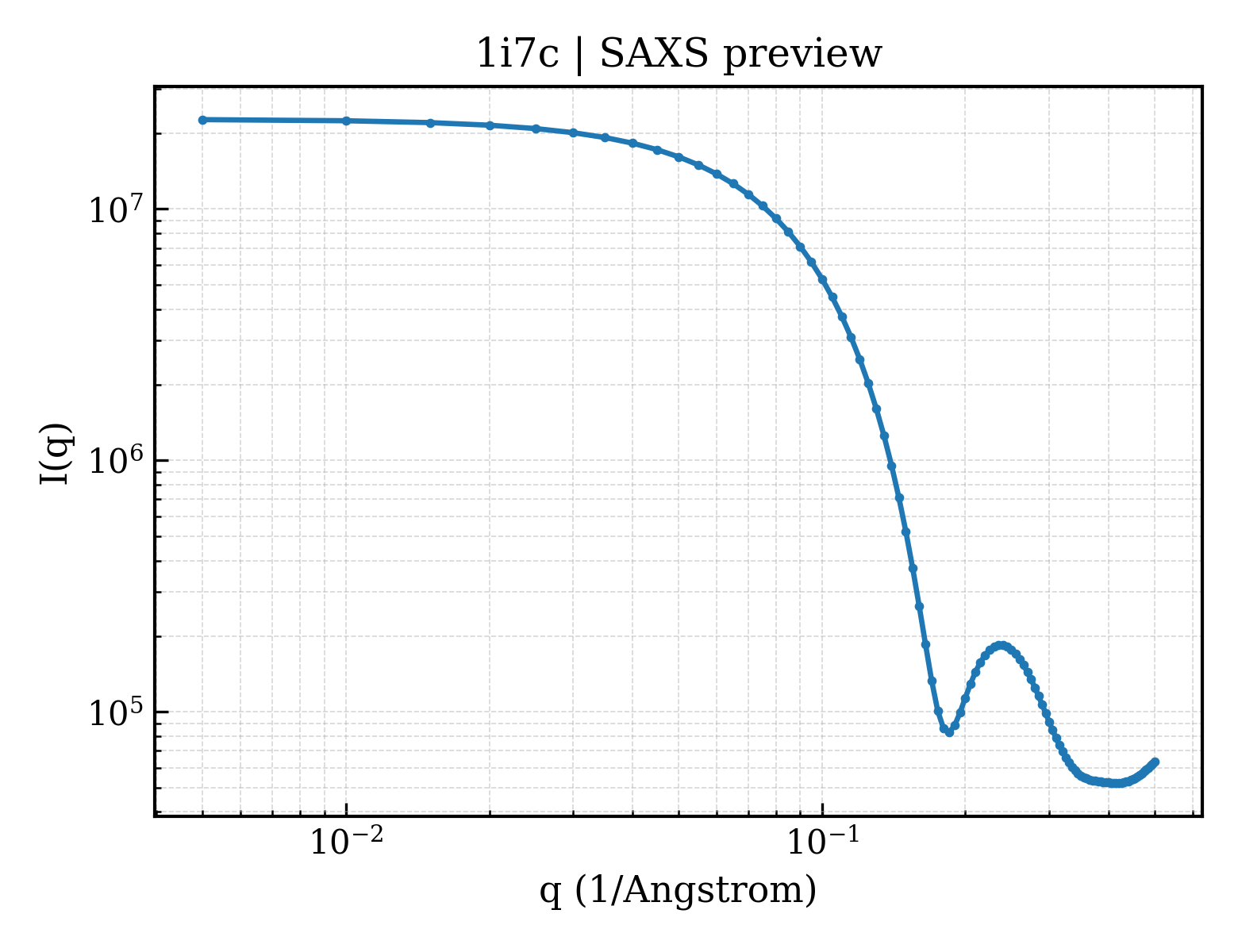

SAXS 散射曲线 SAXS Profile

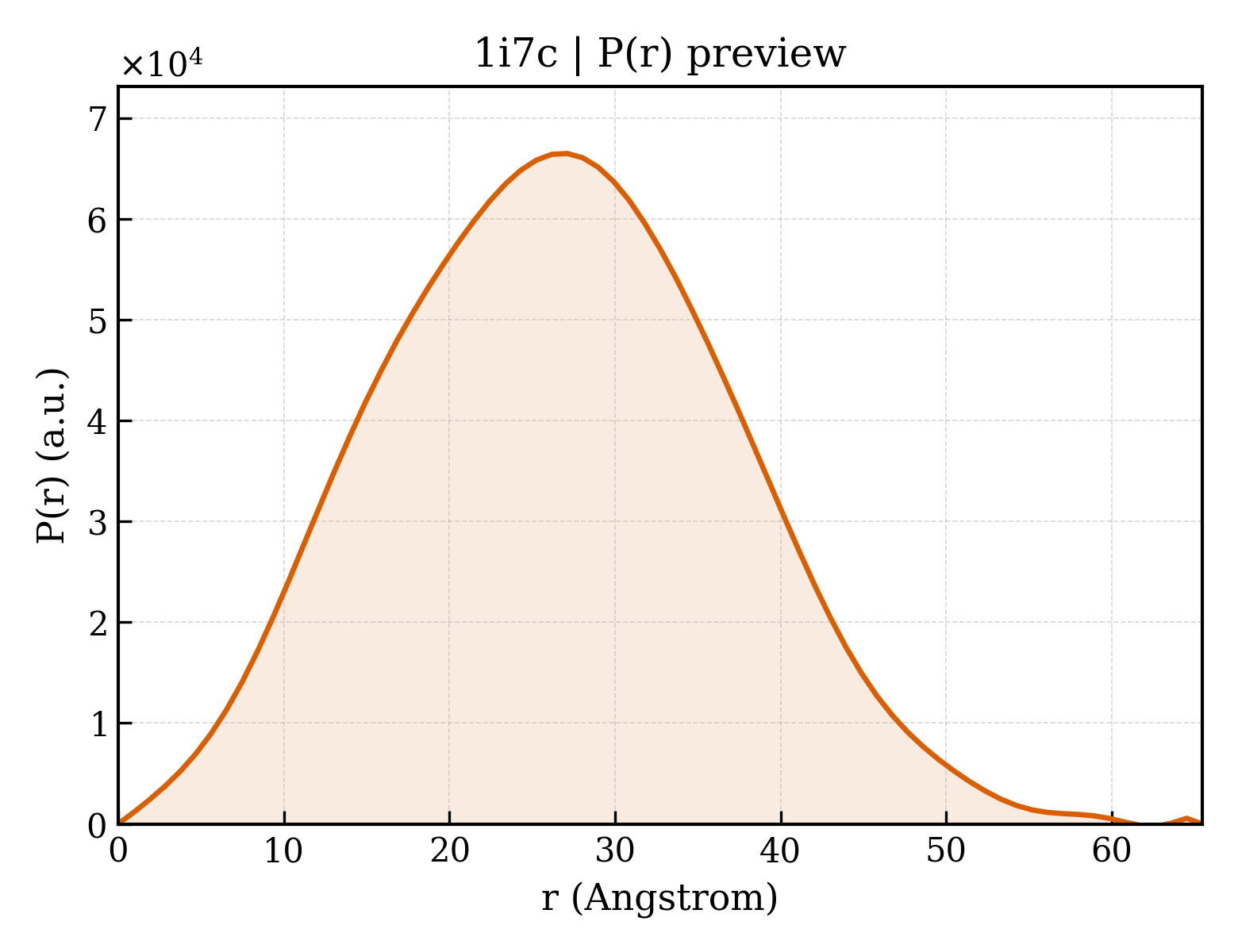

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1i7c
沉积日期 deposition_date	2001-03-08
结构标题 title	;HUMAN S-ADENOSYLMETHIONINE DECARBOXYLASE WITH COVALENTLY BOUND PYRUVOYL GROUP AND COMPLEXED WITH METHYLGLYOXAL BIS-(GUANYLHYDRAZONE) ;
关键词 keywords	Spermidine biosynthesis, Lyase, Decarboxylase, Pyruvate, S-ADENOSYLMETHIONINE, SANDWICH, ALLOSTERIC ENZYME, PYRUVOYL; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	20.29 Å
回转半径 Rg (电子) rg_electron	18.92 Å
零角强度 I(0) i0	22751700.00
分子量 molecular_weight	36872.0 kDa
排除体积 excluded_volume	46308 Å³
包络体积 envelope_volume	53517 Å³
水化壳体积 shell_volume	22789 Å³
包络直径 envelope_diameter	68.8 Å
壳层 Rg shell_rg	26.31 Å
包络 Rg envelope_rg	19.28 Å
形状 Rg shape_rg	18.89 Å
总 Rg total_rg	20.00 Å
总原子数 total_atoms	2595
残基数 n_residues	318
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	65.5 Å
Rg (实空间) rg_real	20.16 Å
Rg 误差 (实空间) rg_real_error	0.33 Å
I(0) (实空间) i0_real	2.2750e+07
I(0) 误差 (实空间) i0_real_error	2.8190e+05
Rg (倒空间) rg_reciprocal	20.18 Å
I(0) (倒空间) i0_reciprocal	22750000.0000
解质量估计 total_estimate	0.8018
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.1 Å
偏度 Skewness skewness	0.140
峰度 Kurtosis kurtosis	-0.327
角度范围 angular_range	— – 0.3900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7959000.0000
实空间数据点数 n_real_points	71
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.812; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	S-ADENOSYLMETHIONINE DECARBOXYLASE BETA CHAIN
分子量 formula_weight	7694.6 kDa
EC 编号 ec_number	4.1.1.50
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	2661

MEAAHFFEGTEKLLEVWFSRQQPDANQGSGDLRTIPRSEWDILLKDVQCSIISVTKTDKQEAYVLSE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	S-ADENOSYLMETHIONINE DECARBOXYLASE ALPHA CHAIN
分子量 formula_weight	30672.0 kDa
EC 编号 ec_number	4.1.1.50
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

XSMFVSKRRFILKTCGTTLLLKALVPLLKLARDYSGFDSIQSFFYSRKNFMKPSHQGYPHRNFQEEIEFLNAIFPNGAGYCMGRMNSDCWYLYTLDFPESRVISQPDQTLEILMSELDPAVMDQFYMKDGVTAKDVTRESGIRDLIPGSVIDATMFNPCGYSMNGMKSDGTYWTIHITPEPEFSYVSFETNLSQTSYDDLIRKVVEVFKPGKFVTTLFVNQSSKCRTVLASPQKIEGFKRLDCQSAMFNDYNFVFTSFAKKQQQQQS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	1,4-DIAMINOBUTANE
分子量 formula_weight	88.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	METHYLGLYOXAL BIS-(GUANYLHYDRAZONE)
分子量 formula_weight	184.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	66

▼

6. 折叠分类 (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

结构域编号 domain_id	d1i7c.1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.156 — S-adenosylmethionine decarboxylase
超家族 Superfamily superfamily	d.156.1 — S-adenosylmethionine decarboxylase
家族 Family family	d.156.1.1 — S-adenosylmethionine decarboxylase

CATH v4.4 (2 domains)

结构域编号 domain_id	1i7cA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	90 — S-adenosylmethionine decarboxylase
同源超家族 H-superfamily homologous superfamily	10 — S-adenosylmethionine decarboxylase

结构域编号 domain_id	1i7cB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	50 — S-adenosylmethionine decarboxylase

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	97.057 Å
晶胞边长 b length_b	45.499 Å
晶胞边长 c length_c	72.143 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.24 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	40.930 Å
R 因子 r_factor	—
R_work r_work	0.1760
R_free r_free	0.2490

fit	/app/data/saxs_computation/i7/1i7c/1i7c.fit
pddf	/app/data/pr_computation/i7/1i7c/1i7c.pr.out
profile	/app/data/saxs_computation/i7/1i7c/1i7c.dat
