1jl0
;Structure of a Human S-Adenosylmethionine Decarboxylase Self-processing Ester Intermediate and Mechanism of Putrescine Stimulation of Processing as Revealed by the H243A Mutant ;
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jl0 |
| 沉积日期 deposition_date | 2001-07-13 |
| 结构标题 title | ;Structure of a Human S-Adenosylmethionine Decarboxylase Self-processing Ester Intermediate and Mechanism of Putrescine Stimulation of Processing as Revealed by the H243A Mutant ; |
| 关键词 keywords | ;SPERMIDINE BIOSYNTHESIS, LYASE, DECARBOXYLASE, PYRUVATE, S-ADENOSYLMETHIONINE, SANDWICH, ALLOSTERIC ENZYME, PYRUVOYL, ESTER INTERMEDIATE, HYDROXYALANINE ;; LYASE |
| 实验方法 method | X-RAY DIFFRACTION |

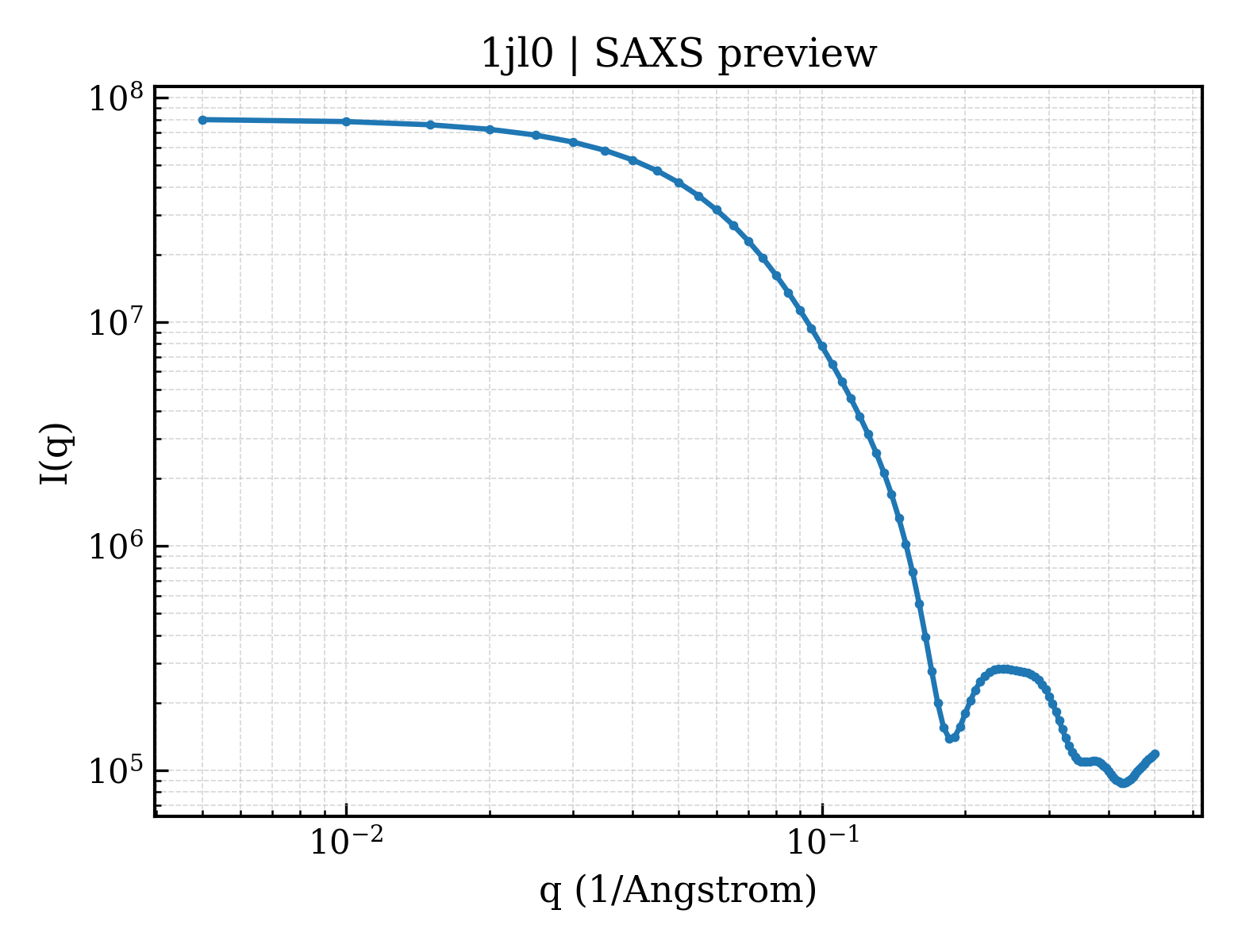

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 28.09 Å |
| 回转半径 Rg (电子) rg_electron | 27.22 Å |
| 零角强度 I(0) i0 | 80399900.00 |
| 分子量 molecular_weight | 71807.0 kDa |
| 排除体积 excluded_volume | 90354 ų |
| 包络体积 envelope_volume | 107580 ų |
| 水化壳体积 shell_volume | 32964 ų |
| 包络直径 envelope_diameter | 97.9 Å |
| 壳层 Rg shell_rg | 34.62 Å |
| 包络 Rg envelope_rg | 27.29 Å |
| 形状 Rg shape_rg | 27.19 Å |
| 总 Rg total_rg | 28.07 Å |
| 总原子数 total_atoms | 5049 |
| 残基数 n_residues | 621 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

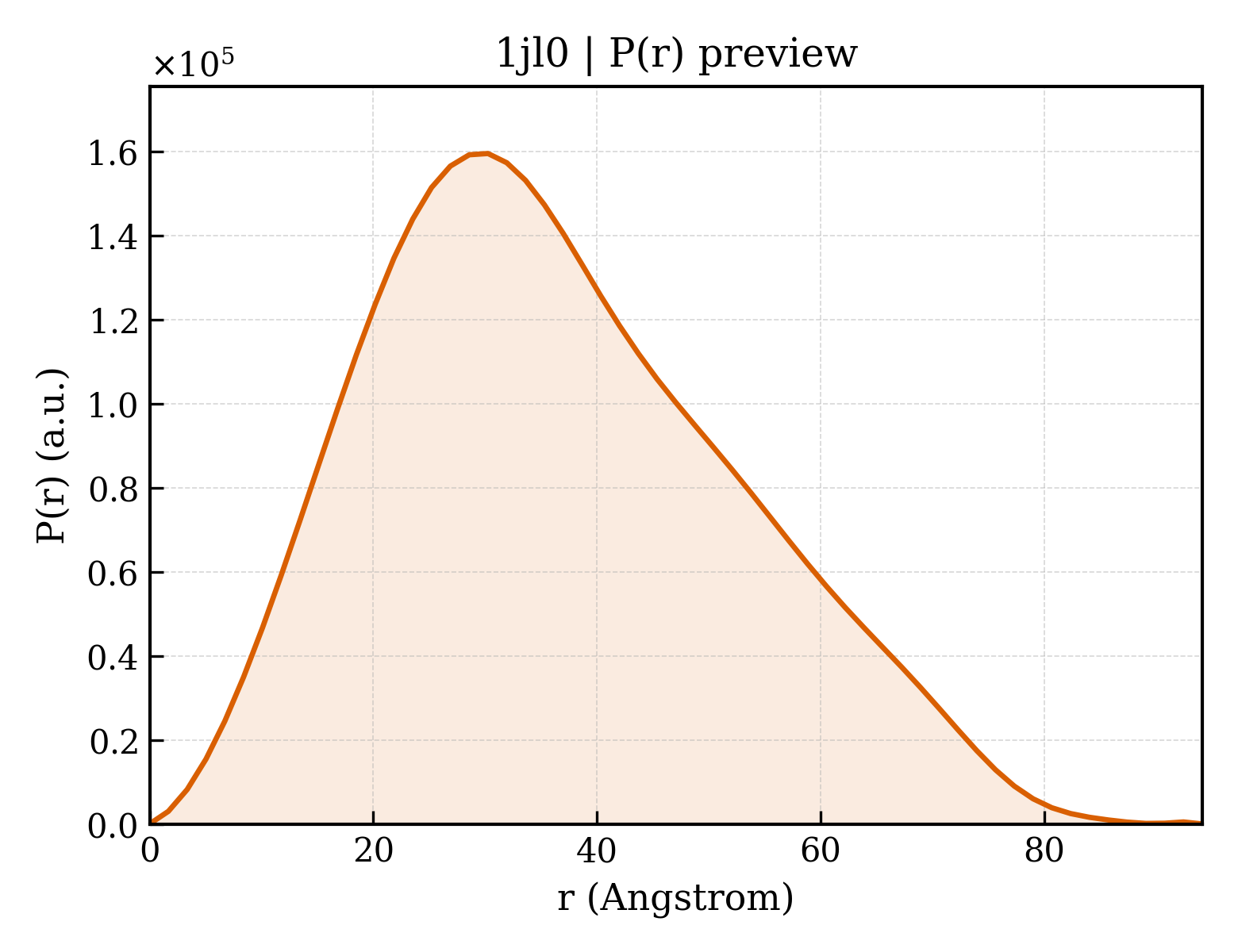

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 94.1 Å |
| Rg (实空间) rg_real | 28.14 Å |
| Rg 误差 (实空间) rg_real_error | 0.62 Å |
| I(0) (实空间) i0_real | 8.0400e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.1250e+06 |
| Rg (倒空间) rg_reciprocal | 28.13 Å |
| I(0) (倒空间) i0_reciprocal | 80400000.0000 |
| 解质量估计 total_estimate | 0.8715 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 30.3 Å |
| 偏度 Skewness skewness | 0.396 |
| 峰度 Kurtosis kurtosis | -0.432 |
| 角度范围 angular_range | — – 0.2800 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 36390000.0000 |
| 实空间数据点数 n_real_points | 57 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.970 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1jl0a_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.156 — S-adenosylmethionine decarboxylase |
| 超家族 Superfamily superfamily | d.156.1 — S-adenosylmethionine decarboxylase |
| 家族 Family family | d.156.1.1 — S-adenosylmethionine decarboxylase |
| 结构域编号 domain_id | d1jl0b_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.156 — S-adenosylmethionine decarboxylase |
| 超家族 Superfamily superfamily | d.156.1 — S-adenosylmethionine decarboxylase |
| 家族 Family family | d.156.1.1 — S-adenosylmethionine decarboxylase |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1jl0A00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 60 — 4-Layer Sandwich |
| 拓扑 Topology topology | 90 — S-adenosylmethionine decarboxylase |
| 同源超家族 H-superfamily homologous superfamily | 10 — S-adenosylmethionine decarboxylase |
| 结构域编号 domain_id | 1jl0B00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 60 — 4-Layer Sandwich |
| 拓扑 Topology topology | 90 — S-adenosylmethionine decarboxylase |
| 同源超家族 H-superfamily homologous superfamily | 10 — S-adenosylmethionine decarboxylase |
