1ib1

CRYSTAL STRUCTURE OF THE 14-3-3 ZETA:SEROTONIN N-ACETYLTRANSFERASE COMPLEX

Method: X-RAY DIFFRACTION D_max: 134.0 Å Quality: GOOD

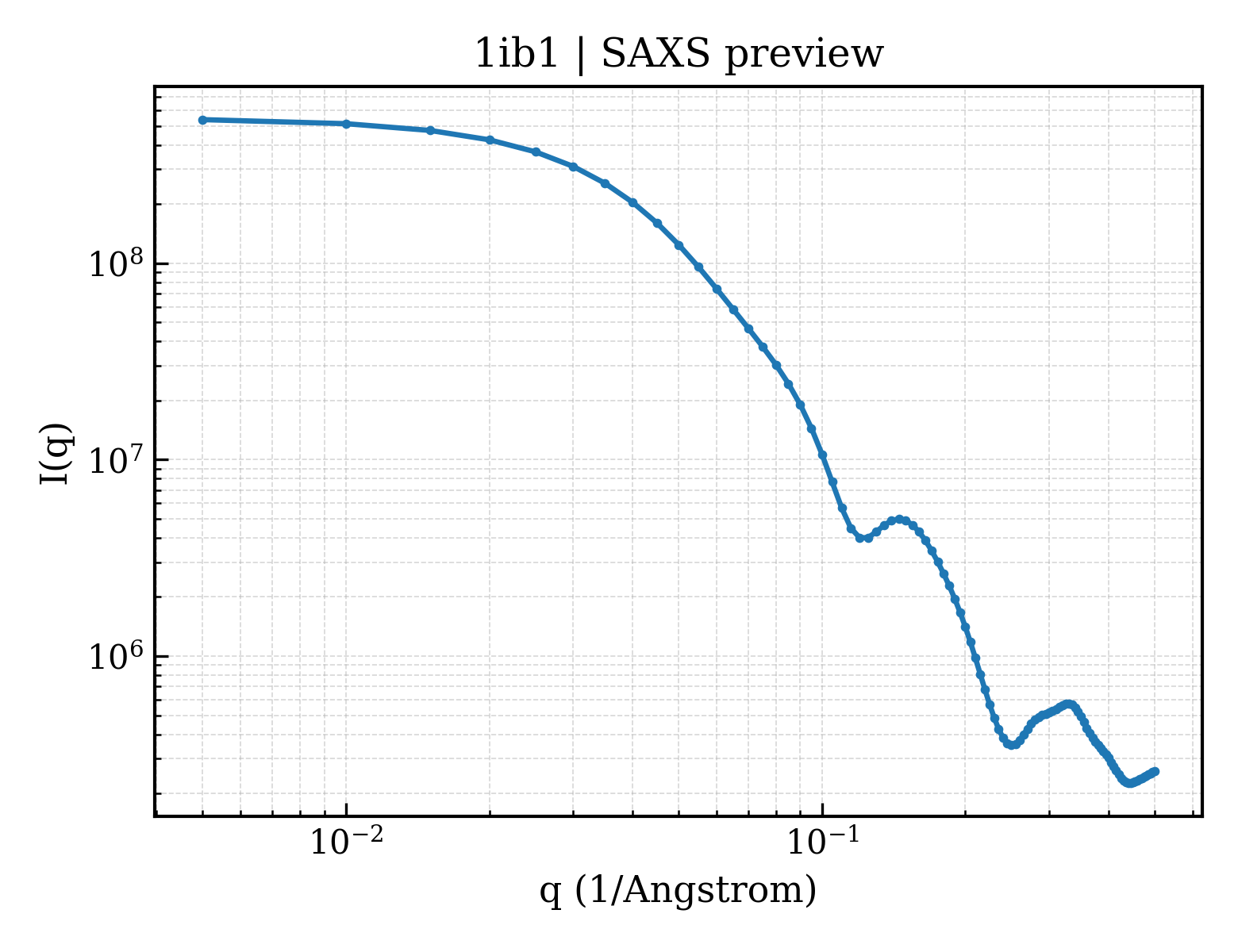

SAXS 散射曲线 SAXS Profile

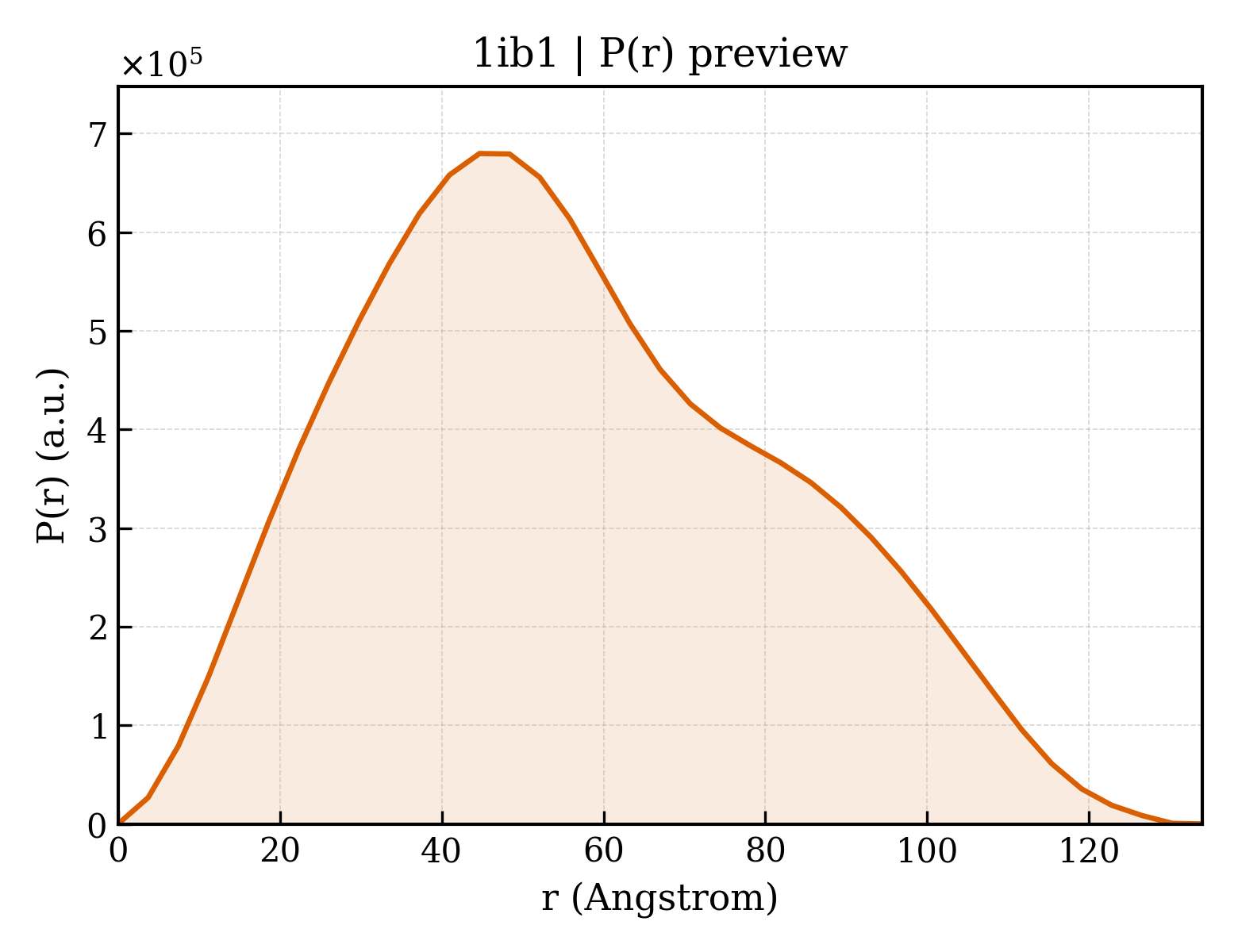

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ib1
沉积日期 deposition_date	2001-03-26
结构标题 title	CRYSTAL STRUCTURE OF THE 14-3-3 ZETA:SEROTONIN N-ACETYLTRANSFERASE COMPLEX
关键词 keywords	N-ACETYL TRANSFERASE, 14-3-3, SIGNAL TRANSDUCTION, PROTEIN-PROTEIN COMPLEX, PHOSPHORYLATION, SIGNALING PROTEIN-TRANSFERASE COMPLEX; SIGNALING PROTEIN/TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.48 Å
回转半径 Rg (电子) rg_electron	43.30 Å
零角强度 I(0) i0	545839000.00
分子量 molecular_weight	187950.0 kDa
排除体积 excluded_volume	233470 Å³
包络体积 envelope_volume	316630 Å³
水化壳体积 shell_volume	61891 Å³
包络直径 envelope_diameter	140.1 Å
壳层 Rg shell_rg	47.92 Å
包络 Rg envelope_rg	41.96 Å
形状 Rg shape_rg	43.28 Å
总 Rg total_rg	43.56 Å
总原子数 total_atoms	13196
残基数 n_residues	1620
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.0 Å
Rg (实空间) rg_real	43.55 Å
Rg 误差 (实空间) rg_real_error	1.02 Å
I(0) (实空间) i0_real	5.4580e+08
I(0) 误差 (实空间) i0_real_error	8.7580e+06
Rg (倒空间) rg_reciprocal	43.49 Å
I(0) (倒空间) i0_reciprocal	545800000.0000
解质量估计 total_estimate	0.8441
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	44.7 Å
偏度 Skewness skewness	0.331
峰度 Kurtosis kurtosis	-0.616
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	34610000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.182

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	14-3-3 ZETA ISOFORM
分子量 formula_weight	27777.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	13407

MDKNELVQKAKLAEQAERYDDMAACMKSVTEQGAELSNEERNLLSVAYKNVVGARRSSWRVVSSIEQKTEGAEKKQQMAREYREKIETELRDICNDVLSLLEKFLIPNASQAESKVFYLKMKGDYYRYLAEVAAGDDKKGIVDQSQQAYQEAFEISKKEMQPTHPIRLGLALNFSVFYYEILNSPEKACSLAKTAFDEAIAELDTLSEESYKDSTLIMQLLRDNLTLWTSDTQGDEAEAGEGGEN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	SEROTONIN N-ACETYLTRANSFERASE
分子量 formula_weight	22272.5 kDa
EC 编号 ec_number	2.3.1.87
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H

STPSVHCLKPSPLHLPSGIPGSPGRQRRHTLPANEFRCLTPEDAAGVFEIEREAFISVSGNCPLNLDEVQHFLTLCPELSLGWFVEGRLVAFIIGSLWDEERLTQESLALHRPRGHSAHLHALAVHRSFRQQGKGSVLLWRYLHHVGAQPAVRRAVLMCEDALVPFYQRFGFHPAGPCAIVVGSLTFTEMHCSLRGHAAL

来源 Source

来源生物 organism	Ovis aries
通用名 common_name	sheep
NCBI 分类编号 ncbi_taxonomy_id	9940
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	COA-S-ACETYL TRYPTAMINE
分子量 formula_weight	967.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	211

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1ib1a_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.7 — 14-3-3 protein
家族 Family family	a.118.7.1 — 14-3-3 protein

结构域编号 domain_id	d1ib1b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.7 — 14-3-3 protein
家族 Family family	a.118.7.1 — 14-3-3 protein

结构域编号 domain_id	d1ib1c_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.7 — 14-3-3 protein
家族 Family family	a.118.7.1 — 14-3-3 protein

结构域编号 domain_id	d1ib1d_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.7 — 14-3-3 protein
家族 Family family	a.118.7.1 — 14-3-3 protein

结构域编号 domain_id	d1ib1e_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.1 — N-acetyl transferase, NAT

结构域编号 domain_id	d1ib1f_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.1 — N-acetyl transferase, NAT

结构域编号 domain_id	d1ib1g_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.1 — N-acetyl transferase, NAT

结构域编号 domain_id	d1ib1h_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
超家族 Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
家族 Family family	d.108.1.1 — N-acetyl transferase, NAT

CATH v4.4 (8 domains)

结构域编号 domain_id	1ib1A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	190 — Delta-Endotoxin; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 14-3-3 domain

结构域编号 domain_id	1ib1B00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	190 — Delta-Endotoxin; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 14-3-3 domain

结构域编号 domain_id	1ib1C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	190 — Delta-Endotoxin; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 14-3-3 domain

结构域编号 domain_id	1ib1D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	190 — Delta-Endotoxin; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 14-3-3 domain

结构域编号 domain_id	1ib1E00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1ib1F00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1ib1G00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

结构域编号 domain_id	1ib1H00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	74.717 Å
晶胞边长 b length_b	75.078 Å
晶胞边长 c length_c	101.780 Å
晶胞夹角 α angle_alpha	90.14 °
晶胞夹角 β angle_beta	90.06 °
晶胞夹角 γ angle_gamma	63.04 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2040
R_work r_work	0.2040
R_free r_free	0.2280

fit	/app/data/saxs_computation/ib/1ib1/1ib1.fit
pddf	/app/data/pr_computation/ib/1ib1/1ib1.pr.out
profile	/app/data/saxs_computation/ib/1ib1/1ib1.dat
