6fnc

Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins

Method: X-RAY DIFFRACTION D_max: 83.3 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein zeta/delta

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–230 Chain B； UniProt 1–230	Not recorded	DWK [2-[2-oxidanylidene-2-[[3-[3-[2-[2-[3-[[4-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]propoxy]ethoxy]ethoxy]propylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 BEZ BENZOIC ACID × 2 GOL GLYCEROL × 2 CA CALCIUM ION × 2 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；277.15 K；0.18 M Magnesium chloride, 0.09 M Sodium HEPES pH 7.5 10%(v/v) Glycerol 27%(v/v) Isopropanol	Resolution 2.12 Å R-free 0.246

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6FNC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IB1 CRYSTAL STRUCTURE OF THE 14-3-3 ZETA:SEROTONIN N-ACETYLTRANSFERASE COMPLEX Deposited 2001-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	COT COA-S-ACETYL TRYPTAMINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 4000, magnesium chloride, lithium sulfate, DTT, EDTA, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.228
1IB1 CRYSTAL STRUCTURE OF THE 14-3-3 ZETA:SEROTONIN N-ACETYLTRANSFERASE COMPLEX Deposited 2001-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	COT COA-S-ACETYL TRYPTAMINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 4000, magnesium chloride, lithium sulfate, DTT, EDTA, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.228
2C1J Molecular basis for the recognition of phosphorylated and phosphoacetylated histone H3 by 14-3-3 Deposited 2005-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.1 M HEPES PH7.0, 23% ETHYLENE GLYCOL, pH 7.00	Resolution 2.60 Å R-free 0.292
2C1N Molecular basis for the recognition of phosphorylated and phosphoacetylated histone H3 by 14-3-3 Deposited 2005-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；100MM HEPES PH 7.0, 23% ETHYLENE GLYCOL	Resolution 2.00 Å R-free 0.296
2C1N Molecular basis for the recognition of phosphorylated and phosphoacetylated histone H3 by 14-3-3 Deposited 2005-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；100MM HEPES PH 7.0, 23% ETHYLENE GLYCOL	Resolution 2.00 Å R-free 0.296
2O02 Phosphorylation independent interactions between 14-3-3 and Exoenzyme S: from structure to pathogenesis Deposited 2006-11-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	BEZ BENZOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；285 K；pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 285K	Resolution 1.50 Å R-free 0.212
2WH0 Recognition of an intrachain tandem 14-3-3 binding site within protein kinase C epsilon Deposited 2009-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；16 MG/ML PROTEIN 9% (W/V) POLYETHYLENE GLYCOL 3350, 25 MM CALCIUM ACETATE, 25 MM SODIUM FLUORIDE, pH 7.4	Resolution 2.25 Å R-free 0.235
2WH0 Recognition of an intrachain tandem 14-3-3 binding site within protein kinase C epsilon Deposited 2009-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；16 MG/ML PROTEIN 9% (W/V) POLYETHYLENE GLYCOL 3350, 25 MM CALCIUM ACETATE, 25 MM SODIUM FLUORIDE, pH 7.4	Resolution 2.25 Å R-free 0.235
3CU8 Impaired binding of 14-3-3 to Raf1 is linked to Noonan and LEOPARD syndrome Deposited 2008-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	MG MAGNESIUM ION × 2 PPI PROPANOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M (Sodium propionate, sodium cacodylate, BIS-TRIS propane), 27% PEG 1500, 2mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.259
3NKX Impaired binding of 14-3-3 to Raf1 is linked to Noonan and LEOPARD syndrome Deposited 2010-06-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	PPI PROPANOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M (Sodium propionate, sodium cacodylate, BIS-TRIS propane), 27% PEG 1500, 2mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.247
3RDH X-ray induced covalent inhibition of 14-3-3 Deposited 2011-04-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	3RD 4-[(E)-{4-formyl-5-hydroxy-6-methyl-3-[(phosphonooxy)methyl]pyridin-2-yl}diazenyl]benzoic acid × 2 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25% PEG3350, 100 mM Tris-HCl pH 8.5, 10 mM MgCl2, 1 mM NiCl2, 1% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.39 Å R-free 0.286
3RDH X-ray induced covalent inhibition of 14-3-3 Deposited 2011-04-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–245（245 aa） Chain C 1–245（245 aa）	Not recorded	3RD 4-[(E)-{4-formyl-5-hydroxy-6-methyl-3-[(phosphonooxy)methyl]pyridin-2-yl}diazenyl]benzoic acid × 2 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25% PEG3350, 100 mM Tris-HCl pH 8.5, 10 mM MgCl2, 1 mM NiCl2, 1% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.39 Å R-free 0.286
3RDH X-ray induced covalent inhibition of 14-3-3 Deposited 2011-04-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa） Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	3RD 4-[(E)-{4-formyl-5-hydroxy-6-methyl-3-[(phosphonooxy)methyl]pyridin-2-yl}diazenyl]benzoic acid × 4 NI NICKEL (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25% PEG3350, 100 mM Tris-HCl pH 8.5, 10 mM MgCl2, 1 mM NiCl2, 1% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.39 Å R-free 0.286
4BG6 14-3-3 interaction with Rnd3 prenyl-phosphorylation motif Deposited 2013-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3 FAR FARNESYL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；0.17 M SODIUM ACETATE; 0.085 M TRIS, PH 8.5; 25.5% (W/V) PEG4000, 15% (V/V) GLYCEROL	Resolution 2.30 Å R-free 0.273
4FJ3 14-3-3 isoform zeta in complex with a diphoyphorylated C-RAF peptide Deposited 2012-06-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–230（230 aa） Fragment：UNP residues 1-230 Chain B 1–230（230 aa） Fragment：UNP residues 1-230	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M Na-acetate pH 7.0, 0.8 M NaH2PO4 and 1.2 M K2HPO4 , VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.95 Å R-free 0.208
4HKC 14-3-3-zeta in complex with S1011 phosphorylated integrin alpha-4 peptide Deposited 2012-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1M Na HEPES (pH 7.5), 25% PEG 2000 MME, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.239
4IHL Human 14-3-3 isoform zeta in complex with a diphoyphorylated C-RAF peptide and Cotylenin A Deposited 2012-12-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–230（230 aa） Fragment：UNP residues 1-230 Chain B 1–230（230 aa） Fragment：UNP residues 1-230	Not recorded	K POTASSIUM ION × 2 1F5 (1R,3aS,4R,5R,6R,9aR,10E)-6-({(1S,2R,4S,5R,6R,8S,9S)-5-hydroxy-2-(methoxymethyl)-9-methyl-9-[(2S)-oxiran-2-yl]-3,7,10,1 1-tetraoxatricyclo[6.2.1.0~1,6~]undec-4-yl}oxy)-1-(methoxymethyl)-4,9a-dimethyl-7-(propan-2-yl)-1,2,3,3a,4,5,6,8,9,9a-de cahydrodicyclopenta[a,d][8]annulene-1,5-diol × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M NA-ACETATE PH 7.0, 0.8 M NAH2PO4 AND 1.2 M K2HPO4, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.243
4N7G Crystal structure of 14-3-3zeta in complex with a peptide derived from ExoS Deposited 2013-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Fragment：UNP residues 1-230	Not recorded	P6G HEXAETHYLENE GLYCOL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277.15 K；0.2 M sodium chloride, 0.1 M sodium acetate, pH 4.5, 40% v/v PEG300, VAPOR DIFFUSION, temperature 277.15K	Resolution 2.25 Å R-free 0.223
4N7Y Crystal structure of 14-3-3zeta in complex with a 8-carbon-linker cyclic peptide derived from ExoS Deposited 2013-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Fragment：UNP residues 1-230 Chain B 1–230（230 aa） Fragment：UNP residues 1-230	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277.15 K；0.09 M HEPES sodium, pH 7.5, 1.26 M sodium citrate, 10% v/v glycerol, VAPOR DIFFUSION, temperature 277.15K	Resolution 2.16 Å R-free 0.256
4N84 Crystal structure of 14-3-3zeta in complex with a 12-carbon-linker cyclic peptide derived from ExoS Deposited 2013-10-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Fragment：UNP residues 1-230 Chain B 1–230（230 aa） Fragment：UNP residues 1-230	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；277.15 K；1 M potassium sodium tartrate, 0.1 M sodium chloride, 0.1 M imidazole, pH 8.0, cryoprotectant: 20% glycerol, VAPOR DIFFUSION, temperature 277.15K	Resolution 2.50 Å R-free 0.249
4WRQ Crystal Structure of 14-3-3 zeta with Chibby peptide Deposited 2014-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-20% PEG 3350, ammonium formate	Resolution 2.41 Å R-free 0.256
4ZDR Crystal structure of 14-3-3[zeta]-LKB1 fusion protein Deposited 2015-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–230（230 aa） Fragment：UNP residues 1-230,UNP residues 333-340 Chain B 1–230（230 aa） Fragment：UNP residues 1-230,UNP residues 333-340	Mutation：T240E Mutation：T240E	GOL GLYCEROL × 3 SO4 SULFATE ION × 2 TME PROPANE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；1.4 M Li2SO4, 0.1 M BIS-TRIS propane	Resolution 2.90 Å R-free 0.245
5D2D Crystal structure of human 14-3-3 zeta in complex with CFTR R-domain peptide pS753-pS768 Deposited 2015-08-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；HEPES, NaCl, DTT, Li2SO4, Glycine, K2HPO4	Resolution 2.10 Å R-free 0.220
5D3F Crystal structure of human 14-3-3 zeta in complex with CFTR R-domain peptide pS753-pS768 and stabilizer fusicoccin-A Deposited 2015-08-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	FSC FUSICOCCIN × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；HEPES, NaCl, DTT, PEG6000	Resolution 2.74 Å R-free 0.303
5EWZ Small-molecule stabilization of the 14-3-3/Gab2 PPI interface Deposited 2015-11-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	BEZ BENZOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；1.2 M sodium hydrogen phosphate, 0.8 M dipotassium hydrogen phosphate, 0.2 M lithium sulfate, 0.1 M CAPS	Resolution 2.34 Å R-free 0.244
5EXA Small-molecule stabilization of the 14-3-3/Gab2 PPI interface Deposited 2015-11-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	5SO Fusicoccin A-THF derivative × 2 BEZ BENZOIC ACID × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.17 M ammonium acetate, 0.085 M sodium citrate pH 5.6, 25.5% (w/v) PEG 4000, 15% (v/v) glycerol.	Resolution 1.95 Å R-free 0.234
5J31 Crystal structure of 14-3-3zeta in complex with an alkyne cross-linked cyclic peptide derived from ExoS Deposited 2016-03-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	BEZ BENZOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；1.26 M Tri-Sodium Citrate, 0.09 M HEPES pH 7.5, 10% Glycerol	Resolution 2.40 Å R-free 0.219
5JM4 Crystal structure of 14-3-3zeta in complex with a cyclic peptide involving an adamantyl and a dicarboxy side chain Deposited 2016-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–229（228 aa） Chain B 2–229（228 aa）	Not recorded	BEZ BENZOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.09 M HEPES sodium salt pH 7.5; 1.26 M tri-Sodium citrate; 10 %(v/v) Glycerol	Resolution 2.34 Å R-free 0.244
5M35 The molecular tweezer CLR01 stabilizes a disordered protein-protein interface Deposited 2016-10-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–230（229 aa） Chain B 2–230（229 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 2 BEZ BENZOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277.15 K；0.17 M Ammonium acetate; 0.085 M Sodium citrate pH 5.6; 25.5%(w/v) PEG 4000; 15%(v/v) Glycerol	Resolution 2.38 Å R-free 0.277
5M36 The molecular tweezer CLR01 stabilizes a disordered protein-protein interface Deposited 2016-10-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–230（229 aa） Chain B 2–230（229 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	9SZ (1R,5S,9S,16R,20R,24S,28S,35R)-3,22-Bis(dihydroxyphosphoryloxy)tridecacyclo[22.14.1.15,20.19,16.128,35.02,23.04,21.06,19.08,17.010,15.025,38.027,36.029,34]dotetraconta-2(23),3,6,8(17),10,12,14,18,21,25,27(36),29,31,33,37-pentadecaene × 4 BEZ BENZOIC ACID × 2 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277.15 K；0.17 M Ammonium acetate; 0.085 M Sodium citrate pH 5.6; 25.5% (w/v) PEG 4000; 15% (v/v) Glycerol	Resolution 2.45 Å R-free 0.274
5M37 The molecular tweezer CLR01 stabilizes a disordered protein-protein interface Deposited 2016-10-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	9SZ (1R,5S,9S,16R,20R,24S,28S,35R)-3,22-Bis(dihydroxyphosphoryloxy)tridecacyclo[22.14.1.15,20.19,16.128,35.02,23.04,21.06,19.08,17.010,15.025,38.027,36.029,34]dotetraconta-2(23),3,6,8(17),10,12,14,18,21,25,27(36),29,31,33,37-pentadecaene × 4 BEZ BENZOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.17 M Ammonium acetate;0.085 M tri-Sodium citrate pH 5.6; 25.5 %(w/v) PEG 4000; 15 %(v/v) Glycerol	Resolution 2.35 Å R-free 0.275
5NAS Crystal structure of human 14-3-3 zeta in complex with PI4KIIIB peptide Deposited 2017-02-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；MES, PEG, ethylene glycol	Resolution 2.08 Å R-free 0.231
5ULO Crystal Structure of 14-3-3 zeta in Complex with a Serine 124-phosphorylated TBC1D7 peptide Deposited 2017-01-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 UNX UNKNOWN LIGAND × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG 3350, 0.2 M NaCl, 0.1 M HEPES pH7.5,5%~15% Ethylene Glycol	Resolution 2.14 Å R-free 0.270
5WXN Structure of the LKB1 and 14-3-3 complex Deposited 2017-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.15 M ammonium chloride, 18% PEG3350	Resolution 2.93 Å R-free 0.254
5XY9 Structure of the MST4 and 14-3-3 complex Deposited 2017-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	GOL GLYCEROL × 1 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.2M MgCl2, 0.1M Tris pH 8.5, 25% PEG 3350	Resolution 2.30 Å R-free 0.245
6EF5 14-3-3 with peptide Deposited 2018-08-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.15 K；0.1 M Tris pH 8.5, 0.1 M MgCl2, 0.001 M NiCl2 and 22% PEG 3350	Resolution 2.44 Å R-free 0.244
6EF5 14-3-3 with peptide Deposited 2018-08-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.15 K；0.1 M Tris pH 8.5, 0.1 M MgCl2, 0.001 M NiCl2 and 22% PEG 3350	Resolution 2.44 Å R-free 0.244
6EJL Structure of 14-3-3 zeta in complex with ASK1 14-3-3 binding motif Deposited 2017-09-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；Morpheus HT-96, condition H12	Resolution 2.38 Å R-free 0.215
6EWW Structure of 14-3-3 zeta in complex with CaMKK2 14-3-3 binding motif Deposited 2017-11-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291.15 K；PEG 2000, TRIS-HCl, HEPES, magnesium chloride, sodium fluoride, TCEP	Resolution 2.68 Å R-free 0.234
6EWW Structure of 14-3-3 zeta in complex with CaMKK2 14-3-3 binding motif Deposited 2017-11-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291.15 K；PEG 2000, TRIS-HCl, HEPES, magnesium chloride, sodium fluoride, TCEP	Resolution 2.68 Å R-free 0.234
6F08 14-3-3 zeta in complex with the human Son of sevenless homolog 1 (SOS1) Deposited 2017-11-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.2, 36% (v/v) PEG 300	Resolution 1.90 Å R-free 0.267
6F08 14-3-3 zeta in complex with the human Son of sevenless homolog 1 (SOS1) Deposited 2017-11-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 1–230（230 aa） Chain J 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.2, 36% (v/v) PEG 300	Resolution 1.90 Å R-free 0.267
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 1–230（230 aa） Chain S 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300	Resolution 1.59 Å R-free 0.225
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Q 1–230（230 aa） Chain R 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300	Resolution 1.59 Å R-free 0.225
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 1–230（230 aa） Chain S 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300	Resolution 1.59 Å R-free 0.225
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Q 1–230（230 aa） Chain R 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300	Resolution 1.59 Å R-free 0.225
6FN9 Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	DW8 [2-[2-oxidanylidene-2-[[3-[2-[2-[2-[3-oxidanylidene-3-(propylamino)propoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 BEZ BENZOIC ACID × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.09 M HEPES sodium salt pH 7.5 1.26 M tri-Sodium citrate 10 %(v/v) Glycerol	Resolution 2.27 Å R-free 0.256
6FNA Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	DWE [2-[2-oxidanylidene-2-[[3-[2-[2-[2-[3-oxidanylidene-3-[2-[3-[2-[2-[2-[[4-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]ethoxy]ethoxy]ethoxy]propanoylamino]ethylamino]propoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 BEZ BENZOIC ACID × 2 CA CALCIUM ION × 2 CL CHLORIDE ION × 4 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.18 M Magnesium chloride 0.09 M Sodium HEPES pH 7.5 10% (v/v) Glycerol 27% (v/v) Isopropanol	Resolution 2.12 Å R-free 0.236
6FNB Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	BEZ BENZOIC ACID × 2 GOL GLYCEROL × 3 CA CALCIUM ION × 2 CL CHLORIDE ION × 4 DWQ [2-[2-oxidanylidene-2-[[3-[2-[5-[3-oxidanylidene-3-[3-[2-[2-[3-[3-[2-[2-[2-[[3-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]ethoxy]ethoxy]ethoxy]propanoylamino]propoxy]ethoxy]ethoxy]propylamino]propoxy]pentoxy]ethylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.09 M HEPES sodium salt pH 7.5 1.26 M tri-Sodium citrate 10 %(v/v) Glycerol	Resolution 2.30 Å R-free 0.248
6Q0K Structure of a MAPK pathway complex Deposited 2019-08-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain X 1–245（245 aa） Chain Y 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.80 Å
6RLZ Crystal Structure of 14-3-3zeta in complex with a macrocyclic 8-mer peptide derived from ExoS Deposited 2019-05-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.2 M Magnesium formate 20% PEG 3350 pH 7.5	Resolution 3.70 Å R-free 0.292
6U2H BRAF dimer bound to 14-3-3 Deposited 2019-08-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	29L 2-{4-[(1E)-1-(hydroxyimino)-2,3-dihydro-1H-inden-5-yl]-3-(pyridin-4-yl)-1H-pyrazol-1-yl}ethanol × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；PEG 6000 Tris pH 7.5	Resolution 2.50 Å R-free 0.263
6XAG Apo BRAF dimer bound to 14-3-3 Deposited 2020-06-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；100 mM HEPES pH 7.5, 200 mM ammonium sulfate, 23% (w/v) PEG 3350	Resolution 3.30 Å R-free 0.300
6YMO Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pS617 peptide Deposited 2020-04-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	SAL 2-HYDROXYBENZOIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.8；277.15 K；2.04 M ammonium sulfate, 0.2 M sodium citrate supplemented with 10% of an additive buffer containing 0.33% w/v 3-aminobenzoic acid, 0.33% w/v 3-aminosalicylic acid, 0.33% w/v salicylic acid and 0.02 M HEPES sodium pH 6.8	Resolution 2.02 Å R-free 0.234
6YO8 Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pT524 peptide Deposited 2020-04-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.3；277.15 K；1.29 M MgCl2, 22.5% PEG 3350, 0.1 M Tris pH 8.3, supplemented with 10% of an additive buffer containing 40% v/v of 2,5-Hexanediol	Resolution 2.09 Å R-free 0.238
6YO8 Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pT524 peptide Deposited 2020-04-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.3；277.15 K；1.29 M MgCl2, 22.5% PEG 3350, 0.1 M Tris pH 8.3, supplemented with 10% of an additive buffer containing 40% v/v of 2,5-Hexanediol	Resolution 2.09 Å R-free 0.238
6YOS Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pT524 pS617 peptide Deposited 2020-04-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.8；293.15 K；0.35 M MgCl2, 24.4% PEG 3350, 0. 1 M Bis Tris pH 5.5 supplemented with 10% of an additive buffer containing 0.06 M CHAPS, 0.06 M HEPES, 0.06 M Tris, 0.25% w/v Hexamminecobalt(III) chloride and 0.02 M HEPES sodium pH 6.8.	Resolution 2.75 Å R-free 0.261
6ZFD 14-3-3 zeta bound to the phosphorylated 18E6 C-terminus Deposited 2020-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–229（229 aa） Chain B 1–229（229 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；19% PEG4000, 0.1M cacodylate, 20%glycerol as a cryoprotectant	Resolution 1.90 Å R-free 0.207
6ZFG 14-3-3 zeta chimera with 18E6 and fusicoccin Deposited 2020-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–229（229 aa） Chain B 1–229（229 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1 FSC FUSICOCCIN × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；19% PEG4000, 0.1M cacodylate, 20%glycerol as a cryoprotectant	Resolution 1.85 Å R-free 0.219
7D8H CRTC1 pSer64 peptide in complex with 14-3-3 zeta Deposited 2020-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM Ammonium acetate, 100mM Bis-Tris (pH6.5), 25% (w/v) Polyethylene glycol 3350	Resolution 2.42 Å R-free 0.246
7D8P CRTC1 pSer151 peptide in complex with 14-3-3 zeta Deposited 2020-10-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM Ammonium acetate, 100mM Bis-Tris (pH6.5), 25% (w/v) Polyethylene glycol 3350	Resolution 2.00 Å R-free 0.229
7D9V CRTC1 pSer245 peptide in complex with 14-3-3 zeta Deposited 2020-10-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM Ammonium acetate, 100mM Bis-Tris (pH6.5), 25% (w/v) Polyethylene glycol 3350	Resolution 2.21 Å R-free 0.240
7MFD Autoinhibited BRAF:(14-3-3)2:MEK complex with the BRAF RBD resolved Deposited 2021-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	ZN ZINC ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.66 Å
7MFE Autoinhibited BRAF:(14-3-3)2 complex with the BRAF RBD resolved Deposited 2021-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–245（245 aa） Chain C 1–245（245 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å
7MFF Dimeric (BRAF)2:(14-3-3)2 complex bound to SB590885 Inhibitor Deposited 2021-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	215 (1Z)-5-(2-{4-[2-(DIMETHYLAMINO)ETHOXY]PHENYL}-5-PYRIDIN-4-YL-1H-IMIDAZOL-4-YL)INDAN-1-ONE OXIME × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.89 Å
7Q16 Human 14-3-3 zeta fused to the BAD peptide including phosphoserine-74 Deposited 2021-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–229（229 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.16 M calcium acetate, 0.08 M sodium cacodylate pH 6.5, 14.4 % w/v PEG 8000, 20 % v/v glycerol	Resolution 2.36 Å R-free 0.241
7ZIT 14-3-3 in complex with SARS-COV2 N phospho-peptide Deposited 2022-04-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	ACT ACETATE ION × 2 GOL GLYCEROL × 1 BEZ BENZOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；9 0.2 M Sodium acetate 0.1 M Sodium cacodylate pH 6.5 30% (w/v) PEG 8000	Resolution 1.79 Å R-free 0.205
8A9G Binary complex of 14-3-3 zeta Glucocorticoid Receptor (GR) pT524 peptide stabilised by (R)-para chloropyrrolidone1 Deposited 2022-06-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 QJK 5-[(2~{R})-3-(4-chlorophenyl)carbonyl-2-(4-nitrophenyl)-4-oxidanyl-5-oxidanylidene-2~{H}-pyrrol-1-yl]-2-oxidanyl-benzoic acid × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277.15 K；0.4 M MgCl2 27% w/v PEG 3350 0.1 M Bis Tris 6.5 pH	Resolution 1.96 Å R-free 0.261
8AH2 Crystal structure of human 14-3-3 zeta fused to the NPM1 peptide including phosphoserine-48 Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–229（229 aa）	Mutation：S58A,E75A,K76A,K77A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.01 M CoCl2, 0.1 M MES, pH 6.5, 2.2 M (NH4)2SO4	Resolution 2.90 Å R-free 0.323
8AH2 Crystal structure of human 14-3-3 zeta fused to the NPM1 peptide including phosphoserine-48 Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–229（229 aa）	Mutation：S58A,E75A,K76A,K77A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.01 M CoCl2, 0.1 M MES, pH 6.5, 2.2 M (NH4)2SO4	Resolution 2.90 Å R-free 0.323
8QDV Structure of 14-3-3 zeta delta C with the bivalent tau-pS214-pS324 peptide Deposited 2023-08-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M Sodium Fluoride, 0.1M bis-tris propane pH 6.5, 20% w/v PEG 3350	Resolution 2.50 Å R-free 0.260
8QDV Structure of 14-3-3 zeta delta C with the bivalent tau-pS214-pS324 peptide Deposited 2023-08-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–230（230 aa） Chain G 1–230（230 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M Sodium Fluoride, 0.1M bis-tris propane pH 6.5, 20% w/v PEG 3350	Resolution 2.50 Å R-free 0.260
8VYO Cryo-EM Structure of the BRAF WT monomer Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–230（229 aa） Chain C 2–230（229 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 3.74 Å
8VYP Cryo-EM Structure of the BRAF V600E monomer Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 3.29 Å
8VYQ Cryo-EM Structure of the BRAF V600K monomer Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 4.43 Å
8VYR Cryo-EM Structure of the BRAF V600E monomer bound to GDC0879 Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–245（245 aa） Chain C 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 4.32 Å
8VYS Cryo-EM Structure of the BRAF V600E monomer bound to PLX8394 Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–245（244 aa） Chain C 2–245（244 aa）	Not recorded	A1AEN (3S)-N-{3-[5-(2-cyclopropylpyrimidin-5-yl)-1H-pyrrolo[2,3-b]pyridine-3-carbonyl]-2,4-difluorophenyl}-3-fluoropyrrolidine-1-sulfonamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 3.06 Å
8VYU Cryo-EM Structure of the BRAF WT monomer bound to PLX8394 Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–245（245 aa） Chain C 1–245（245 aa）	Not recorded	A1AEN (3S)-N-{3-[5-(2-cyclopropylpyrimidin-5-yl)-1H-pyrrolo[2,3-b]pyridine-3-carbonyl]-2,4-difluorophenyl}-3-fluoropyrrolidine-1-sulfonamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 4.07 Å
8VYV Cryo-EM Structure of the BRAF K601E monomer Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 5.86 Å
8VYW Cryo-EM Structure of the BRAF D594G monomer Deposited 2024-02-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)	Resolution 4.76 Å
8WE2 14-3-3 zeta complexed with S609 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium Acetate, 20% PEG 3350	Resolution 2.11 Å R-free 0.238
8WF6 14-3-3 zeta complexed with S559 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2% Tacsimate pH7.0, 0.1M Hepes pH7.5, 20% PEG 3350	Resolution 2.47 Å R-free 0.238
8WF6 14-3-3 zeta complexed with S559 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	SIN SUCCINIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2% Tacsimate pH7.0, 0.1M Hepes pH7.5, 20% PEG 3350	Resolution 2.47 Å R-free 0.238
9FUM Dimeric 14-3-3 zeta in complex with MAP2c peptide containing pS435 Deposited 2024-06-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	CD CADMIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；100 mM HEPES pH(7.5), 400 mM Sodium acetate, 8mM Cadmium sulfate	Resolution 2.45 Å R-free 0.275
9FVL Dimeric 14-3-3 zeta in complex with unphosphorylated MAP2c peptide Deposited 2024-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	CD CADMIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；100 mM HEPES pH(7.5), 400 mM Sodium acetate, 8mM Cadmium sulfate	Resolution 2.08 Å R-free 0.283
9O2Z Autoinhibited BRAF:(14-3-3)2:MEK complex from Insect cells Deposited 2025-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	ZN ZINC ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.83 Å
9SV3 Local refinement of EloB/EloC/VHL/CV2a/14-3-3zeta/ERa from pose 1 Deposited 2025-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–245（245 aa） Chain I 1–245（245 aa）	Not recorded	A1JQT ~{N}'-[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]-~{N}-[(2~{S})-2-[(1~{E},3~{R},4~{S},8~{R},9~{R},10~{R},11~{S},14~{S})-14-(methoxymethyl)-3,10-dimethyl-8-[(2~{S},3~{R},4~{S},5~{S},6~{R})-6-(2-methylbut-3-en-2-yloxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-4,9-bis(oxidanyl)-6-tricyclo[9.3.0.0^{3,7}]tetradeca-1,6-dienyl]propyl]tridecanediamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9UJ2 14-3-3 zeta chimera with the S202R peptide of SARS-CoV-2 N (residues 200-213) Deposited 2025-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–229（229 aa） Chain B 1–229（229 aa）	Mutation：S202R,S58A,E73A,K74A,K75A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：S202R,S58A,E73A,K74A,K75A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 16 PEG DI(HYDROXYETHYL)ETHER × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288 K；1.8M Ammonium sulfate, 0.1M BIS-TRIS pH 6.5, 2% v/v Polyethylene glycol monomethyl ether 550	Resolution 1.80 Å R-free 0.233

73 other PDB entries and 88 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	1433Z_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–230； UniProt 1–230 Author chain B； PDBConstruct 1–230； UniProt 1–230

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6fnc
Deposition date deposition_date	2018-02-02
Structure title title	Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins
Keywords keywords	Inhibition, Mono- and bivalent 14-3-3 inhibitors, Supramolecular lysine-PEG, protein binding; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.24 Å
Radius of gyration Rg (electron density) rg_electron	26.44 Å
Forward intensity I(0) i0	46953400.00
Molecular weight molecular_weight	52443.0 kDa
Excluded volume excluded_volume	65228 Å³
Envelope volume envelope_volume	84099 Å³
Hydration-shell volume shell_volume	26538 Å³
Envelope diameter envelope_diameter	85.5 Å
Shell Rg shell_rg	33.82 Å
Envelope Rg envelope_rg	26.08 Å
Shape Rg shape_rg	26.50 Å
Total Rg total_rg	27.08 Å
Total atoms total_atoms	3673
Residues n_residues	456
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

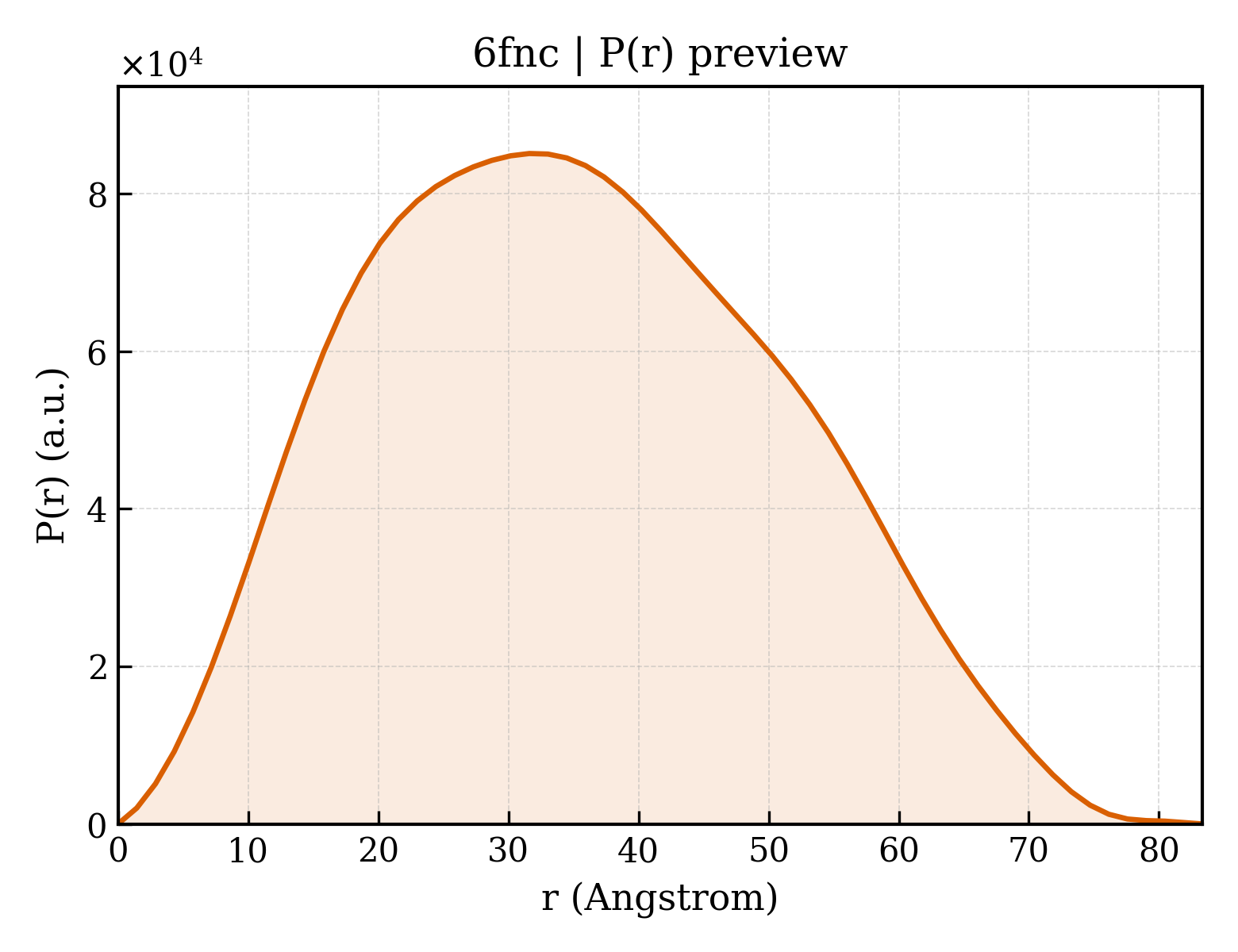

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	83.3 Å
Rg (real space) rg_real	27.20 Å
Rg uncertainty (real space) rg_real_error	0.46 Å
I(0) (real space) i0_real	4.6950e+07
I(0) uncertainty (real space) i0_real_error	5.4340e+05
Rg (reciprocal space) rg_reciprocal	27.21 Å
I(0) (reciprocal space) i0_reciprocal	46950000.0000
Solution quality estimate total_estimate	0.7433
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	31.6 Å
Skewness Skewness skewness	0.201
Kurtosis Kurtosis kurtosis	-0.679
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7637000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.980; Stabil: 1.000; Sysdev: 0.267; Positv: 1.000; Valcen: 0.989; Smooth: 0.930

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	14-3-3 protein zeta/delta
Molecular weight formula_weight	26316.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3914

MDKNELVQKAKLAEQAERYDDMAACMKSVTEQGAELSNEERNLLSVAYKNVVGARRSSWRVVSSIEQKTEGAEKKQQMAREYREKIETELRDICNDVLSLLEKFLIPNASQAESKVFYLKMKGDYYRYLAEVAAGDDKKGIVDQSQQAYQEAFEISKKEMQPTHPIRLGLALNFSVFYYEILNSPEKACSLAKTAFDEAIAELDTLSEESYKDSTLIMQLLRDNLTLWTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;[2-[2-oxidanylidene-2-[[3-[3-[2-[2-[3-[[4-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]propoxy]ethoxy]ethoxy]propylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid ;
Molecular weight formula_weight	886.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	BENZOIC ACID
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	241

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6fnca_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.7 — 14-3-3 protein
Family Family family	a.118.7.1 — 14-3-3 protein

Domain ID domain_id	d6fncb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.7 — 14-3-3 protein
Family Family family	a.118.7.1 — 14-3-3 protein

CATH v4.4 (2 domains)

Domain ID domain_id	6fncA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6fncB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	71.999 Å
Unit-cell length b length_b	102.992 Å
Unit-cell length c length_c	113.875 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.120 Å
Low-resolution limit resolution_low	44.660 Å
R factor r_factor	0.2177
R_work r_work	0.2162
R_free r_free	0.2463

fit	/app/data/saxs_computation/fn/6fnc/6fnc.fit
pddf	/app/data/pr_computation/fn/6fnc/6fnc.pr.out
profile	/app/data/saxs_computation/fn/6fnc/6fnc.dat
