8we2

14-3-3 zeta complexed with S609 phosphorylated peptide derived from GPIb alpha cytoplasmic domain

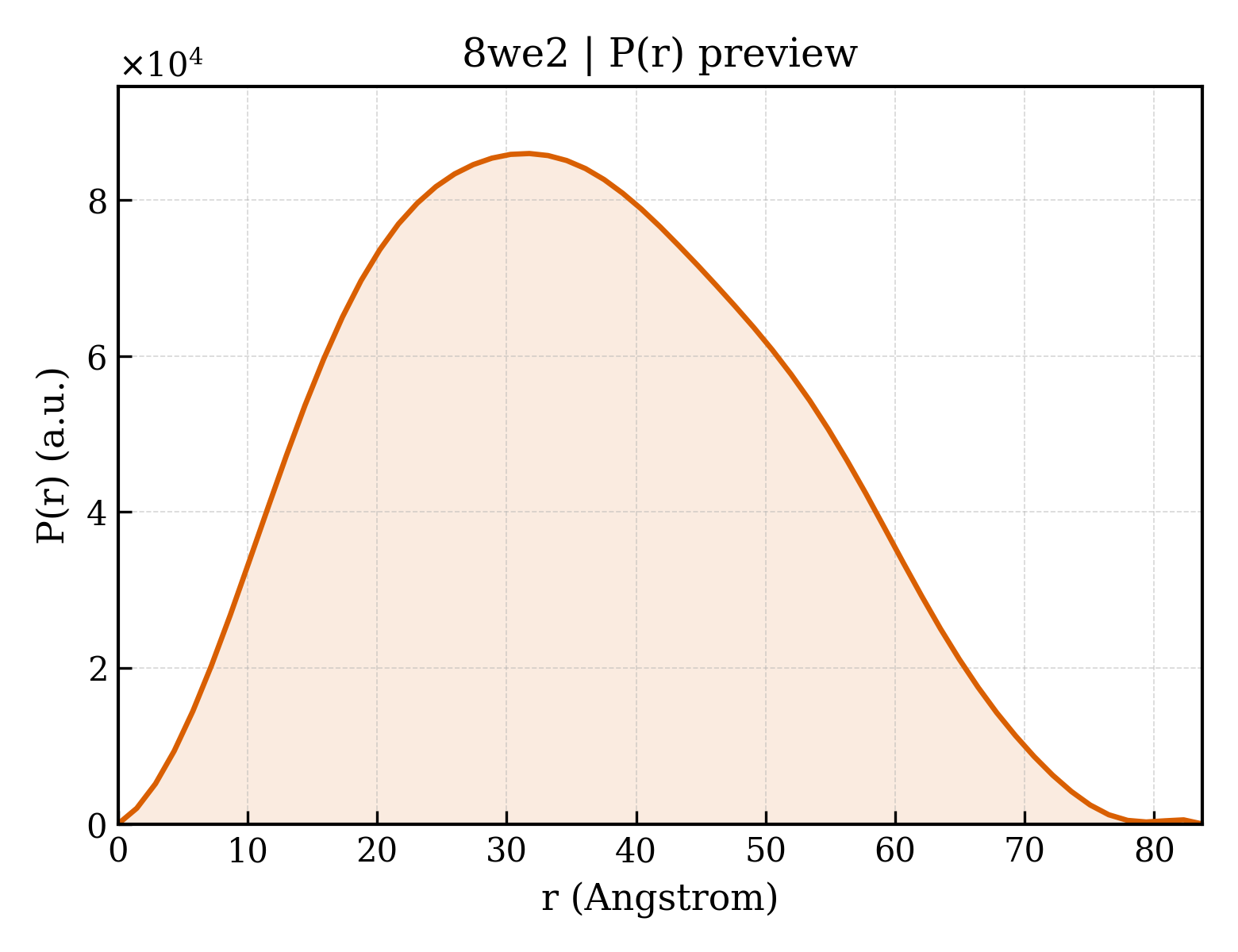

Method: X-RAY DIFFRACTION Dmax: 83.7 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein zeta/delta

Homo sapiens

UniProt P63104

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain A； UniProt 1–245 Chain B； UniProt 1–245 Not recorded S609 phosphorylated peptide × 2 （P07359） X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium Acetate, 20% PEG 3350 Resolution 2.11 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8WE2 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1IB1 CRYSTAL STRUCTURE OF THE 14-3-3 ZETA:SEROTONIN N-ACETYLTRANSFERASE COMPLEX Deposited 2001-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded COT COA-S-ACETYL TRYPTAMINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 4000, magnesium chloride, lithium sulfate, DTT, EDTA, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.228
1IB1 CRYSTAL STRUCTURE OF THE 14-3-3 ZETA:SEROTONIN N-ACETYLTRANSFERASE COMPLEX Deposited 2001-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded COT COA-S-ACETYL TRYPTAMINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 4000, magnesium chloride, lithium sulfate, DTT, EDTA, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.228
2C1J Molecular basis for the recognition of phosphorylated and phosphoacetylated histone H3 by 14-3-3 Deposited 2005-09-15 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；0.1 M HEPES PH7.0, 23% ETHYLENE GLYCOL, pH 7.00
Resolution 2.60 Å R-free 0.292
2C1N Molecular basis for the recognition of phosphorylated and phosphoacetylated histone H3 by 14-3-3 Deposited 2005-09-16 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；100MM HEPES PH 7.0, 23% ETHYLENE GLYCOL
Resolution 2.00 Å R-free 0.296
2C1N Molecular basis for the recognition of phosphorylated and phosphoacetylated histone H3 by 14-3-3 Deposited 2005-09-16 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；100MM HEPES PH 7.0, 23% ETHYLENE GLYCOL
Resolution 2.00 Å R-free 0.296
2O02 Phosphorylation independent interactions between 14-3-3 and Exoenzyme S: from structure to pathogenesis Deposited 2006-11-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded BEZ BENZOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；285 K；pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 285K
Resolution 1.50 Å R-free 0.212
2WH0 Recognition of an intrachain tandem 14-3-3 binding site within protein kinase C epsilon Deposited 2009-04-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；16 MG/ML PROTEIN 9% (W/V) POLYETHYLENE GLYCOL 3350, 25 MM CALCIUM ACETATE, 25 MM SODIUM FLUORIDE, pH 7.4
Resolution 2.25 Å R-free 0.235
2WH0 Recognition of an intrachain tandem 14-3-3 binding site within protein kinase C epsilon Deposited 2009-04-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；16 MG/ML PROTEIN 9% (W/V) POLYETHYLENE GLYCOL 3350, 25 MM CALCIUM ACETATE, 25 MM SODIUM FLUORIDE, pH 7.4
Resolution 2.25 Å R-free 0.235
3CU8 Impaired binding of 14-3-3 to Raf1 is linked to Noonan and LEOPARD syndrome Deposited 2008-04-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded MG MAGNESIUM ION × 2 PPI PROPANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M (Sodium propionate, sodium cacodylate, BIS-TRIS propane), 27% PEG 1500, 2mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.259
3NKX Impaired binding of 14-3-3 to Raf1 is linked to Noonan and LEOPARD syndrome Deposited 2010-06-21 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded PPI PROPANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M (Sodium propionate, sodium cacodylate, BIS-TRIS propane), 27% PEG 1500, 2mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.247
3RDH X-ray induced covalent inhibition of 14-3-3 Deposited 2011-04-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded 3RD 4-[(E)-{4-formyl-5-hydroxy-6-methyl-3-[(phosphonooxy)methyl]pyridin-2-yl}diazenyl]benzoic acid × 2 NI NICKEL (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25% PEG3350, 100 mM Tris-HCl pH 8.5, 10 mM MgCl2, 1 mM NiCl2, 1% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.39 Å R-free 0.286
3RDH X-ray induced covalent inhibition of 14-3-3 Deposited 2011-04-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–245（245 aa）
Chain C 1–245（245 aa）
Not recorded 3RD 4-[(E)-{4-formyl-5-hydroxy-6-methyl-3-[(phosphonooxy)methyl]pyridin-2-yl}diazenyl]benzoic acid × 2 NI NICKEL (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25% PEG3350, 100 mM Tris-HCl pH 8.5, 10 mM MgCl2, 1 mM NiCl2, 1% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.39 Å R-free 0.286
3RDH X-ray induced covalent inhibition of 14-3-3 Deposited 2011-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded 3RD 4-[(E)-{4-formyl-5-hydroxy-6-methyl-3-[(phosphonooxy)methyl]pyridin-2-yl}diazenyl]benzoic acid × 4 NI NICKEL (II) ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25% PEG3350, 100 mM Tris-HCl pH 8.5, 10 mM MgCl2, 1 mM NiCl2, 1% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.39 Å R-free 0.286
4BG6 14-3-3 interaction with Rnd3 prenyl-phosphorylation motif Deposited 2013-03-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3 FAR FARNESYL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；0.17 M SODIUM ACETATE; 0.085 M TRIS, PH 8.5; 25.5% (W/V) PEG4000, 15% (V/V) GLYCEROL
Resolution 2.30 Å R-free 0.273
4FJ3 14-3-3 isoform zeta in complex with a diphoyphorylated C-RAF peptide Deposited 2012-06-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–230（230 aa） Fragment：UNP residues 1-230
Chain B 1–230（230 aa） Fragment：UNP residues 1-230
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M Na-acetate pH 7.0, 0.8 M NaH2PO4 and 1.2 M K2HPO4 , VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.95 Å R-free 0.208
4HKC 14-3-3-zeta in complex with S1011 phosphorylated integrin alpha-4 peptide Deposited 2012-10-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1M Na HEPES (pH 7.5), 25% PEG 2000 MME, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.20 Å R-free 0.239
4IHL Human 14-3-3 isoform zeta in complex with a diphoyphorylated C-RAF peptide and Cotylenin A Deposited 2012-12-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–230（230 aa） Fragment：UNP residues 1-230
Chain B 1–230（230 aa） Fragment：UNP residues 1-230
Not recorded K POTASSIUM ION × 2 1F5 (1R,3aS,4R,5R,6R,9aR,10E)-6-({(1S,2R,4S,5R,6R,8S,9S)-5-hydroxy-2-(methoxymethyl)-9-methyl-9-[(2S)-oxiran-2-yl]-3,7,10,1 1-tetraoxatricyclo[6.2.1.0~1,6~]undec-4-yl}oxy)-1-(methoxymethyl)-4,9a-dimethyl-7-(propan-2-yl)-1,2,3,3a,4,5,6,8,9,9a-de cahydrodicyclopenta[a,d][8]annulene-1,5-diol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M NA-ACETATE PH 7.0, 0.8 M NAH2PO4 AND 1.2 M K2HPO4, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.20 Å R-free 0.243
4N7G Crystal structure of 14-3-3zeta in complex with a peptide derived from ExoS Deposited 2013-10-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa） Fragment：UNP residues 1-230
Not recorded P6G HEXAETHYLENE GLYCOL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277.15 K；0.2 M sodium chloride, 0.1 M sodium acetate, pH 4.5, 40% v/v PEG300, VAPOR DIFFUSION, temperature 277.15K
Resolution 2.25 Å R-free 0.223
4N7Y Crystal structure of 14-3-3zeta in complex with a 8-carbon-linker cyclic peptide derived from ExoS Deposited 2013-10-16 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa） Fragment：UNP residues 1-230
Chain B 1–230（230 aa） Fragment：UNP residues 1-230
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277.15 K；0.09 M HEPES sodium, pH 7.5, 1.26 M sodium citrate, 10% v/v glycerol, VAPOR DIFFUSION, temperature 277.15K
Resolution 2.16 Å R-free 0.256
4N84 Crystal structure of 14-3-3zeta in complex with a 12-carbon-linker cyclic peptide derived from ExoS Deposited 2013-10-17 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa） Fragment：UNP residues 1-230
Chain B 1–230（230 aa） Fragment：UNP residues 1-230
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；277.15 K；1 M potassium sodium tartrate, 0.1 M sodium chloride, 0.1 M imidazole, pH 8.0, cryoprotectant: 20% glycerol, VAPOR DIFFUSION, temperature 277.15K
Resolution 2.50 Å R-free 0.249
4WRQ Crystal Structure of 14-3-3 zeta with Chibby peptide Deposited 2014-10-24 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-20% PEG 3350, ammonium formate
Resolution 2.41 Å R-free 0.256
4ZDR Crystal structure of 14-3-3[zeta]-LKB1 fusion protein Deposited 2015-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–230（230 aa） Fragment：UNP residues 1-230,UNP residues 333-340
Chain B 1–230（230 aa） Fragment：UNP residues 1-230,UNP residues 333-340
Mutation：T240E Mutation：T240E GOL GLYCEROL × 3 SO4 SULFATE ION × 2 TME PROPANE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；1.4 M Li2SO4, 0.1 M BIS-TRIS propane
Resolution 2.90 Å R-free 0.245
5D2D Crystal structure of human 14-3-3 zeta in complex with CFTR R-domain peptide pS753-pS768 Deposited 2015-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；HEPES, NaCl, DTT, Li2SO4, Glycine, K2HPO4
Resolution 2.10 Å R-free 0.220
5D3F Crystal structure of human 14-3-3 zeta in complex with CFTR R-domain peptide pS753-pS768 and stabilizer fusicoccin-A Deposited 2015-08-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded FSC FUSICOCCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；HEPES, NaCl, DTT, PEG6000
Resolution 2.74 Å R-free 0.303
5EWZ Small-molecule stabilization of the 14-3-3/Gab2 PPI interface Deposited 2015-11-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded BEZ BENZOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；1.2 M sodium hydrogen phosphate, 0.8 M dipotassium hydrogen phosphate, 0.2 M lithium sulfate, 0.1 M CAPS
Resolution 2.34 Å R-free 0.244
5EXA Small-molecule stabilization of the 14-3-3/Gab2 PPI interface Deposited 2015-11-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded 5SO Fusicoccin A-THF derivative × 2 BEZ BENZOIC ACID × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.17 M ammonium acetate, 0.085 M sodium citrate pH 5.6, 25.5% (w/v) PEG 4000, 15% (v/v) glycerol.
Resolution 1.95 Å R-free 0.234
5J31 Crystal structure of 14-3-3zeta in complex with an alkyne cross-linked cyclic peptide derived from ExoS Deposited 2016-03-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded BEZ BENZOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；1.26 M Tri-Sodium Citrate, 0.09 M HEPES pH 7.5, 10% Glycerol
Resolution 2.40 Å R-free 0.219
5JM4 Crystal structure of 14-3-3zeta in complex with a cyclic peptide involving an adamantyl and a dicarboxy side chain Deposited 2016-04-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–229（228 aa）
Chain B 2–229（228 aa）
Not recorded BEZ BENZOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.09 M HEPES sodium salt pH 7.5; 1.26 M tri-Sodium citrate; 10 %(v/v) Glycerol
Resolution 2.34 Å R-free 0.244
5M35 The molecular tweezer CLR01 stabilizes a disordered protein-protein interface Deposited 2016-10-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–230（229 aa）
Chain B 2–230（229 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 BEZ BENZOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277.15 K；0.17 M Ammonium acetate; 0.085 M Sodium citrate pH 5.6; 25.5%(w/v) PEG 4000; 15%(v/v) Glycerol
Resolution 2.38 Å R-free 0.277
5M36 The molecular tweezer CLR01 stabilizes a disordered protein-protein interface Deposited 2016-10-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–230（229 aa）
Chain B 2–230（229 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 9SZ (1R,5S,9S,16R,20R,24S,28S,35R)-3,22-Bis(dihydroxyphosphoryloxy)tridecacyclo[22.14.1.15,20.19,16.128,35.02,23.04,21.06,19.08,17.010,15.025,38.027,36.029,34]dotetraconta-2(23),3,6,8(17),10,12,14,18,21,25,27(36),29,31,33,37-pentadecaene × 4 BEZ BENZOIC ACID × 2 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277.15 K；0.17 M Ammonium acetate; 0.085 M Sodium citrate pH 5.6; 25.5% (w/v) PEG 4000; 15% (v/v) Glycerol
Resolution 2.45 Å R-free 0.274
5M37 The molecular tweezer CLR01 stabilizes a disordered protein-protein interface Deposited 2016-10-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded 9SZ (1R,5S,9S,16R,20R,24S,28S,35R)-3,22-Bis(dihydroxyphosphoryloxy)tridecacyclo[22.14.1.15,20.19,16.128,35.02,23.04,21.06,19.08,17.010,15.025,38.027,36.029,34]dotetraconta-2(23),3,6,8(17),10,12,14,18,21,25,27(36),29,31,33,37-pentadecaene × 4 BEZ BENZOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.17 M Ammonium acetate;0.085 M tri-Sodium citrate pH 5.6; 25.5 %(w/v) PEG 4000; 15 %(v/v) Glycerol
Resolution 2.35 Å R-free 0.275
5NAS Crystal structure of human 14-3-3 zeta in complex with PI4KIIIB peptide Deposited 2017-02-28 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；MES, PEG, ethylene glycol
Resolution 2.08 Å R-free 0.231
5ULO Crystal Structure of 14-3-3 zeta in Complex with a Serine 124-phosphorylated TBC1D7 peptide Deposited 2017-01-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 UNX UNKNOWN LIGAND × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG 3350, 0.2 M NaCl, 0.1 M HEPES pH7.5,5%~15% Ethylene Glycol
Resolution 2.14 Å R-free 0.270
5WXN Structure of the LKB1 and 14-3-3 complex Deposited 2017-01-08 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.15 M ammonium chloride, 18% PEG3350
Resolution 2.93 Å R-free 0.254
5XY9 Structure of the MST4 and 14-3-3 complex Deposited 2017-07-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded GOL GLYCEROL × 1 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.2M MgCl2, 0.1M Tris pH 8.5, 25% PEG 3350
Resolution 2.30 Å R-free 0.245
6EF5 14-3-3 with peptide Deposited 2018-08-16 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.15 K；0.1 M Tris pH 8.5, 0.1 M MgCl2, 0.001 M NiCl2 and 22% PEG 3350
Resolution 2.44 Å R-free 0.244
6EF5 14-3-3 with peptide Deposited 2018-08-16 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.15 K；0.1 M Tris pH 8.5, 0.1 M MgCl2, 0.001 M NiCl2 and 22% PEG 3350
Resolution 2.44 Å R-free 0.244
6EJL Structure of 14-3-3 zeta in complex with ASK1 14-3-3 binding motif Deposited 2017-09-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；Morpheus HT-96, condition H12
Resolution 2.38 Å R-free 0.215
6EWW Structure of 14-3-3 zeta in complex with CaMKK2 14-3-3 binding motif Deposited 2017-11-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291.15 K；PEG 2000, TRIS-HCl, HEPES, magnesium chloride, sodium fluoride, TCEP
Resolution 2.68 Å R-free 0.234
6EWW Structure of 14-3-3 zeta in complex with CaMKK2 14-3-3 binding motif Deposited 2017-11-06 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–230（230 aa）
Chain D 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291.15 K；PEG 2000, TRIS-HCl, HEPES, magnesium chloride, sodium fluoride, TCEP
Resolution 2.68 Å R-free 0.234
6F08 14-3-3 zeta in complex with the human Son of sevenless homolog 1 (SOS1) Deposited 2017-11-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.2, 36% (v/v) PEG 300
Resolution 1.90 Å R-free 0.267
6F08 14-3-3 zeta in complex with the human Son of sevenless homolog 1 (SOS1) Deposited 2017-11-17 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 1–230（230 aa）
Chain J 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.2, 36% (v/v) PEG 300
Resolution 1.90 Å R-free 0.267
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain P 1–230（230 aa）
Chain S 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300
Resolution 1.59 Å R-free 0.225
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 1–230（230 aa）
Chain R 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300
Resolution 1.59 Å R-free 0.225
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain P 1–230（230 aa）
Chain S 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300
Resolution 1.59 Å R-free 0.225
6F09 Binary complex of 14-3-3 zeta with ubiquitin specific protease 8 (USP8) pSer718 peptide Deposited 2017-11-17 Different construct Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 1–230（230 aa）
Chain R 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1 M phosphate citrate pH 4.4; 40% PEG 300
Resolution 1.59 Å R-free 0.225
6FN9 Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded DW8 [2-[2-oxidanylidene-2-[[3-[2-[2-[2-[3-oxidanylidene-3-(propylamino)propoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 BEZ BENZOIC ACID × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.09 M HEPES sodium salt pH 7.5 1.26 M tri-Sodium citrate 10 %(v/v) Glycerol
Resolution 2.27 Å R-free 0.256
6FNA Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded DWE [2-[2-oxidanylidene-2-[[3-[2-[2-[2-[3-oxidanylidene-3-[2-[3-[2-[2-[2-[[4-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]ethoxy]ethoxy]ethoxy]propanoylamino]ethylamino]propoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 BEZ BENZOIC ACID × 2 CA CALCIUM ION × 2 CL CHLORIDE ION × 4 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.18 M Magnesium chloride 0.09 M Sodium HEPES pH 7.5 10% (v/v) Glycerol 27% (v/v) Isopropanol
Resolution 2.12 Å R-free 0.236
6FNB Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded BEZ BENZOIC ACID × 2 GOL GLYCEROL × 3 CA CALCIUM ION × 2 CL CHLORIDE ION × 4 DWQ [2-[2-oxidanylidene-2-[[3-[2-[5-[3-oxidanylidene-3-[3-[2-[2-[3-[3-[2-[2-[2-[[3-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]ethoxy]ethoxy]ethoxy]propanoylamino]propoxy]ethoxy]ethoxy]propylamino]propoxy]pentoxy]ethylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.09 M HEPES sodium salt pH 7.5 1.26 M tri-Sodium citrate 10 %(v/v) Glycerol
Resolution 2.30 Å R-free 0.248
6FNC Mono- and bivalent 14-3-3 inhibitors for characterizing supramolecular lysine-PEG interactions in proteins Deposited 2018-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded DWK [2-[2-oxidanylidene-2-[[3-[3-[2-[2-[3-[[4-[2-(2-phosphonophenoxy)ethanoylamino]phenyl]carbonylamino]propoxy]ethoxy]ethoxy]propylcarbamoyl]phenyl]amino]ethoxy]phenyl]phosphonic acid × 2 BEZ BENZOIC ACID × 2 GOL GLYCEROL × 2 CA CALCIUM ION × 2 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.18 M Magnesium chloride, 0.09 M Sodium HEPES pH 7.5 10%(v/v) Glycerol 27%(v/v) Isopropanol
Resolution 2.12 Å R-free 0.246
6Q0K Structure of a MAPK pathway complex Deposited 2019-08-01 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain X 1–245（245 aa）
Chain Y 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
6RLZ Crystal Structure of 14-3-3zeta in complex with a macrocyclic 8-mer peptide derived from ExoS Deposited 2019-05-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.2 M Magnesium formate 20% PEG 3350 pH 7.5
Resolution 3.70 Å R-free 0.292
6U2H BRAF dimer bound to 14-3-3 Deposited 2019-08-19 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded 29L 2-{4-[(1E)-1-(hydroxyimino)-2,3-dihydro-1H-inden-5-yl]-3-(pyridin-4-yl)-1H-pyrazol-1-yl}ethanol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；PEG 6000 Tris pH 7.5
Resolution 2.50 Å R-free 0.263
6XAG Apo BRAF dimer bound to 14-3-3 Deposited 2020-06-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；100 mM HEPES pH 7.5, 200 mM ammonium sulfate, 23% (w/v) PEG 3350
Resolution 3.30 Å R-free 0.300
6YMO Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pS617 peptide Deposited 2020-04-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded SAL 2-HYDROXYBENZOIC ACID × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.8；277.15 K；2.04 M ammonium sulfate, 0.2 M sodium citrate supplemented with 10% of an additive buffer containing 0.33% w/v 3-aminobenzoic acid, 0.33% w/v 3-aminosalicylic acid, 0.33% w/v salicylic acid and 0.02 M HEPES sodium pH 6.8
Resolution 2.02 Å R-free 0.234
6YO8 Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pT524 peptide Deposited 2020-04-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8.3；277.15 K；1.29 M MgCl2, 22.5% PEG 3350, 0.1 M Tris pH 8.3, supplemented with 10% of an additive buffer containing 40% v/v of 2,5-Hexanediol
Resolution 2.09 Å R-free 0.238
6YO8 Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pT524 peptide Deposited 2020-04-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–230（230 aa）
Chain D 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8.3；277.15 K；1.29 M MgCl2, 22.5% PEG 3350, 0.1 M Tris pH 8.3, supplemented with 10% of an additive buffer containing 40% v/v of 2,5-Hexanediol
Resolution 2.09 Å R-free 0.238
6YOS Binary complex of 14-3-3 zeta with Glucocorticoid Receptor (GR) pT524 pS617 peptide Deposited 2020-04-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.8；293.15 K；0.35 M MgCl2, 24.4% PEG 3350, 0. 1 M Bis Tris pH 5.5 supplemented with 10% of an additive buffer containing 0.06 M CHAPS, 0.06 M HEPES, 0.06 M Tris, 0.25% w/v Hexamminecobalt(III) chloride and 0.02 M HEPES sodium pH 6.8.
Resolution 2.75 Å R-free 0.261
6ZFD 14-3-3 zeta bound to the phosphorylated 18E6 C-terminus Deposited 2020-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–229（229 aa）
Chain B 1–229（229 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；19% PEG4000, 0.1M cacodylate, 20%glycerol as a cryoprotectant
Resolution 1.90 Å R-free 0.207
6ZFG 14-3-3 zeta chimera with 18E6 and fusicoccin Deposited 2020-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–229（229 aa）
Chain B 1–229（229 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 FSC FUSICOCCIN × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；19% PEG4000, 0.1M cacodylate, 20%glycerol as a cryoprotectant
Resolution 1.85 Å R-free 0.219
7D8H CRTC1 pSer64 peptide in complex with 14-3-3 zeta Deposited 2020-10-08 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM Ammonium acetate, 100mM Bis-Tris (pH6.5), 25% (w/v) Polyethylene glycol 3350
Resolution 2.42 Å R-free 0.246
7D8P CRTC1 pSer151 peptide in complex with 14-3-3 zeta Deposited 2020-10-08 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM Ammonium acetate, 100mM Bis-Tris (pH6.5), 25% (w/v) Polyethylene glycol 3350
Resolution 2.00 Å R-free 0.229
7D9V CRTC1 pSer245 peptide in complex with 14-3-3 zeta Deposited 2020-10-14 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM Ammonium acetate, 100mM Bis-Tris (pH6.5), 25% (w/v) Polyethylene glycol 3350
Resolution 2.21 Å R-free 0.240
7MFD Autoinhibited BRAF:(14-3-3)2:MEK complex with the BRAF RBD resolved Deposited 2021-04-09 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded ZN ZINC ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
7MFE Autoinhibited BRAF:(14-3-3)2 complex with the BRAF RBD resolved Deposited 2021-04-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–245（245 aa）
Chain C 1–245（245 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.07 Å
7MFF Dimeric (BRAF)2:(14-3-3)2 complex bound to SB590885 Inhibitor Deposited 2021-04-09 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded 215 (1Z)-5-(2-{4-[2-(DIMETHYLAMINO)ETHOXY]PHENYL}-5-PYRIDIN-4-YL-1H-IMIDAZOL-4-YL)INDAN-1-ONE OXIME × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.89 Å
7Q16 Human 14-3-3 zeta fused to the BAD peptide including phosphoserine-74 Deposited 2021-10-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–229（229 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.16 M calcium acetate, 0.08 M sodium cacodylate pH 6.5, 14.4 % w/v PEG 8000, 20 % v/v glycerol
Resolution 2.36 Å R-free 0.241
7ZIT 14-3-3 in complex with SARS-COV2 N phospho-peptide Deposited 2022-04-08 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded ACT ACETATE ION × 2 GOL GLYCEROL × 1 BEZ BENZOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；9 0.2 M Sodium acetate 0.1 M Sodium cacodylate pH 6.5 30% (w/v) PEG 8000
Resolution 1.79 Å R-free 0.205
8A9G Binary complex of 14-3-3 zeta Glucocorticoid Receptor (GR) pT524 peptide stabilised by (R)-para chloropyrrolidone1 Deposited 2022-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 QJK 5-[(2~{R})-3-(4-chlorophenyl)carbonyl-2-(4-nitrophenyl)-4-oxidanyl-5-oxidanylidene-2~{H}-pyrrol-1-yl]-2-oxidanyl-benzoic acid × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277.15 K；0.4 M MgCl2 27% w/v PEG 3350 0.1 M Bis Tris 6.5 pH
Resolution 1.96 Å R-free 0.261
8AH2 Crystal structure of human 14-3-3 zeta fused to the NPM1 peptide including phosphoserine-48 Deposited 2022-07-20 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–229（229 aa）
Mutation：S58A,E75A,K76A,K77A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.01 M CoCl2, 0.1 M MES, pH 6.5, 2.2 M (NH4)2SO4
Resolution 2.90 Å R-free 0.323
8AH2 Crystal structure of human 14-3-3 zeta fused to the NPM1 peptide including phosphoserine-48 Deposited 2022-07-20 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–229（229 aa）
Mutation：S58A,E75A,K76A,K77A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.01 M CoCl2, 0.1 M MES, pH 6.5, 2.2 M (NH4)2SO4
Resolution 2.90 Å R-free 0.323
8QDV Structure of 14-3-3 zeta delta C with the bivalent tau-pS214-pS324 peptide Deposited 2023-08-30 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–230（230 aa）
Chain B 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M Sodium Fluoride, 0.1M bis-tris propane pH 6.5, 20% w/v PEG 3350
Resolution 2.50 Å R-free 0.260
8QDV Structure of 14-3-3 zeta delta C with the bivalent tau-pS214-pS324 peptide Deposited 2023-08-30 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–230（230 aa）
Chain G 1–230（230 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M Sodium Fluoride, 0.1M bis-tris propane pH 6.5, 20% w/v PEG 3350
Resolution 2.50 Å R-free 0.260
8VYO Cryo-EM Structure of the BRAF WT monomer Deposited 2024-02-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–230（229 aa）
Chain C 2–230（229 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 3.74 Å
8VYP Cryo-EM Structure of the BRAF V600E monomer Deposited 2024-02-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 3.29 Å
8VYQ Cryo-EM Structure of the BRAF V600K monomer Deposited 2024-02-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 4.43 Å
8VYR Cryo-EM Structure of the BRAF V600E monomer bound to GDC0879 Deposited 2024-02-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–245（245 aa）
Chain C 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 4.32 Å
8VYS Cryo-EM Structure of the BRAF V600E monomer bound to PLX8394 Deposited 2024-02-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–245（244 aa）
Chain C 2–245（244 aa）
Not recorded A1AEN (3S)-N-{3-[5-(2-cyclopropylpyrimidin-5-yl)-1H-pyrrolo[2,3-b]pyridine-3-carbonyl]-2,4-difluorophenyl}-3-fluoropyrrolidine-1-sulfonamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 3.06 Å
8VYU Cryo-EM Structure of the BRAF WT monomer bound to PLX8394 Deposited 2024-02-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–245（245 aa）
Chain C 1–245（245 aa）
Not recorded A1AEN (3S)-N-{3-[5-(2-cyclopropylpyrimidin-5-yl)-1H-pyrrolo[2,3-b]pyridine-3-carbonyl]-2,4-difluorophenyl}-3-fluoropyrrolidine-1-sulfonamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 4.07 Å
8VYV Cryo-EM Structure of the BRAF K601E monomer Deposited 2024-02-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 5.86 Å
8VYW Cryo-EM Structure of the BRAF D594G monomer Deposited 2024-02-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Chameleon system (SPT Labtech)
Resolution 4.76 Å
8WF6 14-3-3 zeta complexed with S559 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-19 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2% Tacsimate pH7.0, 0.1M Hepes pH7.5, 20% PEG 3350
Resolution 2.47 Å R-free 0.238
8WF6 14-3-3 zeta complexed with S559 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded SIN SUCCINIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2% Tacsimate pH7.0, 0.1M Hepes pH7.5, 20% PEG 3350
Resolution 2.47 Å R-free 0.238
9FUM Dimeric 14-3-3 zeta in complex with MAP2c peptide containing pS435 Deposited 2024-06-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded CD CADMIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；100 mM HEPES pH(7.5), 400 mM Sodium acetate, 8mM Cadmium sulfate
Resolution 2.45 Å R-free 0.275
9FVL Dimeric 14-3-3 zeta in complex with unphosphorylated MAP2c peptide Deposited 2024-06-27 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–245（245 aa）
Chain B 1–245（245 aa）
Not recorded CD CADMIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；100 mM HEPES pH(7.5), 400 mM Sodium acetate, 8mM Cadmium sulfate
Resolution 2.08 Å R-free 0.283
9O2Z Autoinhibited BRAF:(14-3-3)2:MEK complex from Insect cells Deposited 2025-04-04 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–245（245 aa）
Chain D 1–245（245 aa）
Not recorded ZN ZINC ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.83 Å
9SV3 Local refinement of EloB/EloC/VHL/CV2a/14-3-3zeta/ERa from pose 1 Deposited 2025-09-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–245（245 aa）
Chain I 1–245（245 aa）
Not recorded A1JQT ~{N}'-[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]-~{N}-[(2~{S})-2-[(1~{E},3~{R},4~{S},8~{R},9~{R},10~{R},11~{S},14~{S})-14-(methoxymethyl)-3,10-dimethyl-8-[(2~{S},3~{R},4~{S},5~{S},6~{R})-6-(2-methylbut-3-en-2-yloxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-4,9-bis(oxidanyl)-6-tricyclo[9.3.0.0^{3,7}]tetradeca-1,6-dienyl]propyl]tridecanediamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9UJ2 14-3-3 zeta chimera with the S202R peptide of SARS-CoV-2 N (residues 200-213) Deposited 2025-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–229（229 aa）
Chain B 1–229（229 aa）
Mutation：S202R,S58A,E73A,K74A,K75A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：S202R,S58A,E73A,K74A,K75A,K157A,K158A,E159A Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 16 PEG DI(HYDROXYETHYL)ETHER × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288 K；1.8M Ammonium sulfate, 0.1M BIS-TRIS pH 6.5, 2% v/v Polyethylene glycol monomethyl ether 550
Resolution 1.80 Å R-free 0.233

73 other PDB entries and 88 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name 1433Z_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–246； UniProt 1–245 Author chain B； PDBConstruct 2–246； UniProt 1–245

S609 phosphorylated peptide

OrganismNot specified

UniProt P07359

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain Q； UniProt 646–652 Chain R； UniProt 646–652 Non-standard monomer：Yes (specific site not provided by mmCIF) 14-3-3 protein zeta/delta × 2 （P63104） X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium Acetate, 20% PEG 3350 Resolution 2.11 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8WE2 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1GWB STRUCTURE OF GLYCOPROTEIN 1B Deposited 2002-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 16–296（281 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 16-296
Non-standard monomer：Yes (specific site not provided by mmCIF) PT PLATINUM (II) ION × 2 ACY ACETIC ACID × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.50
Resolution 2.80 Å R-free 0.274
1GWB STRUCTURE OF GLYCOPROTEIN 1B Deposited 2002-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 16–296（281 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 16-296
Non-standard monomer：Yes (specific site not provided by mmCIF) PT PLATINUM (II) ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.50
Resolution 2.80 Å R-free 0.274
1M0Z Crystal Structure of the von Willebrand Factor Binding Domain of Glycoprotein Ib alpha Deposited 2002-06-16 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–306（290 aa） Fragment：von Willebrand Factor binding domain
Mutation：N21Q N159Q No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；301 K；ammonium sulfate, lithium sulfate, CAPS, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 301K
Resolution 1.85 Å R-free 0.216
1M0Z Crystal Structure of the von Willebrand Factor Binding Domain of Glycoprotein Ib alpha Deposited 2002-06-16 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–306（290 aa） Fragment：von Willebrand Factor binding domain
Mutation：N21Q N159Q No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；301 K；ammonium sulfate, lithium sulfate, CAPS, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 301K
Resolution 1.85 Å R-free 0.216
1M10 Crystal structure of the complex of Glycoprotein Ib alpha and the von Willebrand Factor A1 Domain Deposited 2002-06-16 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–306（290 aa） Fragment：von Willebrand Factor binding domain
Mutation：N21Q N159Q M239V No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；PEG 3000, sodium chloride, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.296
1OOK Crystal Structure of the Complex of Platelet Receptor GPIb-alpha and Human alpha-Thrombin Deposited 2003-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 17–306（290 aa） Fragment：N-terminal domain
Mutation：C65A Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG 6000, Ammonium Phosphate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 2.30 Å R-free 0.260
1P8V CRYSTAL STRUCTURE OF THE COMPLEX OF PLATELET RECEPTOR GPIB-ALPHA AND ALPHA-THROMBIN AT 2.6A Deposited 2003-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 17–294（278 aa） Fragment：Glycoprotein 1B alpha
Mutation：N21D Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DFP DIISOPROPYL PHOSPHONATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；291 K；14% PEG 400, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K, pH 6.00
Resolution 2.60 Å R-free 0.238
1P9A Crystal Structure of N-Terminal Domain of Human Platelet Receptor Glycoprotein Ib-alpha at 1.7 Angstrom Resolution Deposited 2003-05-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain G 17–306（290 aa） Fragment：N-Terminal Domain
Mutation：C65A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；PEG 6000, Sodium Nitrate, Sodium Acetate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.224
1QYY Crystal Structure of N-Terminal Domain of Human Platelet Receptor Glycoprotein Ib-alpha at 2.8 Angstrom Resolution Deposited 2003-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–306（290 aa） Fragment：N-Terminal Domain
Mutation：C65A PT PLATINUM (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；PEG 6000, SODIUM NITRATE, SODIUM ACETATE, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.282
1QYY Crystal Structure of N-Terminal Domain of Human Platelet Receptor Glycoprotein Ib-alpha at 2.8 Angstrom Resolution Deposited 2003-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 17–306（290 aa） Fragment：N-Terminal Domain
Mutation：C65A PT PLATINUM (II) ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；PEG 6000, SODIUM NITRATE, SODIUM ACETATE, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.282
1SQ0 Crystal Structure of the Complex of the Wild-type Von Willebrand Factor A1 domain and Glycoprotein Ib alpha at 2.6 Angstrom Resolution Deposited 2004-03-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–304（288 aa） Fragment：Glycoprotein Ib-(alpha)
Mutation：N21D, N159D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；PEG-3350; potassium thiocyanate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.60 Å R-free 0.239
1U0N The ternary von Willebrand Factor A1-glycoprotein Ibalpha-botrocetin complex Deposited 2004-07-13 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 17–281（265 aa） Fragment：Alpha chain
Mutation：N21Q,N159Q No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；Sodium citrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.95 Å R-free 0.276
2BP3 Crystal structure of Filamin A domain 17 and GPIb alpha cytoplasmic domain complex Deposited 2005-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain T 572–593（22 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 572-593
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；1.75M AMMONIUM PHOSPHATE, PH 8.2, AFTER MICROSEEDING: 1.25M AMMONIUM SULFATE PH 8.2
Resolution 2.32 Å R-free 0.256
2BP3 Crystal structure of Filamin A domain 17 and GPIb alpha cytoplasmic domain complex Deposited 2005-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 572–593（22 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 572-593
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.2；1.75M AMMONIUM PHOSPHATE, PH 8.2, AFTER MICROSEEDING: 1.25M AMMONIUM SULFATE PH 8.2
Resolution 2.32 Å R-free 0.256
3P72 structure of platelet Glycoprotein 1b alpha with a bound peptide inhibitor Deposited 2010-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–281（265 aa） Fragment：UNP residues 17-281
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；1.9M ammonium sulfate, 80mM lithium sulfate, 100mM N-cyclohexyl-3-aminopropanesulfonic acid buffer. 1:1 mix buffer with 4mg/mL protein. lyophilised peptide added directly to crystallised protein drops., pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.90 Å R-free 0.286
3PMH Mechanism of Sulfotyrosine-Mediated Glycoprotein Ib Interaction with Two Distinct alpha-Thrombin Sites Deposited 2010-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 17–306（290 aa） Fragment：unp residues 17-306
Mutation：C65A Non-standard monomer：Yes (specific site not provided by mmCIF) 0G7 D-phenylalanyl-N-[(3S)-6-carbamimidamido-1-chloro-2-oxohexan-3-yl]-L-prolinamide × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；277 K；16% PEG 6000, 0.2M ammonium phosphate, pH 7.0, VAPOR DIFFUSION, temperature 277K
Resolution 3.20 Å R-free 0.263
4C2A Crystal Structure of High-Affinity von Willebrand Factor A1 domain with R1306Q and I1309V Mutations in Complex with High Affinity GPIb alpha Deposited 2013-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–306（290 aa） Fragment：RESIDUES 17-306
Mutation：YES CAC CACODYLATE ION × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；CRYSTALS OF A1/VWD2-GPIBALPA/VWD2 COMPLEX APPEARED IN 12% PEG 8000, 0.1 M SODIUM CACODYLATE PH 6.5, 0.1 M CALCIUM ACETATE, AND 0.4 MG/ML RISTOCETIN (SIGMA-ALDRICH). THESE CRYSTALS WERE CRUSHED AND USED FOR SEEDING. CRYSTALS GREW IN 10 MG/ML COMPLEX, 14% PEG8000, 0.2 M CALCIUM ACETATE, 0.1 M SODIUM CACODYLATE, PH 6.5, AND 0.4 MG/ML RISTOCETIN. NEXT WE SOAKED THESE CRYSTALS IN 14% PEG8000, 0.2 M CALCIUM ACETATE, 0.1 SODIUM CACODYLATE, PH 6.5, AND 4 MG/ML RISTOCETIN.
Resolution 2.08 Å R-free 0.189
4C2B Crystal Structure of High-Affinity von Willebrand Factor A1 domain with Disulfide Mutation in Complex with High Affinity GPIb alpha Deposited 2013-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–306（290 aa）
Mutation：YES SO4 SULFATE ION × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；CRYSTALS OF A1/SS-GPIB/VWD2 COMPLEX APPEARED IN DROPS WITH 20% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. THESE CRYSTALS WERE CRUSHED AND USED FOR SEEDING CRYSTAL GROWTH IN 8 MG/ML COMPLEX, 15% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08 M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. SINCE THESE CRYSTALS WERE FORMED IN BUFFER CONTAINING 20% GLYCEROL, NO ADDITIONAL CRYOPROTECTION WAS USED.
Resolution 2.80 Å R-free 0.286
4C2B Crystal Structure of High-Affinity von Willebrand Factor A1 domain with Disulfide Mutation in Complex with High Affinity GPIb alpha Deposited 2013-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 17–306（290 aa）
Mutation：YES SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；CRYSTALS OF A1/SS-GPIB/VWD2 COMPLEX APPEARED IN DROPS WITH 20% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. THESE CRYSTALS WERE CRUSHED AND USED FOR SEEDING CRYSTAL GROWTH IN 8 MG/ML COMPLEX, 15% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08 M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. SINCE THESE CRYSTALS WERE FORMED IN BUFFER CONTAINING 20% GLYCEROL, NO ADDITIONAL CRYOPROTECTION WAS USED.
Resolution 2.80 Å R-free 0.286
4C2B Crystal Structure of High-Affinity von Willebrand Factor A1 domain with Disulfide Mutation in Complex with High Affinity GPIb alpha Deposited 2013-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 17–306（290 aa）
Mutation：YES SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；CRYSTALS OF A1/SS-GPIB/VWD2 COMPLEX APPEARED IN DROPS WITH 20% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. THESE CRYSTALS WERE CRUSHED AND USED FOR SEEDING CRYSTAL GROWTH IN 8 MG/ML COMPLEX, 15% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08 M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. SINCE THESE CRYSTALS WERE FORMED IN BUFFER CONTAINING 20% GLYCEROL, NO ADDITIONAL CRYOPROTECTION WAS USED.
Resolution 2.80 Å R-free 0.286
4C2B Crystal Structure of High-Affinity von Willebrand Factor A1 domain with Disulfide Mutation in Complex with High Affinity GPIb alpha Deposited 2013-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 17–306（290 aa）
Mutation：YES SO4 SULFATE ION × 4 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；CRYSTALS OF A1/SS-GPIB/VWD2 COMPLEX APPEARED IN DROPS WITH 20% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. THESE CRYSTALS WERE CRUSHED AND USED FOR SEEDING CRYSTAL GROWTH IN 8 MG/ML COMPLEX, 15% PEG 4000, 0.16 M AMMONIUM SULFATE, 0.08 M SODIUM ACETATE, PH 4.6, AND 20% GLYCEROL. SINCE THESE CRYSTALS WERE FORMED IN BUFFER CONTAINING 20% GLYCEROL, NO ADDITIONAL CRYOPROTECTION WAS USED.
Resolution 2.80 Å R-free 0.286
4CH2 Low-salt crystal structure of a thrombin-GpIbalpha peptide complex Deposited 2013-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain P 287–300（14 aa） Fragment：C-TERMINAL FRAGMENT OF GPIBALPHA, 271-284
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 0G6 D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；50 MM SODIUM FORMATE, 16% PEG-3350, pH 7.4
Resolution 1.60 Å R-free 0.187
4CH2 Low-salt crystal structure of a thrombin-GpIbalpha peptide complex Deposited 2013-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Q 287–300（14 aa） Fragment：C-TERMINAL FRAGMENT OF GPIBALPHA, 271-284
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 0G6 D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；50 MM SODIUM FORMATE, 16% PEG-3350, pH 7.4
Resolution 1.60 Å R-free 0.187
4CH8 High-salt crystal structure of a thrombin-GpIbalpha peptide complex Deposited 2013-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain P 287–300（14 aa） Fragment：C-TERMINAL FRAGMENT OF GPIBALPHA, RESIDUES 271-284
Non-standard monomer：Yes (specific site not provided by mmCIF) NA SODIUM ION × 1 0G6 D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；100 MM SODIUM FORMATE, 18% PEG-3350, pH 7.4
Resolution 1.75 Å R-free 0.242
4CH8 High-salt crystal structure of a thrombin-GpIbalpha peptide complex Deposited 2013-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Q 287–300（14 aa） Fragment：C-TERMINAL FRAGMENT OF GPIBALPHA, RESIDUES 271-284
Non-standard monomer：Yes (specific site not provided by mmCIF) NA SODIUM ION × 1 0G6 D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；100 MM SODIUM FORMATE, 18% PEG-3350, pH 7.4
Resolution 1.75 Å R-free 0.242
4CH8 High-salt crystal structure of a thrombin-GpIbalpha peptide complex Deposited 2013-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 287–300（14 aa） Fragment：C-TERMINAL FRAGMENT OF GPIBALPHA, RESIDUES 271-284
Non-standard monomer：Yes (specific site not provided by mmCIF) NA SODIUM ION × 1 0G6 D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；100 MM SODIUM FORMATE, 18% PEG-3350, pH 7.4
Resolution 1.75 Å R-free 0.242
4CH8 High-salt crystal structure of a thrombin-GpIbalpha peptide complex Deposited 2013-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain S 287–300（14 aa） Fragment：C-TERMINAL FRAGMENT OF GPIBALPHA, RESIDUES 271-284
Non-standard monomer：Yes (specific site not provided by mmCIF) NA SODIUM ION × 1 0G6 D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；100 MM SODIUM FORMATE, 18% PEG-3350, pH 7.4
Resolution 1.75 Å R-free 0.242
4MGX Crystal structure of human filamin C domains 4-5 and GPIB alpha cytoplasmic domain complex Deposited 2013-08-29 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 577–585（9 aa） Fragment：cytoplasmic domain (UNP residues 577-585)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；297 K；0.1 M HEPES, pH 7.5, 20% w/v PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 3.16 Å R-free 0.277
6XFQ Structure of a novel antithrombotic agent Agkisacucetin in complex with the platelet glycoprotein Ib receptor Deposited 2020-06-16 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 17–321（305 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% PEG4000, 0.1M HEPES, pH 7.5
Resolution 3.30 Å R-free 0.311
8WF6 14-3-3 zeta complexed with S559 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-19 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 596–607（12 aa）
Chain R 596–607（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2% Tacsimate pH7.0, 0.1M Hepes pH7.5, 20% PEG 3350
Resolution 2.47 Å R-free 0.238
8WF6 14-3-3 zeta complexed with S559 phosphorylated peptide derived from GPIb alpha cytoplasmic domain Deposited 2023-09-19 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 596–607（12 aa）
Chain F 596–607（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SIN SUCCINIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2% Tacsimate pH7.0, 0.1M Hepes pH7.5, 20% PEG 3350
Resolution 2.47 Å R-free 0.238
8WFS Cryo-EM structure of GPIb-IX Complex Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric
Chain a 523–652（130 aa）
Mutation：S559E, S609E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.36 Å

20 other PDB entries and 32 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GP1BA_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain Q； PDBConstruct 1–7； UniProt 646–652 Author chain R； PDBConstruct 1–7； UniProt 646–652

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8we2

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8we2
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8we2
Deposition date deposition_date2023-09-16
Structure title title14-3-3 zeta complexed with S609 phosphorylated peptide derived from GPIb alpha cytoplasmic domain
Keywords keywordsComplex, Phosphorylation, BLOOD CLOTTING; BLOOD CLOTTING
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier27.42 Å
Radius of gyration Rg (electron density) rg_electron26.63 Å
Forward intensity I(0) i047696200.00
Molecular weight molecular_weight52823.0 kDa
Excluded volume excluded_volume65800 ų
Envelope volume envelope_volume85372 ų
Hydration-shell volume shell_volume26868 ų
Envelope diameter envelope_diameter90.5 Å
Shell Rg shell_rg33.85 Å
Envelope Rg envelope_rg26.11 Å
Shape Rg shape_rg26.64 Å
Total Rg total_rg27.38 Å
Total atoms total_atoms3705
Residues n_residues463
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax83.7 Å
Rg (real space) rg_real27.37 Å
Rg uncertainty (real space) rg_real_error0.46 Å
I(0) (real space) i0_real4.7700e+07
I(0) uncertainty (real space) i0_real_error6.1840e+05
Rg (reciprocal space) rg_reciprocal27.39 Å
I(0) (reciprocal space) i0_reciprocal47700000.0000
Solution quality estimate total_estimate0.9168
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary31.8 Å
Skewness Skewness skewness0.191
Kurtosis Kurtosis kurtosis-0.681
Angular range angular_range— – 0.2900 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha6333000.0000
Real-space data points n_real_points59
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.982; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.977
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▶

8. Citations (1)

▶

9. Files and Curves (10)
