1iga

MODEL OF HUMAN IGA1 DETERMINED BY SOLUTION SCATTERING CURVE-FITTING AND HOMOLOGY MODELLING

Method: SOLUTION SCATTERING D_max: 219.2 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

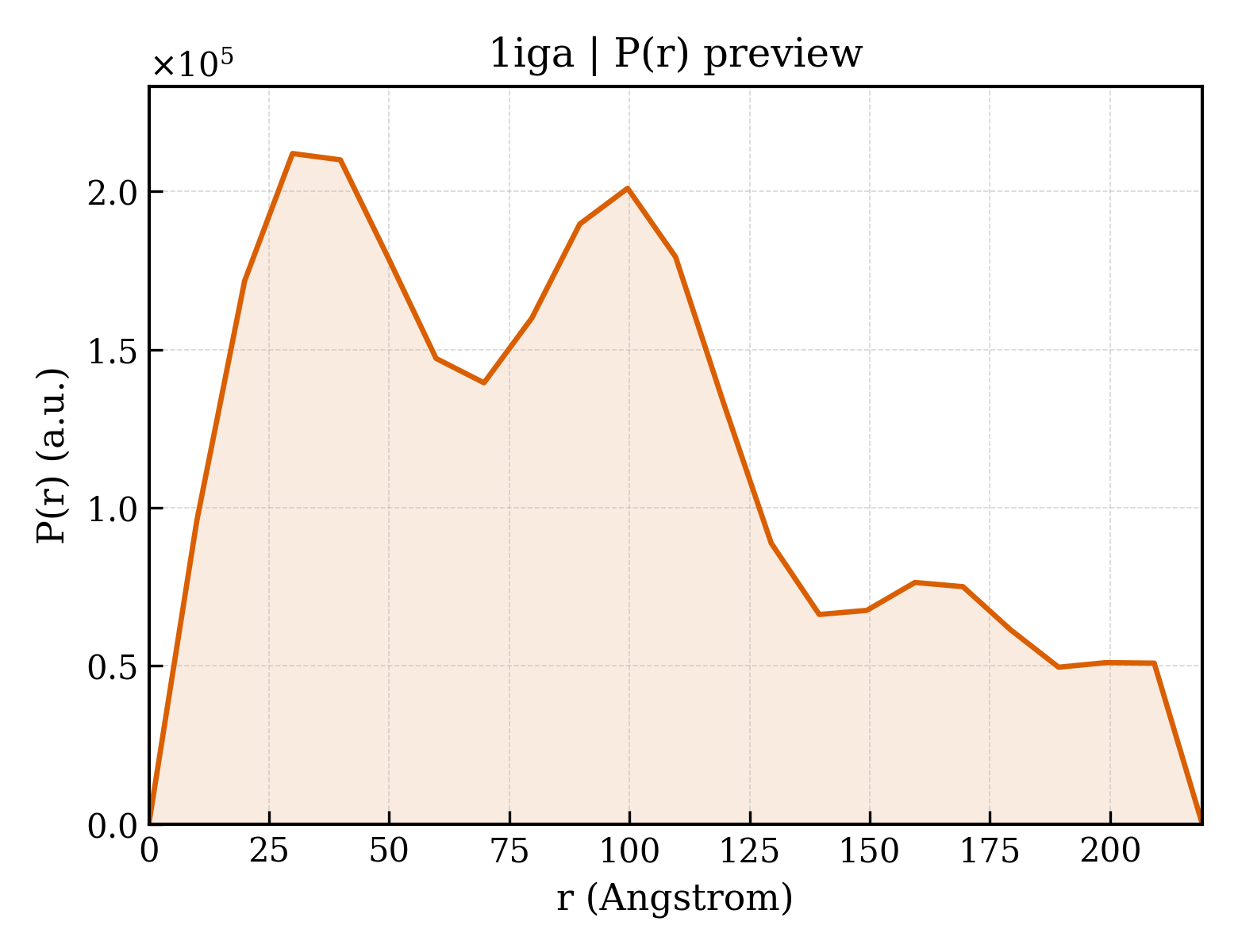

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1iga
沉积日期 deposition_date	1998-12-23
结构标题 title	MODEL OF HUMAN IGA1 DETERMINED BY SOLUTION SCATTERING CURVE-FITTING AND HOMOLOGY MODELLING
关键词 keywords	IMMUNOGLOBULIN, IGA1; IMMUNOGLOBULIN
实验方法 method	SOLUTION SCATTERING

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	71.78 Å
回转半径 Rg (电子) rg_electron	73.02 Å
零角强度 I(0) i0	326788000.00
分子量 molecular_weight	148430.0 kDa
排除体积 excluded_volume	180030 Å³
包络体积 envelope_volume	233560 Å³
水化壳体积 shell_volume	34760 Å³
包络直径 envelope_diameter	233.9 Å
壳层 Rg shell_rg	49.15 Å
包络 Rg envelope_rg	68.39 Å
形状 Rg shape_rg	72.93 Å
总 Rg total_rg	72.48 Å
总原子数 total_atoms	—
残基数 n_residues	—
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	219.2 Å
Rg (实空间) rg_real	72.28 Å
Rg 误差 (实空间) rg_real_error	2.07 Å
I(0) (实空间) i0_real	3.2620e+08
I(0) 误差 (实空间) i0_real_error	7.5380e+06
Rg (倒空间) rg_reciprocal	68.42 Å
I(0) (倒空间) i0_reciprocal	324100000.0000
解质量估计 total_estimate	0.6454
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	4
主峰位置 r_peak_primary	29.9 Å
偏度 Skewness skewness	0.508
峰度 Kurtosis kurtosis	-0.600
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0033
最高正则化参数 α highest_alpha	7943000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.190; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.478; Smooth: 0.356

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	IGA1
分子量 formula_weight	51068.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	1378

QVKLLEQSGAEVKKPGASVKVSCKASGYSFTSYGLHWVRQAPGQRLEWMGWISAGTGNTKYSQKFRGRVTFTRDTSATTAYMGLSSLRPEDTAVYYCARDPYGGGKSEFDYWGQGTLVTVSSASPTSPKVFPLSLCSTQPDGNVVIACLVQGFFPQEPLSVTWSESGQGVTARNFPPSQDASGDLYTTSSQLTLPATQCLAGKSVTCHVKHYTNPSQDVTVPCPVPSTPPTPSPSTPPTPSPSCCHPRLSLHRPALEDLLLGSEANLTCTLTGLRDASGVTFTWTPSSGKSAVQGPPERDLCGCYSVSSVLPGCAEPWNHGKTFTCTAAYPESKTPLTATLSKSGNTFRPEVHLLPPPSEELALNELVTLTCLARGFSPKDVLVRWLQGSQELPREKYLTWASRQEPSQGTTTFAVTSILRVAAEDWKKGDTFSCMVGHEALPLAFTQKTIDRLAGKPTHVNVSVVMAEVDGTCY

Entity 2 polymer

描述 description	IGA1
分子量 formula_weight	23216.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

ELVMTQSPSSLSASVGDRVNIACRASQGISSALAWYQQKPGKAPRLLIYDASNLESGVPSRFSGSGSGTDFTLTISSLQPEDFAIYYCQQFNSYPLTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

fit	/app/data/saxs_computation/ig/1iga/1iga.fit
pddf	/app/data/pr_computation/ig/1iga/1iga.pr.out
profile	/app/data/saxs_computation/ig/1iga/1iga.dat
