SAXSdb — 1iqd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HUMAN FACTOR VIII

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HUMAN MONOCLONAL BO2C11 FAB LIGHT CHAIN × 1 HUMAN MONOCLONAL BO2C11 FAB HEAVY CHAIN × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FA8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–156； UniProt 2193–2348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1iqd
Deposition date deposition_date	2001-07-21
Structure title title	Human Factor VIII C2 Domain complexed to human monoclonal BO2C11 Fab.
Keywords keywords	FACTOR VIII, C2 DOMAIN, ANTIBODY, BLOOD COAGULATION, INHIBITOR, BO2C11, IMMUNE SYSTEM-BLOOD CLOTTING COMPLEX; IMMUNE SYSTEM/BLOOD CLOTTING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1iqd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1iqd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

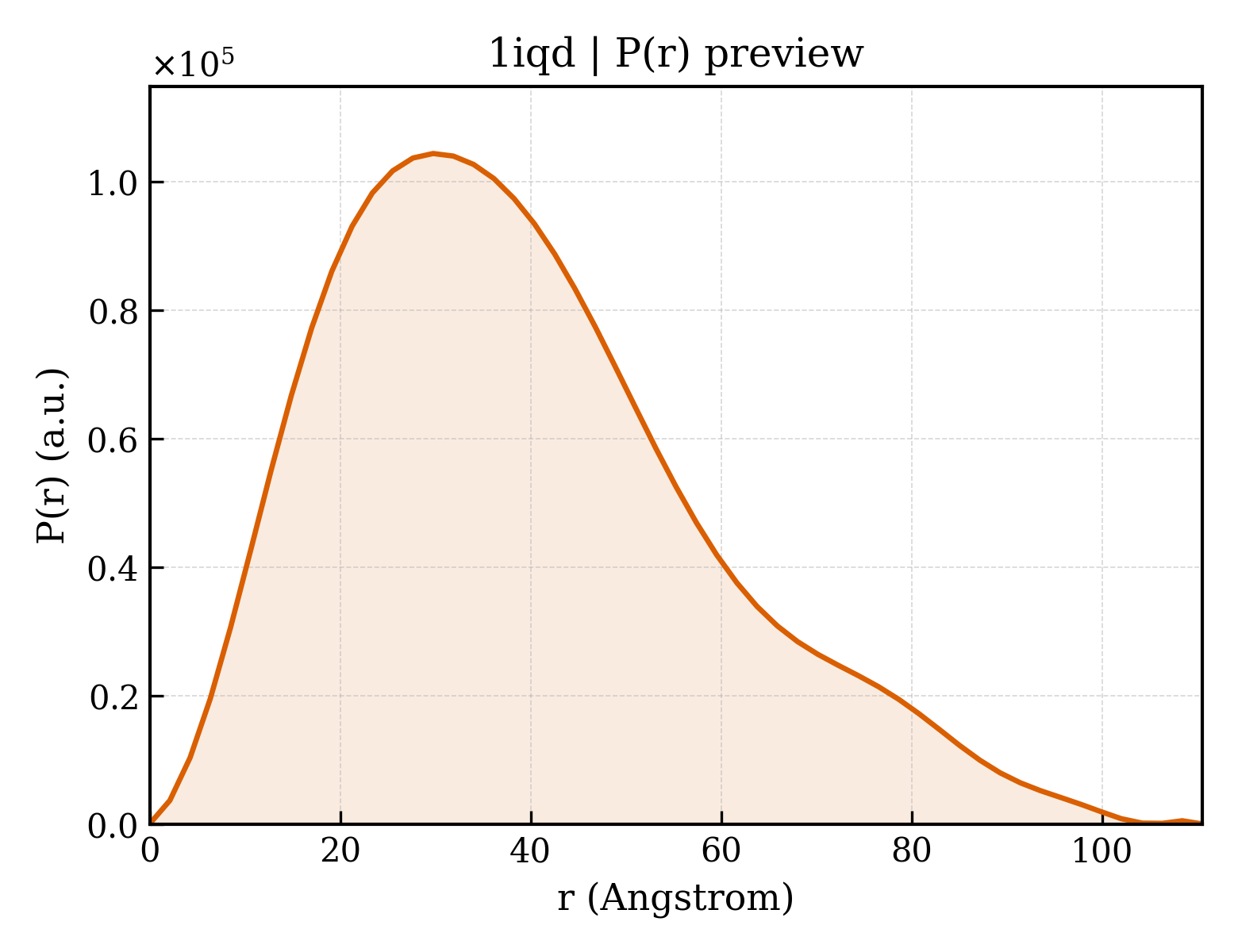

1iqd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.37 Å
Rg (electron density)	30.40 Å
Total Rg	30.96 Å
Atom count	4335
Residues	564
Excluded volume	76928 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1iqd__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HUMAN MONOCLONAL BO2C11 FAB LIGHT CHAIN
Molecular weight formula_weight	22920.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4812

IALTQSPGTLSLSPGERATLSCRASQSFSSSYLAWYQQKPGQAPRLLIYGASTRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQKYGTSAITFGQGTRLEIKGTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNR

Entity 2 Entity 2 polymer

Description description	HUMAN MONOCLONAL BO2C11 FAB HEAVY CHAIN
Molecular weight formula_weight	22738.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLVQSGAEVKKPGASVKVSCKVSGYTLTELPVHWVRQAPGKGLEWVGSFDPESGESIYAREFQGSVTMTADTSTNIAYMELSSLRSDDTAVYYCAVPDPDAFDIWGQGTMVTVSSASTKGPSVFPLAPCSRSTSESTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTATYTCNVDHKPSNTKVDKRV

Entity 3 Entity 3 polymer

Description description	HUMAN FACTOR VIII
Molecular weight formula_weight	17744.3 kDa
Mutation mutation	S2296C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

CSMPLGMESKAISDAQITASSYFTNMFATWSPSKARLHLQGRSNAWRPQVNNPKEWLQVDFQKTMKVTGVTTQGVKSLLTSMYVKEFLISSSQDGHQWTLFFQNGKVKVFQGNQDSFTPVVNCLDPPLLTRYLRIHPQSWVHQIALRMEVLGCEAQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Pichia pastoris

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	477

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1iqda1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1iqda2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1iqdb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1iqdb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1iqdc_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.2 — Discoidin domain (FA58C, coagulation factor 5/8 C-terminal domain)

CATH v4.4 (5 domains)

Domain ID domain_id	1iqdA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1iqdA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1iqdB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1iqdB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1iqdC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	64.535 Å
Unit-cell length b length_b	73.701 Å
Unit-cell length c length_c	112.395 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.580 Å
R factor r_factor	—
R_work r_work	0.2030
R_free r_free	0.2530

Human Factor VIII C2 Domain complexed to human monoclonal BO2C11 Fab.
