1iv2

Structure of 2C-Methyl-D-erythritol-2,4-cyclodiphosphate Synthase (bound form CDP)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	MAGNESIUM ION × 6 CYTIDINE-5'-DIPHOSPHATE × 3 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	MAGNESIUM ION × 6 CYTIDINE-5'-DIPHOSPHATE × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISPF_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–152； UniProt 1–152 Author chain B； PDBConstruct 1–152； UniProt 1–152 Author chain C； PDBConstruct 1–152； UniProt 1–152 Author chain D； PDBConstruct 1–152； UniProt 1–152 Author chain E； PDBConstruct 1–152； UniProt 1–152 Author chain F； PDBConstruct 1–152； UniProt 1–152

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1iv2
Deposition date deposition_date	2002-03-11
Structure title title	Structure of 2C-Methyl-D-erythritol-2,4-cyclodiphosphate Synthase (bound form CDP)
Keywords keywords	isoprenoid, non-mevalonate, synthase, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1iv2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1iv2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

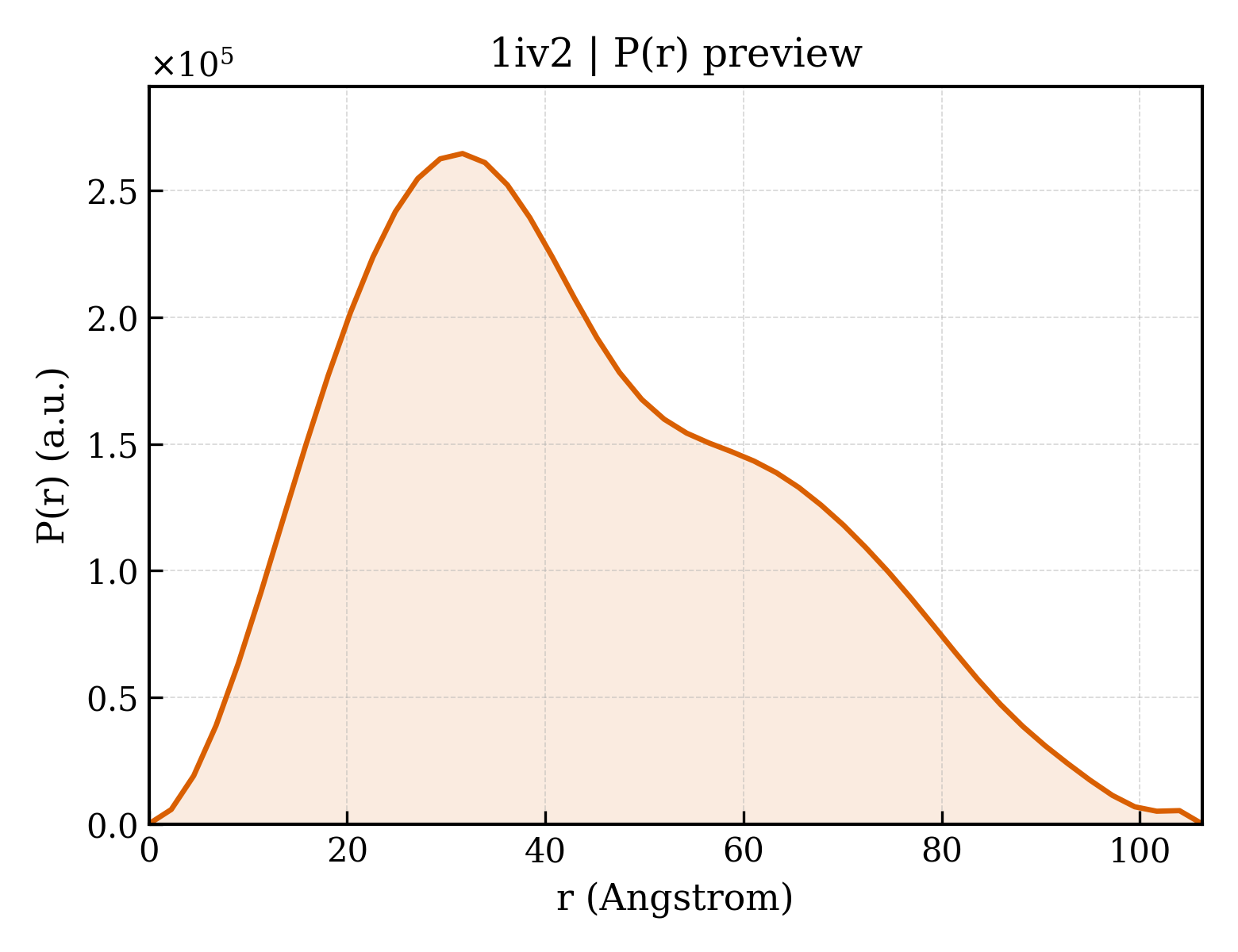

1iv2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.73 Å
Rg (electron density)	20.65 Å
Total Rg	21.47 Å
Atom count	3537
Residues	450
Excluded volume	62860 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1iv2__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1iv2__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
Molecular weight formula_weight	16598.2 kDa
EC 编号 ec_number	4.6.1.12
Mutation mutation	L41M, L81M, L120M
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	7583

MRIGYGEDSHRLEEGRPLYLCGLLIPSPVGALAHSDGDAAMHALTDALLSAYGLGDIGLLFPDTDPRWRGERSEVFLREAMRLVEARGAKLLQASLVLTLDRPKLGPHRKALVDSLSRLMRLPQDRIGLTFKTSEGLAPSHVQARAVVLLDG

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	CYTIDINE-5'-DIPHOSPHATE
Molecular weight formula_weight	403.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	509

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1iv2a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1iv2b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1iv2c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1iv2d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1iv2e_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1iv2f_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

CATH v4.4 (6 domains)

Domain ID domain_id	1iv2A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1iv2B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1iv2C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1iv2D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1iv2E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1iv2F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

▶

Unit-cell length a length_a	106.097 Å
Unit-cell length b length_b	106.097 Å
Unit-cell length c length_c	149.112 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1770
R_free r_free	0.2490
