1iv4
Structure of 2C-Methyl-D-erythritol-2,4-cyclodiphosphate Synthase (bound form Substrate)

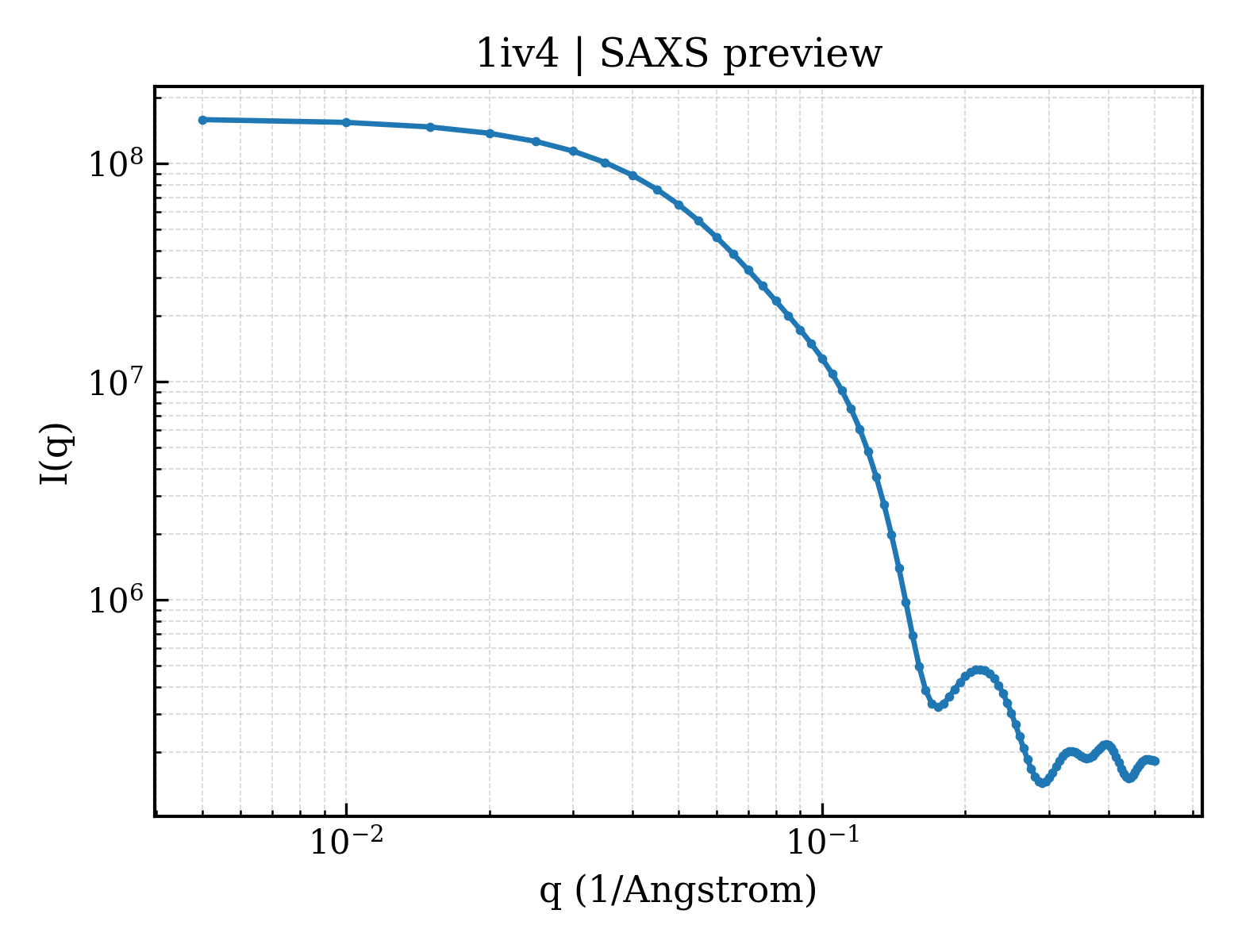

SAXS 散射曲线 SAXS Profile

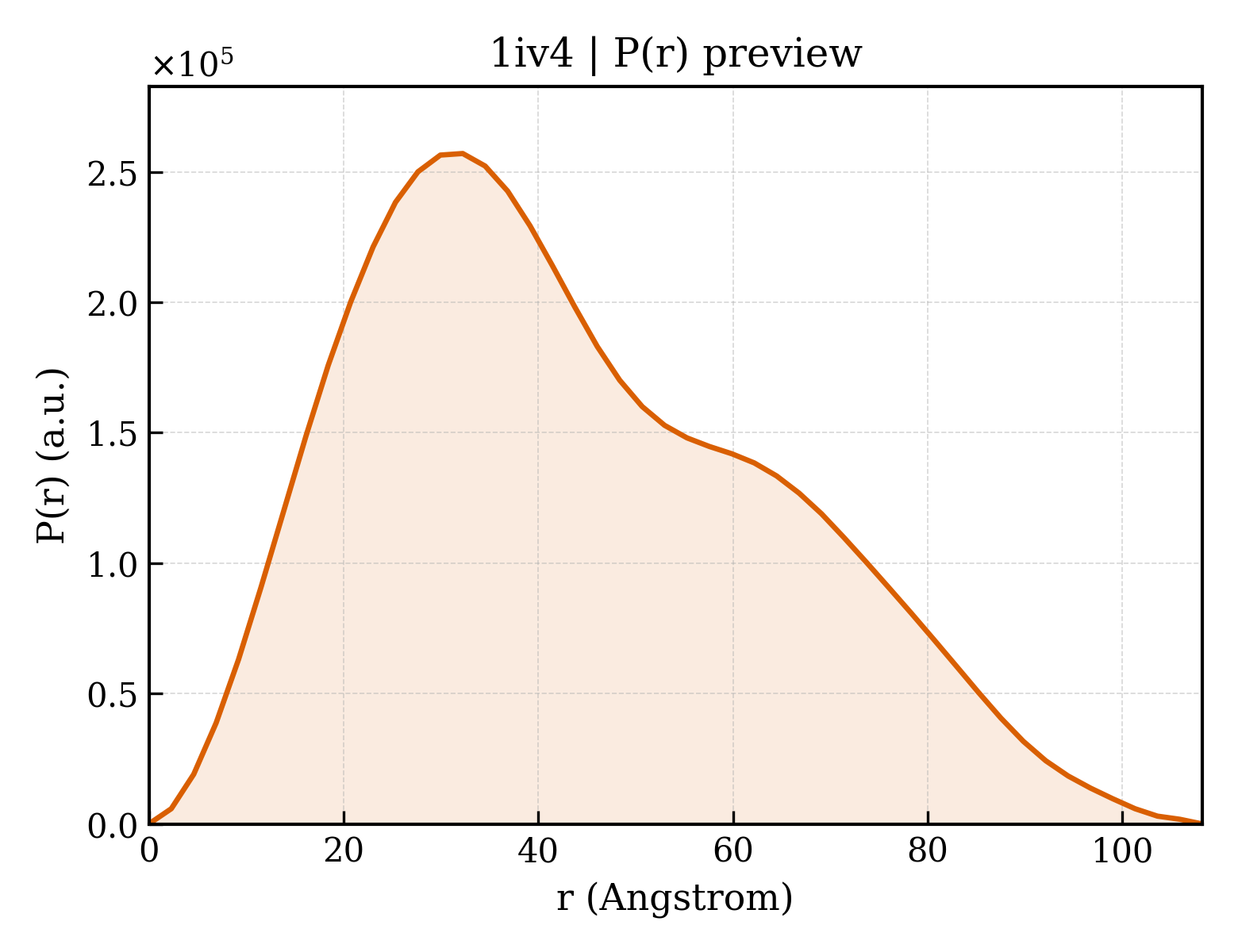

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1iv4 |
| 沉积日期 deposition_date | 2002-03-11 |
| 结构标题 title | Structure of 2C-Methyl-D-erythritol-2,4-cyclodiphosphate Synthase (bound form Substrate) |
| 关键词 keywords | isoprenoid, non-mevalonate, synthase, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, LYASE; LYASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 33.83 Å |
| 回转半径 Rg (电子) rg_electron | 33.57 Å |
| 零角强度 I(0) i0 | 160636000.00 |
| 分子量 molecular_weight | 100440.0 kDa |
| 排除体积 excluded_volume | 125490 ų |
| 包络体积 envelope_volume | 151490 ų |
| 水化壳体积 shell_volume | 38263 ų |
| 包络直径 envelope_diameter | 113.1 Å |
| 壳层 Rg shell_rg | 39.17 Å |
| 包络 Rg envelope_rg | 33.62 Å |
| 形状 Rg shape_rg | 33.58 Å |
| 总 Rg total_rg | 33.94 Å |
| 总原子数 total_atoms | 7050 |
| 残基数 n_residues | 900 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 108.2 Å |
| Rg (实空间) rg_real | 34.01 Å |
| Rg 误差 (实空间) rg_real_error | 0.84 Å |
| I(0) (实空间) i0_real | 1.6060e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.4950e+06 |
| Rg (倒空间) rg_reciprocal | 33.90 Å |
| I(0) (倒空间) i0_reciprocal | 160600000.0000 |
| 解质量估计 total_estimate | 0.8204 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 32.2 Å |
| 偏度 Skewness skewness | 0.455 |
| 峰度 Kurtosis kurtosis | -0.556 |
| 角度范围 angular_range | — – 0.2350 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 71190000.0000 |
| 实空间数据点数 n_real_points | 48 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.856; Smooth: 0.421 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1iv4a_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.79 — Bacillus chorismate mutase-like |
| 超家族 Superfamily superfamily | d.79.5 — IpsF-like |
| 家族 Family family | d.79.5.1 — IpsF-like |
| 结构域编号 domain_id | d1iv4b_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.79 — Bacillus chorismate mutase-like |
| 超家族 Superfamily superfamily | d.79.5 — IpsF-like |
| 家族 Family family | d.79.5.1 — IpsF-like |
| 结构域编号 domain_id | d1iv4c_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.79 — Bacillus chorismate mutase-like |
| 超家族 Superfamily superfamily | d.79.5 — IpsF-like |
| 家族 Family family | d.79.5.1 — IpsF-like |
| 结构域编号 domain_id | d1iv4d_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.79 — Bacillus chorismate mutase-like |
| 超家族 Superfamily superfamily | d.79.5 — IpsF-like |
| 家族 Family family | d.79.5.1 — IpsF-like |
| 结构域编号 domain_id | d1iv4e_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.79 — Bacillus chorismate mutase-like |
| 超家族 Superfamily superfamily | d.79.5 — IpsF-like |
| 家族 Family family | d.79.5.1 — IpsF-like |
| 结构域编号 domain_id | d1iv4f_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.79 — Bacillus chorismate mutase-like |
| 超家族 Superfamily superfamily | d.79.5 — IpsF-like |
| 家族 Family family | d.79.5.1 — IpsF-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1iv4A00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1330 — 60s Ribosomal Protein L30; Chain: A; |
| 同源超家族 H-superfamily homologous superfamily | 50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase |
| 结构域编号 domain_id | 1iv4B00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1330 — 60s Ribosomal Protein L30; Chain: A; |
| 同源超家族 H-superfamily homologous superfamily | 50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase |
| 结构域编号 domain_id | 1iv4C00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1330 — 60s Ribosomal Protein L30; Chain: A; |
| 同源超家族 H-superfamily homologous superfamily | 50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase |
| 结构域编号 domain_id | 1iv4D00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1330 — 60s Ribosomal Protein L30; Chain: A; |
| 同源超家族 H-superfamily homologous superfamily | 50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase |
| 结构域编号 domain_id | 1iv4E00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1330 — 60s Ribosomal Protein L30; Chain: A; |
| 同源超家族 H-superfamily homologous superfamily | 50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase |
| 结构域编号 domain_id | 1iv4F00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1330 — 60s Ribosomal Protein L30; Chain: A; |
| 同源超家族 H-superfamily homologous superfamily | 50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase |
