1iwo

Crystal structure of the SR Ca2+-ATPase in the absence of Ca2+

Method: X-RAY DIFFRACTION D_max: 186.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

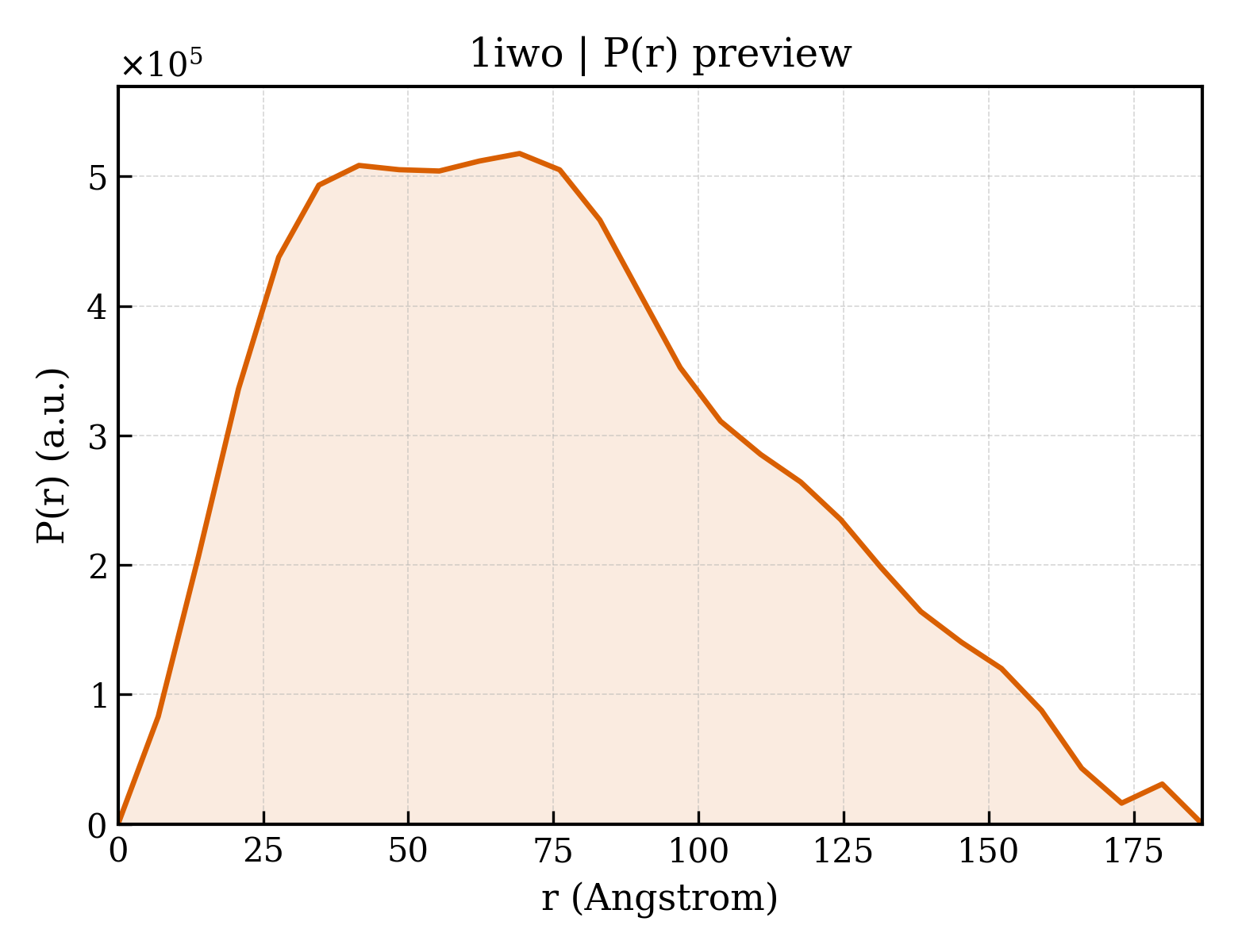

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1iwo
沉积日期 deposition_date	2002-05-26
结构标题 title	Crystal structure of the SR Ca2+-ATPase in the absence of Ca2+
关键词 keywords	MEMBRANE PROTEIN, P-TYPE ATPASE, HAD fold, HYDROLASE, Hydrolase-Hydrolase Inhibitor complex; Hydrolase/Hydrolase Inhibitor
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.12 Å
回转半径 Rg (电子) rg_electron	58.02 Å
零角强度 I(0) i0	672031000.00
分子量 molecular_weight	220230.0 kDa
排除体积 excluded_volume	277560 Å³
包络体积 envelope_volume	419850 Å³
水化壳体积 shell_volume	65093 Å³
包络直径 envelope_diameter	206.3 Å
壳层 Rg shell_rg	54.08 Å
包络 Rg envelope_rg	56.10 Å
形状 Rg shape_rg	57.96 Å
总 Rg total_rg	58.10 Å
总原子数 total_atoms	15434
残基数 n_residues	1988
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	186.8 Å
Rg (实空间) rg_real	58.68 Å
Rg 误差 (实空间) rg_real_error	2.04 Å
I(0) (实空间) i0_real	6.7200e+08
I(0) 误差 (实空间) i0_real_error	1.4870e+07
Rg (倒空间) rg_reciprocal	57.60 Å
I(0) (倒空间) i0_reciprocal	670900000.0000
解质量估计 total_estimate	0.5712
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	69.2 Å
偏度 Skewness skewness	0.455
峰度 Kurtosis kurtosis	-0.510
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	22900000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 0.009; Positv: 1.000; Valcen: 0.775; Smooth: 0.009

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Sarcoplasmic/endoplasmic reticulum calcium ATPase 1
分子量 formula_weight	109602.6 kDa
EC 编号 ec_number	3.6.1.38
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	15434

MEAAHSKSTEECLAYFGVSETTGLTPDQVKRHLEKYGHNELPAEEGKSLWELVIEQFEDLLVRILLLAACISFVLAWFEEGEETITAFVEPFVILLILIANAIVGVWQERNAENAIEALKEYEPEMGKVYRADRKSVQRIKARDIVPGDIVEVAVGDKVPADIRILSIKSTTLRVDQSILTGESVSVIKHTEPVPDPRAVNQDKKNMLFSGTNIAAGKALGIVATTGVSTEIGKIRDQMAATEQDKTPLQQKLDEFGEQLSKVISLICVAVWLINIGHFNDPVHGGSWIRGAIYYFKIAVALAVAAIPEGLPAVITTCLALGTRRMAKKNAIVRSLPSVETLGCTSVICSDKTGTLTTNQMSVCKMFIIDKVDGDFCSLNEFSITGSTYAPEGEVLKNDKPIRSGQFDGLVELATICALCNDSSLDFNETKGVYEKVGEATETALTTLVEKMNVFNTEVRNLSKVERANACNSVIRQLMKKEFTLEFSRDRKSMSVYCSPAKSSRAAVGNKMFVKGAPEGVIDRCNYVRVGTTRVPMTGPVKEKILSVIKEWGTGRDTLRCLALATRDTPPKREEMVLDDSSRFMEYETDLTFVGVVGMLDPPRKEVMGSIQLCRDAGIRVIMITGDNKGTAIAICRRIGIFGENEEVADRAYTGREFDDLPLAEQREACRRACCFARVEPSHKSKIVEYLQSYDEITAMTGDGVNDAPALKKAEIGIAMGSGTAVAKTASEMVLADDNFSTIVAAVEEGRAIYNNMKQFIRYLISSNVGEVVCIFLTAALGLPEALIPVQLLWVNLVTDGLPATALGFNPPDLDIMDRPPRSPKEPLISGWLFFRYMAIGGYVGAATVGAAAWWFMYAEDGPGVTYHQLTHFMQCTEDHPHFEGLDCEIFEAPEPMTMALSVLVTIEMCNALNSLSENQSLMRMPPWVNIWLLGSICLSMSLHFLILYVDPLPMIFKLKALDLTQWLMVLKISLPVIGLDEILKFIARNYLEG

Entity 2 non-polymer

描述 description	;OCTANOIC ACID [3S-[3ALPHA, 3ABETA, 4ALPHA, 6BETA, 6ABETA, 7BETA, 8ALPHA(Z), 9BALPHA]]-6-(ACETYLOXY)-2,3,-3A,4,5,6,6A,7,8,9B-DECAHYDRO-3,3A-DIHYDROXY-3,6,9-TRIMETHYL-8-[(2-METHYL-1-OXO-2-BUTENYL)OX Y]-2-OXO-4-(1-OXOBUTOXY)-AZULENO[4,5-B]FURAN-7-YL ESTER ;
分子量 formula_weight	650.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1iwoa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.7 — Metal cation-transporting ATPase, actuator domain A
家族 Family family	b.82.7.1 — Metal cation-transporting ATPase, actuator domain A

结构域编号 domain_id	d1iwoa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.108 — HAD-like
超家族 Superfamily superfamily	c.108.1 — HAD-like
家族 Family family	c.108.1.7 — Meta-cation ATPase, catalytic domain P

结构域编号 domain_id	d1iwoa3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.220 — Metal cation-transporting ATPase, ATP-binding domain N
超家族 Superfamily superfamily	d.220.1 — Metal cation-transporting ATPase, ATP-binding domain N
家族 Family family	d.220.1.1 — Metal cation-transporting ATPase, ATP-binding domain N

结构域编号 domain_id	d1iwoa4
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.33 — Metal cation-transporting ATPase, transmembrane domain
超家族 Superfamily superfamily	f.33.1 — Metal cation-transporting ATPase, transmembrane domain
家族 Family family	f.33.1.1 — Metal cation-transporting ATPase, transmembrane domain

结构域编号 domain_id	d1iwob1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.7 — Metal cation-transporting ATPase, actuator domain A
家族 Family family	b.82.7.1 — Metal cation-transporting ATPase, actuator domain A

结构域编号 domain_id	d1iwob2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.108 — HAD-like
超家族 Superfamily superfamily	c.108.1 — HAD-like
家族 Family family	c.108.1.7 — Meta-cation ATPase, catalytic domain P

结构域编号 domain_id	d1iwob3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.220 — Metal cation-transporting ATPase, ATP-binding domain N
超家族 Superfamily superfamily	d.220.1 — Metal cation-transporting ATPase, ATP-binding domain N
家族 Family family	d.220.1.1 — Metal cation-transporting ATPase, ATP-binding domain N

结构域编号 domain_id	d1iwob4
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.33 — Metal cation-transporting ATPase, transmembrane domain
超家族 Superfamily superfamily	f.33.1 — Metal cation-transporting ATPase, transmembrane domain
家族 Family family	f.33.1.1 — Metal cation-transporting ATPase, transmembrane domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1iwoA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	150 — Calcium-transporting ATPase, cytoplasmic transduction domain A
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic transduction domain A

结构域编号 domain_id	1iwoA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1110 — Calcium-transporting ATPase, transmembrane domain
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, transmembrane domain

结构域编号 domain_id	1iwoA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1110 — Calcium-transporting ATPase, cytoplasmic domain N
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic domain N

结构域编号 domain_id	1iwoA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

结构域编号 domain_id	1iwoB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	150 — Calcium-transporting ATPase, cytoplasmic transduction domain A
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic transduction domain A

结构域编号 domain_id	1iwoB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1110 — Calcium-transporting ATPase, transmembrane domain
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, transmembrane domain

结构域编号 domain_id	1iwoB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1110 — Calcium-transporting ATPase, cytoplasmic domain N
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic domain N

结构域编号 domain_id	1iwoB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	71.739 Å
晶胞边长 b length_b	71.739 Å
晶胞边长 c length_c	590.300 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 41
空间群编号 int_tables_number	76
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2370
R_work r_work	0.2370
R_free r_free	0.2680
