SAXSdb — 2c88

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2c88
沉积日期 deposition_date	2005-12-02
结构标题 title	Crystal Structure Of (SR) Calcium-ATPase E2(Tg):AMPPCP form
关键词 keywords	CATION PUMP, MEMBRANE PROTEIN, MODULATORY ATP, HYDROLASE, ION TRANSPORT; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.10 Å
回转半径 Rg (电子) rg_electron	38.77 Å
零角强度 I(0) i0	181777000.00
分子量 molecular_weight	110670.0 kDa
排除体积 excluded_volume	139270 Å³
包络体积 envelope_volume	181560 Å³
水化壳体积 shell_volume	41815 Å³
包络直径 envelope_diameter	138.7 Å
壳层 Rg shell_rg	41.10 Å
包络 Rg envelope_rg	38.71 Å
形状 Rg shape_rg	38.83 Å
总 Rg total_rg	38.69 Å
总原子数 total_atoms	7750
残基数 n_residues	994
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	129.5 Å
Rg (实空间) rg_real	38.56 Å
Rg 误差 (实空间) rg_real_error	1.41 Å
I(0) (实空间) i0_real	1.8180e+08
I(0) 误差 (实空间) i0_real_error	3.0280e+06
Rg (倒空间) rg_reciprocal	38.28 Å
I(0) (倒空间) i0_reciprocal	181700000.0000
解质量估计 total_estimate	0.5863
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.7 Å
偏度 Skewness skewness	0.564
峰度 Kurtosis kurtosis	-0.312
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	27960000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.749; Stabil: 0.999; Sysdev: 0.035; Positv: 1.000; Valcen: 0.796; Smooth: 0.470

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	SARCOPLASMIC-ENDOPLASMIC RETICULUM CALCIUM ATPASE1 ISOFORM SERCA1A
分子量 formula_weight	109602.6 kDa
EC 编号 ec_number	3.6.3.8
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	7750

MEAAHSKSTEECLAYFGVSETTGLTPDQVKRHLEKYGHNELPAEEGKSLWELVIEQFEDLLVRILLLAACISFVLAWFEEGEETITAFVEPFVILLILIANAIVGVWQERNAENAIEALKEYEPEMGKVYRADRKSVQRIKARDIVPGDIVEVAVGDKVPADIRILSIKSTTLRVDQSILTGESVSVIKHTEPVPDPRAVNQDKKNMLFSGTNIAAGKALGIVATTGVSTEIGKIRDQMAATEQDKTPLQQKLDEFGEQLSKVISLICVAVWLINIGHFNDPVHGGSWIRGAIYYFKIAVALAVAAIPEGLPAVITTCLALGTRRMAKKNAIVRSLPSVETLGCTSVICSDKTGTLTTNQMSVCKMFIIDKVDGDFCSLNEFSITGSTYAPEGEVLKNDKPIRSGQFDGLVELATICALCNDSSLDFNETKGVYEKVGEATETALTTLVEKMNVFNTEVRNLSKVERANACNSVIRQLMKKEFTLEFSRDRKSMSVYCSPAKSSRAAVGNKMFVKGAPEGVIDRCNYVRVGTTRVPMTGPVKEKILSVIKEWGTGRDTLRCLALATRDTPPKREEMVLDDSSRFMEYETDLTFVGVVGMLDPPRKEVMGSIQLCRDAGIRVIMITGDNKGTAIAICRRIGIFGENEEVADRAYTGREFDDLPLAEQREACRRACCFARVEPSHKSKIVEYLQSYDEITAMTGDGVNDAPALKKAEIGIAMGSGTAVAKTASEMVLADDNFSTIVAAVEEGRAIYNNMKQFIRYLISSNVGEVVCIFLTAALGLPEALIPVQLLWVNLVTDGLPATALGFNPPDLDIMDRPPRSPKEPLISGWLFFRYMAIGGYVGAATVGAAAWWFMYAEDGPGVTYHQLTHFMQCTEDHPHFEGLDCEIFEAPEPMTMALSVLVTIEMCNALNSLSENQSLMRMPPWVNIWLLGSICLSMSLHFLILYVDPLPMIFKLKALDLTQWLMVLKISLPVIGLDEILKFIARNYLEG

Entity 2 non-polymer

描述 description	;OCTANOIC ACID [3S-[3ALPHA, 3ABETA, 4ALPHA, 6BETA, 6ABETA, 7BETA, 8ALPHA(Z), 9BALPHA]]-6-(ACETYLOXY)-2,3,-3A,4,5,6,6A,7,8,9B-DECAHYDRO-3,3A-DIHYDROXY-3,6,9-TRIMETHYL-8-[(2-METHYL-1-OXO-2-BUTENYL)OX Y]-2-OXO-4-(1-OXOBUTOXY)-AZULENO[4,5-B]FURAN-7-YL ESTER ;
分子量 formula_weight	650.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER
分子量 formula_weight	505.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

结构域编号 domain_id	2c88A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	150 — Calcium-transporting ATPase, cytoplasmic transduction domain A
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic transduction domain A

结构域编号 domain_id	2c88A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1110 — Calcium-transporting ATPase, transmembrane domain
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, transmembrane domain

结构域编号 domain_id	2c88A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

结构域编号 domain_id	2c88A04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1110 — Calcium-transporting ATPase, cytoplasmic domain N
同源超家族 H-superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic domain N

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	71.529 Å
晶胞边长 b length_b	71.529 Å
晶胞边长 c length_c	590.216 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	14.990 Å
R 因子 r_factor	0.2610
R_work r_work	0.2610
R_free r_free	0.3100

fit	/app/data/saxs_computation/c8/2c88/2c88.fit
pddf	/app/data/pr_computation/c8/2c88/2c88.pr.out
profile	/app/data/saxs_computation/c8/2c88/2c88.dat

Crystal Structure Of (SR) Calcium-ATPase E2(Tg):AMPPCP form

SAXS 散射曲线 SAXS Profile

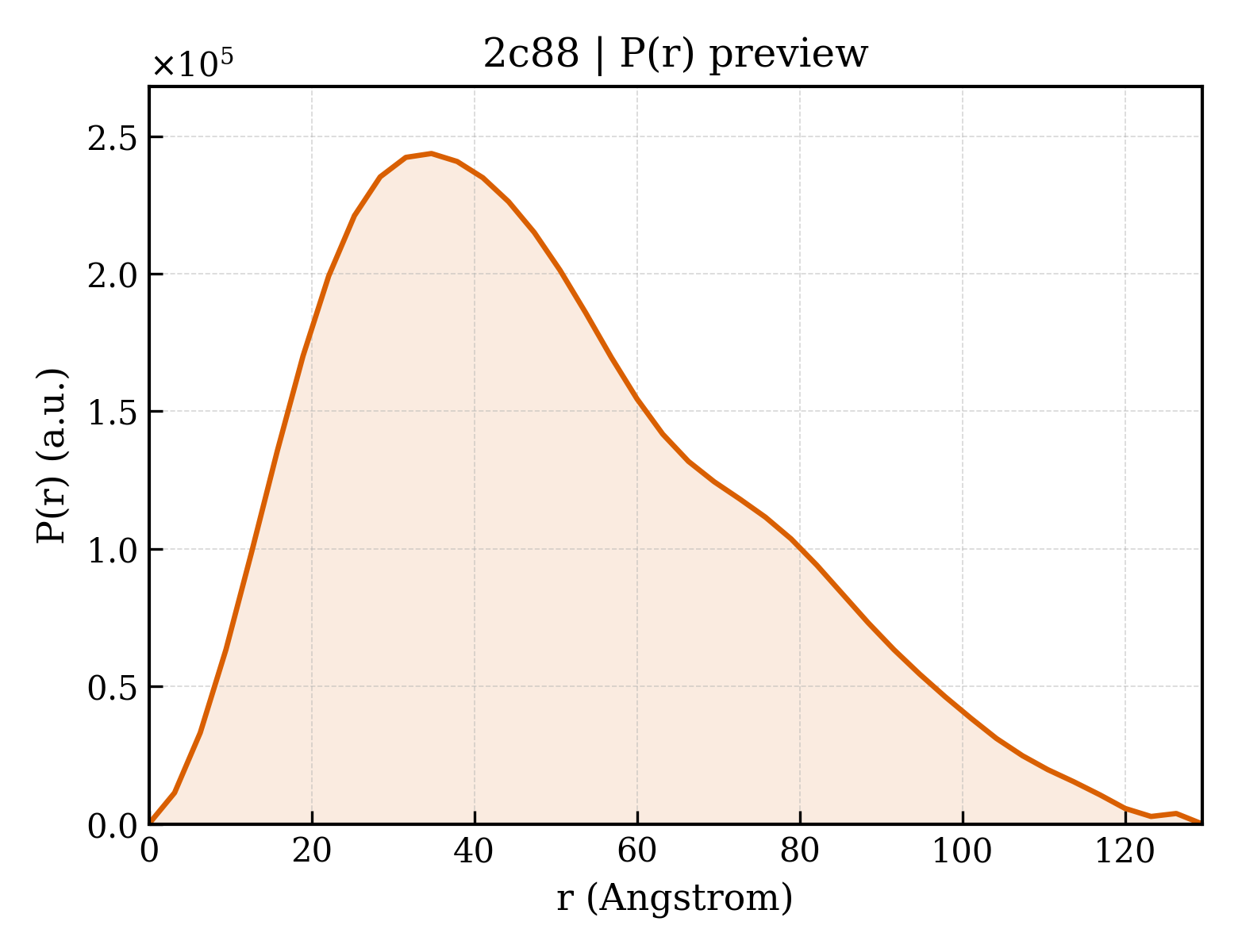

P(r) 距离分布 P(r) Distribution
