Momordica charantia
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | GUANOSINE-5'-MONOPHOSPHATE × 2 water × 1 | Consistent with protein count |
| UniProt name | RNMC_MOMCH |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–190； UniProt 2–191 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1j1g |
| Deposition date deposition_date | 2002-12-04 |
| Structure title title | Crystal structure of the RNase MC1 mutant N71S in complex with 5'-GMP |
| Keywords keywords | Hydrolase, Nucleic acid, RNA; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

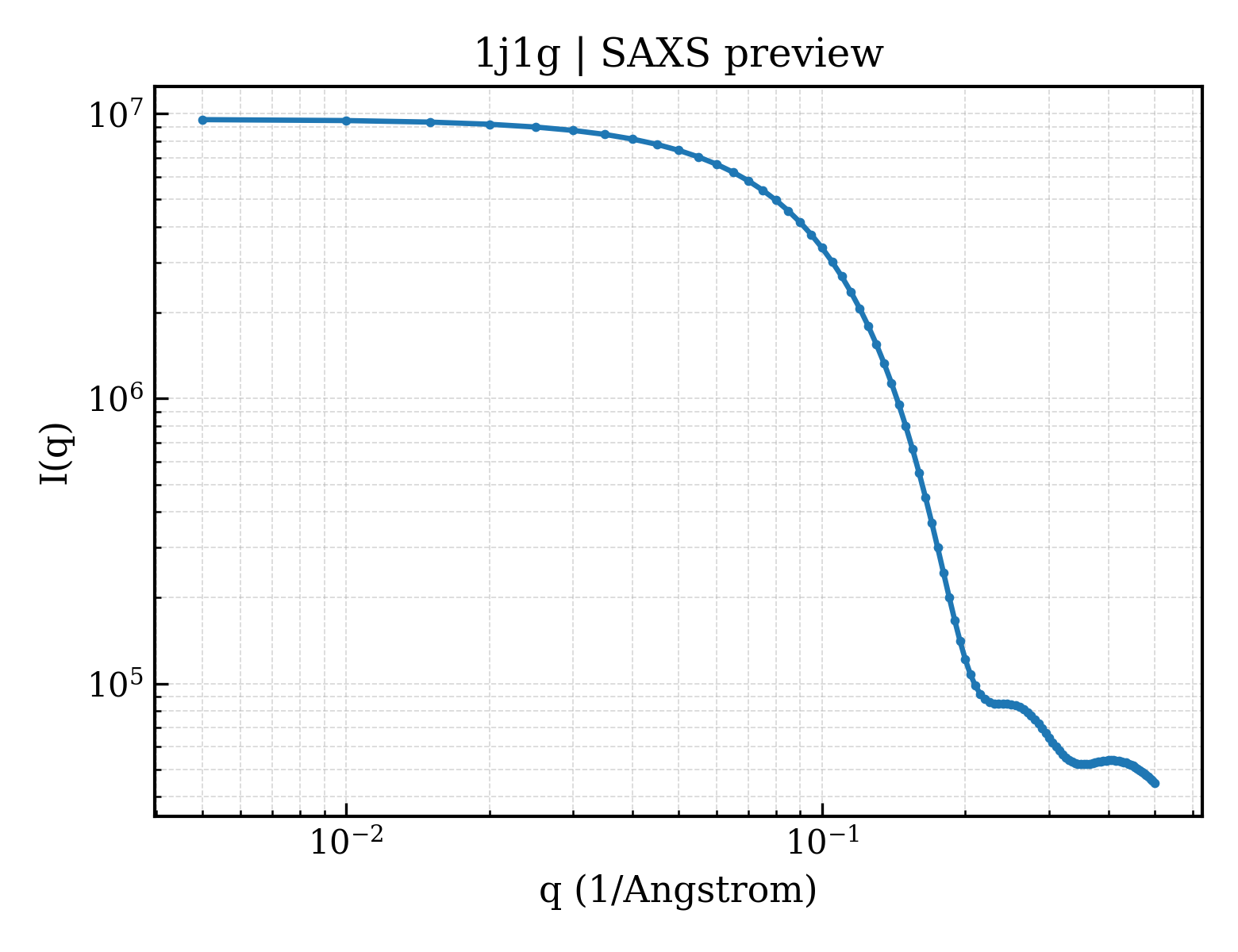

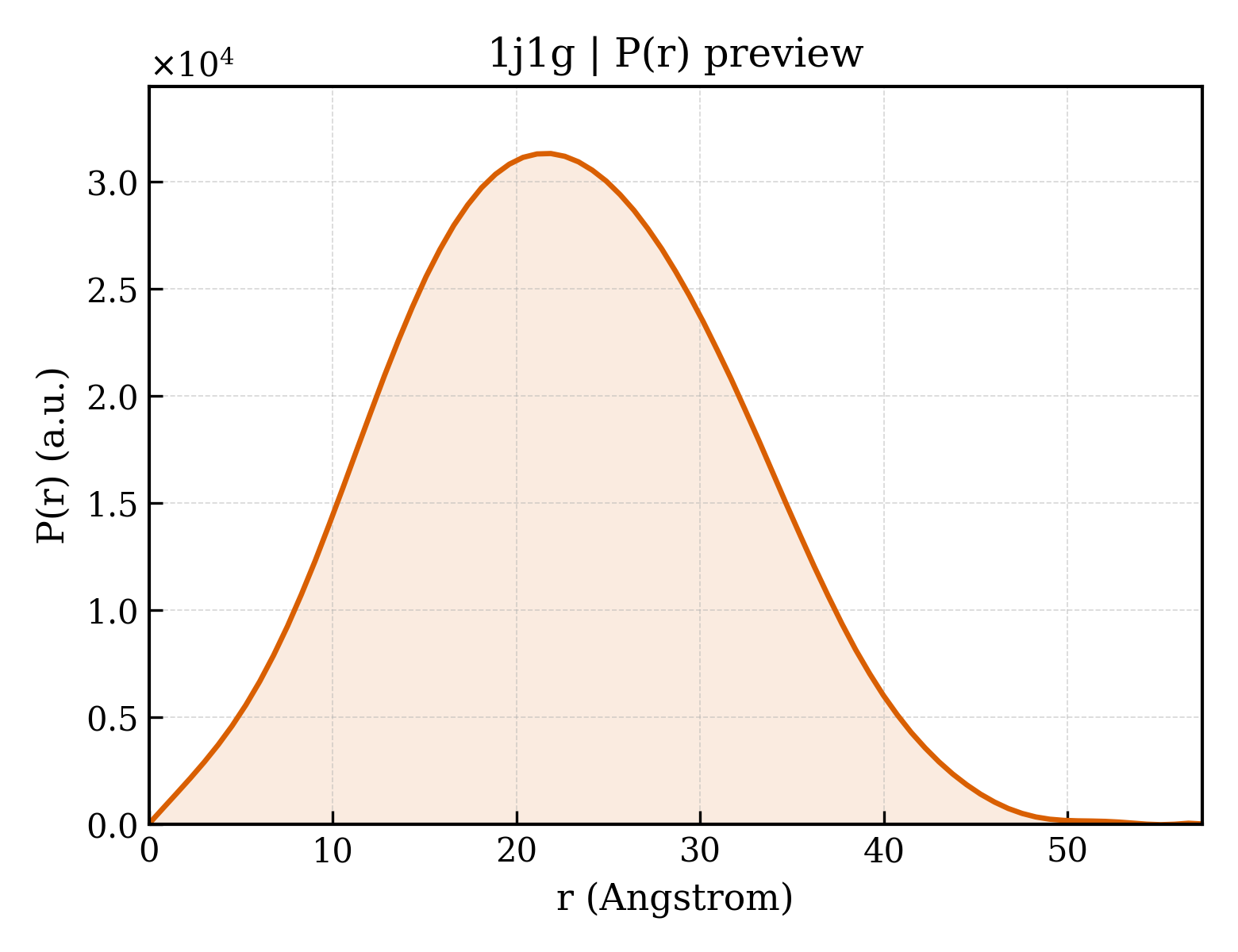

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.36 Å |
| Rg (electron density) | 16.19 Å |
| Total Rg | 17.27 Å |
| Atom count | 1539 |
| Residues | 190 |
| Excluded volume | 26980 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1j1ga1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.124 — Ribonuclease Rh-like |
| Superfamily Superfamily superfamily | d.124.1 — Ribonuclease Rh-like |
| Family Family family | d.124.1.1 — Ribonuclease Rh-like |
| Domain ID domain_id | d1j1ga2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1j1gA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 730 — Ribonuclease Rh; Chain A |
| Homologous superfamily homologous superfamily | 10 — Ribonuclease T2-like |
