1ja8
Kinetic Analysis of Product Inhibition in Human Manganese Superoxide Dismutase
SAXS 散射曲线 SAXS Profile

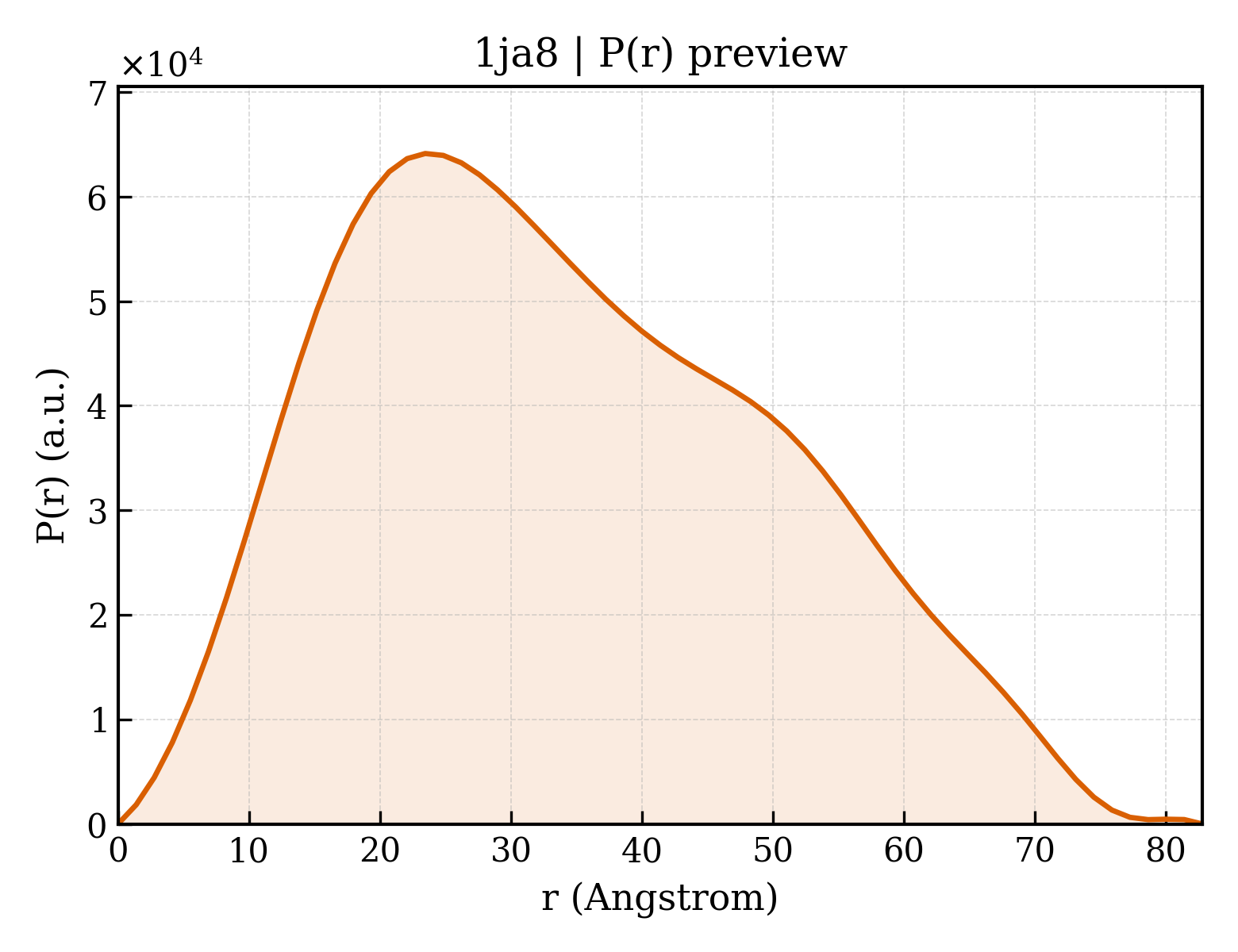

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1ja8 |
| 沉积日期 deposition_date | 2001-05-29 |
| 结构标题 title | Kinetic Analysis of Product Inhibition in Human Manganese Superoxide Dismutase |
| 关键词 keywords | ;manganese, superoxide, disumtase, SOD, MnSOD, homo sapien, alpha-beta, two-domain, homotetramer, hydrogen bond network, OXIDOREDUCTASE ;; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 26.53 Å |
| 回转半径 Rg (电子) rg_electron | 26.15 Å |
| 零角强度 I(0) i0 | 33721900.00 |
| 分子量 molecular_weight | 44670.0 kDa |
| 排除体积 excluded_volume | 55652 ų |
| 包络体积 envelope_volume | 67425 ų |
| 水化壳体积 shell_volume | 21869 ų |
| 包络直径 envelope_diameter | 86.6 Å |
| 壳层 Rg shell_rg | 32.94 Å |
| 包络 Rg envelope_rg | 25.90 Å |
| 形状 Rg shape_rg | 26.15 Å |
| 总 Rg total_rg | 26.88 Å |
| 总原子数 total_atoms | 3150 |
| 残基数 n_residues | 396 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 82.8 Å |
| Rg (实空间) rg_real | 26.64 Å |
| Rg 误差 (实空间) rg_real_error | 0.57 Å |
| I(0) (实空间) i0_real | 3.3720e+07 |
| I(0) 误差 (实空间) i0_real_error | 5.0530e+05 |
| Rg (倒空间) rg_reciprocal | 26.61 Å |
| I(0) (倒空间) i0_reciprocal | 33720000.0000 |
| 解质量估计 total_estimate | 0.8881 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 23.4 Å |
| 偏度 Skewness skewness | 0.343 |
| 峰度 Kurtosis kurtosis | -0.680 |
| 角度范围 angular_range | — – 0.3000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 5659000.0000 |
| 实空间数据点数 n_real_points | 61 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.867; Smooth: 0.908 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1ja8a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.2 — Long alpha-hairpin |
| 超家族 Superfamily superfamily | a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain |
| 家族 Family family | a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain |
| 结构域编号 domain_id | d1ja8a2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain |
| 超家族 Superfamily superfamily | d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain |
| 家族 Family family | d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain |
| 结构域编号 domain_id | d1ja8b1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.2 — Long alpha-hairpin |
| 超家族 Superfamily superfamily | a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain |
| 家族 Family family | a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain |
| 结构域编号 domain_id | d1ja8b2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain |
| 超家族 Superfamily superfamily | d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain |
| 家族 Family family | d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1ja8A01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 287 — Helix Hairpins |
| 同源超家族 H-superfamily homologous superfamily | 990 — Fe,Mn superoxide dismutase (SOD) domain |
| 结构域编号 domain_id | 1ja8A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 55 — 3-Layer(bab) Sandwich |
| 拓扑 Topology topology | 40 — minor pseudopilin epsh fold |
| 同源超家族 H-superfamily homologous superfamily | 20 — Iron/manganese superoxide dismutase, C-terminal domain |
| 结构域编号 domain_id | 1ja8B01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 287 — Helix Hairpins |
| 同源超家族 H-superfamily homologous superfamily | 990 — Fe,Mn superoxide dismutase (SOD) domain |
| 结构域编号 domain_id | 1ja8B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 55 — 3-Layer(bab) Sandwich |
| 拓扑 Topology topology | 40 — minor pseudopilin epsh fold |
| 同源超家族 H-superfamily homologous superfamily | 20 — Iron/manganese superoxide dismutase, C-terminal domain |
