SAXSdb — 1luv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Superoxide dismutase [Mn]

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MANGANESE (II) ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SODM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–198； UniProt 25–222 Author chain B； PDBConstruct 1–198； UniProt 25–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1luv
Deposition date deposition_date	2002-05-23
Structure title title	CATALYTIC AND STRUCTURAL EFFECTS OF AMINO-ACID SUBSTITUTION AT HIS 30 IN HUMAN MANGANESE SUPEROXIDE DISMUTASE: INSERTION OF VAL CGAMMA INTO THE SUBSTRATE ACCESS CHANNEL
Keywords keywords	human manganese superoxide dismutase, wild type, high resolution, MnSOD, Mn, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1luv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1luv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

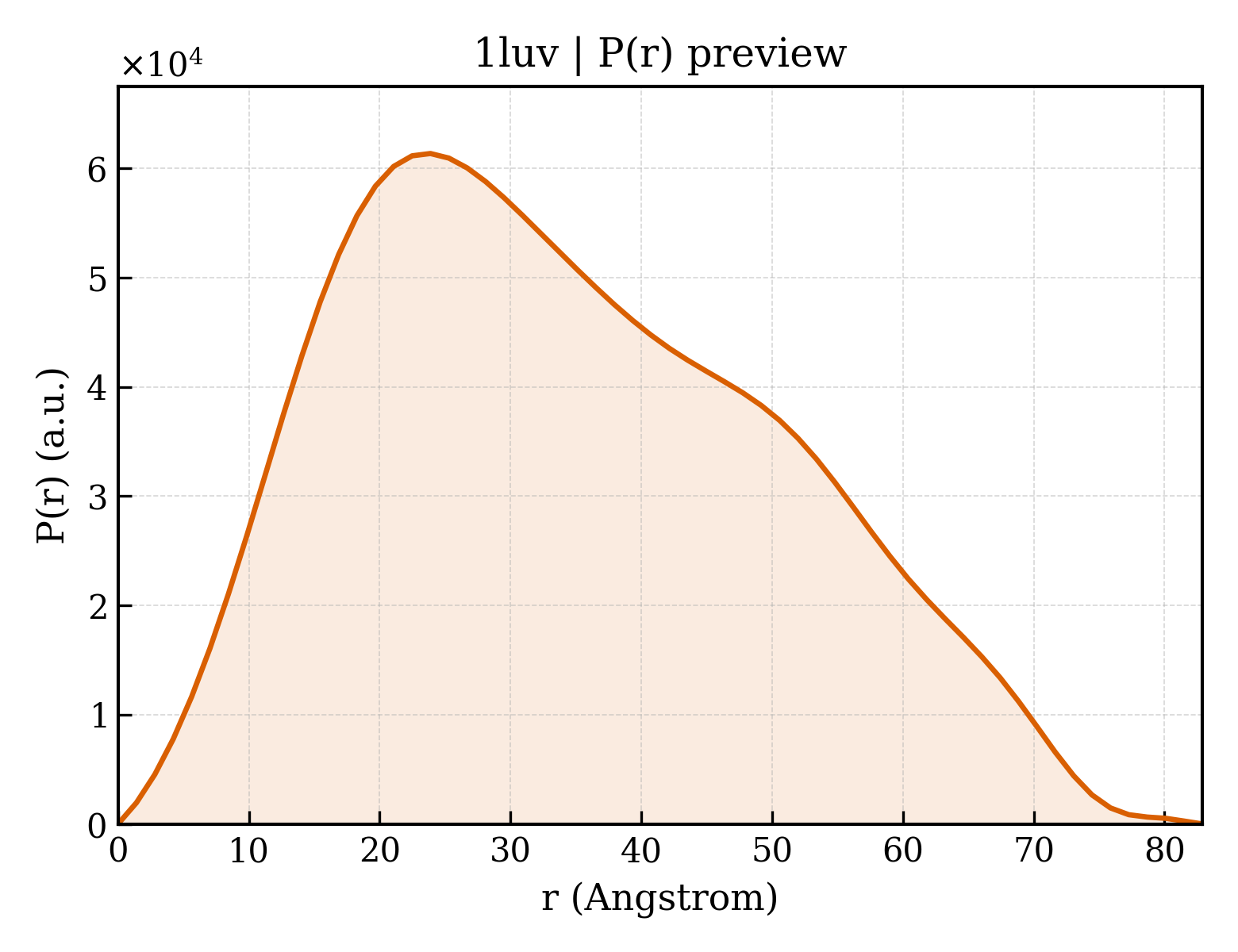

1luv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.52 Å
Rg (electron density)	27.50 Å
Total Rg	28.39 Å
Atom count	6296
Residues	792
Excluded volume	111490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1luv__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Superoxide dismutase [Mn]
Molecular weight formula_weight	22233.1 kDa
EC 编号 ec_number	1.15.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3473

KHSLPDLPYDYGALEPHINAQIMQLHHSKHHAAYVNNLNVTEEKYQEALAKGDVTAQIALQPALKFNGGGHINHSIFWTNLSPNGGGEPKGELLEAIKRDFGSFDKFKEKLTAASVGVQGSGWGWLGFNKERGHLQIAACPNQDPLQGTTGLIPLLGIDVWEHAYYLQYKNVRPDYLKAIWNVINWENVTERYMACKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	325

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1luva1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1luva2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1luvb1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1luvb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	1luvA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	1luvA02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	1luvB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	1luvB02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

▶

Unit-cell length a length_a	79.901 Å
Unit-cell length b length_b	79.901 Å
Unit-cell length c length_c	241.125 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	19.910 Å
R factor r_factor	0.2540
R_work r_work	0.2540
R_free r_free	0.2880

CATALYTIC AND STRUCTURAL EFFECTS OF AMINO-ACID SUBSTITUTION AT HIS 30 IN HUMAN MANGANESE SUPEROXIDE DISMUTASE: INSERTION OF VAL CGAMMA INTO THE SUBSTRATE ACCESS CHANNEL
