1jcc

Crystal Structure of a Novel Alanine-Zipper Trimer at 1.7 A Resolution, V13A,L16A,V20A,L23A,V27A,M30A,V34A mutations

Method: X-RAY DIFFRACTION D_max: 48.8 Å Quality: REASONABLE

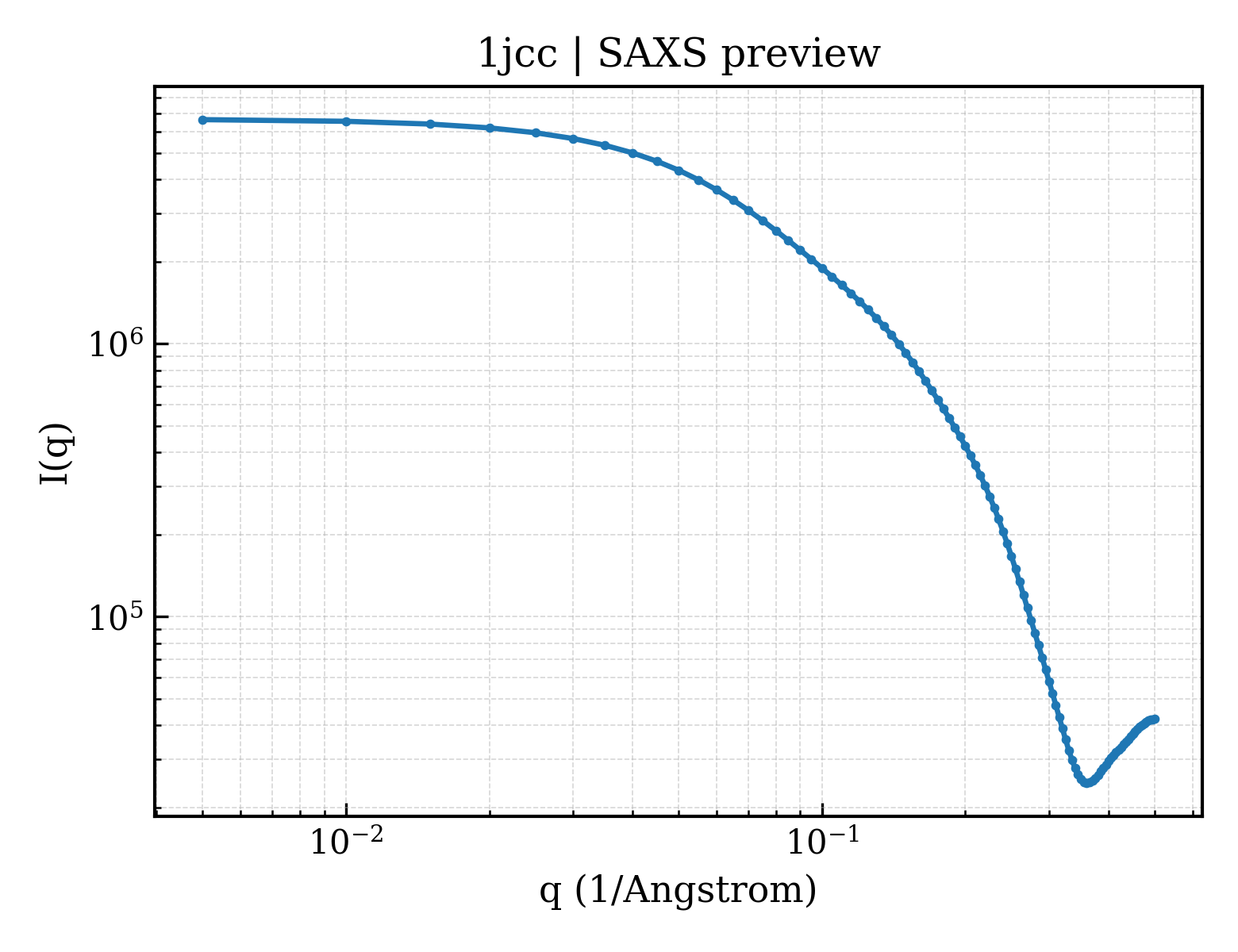

SAXS 散射曲线 SAXS Profile

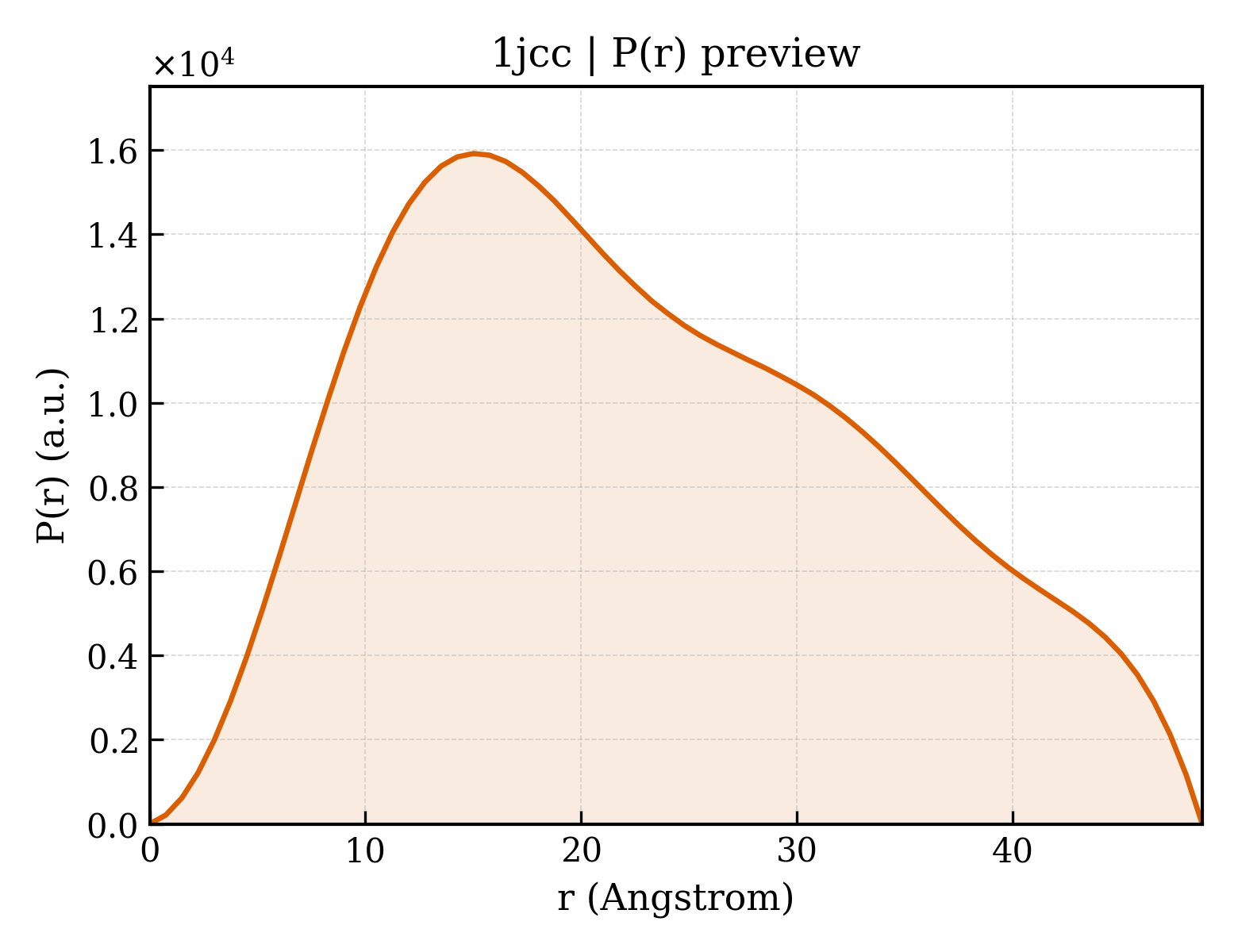

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jcc
沉积日期 deposition_date	2001-06-08
结构标题 title	Crystal Structure of a Novel Alanine-Zipper Trimer at 1.7 A Resolution, V13A,L16A,V20A,L23A,V27A,M30A,V34A mutations
关键词 keywords	LIPOPROTEIN, PROTEIN FOLDING, COILED COIL, HELIX CAPPING, ALANINE-ZIPPER, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.12 Å
回转半径 Rg (电子) rg_electron	23.70 Å
零角强度 I(0) i0	6661770.00
分子量 molecular_weight	15858.0 kDa
排除体积 excluded_volume	18501 Å³
包络体积 envelope_volume	24777 Å³
水化壳体积 shell_volume	10921 Å³
包络直径 envelope_diameter	88.2 Å
壳层 Rg shell_rg	26.14 Å
包络 Rg envelope_rg	24.68 Å
形状 Rg shape_rg	23.51 Å
总 Rg total_rg	24.49 Å
总原子数 total_atoms	1097
残基数 n_residues	156
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	48.8 Å
Rg (实空间) rg_real	17.75 Å
Rg 误差 (实空间) rg_real_error	0.08 Å
I(0) (实空间) i0_real	5.5320e+06
I(0) 误差 (实空间) i0_real_error	4.4180e+04
Rg (倒空间) rg_reciprocal	23.57 Å
I(0) (倒空间) i0_reciprocal	6661000.0000
解质量估计 total_estimate	0.5828
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	15.0 Å
偏度 Skewness skewness	0.342
峰度 Kurtosis kurtosis	-0.784
角度范围 angular_range	— – 0.3450 Å⁻¹
当前正则化参数 α current_alpha	7.1150
最高正则化参数 α highest_alpha	821000.0000
实空间数据点数 n_real_points	66
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.012; Oscil: 0.967; Stabil: 0.947; Sysdev: 0.000; Positv: 1.000; Valcen: 0.835; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	MAJOR OUTER MEMBRANE LIPOPROTEIN
分子量 formula_weight	5905.2 kDa
突变 mutation	V13A,L16A,V20A,L23A,V27A,M30A,V34A
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	1331

SSNAKIDQLSSDAQTANAKADQASNDANAARSDAQAAKDDAARANQRLDNMATKYR

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	234

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1jcca_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.16 — Outer membrane lipoprotein
家族 Family family	h.1.16.1 — Outer membrane lipoprotein

结构域编号 domain_id	d1jccb_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.16 — Outer membrane lipoprotein
家族 Family family	h.1.16.1 — Outer membrane lipoprotein

结构域编号 domain_id	d1jccc_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.16 — Outer membrane lipoprotein
家族 Family family	h.1.16.1 — Outer membrane lipoprotein

CATH v4.4 (3 domains)

结构域编号 domain_id	1jccA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	190 —

结构域编号 domain_id	1jccB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	190 —

结构域编号 domain_id	1jccC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	190 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	62.388 Å
晶胞边长 b length_b	33.322 Å
晶胞边长 c length_c	71.979 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	102.55 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	35.130 Å
R 因子 r_factor	—
R_work r_work	0.1920
R_free r_free	0.2230

fit	/app/data/saxs_computation/jc/1jcc/1jcc.fit
pddf	/app/data/pr_computation/jc/1jcc/1jcc.pr.out
profile	/app/data/saxs_computation/jc/1jcc/1jcc.dat
