SAXSdb — 1jcr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN FARNESYLTRANSFERASE, ALPHA SUBUNIT

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PROTEIN FARNESYLTRANSFERASE, BETA SUBUNIT × 1 （Q02293） SYNTHETIC TETRAPEPTIDE CVFM × 1 ACETIC ACID × 2 ZINC ION × 1 FARNESYL DIPHOSPHATE × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PFTA_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–377； UniProt 1–377

PROTEIN FARNESYLTRANSFERASE, BETA SUBUNIT

Rattus norvegicus

UniProt Q02293

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PROTEIN FARNESYLTRANSFERASE, ALPHA SUBUNIT × 1 （Q04631） SYNTHETIC TETRAPEPTIDE CVFM × 1 ACETIC ACID × 2 ZINC ION × 1 FARNESYL DIPHOSPHATE × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PFTB_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–437； UniProt 1–437

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jcr
Deposition date deposition_date	2001-06-11
Structure title title	CRYSTAL STRUCTURE OF RAT PROTEIN FARNESYLTRANSFERASE COMPLEXED WITH THE NON-SUBSTRATE TETRAPEPTIDE INHIBITOR CVFM AND FARNESYL DIPHOSPHATE SUBSTRATE
Keywords keywords	;FTASE, PFT, PFTASE, FT, FPT, FARNESYLTRANSFERASE, FARNESYL TRANSFERASE, FARNESYL PROTEIN TRANSFERASE, CAAX, RAS, CANCER, TRANSFERASE-TRANSFERASE INHIBITOR COMPLEX ;; TRANSFERASE/TRANSFERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jcr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jcr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

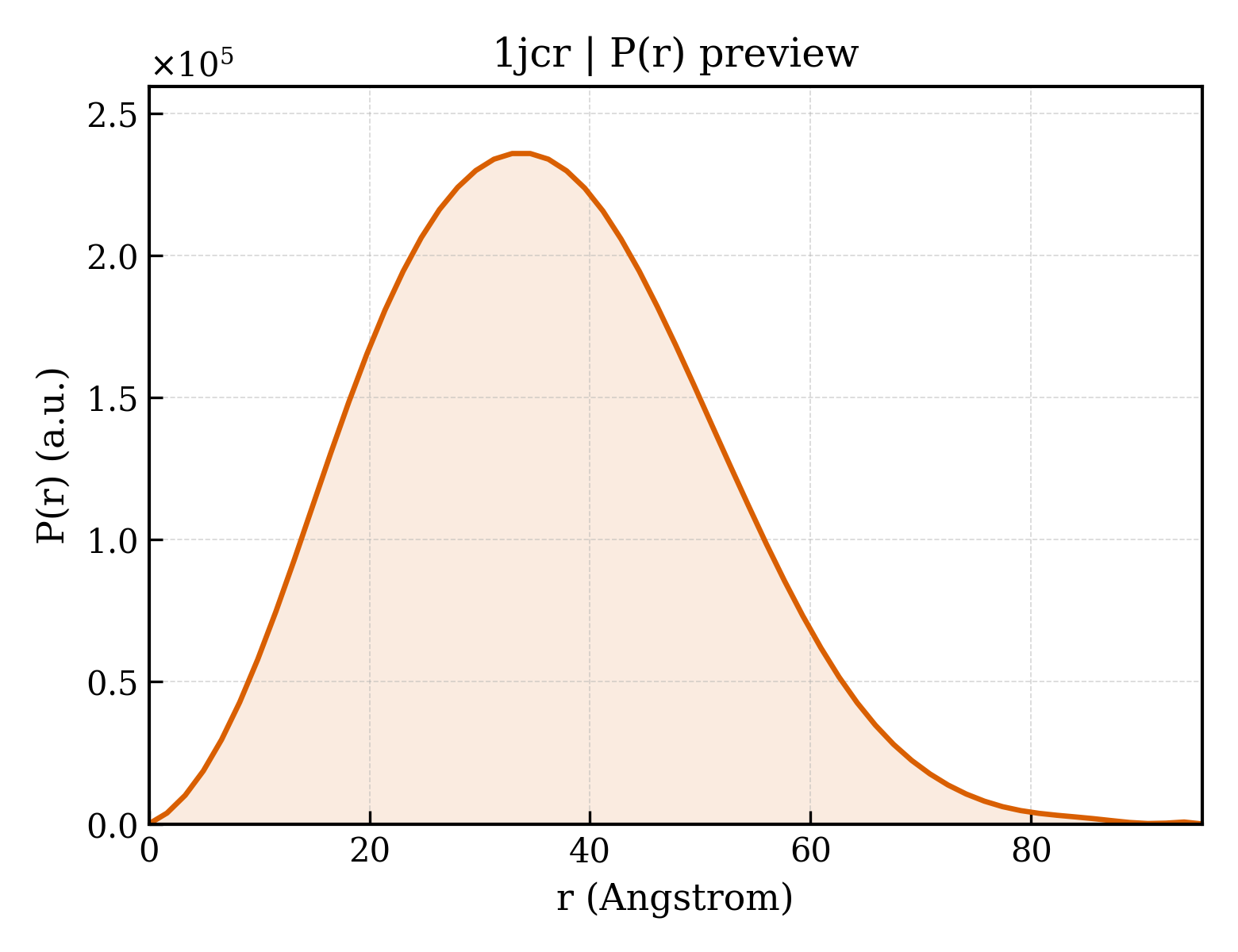

1jcr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.48 Å
Rg (electron density)	26.54 Å
Total Rg	27.34 Å
Atom count	6014
Residues	734
Excluded volume	106740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jcr__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	PROTEIN FARNESYLTRANSFERASE, ALPHA SUBUNIT
Molecular weight formula_weight	44098.1 kDa
EC 编号 ec_number	2.5.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6444

MAATEGVGESAPGGEPGQPEQPPPPPPPPPAQQPQEEEMAAEAGEAAASPMDDGFLSLDSPTYVLYRDRAEWADIDPVPQNDGPSPVVQIIYSEKFRDVYDYFRAVLQRDERSERAFKLTRDAIELNAANYTVWHFRRVLLRSLQKDLQEEMNYIIAIIEEQPKNYQVWHHRRVLVEWLKDPSQELEFIADILNQDAKNYHAWQHRQWVIQEFRLWDNELQYVDQLLKEDVRNNSVWNQRHFVISNTTGYSDRAVLEREVQYTLEMIKLVPHNESAWNYLKGILQDRGLSRYPNLLNQLLDLQPSHSSPYLIAFLVDIYEDMLENQCDNKEDILNKALELCEILAKEKDTIRKEYWRYIGRSLQSKHSRESDIPASV

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	PROTEIN FARNESYLTRANSFERASE, BETA SUBUNIT
Molecular weight formula_weight	48722.3 kDa
EC 编号 ec_number	2.5.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MASSSSFTYYCPPSSSPVWSEPLYSLRPEHARERLQDDSVETVTSIEQAKVEEKIQEVFSSYKFNHLVPRLVLQREKHFHYLKRGLRQLTDAYECLDASRPWLCYWILHSLELLDEPIPQIVATDVCQFLELCQSPDGGFGGGPGQYPHLAPTYAAVNALCIIGTEEAYNVINREKLLQYLYSLKQPDGSFLMHVGGEVDVRSAYCAASVASLTNIITPDLFEGTAEWIARCQNWEGGIGGVPGMEAHGGYTFCGLAALVILKKERSLNLKSLLQWVTSRQMRFEGGFQGRCNKLVDGCYSFWQAGLLPLLHRALHAQGDPALSMSHWMFHQQALQEYILMCCQCPAGGLLDKPGKSRDFYHTCYCLSGLSIAQHFGSGAMLHDVVMGVPENVLQPTHPVYNIGPDKVIQATTHFLQKPVPGFEECEDAVTSDPATD

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	SYNTHETIC TETRAPEPTIDE CVFM
Molecular weight formula_weight	498.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

CVFM

Entity 4 Entity 4 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	FARNESYL DIPHOSPHATE
Molecular weight formula_weight	382.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	430

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jcra_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.6 — Protein prenylyltransferase
Family Family family	a.118.6.1 — Protein prenylyltransferase

Domain ID domain_id	d1jcrb_
Class class	a — All alpha proteins
Fold Fold fold	a.102 — alpha/alpha toroid
Superfamily Superfamily superfamily	a.102.4 — Terpenoid cyclases/Protein prenyltransferases
Family Family family	a.102.4.3 — Protein prenyltransferases

CATH v4.4 (2 domains)

Domain ID domain_id	1jcrA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	120 — Protein prenylyltransferase

Domain ID domain_id	1jcrB00
Class class	1 — Mainly Alpha
Architecture architecture	50 — Alpha/alpha barrel
Topology topology	10 — Glycosyltransferase
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	171.225 Å
Unit-cell length b length_b	171.225 Å
Unit-cell length c length_c	69.332 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1660
R_work r_work	0.1660
R_free r_free	0.2060
