SAXSdb — 1jj4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulatory protein E2

Human papillomavirus type 18

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	E2 binding site DNA × 2 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VE2_HPV18
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 5–83； UniProt 287–365 Author chain B； PDBConstruct 5–83； UniProt 287–365

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jj4
Deposition date deposition_date	2001-07-03
Structure title title	Human papillomavirus type 18 E2 DNA-binding domain bound to its DNA target
Keywords keywords	HPV-18, E2, DNA-binding domain, E2-DNA complex, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jj4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

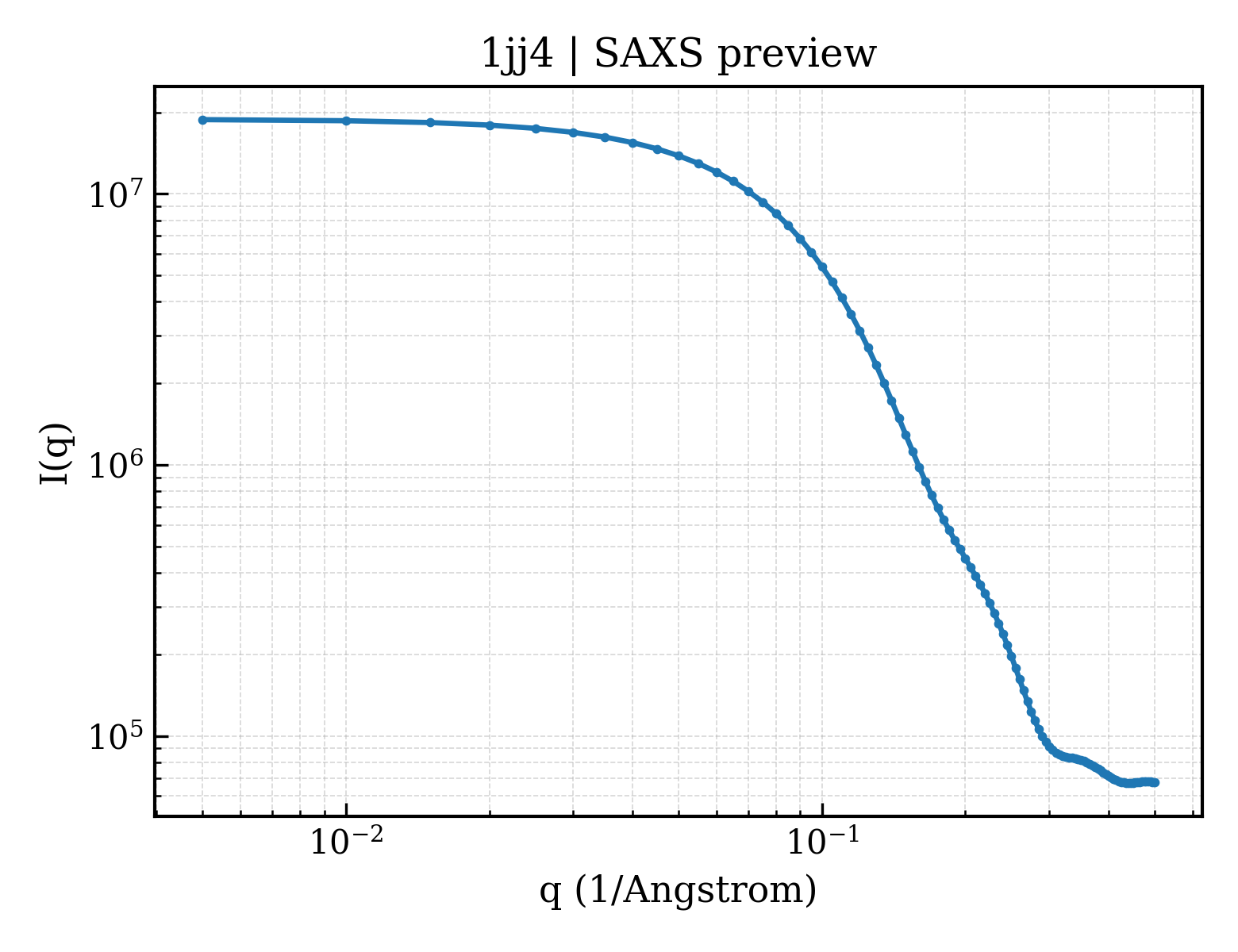

1jj4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jj4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.29 Å
Rg (electron density)	18.34 Å
Total Rg	19.17 Å
Atom count	1845
Residues	182
Excluded volume	30756 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jj4__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	E2 binding site DNA
Molecular weight formula_weight	4898.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,D
Atom count atom_count	2035

CAACCGAATTCGGTTG

Entity 2 Entity 2 polymer

Description description	Regulatory protein E2
Molecular weight formula_weight	9589.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

GSHMTPIIHLKGDRNSLKCLRYRLRKHSDHYRDISSTWHWTGAGNEKTGILTVTYHSETQRTKFLNTVAIPDSVQILVGYMTM

Source Source

Source organism organism	Human papillomavirus type 18
NCBI taxonomy ID ncbi_taxonomy_id	333761
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	190

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1jj4a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.8 — Viral DNA-binding domain
Family Family family	d.58.8.1 — Viral DNA-binding domain

Domain ID domain_id	d1jj4a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1jj4b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.8 — Viral DNA-binding domain
Family Family family	d.58.8.1 — Viral DNA-binding domain

Domain ID domain_id	d1jj4b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1jj4A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	1jj4B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

Unit-cell length a length_a	69.880 Å
Unit-cell length b length_b	82.190 Å
Unit-cell length c length_c	96.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	25.650 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2870
