SAXSdb — 1jma

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jma
沉积日期 deposition_date	2001-07-17
结构标题 title	CRYSTAL STRUCTURE OF THE HERPES SIMPLEX VIRUS GLYCOPROTEIN D BOUND TO THE CELLULAR RECEPTOR HVEA/HVEM
关键词 keywords	V-type Ig molecule and TNFR superfamily, Viral protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.88 Å
回转半径 Rg (电子) rg_electron	24.08 Å
零角强度 I(0) i0	29773100.00
分子量 molecular_weight	40420.0 kDa
排除体积 excluded_volume	49954 Å³
包络体积 envelope_volume	63690 Å³
水化壳体积 shell_volume	23247 Å³
包络直径 envelope_diameter	96.9 Å
壳层 Rg shell_rg	29.47 Å
包络 Rg envelope_rg	24.87 Å
形状 Rg shape_rg	24.00 Å
总 Rg total_rg	24.93 Å
总原子数 total_atoms	2818
残基数 n_residues	359
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

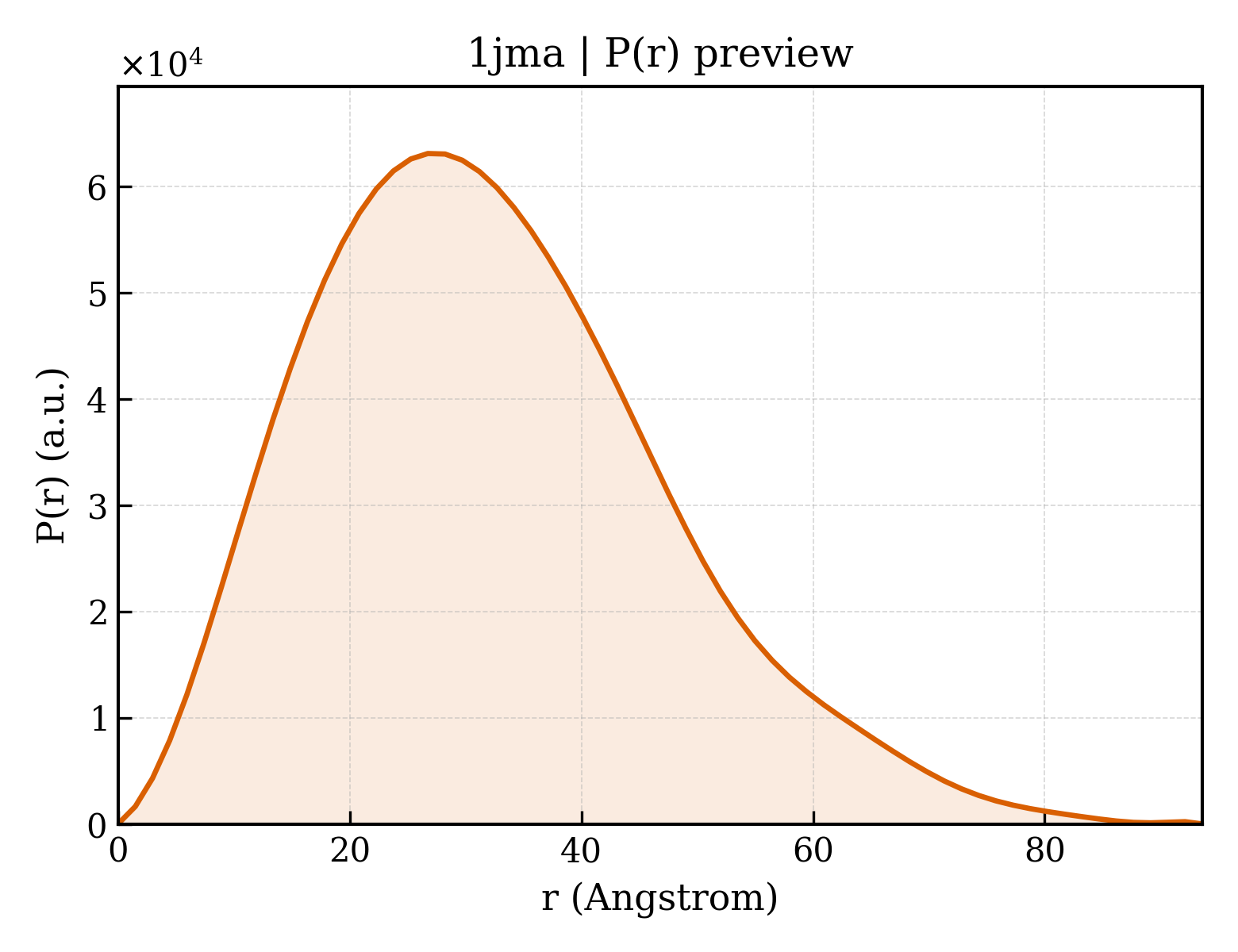

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	93.6 Å
Rg (实空间) rg_real	25.05 Å
Rg 误差 (实空间) rg_real_error	0.94 Å
I(0) (实空间) i0_real	2.9770e+07
I(0) 误差 (实空间) i0_real_error	4.5250e+05
Rg (倒空间) rg_reciprocal	25.01 Å
I(0) (倒空间) i0_reciprocal	29770000.0000
解质量估计 total_estimate	0.6600
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	26.7 Å
偏度 Skewness skewness	0.548
峰度 Kurtosis kurtosis	0.066
角度范围 angular_range	— – 0.3200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4350000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.636; Stabil: 1.000; Sysdev: 0.338; Positv: 1.000; Valcen: 0.662; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	HERPESVIRUS ENTRY MEDIATOR
分子量 formula_weight	17768.0 kDa
突变 mutation	ECTODOMAIN OF THE FULL PROTEIN
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	2885

LPSCKEDEYPVGSECCPKCSPGYRVKEACGELTGTVCEPCPPGTYIAHLNGLSKCLQCQMCDPAMGLRASRNCSRTENAVCGCSPGHFCIVQDGDHCAACRAYATSSPGQRVQKGGTESQDTLCQNCPPGTFSPNGTLEECQHQTKCSWLVTKAGAGTSSSHHHHHH

来源 Source

来源生物 organism	Human herpesvirus 1
通用名 common_name	Herpes simplex virus type 1
NCBI 分类编号 ncbi_taxonomy_id	10298
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	GLYCOPROTEIN D
分子量 formula_weight	32315.7 kDa
突变 mutation	C-TERMINAL TRUNCATION AT RESIDUE 285
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

KYALADASLKMADPNRFRGKDLPVLDQLTDPPGVRRVYHIQAGLPDPFQPPSLPITVYYAVLERACRSVLLNAPSEAPQIVRGASEDVRKQPYNLTIAWFRMGGNCAIPITVMEYTECSYNKSLGACPIRTQPRWNYYDSFSAVSEDNLGFLMHAPAFETAGTYLRLVKINDWTEITQFILEHRAKGSCKYALPLRIPPSACLSPQAYQQGVTVDSIGMLPRFIPENQRTVAVYSLKIAGWHGPKAPYTSTLLPPELSETPNATQPELAPEDPEDSALLEDPVGTHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	49

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1jmaa_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1jmab1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.1 — TNF receptor-like

结构域编号 domain_id	d1jmab2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.1 — TNF receptor-like

CATH v4.4 (3 domains)

结构域编号 domain_id	1jmaA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	230 — Glycoprotein D; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1jmaB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

结构域编号 domain_id	1jmaB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	129.154 Å
晶胞边长 b length_b	129.154 Å
晶胞边长 c length_c	80.940 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	2.650 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2370
R_work r_work	0.2360
R_free r_free	0.2590

fit	/app/data/saxs_computation/jm/1jma/1jma.fit
pddf	/app/data/pr_computation/jm/1jma/1jma.pr.out
profile	/app/data/saxs_computation/jm/1jma/1jma.dat
