2aw2

Crystal structure of the human BTLA-HVEM complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

B and T lymphocyte attenuator

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Tumor necrosis factor receptor superfamily member 14 × 1 （Q92956） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NICKEL (II) ION × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	Tumor necrosis factor receptor superfamily member 14 × 1 （Q92956） beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
3	Other combination	Heteromer	Protein 4 其他Polymer 2	Tumor necrosis factor receptor superfamily member 14 × 2 （Q92956） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NICKEL (II) ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BTLA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–112； UniProt 26–137 Author chain X； PDBConstruct 1–112； UniProt 26–137

Tumor necrosis factor receptor superfamily member 14

Homo sapiens

UniProt Q92956

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	B and T lymphocyte attenuator × 1 （Q7Z6A9） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NICKEL (II) ION × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	B and T lymphocyte attenuator × 1 （Q7Z6A9） beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
3	Other combination	Heteromer	Protein 4 其他Polymer 2	B and T lymphocyte attenuator × 2 （Q7Z6A9） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NICKEL (II) ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNR14_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–108； UniProt 39–142 Author chain Y； PDBConstruct 5–108； UniProt 39–142

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2aw2
Deposition date deposition_date	2005-08-31
Structure title title	Crystal structure of the human BTLA-HVEM complex
Keywords keywords	IgI domain, IgG domain, TNFRSF, protein-protein complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2aw2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

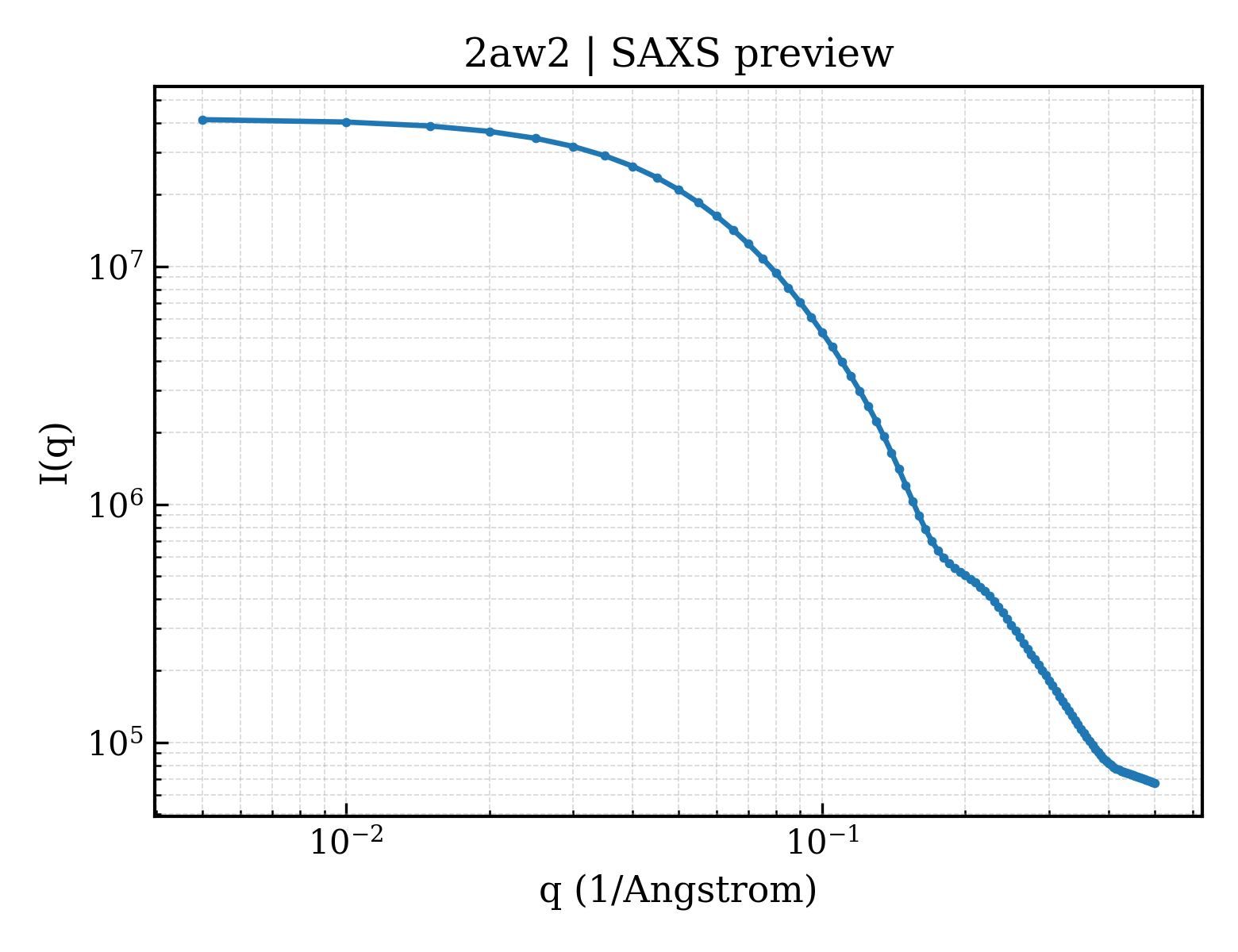

2aw2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

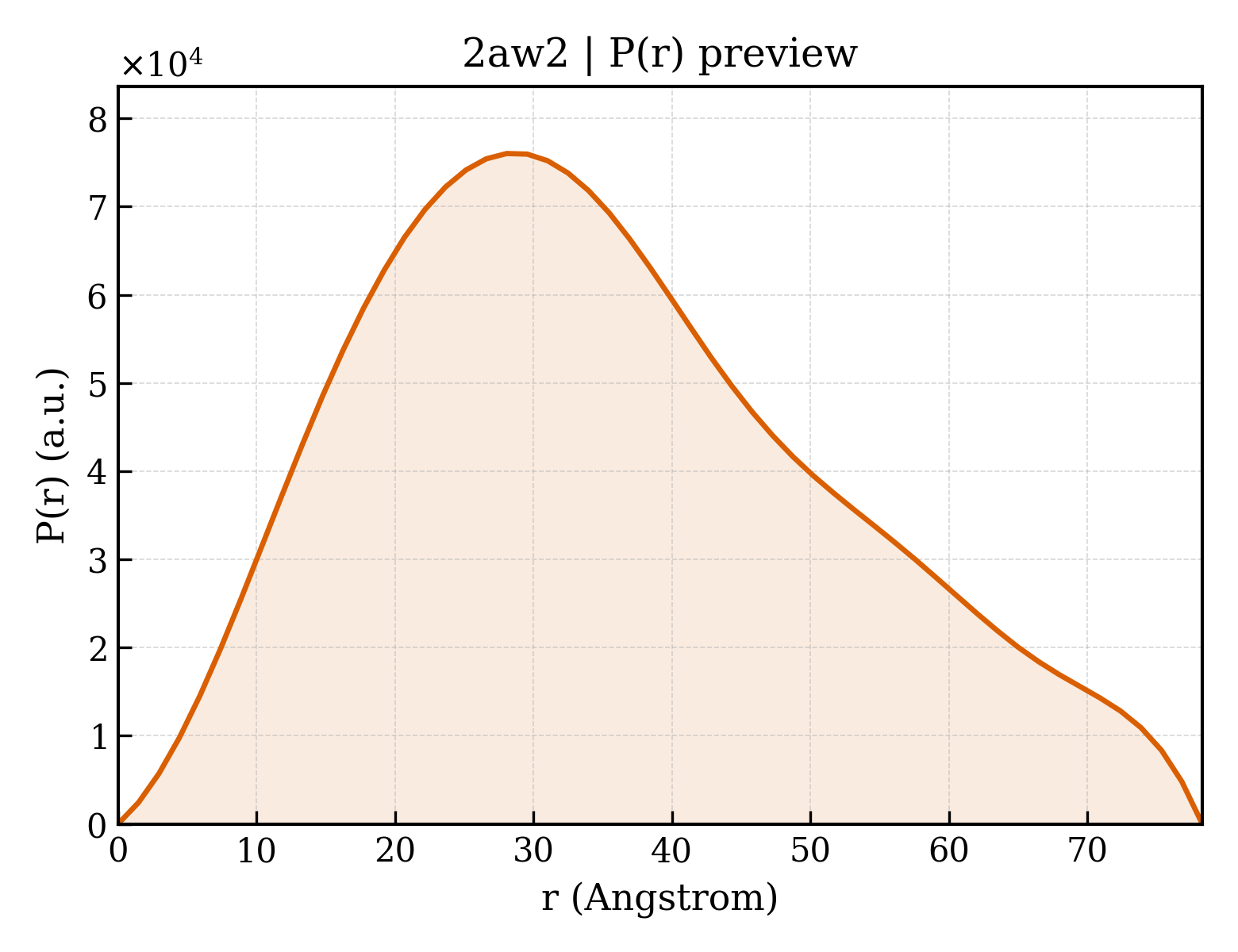

2aw2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.71 Å
Rg (electron density)	22.31 Å
Total Rg	22.88 Å
Atom count	1649
Residues	210
Excluded volume	28887 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2aw2__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2aw2__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2aw2__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	B and T lymphocyte attenuator
Molecular weight formula_weight	14101.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,X
Atom count atom_count	3259

WNIHGKESCDVQLYIKRQSEHSILAGDPFELECPVKYCANRPHVTWCKLNGTTCVKLEDRQTSWKEEKNISFFILHFEPVLPNDNGSYRCSANFQSNLIESHSTTLYVTDVKHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Tumor necrosis factor receptor superfamily member 14
Molecular weight formula_weight	11451.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,Y

GSHMLPSCKEDEYPVGSECCPKCSPGYRVKEACGELTGTVCEPCPPGTYIAHLNGLSKCLQCQMCDPAMGLRASRNCSRTENAVCGCSPGHFCIVQDGDHCAACRAYA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2aw2a1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2aw2a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2aw2b1
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d2aw2b2
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d2aw2x2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2aw2x3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2aw2y1
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d2aw2y2
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

CATH v4.4 (6 domains)

Domain ID domain_id	2aw2A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2aw2B01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	2aw2B02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	2aw2X00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2aw2Y01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	2aw2Y02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

▶

Unit-cell length a length_a	49.294 Å
Unit-cell length b length_b	167.116 Å
Unit-cell length c length_c	148.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2365
R_work r_work	0.2313
R_free r_free	0.2784

Crystal structure of the human BTLA-HVEM complex
