SAXSdb — 1jv4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major urinary protein 2

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 19–180	Not recorded	CD CADMIUM ION × 7 TZL 2-(SEC-BUTYL)THIAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；60mM CdCl2 and sodium phosphate buffer, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K	Resolution 1.75 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1JV4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DF3 SOLUTION STRUCTURE OF A RECOMBINANT MOUSE MAJOR URINARY PROTEIN Deposited 1999-11-17	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；308 K；Ionic strength (raw mmCIF value) 10mM PHOSPHATE；Pressure AMBIENT NMR sample composition UNIFORMLY 15N- AND 13C/15N-LABELLED RECOMBINANT MUP FROM MOUSE; 10MM PHOSPHATE BUFFER	Resolution not provided
1ZND Strong Solute-Solute Dispersive Interactions in a Protein-Ligand Complex Deposited 2005-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 2 PE9 PENTAN-1-OL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl, malate, HCl, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.204
1ZNE Strong Solute-Solute Dispersive Interactions in a Protein-Ligand Complex Deposited 2005-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 5 HE2 HEXAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl, Malate, HCl, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.00 Å R-free 0.224
1ZNG Strong Solute-Solute Dispersive Interactions in a Protein-Ligand Complex Deposited 2005-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 2 HE4 HEPTAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl, malate, HCl, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.216
1ZNH Strong Solute-Solute Dispersive Interactions in a Protein-Ligand Complex Deposited 2005-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 6 OC9 OCTAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl Malate/HCl, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.10 Å R-free 0.222
1ZNK Strong Solute-Solute Dispersive Interactions in a Protein-Ligand Complex Deposited 2005-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 2 F09 NONAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl, malate, HCl , pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.255
1ZNL Strong Solute-Solute Dispersive Interactions in a Protein-Ligand Complex Deposited 2005-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 4 DE1 DECAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CADMIUM CHLORIDE, MALATE, HCL, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.226
2DM5 Thermodynamic Penalty Arising From Burial of a Ligand Polar Group Within a Hydrophobic Pocket of a Protein Receptor Deposited 2006-04-20	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–180（162 aa）	Not recorded	CD CADMIUM ION × 4 ODI OCTANE-1,8-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；291 K；CADMIUM CHLORIDE, MALATE, HCL, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.200
2NND The Structural Identification of the Interaction Site and Functional State of RBP for its Membrane Receptor Deposited 2006-10-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–75（57 aa） Chain A 82–180（99 aa）	Not recorded	CD CADMIUM ION × 4 PRZ 2-ISOBUTYL-3-METHOXYPYRAZINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl, malate buffer, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.227
2NNE The Structural Identification of the Interaction Site and Functional State of RBP for its Membrane Receptor Deposited 2006-10-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–75（57 aa） Chain A 82–180（99 aa）	Not recorded	CD CADMIUM ION × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291 K；CdCl, malate buffer, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.240

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MUP2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–162； UniProt 19–180

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jv4
Deposition date deposition_date	2001-08-28
Structure title title	Crystal structure of recombinant major mouse urinary protein (rmup) at 1.75 A resolution
Keywords keywords	lipocalin recombinant beta barrel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.73 Å
Radius of gyration Rg (electron density) rg_electron	14.95 Å
Forward intensity I(0) i0	7877980.00
Molecular weight molecular_weight	18864.0 kDa
Excluded volume excluded_volume	22720 Å³
Envelope volume envelope_volume	26012 Å³
Hydration-shell volume shell_volume	14539 Å³
Envelope diameter envelope_diameter	53.5 Å
Shell Rg shell_rg	21.05 Å
Envelope Rg envelope_rg	15.19 Å
Shape Rg shape_rg	14.76 Å
Total Rg total_rg	16.47 Å
Total atoms total_atoms	1278
Residues n_residues	157
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.5 Å
Rg (real space) rg_real	16.60 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	7.8780e+06
I(0) uncertainty (real space) i0_real_error	1.0170e+05
Rg (reciprocal space) rg_reciprocal	16.61 Å
I(0) (reciprocal space) i0_reciprocal	7878000.0000
Solution quality estimate total_estimate	0.7311
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	23.1 Å
Skewness Skewness skewness	0.041
Kurtosis Kurtosis kurtosis	-0.390
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1819000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.509; Stabil: 0.992; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Major urinary protein 2
Molecular weight formula_weight	18733.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1449

EEASSTGRNFNVEKINGEWHTIILASDKREKIEDNGNFRLFLEQIHVLEKSLVLKFHTVRDEECSELSMVADKTEKAGEYSVTYDGFNTFTIPKTDYDNFLMAHLINEKDGETFQLMGLYGREPDLSSDIKERFAQLCEEHGILRENIIDLSNANRCLQARE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Pichia pastoris

Entity 2 Entity 2 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 3 Entity 3 non-polymer

Description description	2-(SEC-BUTYL)THIAZOLE
Molecular weight formula_weight	141.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	171

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1jv4a_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

CATH v4.4 (1 domains)

Domain ID domain_id	1jv4A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

▶

8. Citations (3)

▶

Unit-cell length a length_a	37.140 Å
Unit-cell length b length_b	55.790 Å
Unit-cell length c length_c	37.670 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.24 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	14.000 Å
R factor r_factor	—
R_work r_work	0.2060
R_free r_free	0.2650

fit	/app/data/saxs_computation/jv/1jv4/1jv4.fit
pddf	/app/data/pr_computation/jv/1jv4/1jv4.pr.out
profile	/app/data/saxs_computation/jv/1jv4/1jv4.dat

Crystal structure of recombinant major mouse urinary protein (rmup) at 1.75 A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major urinary protein 2

State in the Current Structure

Other States of the Same Protein in the Database

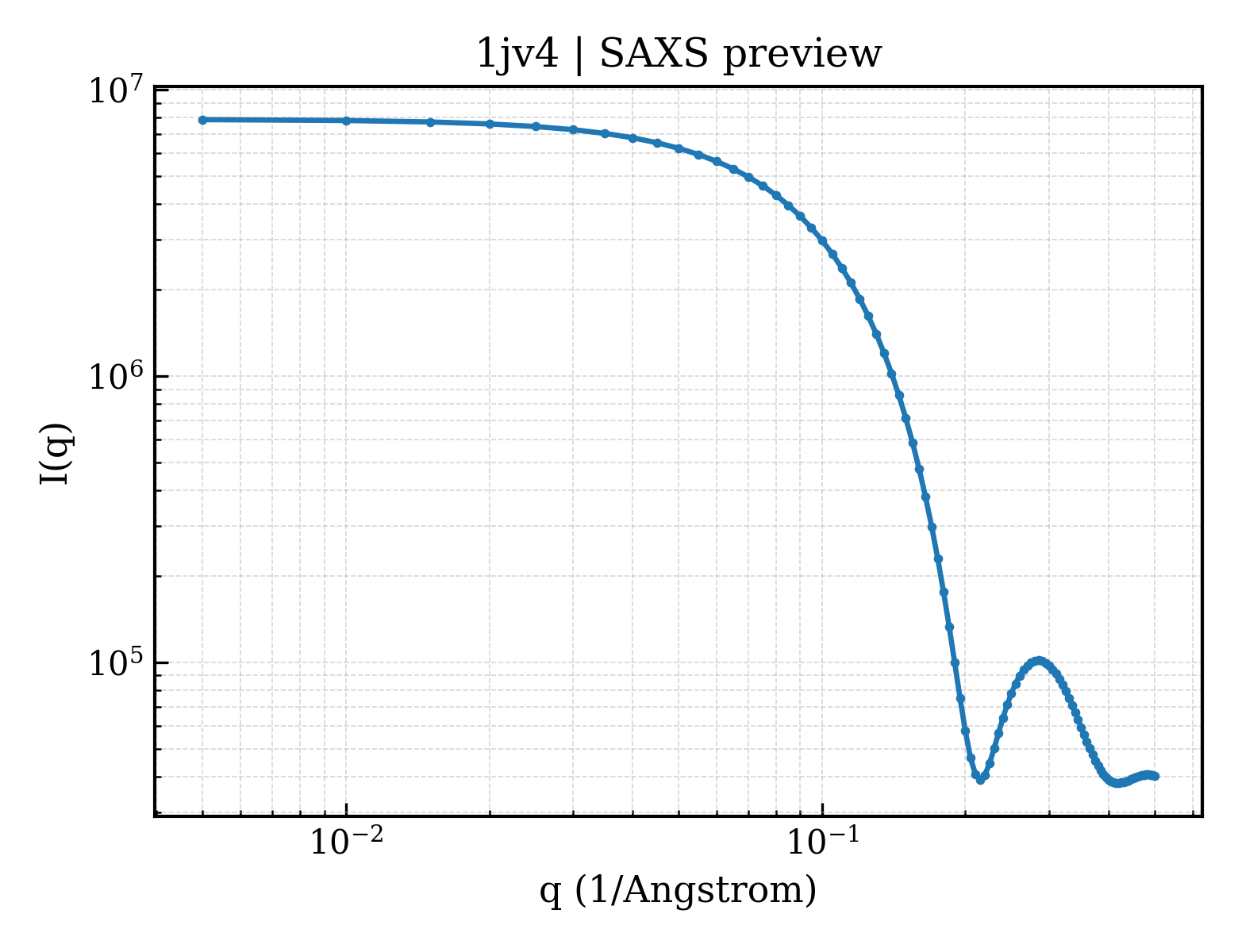

SAXS scattering curve SAXS Profile

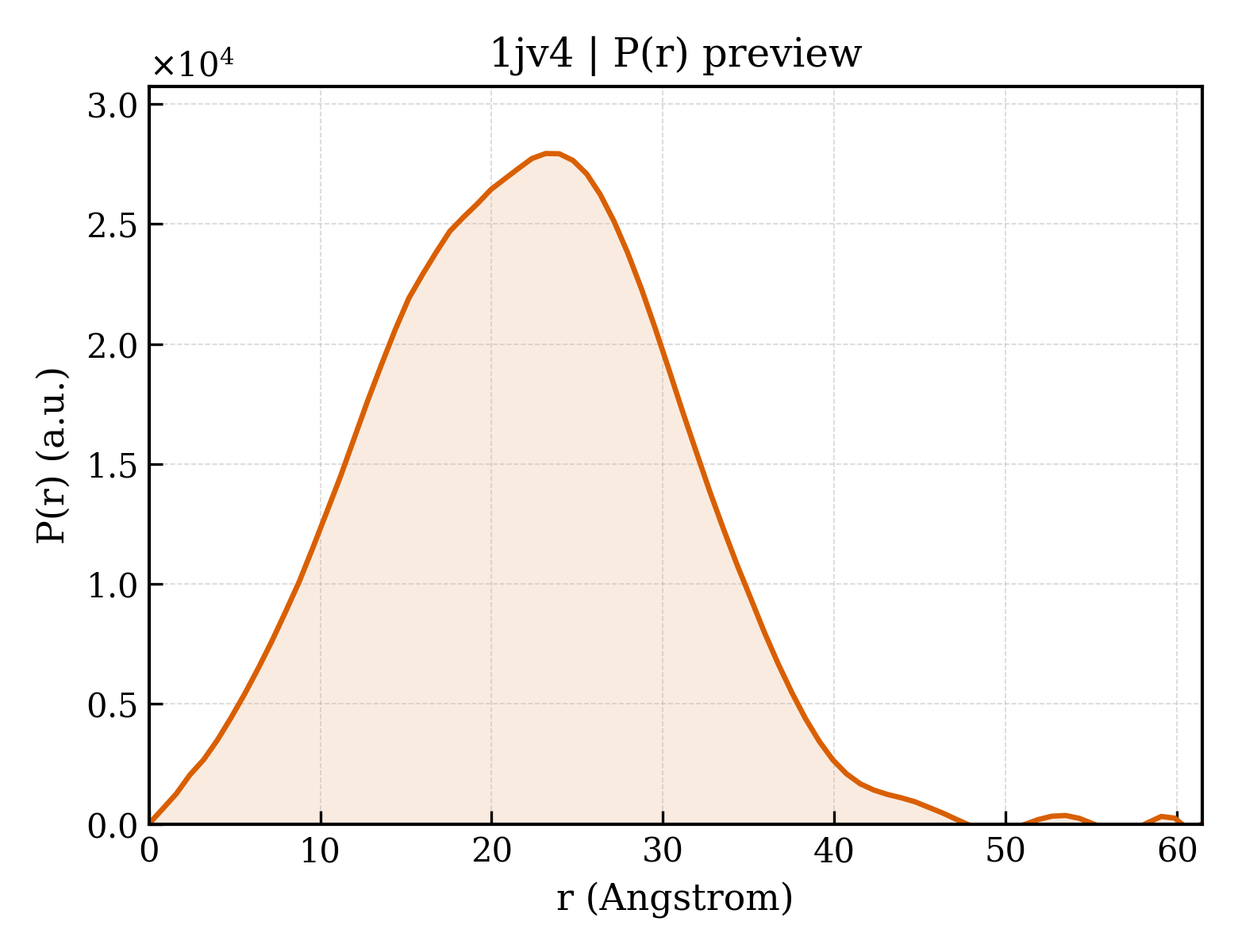

P(r) Distance Distribution P(r) Distribution
