SAXSdb — 1jy8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	ZINC ION × 3 CYTIDINE-5'-MONOPHOSPHATE × 3 2C-METHYL-D-ERYTHRITOL 2,4-CYCLODIPHOSPHATE × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISPF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–159； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jy8
Deposition date deposition_date	2001-09-11
Structure title title	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase (IspF)
Keywords keywords	isoprenoid biosynthesis; terpenes; malaria; drug design, biosynthetic protein; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jy8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

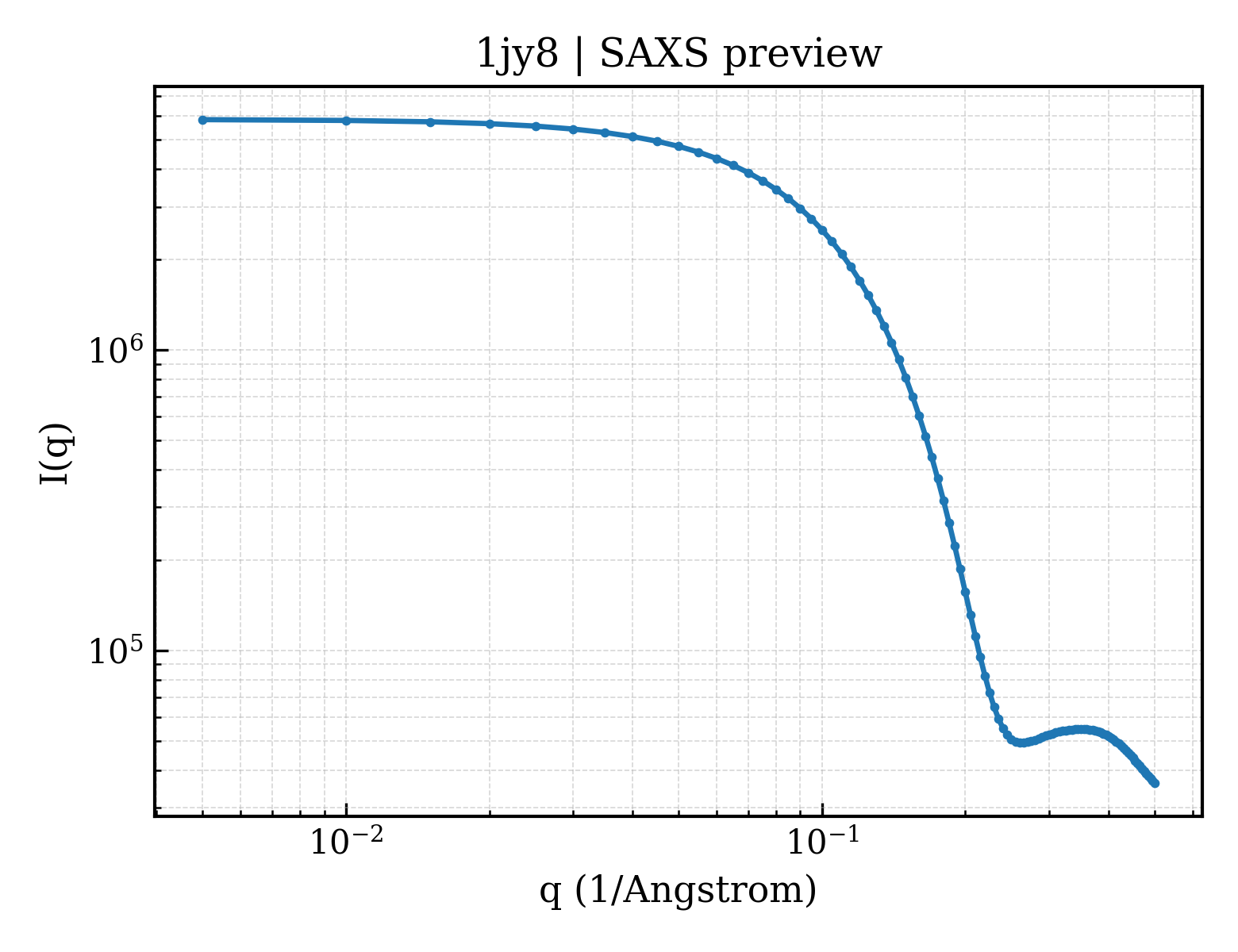

1jy8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jy8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.34 Å
Rg (electron density)	20.33 Å
Total Rg	21.08 Å
Atom count	4317
Residues	465
Excluded volume	63777 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jy8__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
Molecular weight formula_weight	16920.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1655

MRIGHGFDVHAFGGEGPIIIGGVRIPYEKGLLAHSDGDVALHALTDALLGAAALGDIGKLFPDTDPAFKGADSRELLREAWRRIQAKGYTLGNVDVTIIAQAPKMLPHIPQMRVFIAEDLGCHMDDVNVKATTTEKLGFTGRGEGIACEAVALLIKATK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CYTIDINE-5'-MONOPHOSPHATE
Molecular weight formula_weight	323.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2C-METHYL-D-ERYTHRITOL 2,4-CYCLODIPHOSPHATE
Molecular weight formula_weight	278.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	72

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1jy8a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

CATH v4.4 (1 domains)

Domain ID domain_id	1jy8A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

▶

Unit-cell length a length_a	144.630 Å
Unit-cell length b length_b	144.630 Å
Unit-cell length c length_c	144.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 21 3
Space-group number int_tables_number	199
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2050
R_work r_work	0.2010
R_free r_free	0.2550

2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase (IspF)
