2amt

Structure of 2C-Methyl-D-Erythritol 2,4-Clycodiphosphate Synthase complexed with a CDP derived fluorescent inhibitor

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	ZINC ION × 3 5'-O-[({[(2-{[(2-AMINOPHENYL)CARBONYL]OXY}ETHYL)OXY]PHOSPHINATO}OXY)PHOSPHINATO]CYTIDINE × 3 GERANYL DIPHOSPHATE × 1 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	ZINC ION × 3 5'-O-[({[(2-{[(2-AMINOPHENYL)CARBONYL]OXY}ETHYL)OXY]PHOSPHINATO}OXY)PHOSPHINATO]CYTIDINE × 3 GERANYL DIPHOSPHATE × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISPF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–159； UniProt 1–159 Author chain B； PDBConstruct 1–159； UniProt 1–159 Author chain C； PDBConstruct 1–159； UniProt 1–159 Author chain D； PDBConstruct 1–159； UniProt 1–159 Author chain E； PDBConstruct 1–159； UniProt 1–159 Author chain F； PDBConstruct 1–159； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2amt
Deposition date deposition_date	2005-08-10
Structure title title	Structure of 2C-Methyl-D-Erythritol 2,4-Clycodiphosphate Synthase complexed with a CDP derived fluorescent inhibitor
Keywords keywords	ISOPRENOID, LYASE, ISOPRENE BIOSYNTHESIS; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2amt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

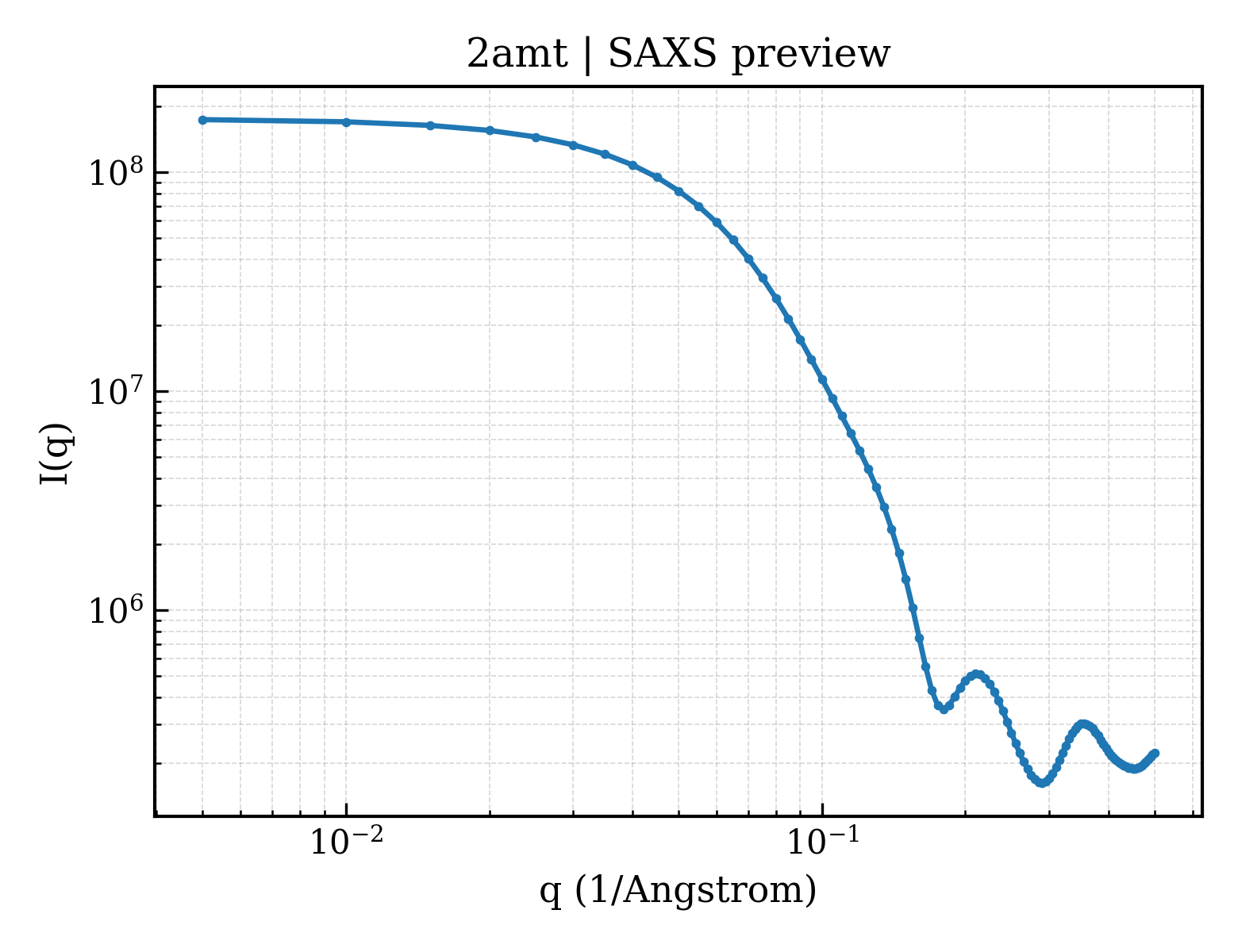

2amt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2amt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.45 Å
Rg (electron density)	20.42 Å
Total Rg	21.19 Å
Atom count	3631
Residues	468
Excluded volume	64706 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2amt__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2amt__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
Molecular weight formula_weight	16920.5 kDa
EC 编号 ec_number	4.6.1.12
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	7495

MRIGHGFDVHAFGGEGPIIIGGVRIPYEKGLLAHSDGDVALHALTDALLGAAALGDIGKLFPDTDPAFKGADSRELLREAWRRIQAKGYTLGNVDVTIIAQAPKMLPHIPQMRVFIAEDLGCHMDDVNVKATTTEKLGFTGRGEGIACEAVALLIKATK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	5'-O-[({[(2-{[(2-AMINOPHENYL)CARBONYL]OXY}ETHYL)OXY]PHOSPHINATO}OXY)PHOSPHINATO]CYTIDINE
Molecular weight formula_weight	566.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	GERANYL DIPHOSPHATE
Molecular weight formula_weight	314.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	233

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2amta_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d2amtb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d2amtc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d2amtd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d2amte_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d2amtf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

CATH v4.4 (6 domains)

Domain ID domain_id	2amtA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	2amtB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	2amtC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	2amtD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	2amtE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	2amtF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

▶

Unit-cell length a length_a	54.033 Å
Unit-cell length b length_b	115.269 Å
Unit-cell length c length_c	87.609 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.18 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	29.500 Å
R factor r_factor	0.2452
R_work r_work	0.2433
R_free r_free	0.2795
