1jzn

crystal structure of a galactose-specific C-type lectin

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Galactose-specific lectin

OrganismNot specified

UniProt P21963

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Other combination Homooligomer Protein 10 其他Polymer 10 beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 10 CALCIUM ION × 10 SODIUM ION × 10 CHLORIDE ION × 2 water × 10 Consistent with protein count
2 Other combination Homooligomer Protein 5 其他Polymer 5 beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 5 CALCIUM ION × 5 SODIUM ION × 5 CHLORIDE ION × 1 water × 5 Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1jzn 1jzn 1muq 1muq

4 assemblies

View Construct and Data Evidence
UniProt name LECG_CROAT
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–135； UniProt 1–135 Author chain B； PDBConstruct 1–135； UniProt 1–135 Author chain C； PDBConstruct 1–135； UniProt 1–135 Author chain D； PDBConstruct 1–135； UniProt 1–135 Author chain E； PDBConstruct 1–135； UniProt 1–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1jzn
Deposition date deposition_date2001-09-16
Structure title titlecrystal structure of a galactose-specific C-type lectin
Keywords keywordsC-type lectin, protein-disaccharide complex, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jzn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

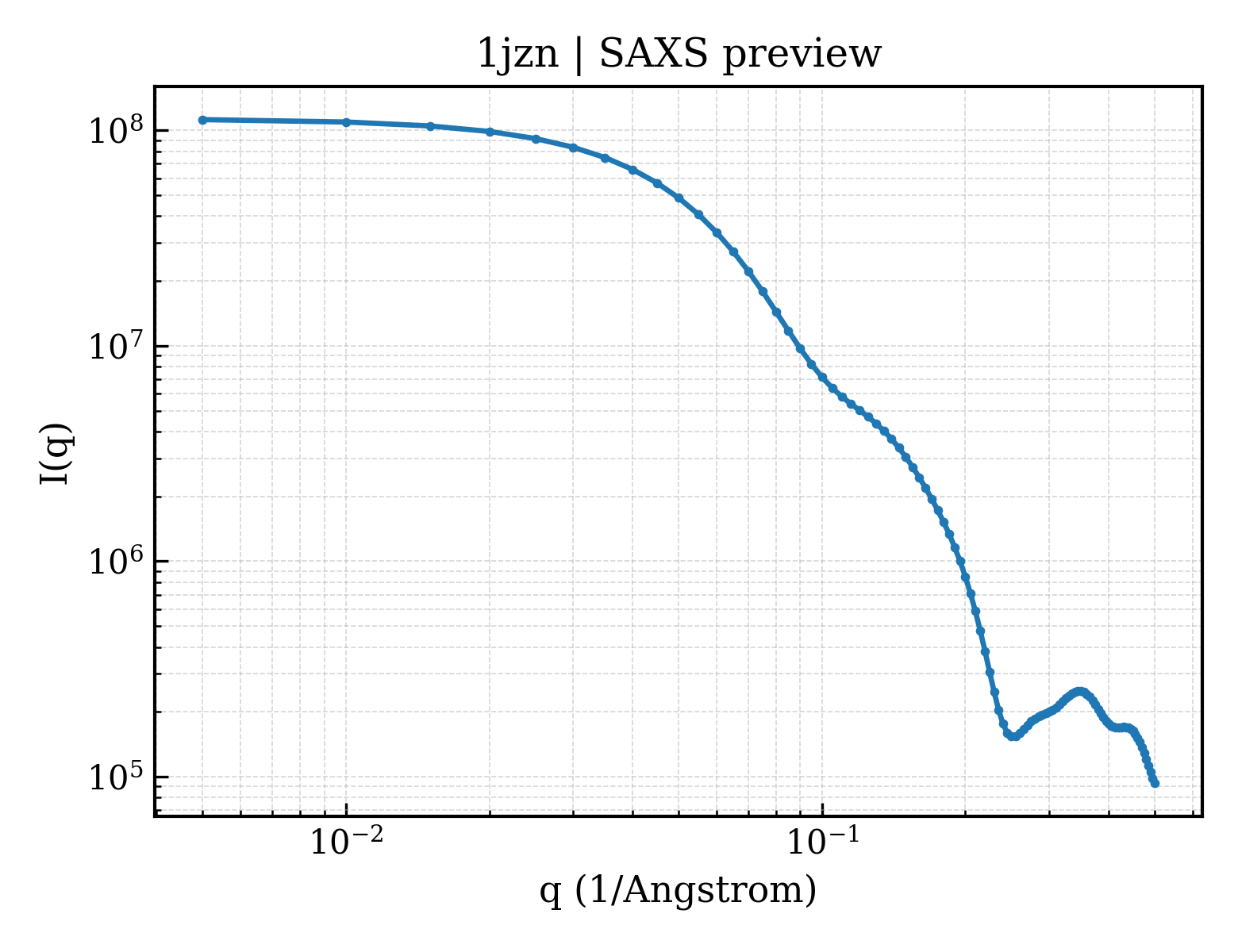

1jzn__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1jzn__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）35.17 Å
Rg (electron density)34.40 Å
Total Rg35.00 Å
Atom count11712
Residues1350
Excluded volume206910 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1jzn__assembly_1__model_1 decameric （10） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 1jzn__assembly_2__model_1 pentameric （5） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_idd1jzna_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.1 — C-type lectin domain
Domain ID domain_idd1jznb_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.1 — C-type lectin domain
Domain ID domain_idd1jznc_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.1 — C-type lectin domain
Domain ID domain_idd1jznd_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.1 — C-type lectin domain
Domain ID domain_idd1jzne_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.169 — C-type lectin-like
Superfamily Superfamily superfamilyd.169.1 — C-type lectin-like
Family Family familyd.169.1.1 — C-type lectin domain

CATH v4.4 (5 domains)

Domain ID domain_id1jznA00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
Domain ID domain_id1jznB00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
Domain ID domain_id1jznC00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
Domain ID domain_id1jznD00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
Domain ID domain_id1jznE00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily10 — Mannose-Binding Protein A, subunit A
▶

7. Citations (3)
