SAXSdb — 1muq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Galactose-specific lectin

OrganismNot specified

UniProt P21963

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 10 其他Polymer 2	1-thio-beta-D-galactopyranose-(1-1)-beta-D-galactopyranose × 2 CALCIUM ION × 10 SODIUM ION × 10 beta-D-galactopyranose × 6 water × 10	Consistent with protein count
2	Other combination	Homooligomer	Protein 5 其他Polymer 1	1-thio-beta-D-galactopyranose-(1-1)-beta-D-galactopyranose × 1 CALCIUM ION × 5 SODIUM ION × 5 beta-D-galactopyranose × 3 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LECG_CROAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 1–135 Author chain B； PDBConstruct 1–135； UniProt 1–135 Author chain C； PDBConstruct 1–135； UniProt 1–135 Author chain D； PDBConstruct 1–135； UniProt 1–135 Author chain E； PDBConstruct 1–135； UniProt 1–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1muq
Deposition date deposition_date	2002-09-24
Structure title title	X-ray Crystal Structure of Rattlesnake Venom Complexed With Thiodigalactoside
Keywords keywords	C-type lectin, protein-carbohydrate complex, decamer, calcium binding, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1muq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1muq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

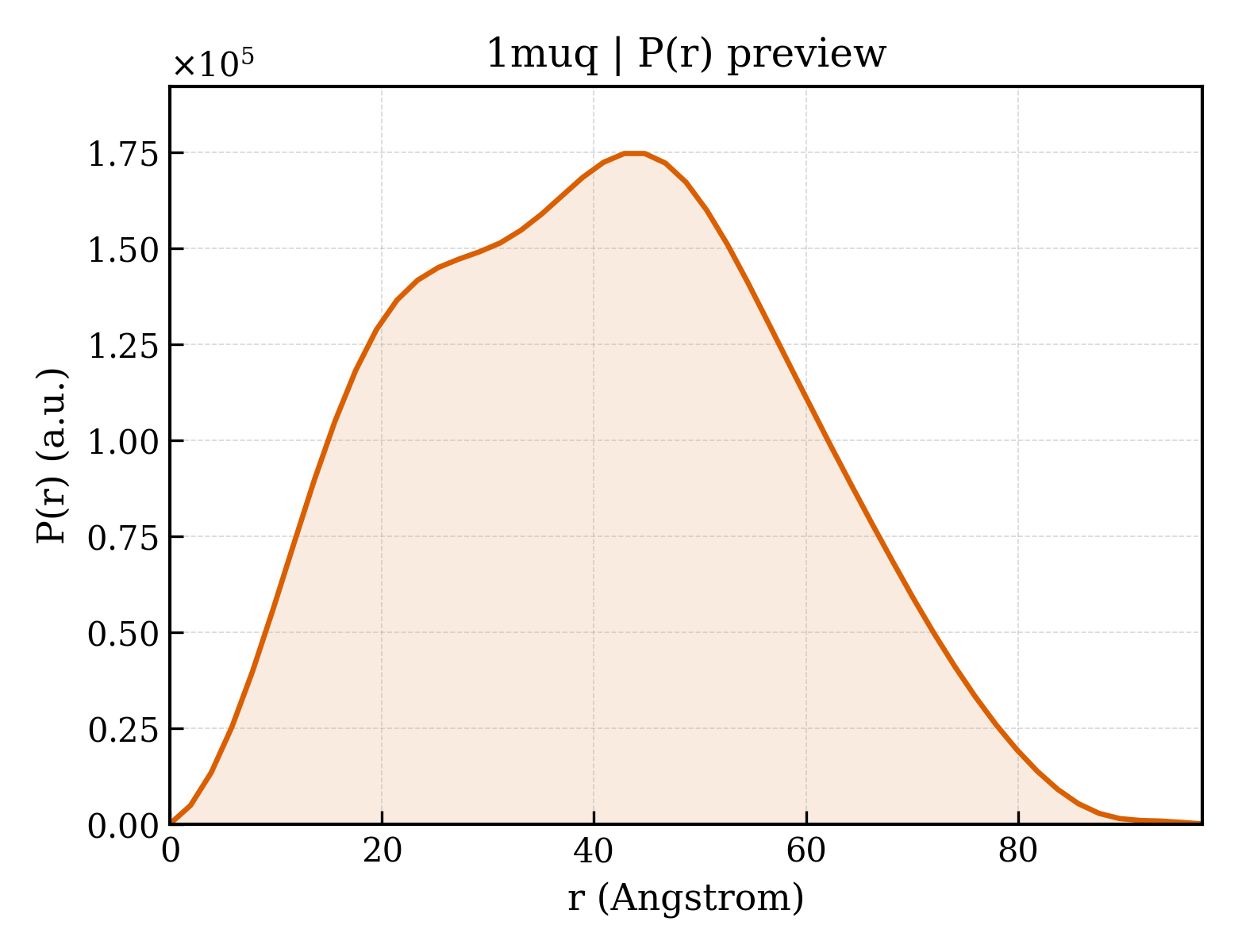

1muq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.79 Å
Rg (electron density)	33.95 Å
Total Rg	34.55 Å
Atom count	11518
Residues	1340
Excluded volume	203650 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1muq__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1muq__assembly_2__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Galactose-specific lectin
Molecular weight formula_weight	16312.4 kDa
Source method src_method	nat
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	5910

NNCPLDWLPMNGLCYKIFNQLKTWEDAEMFCRKYKPGCHLASFHRYGESLEIAEYISDYHKGQENVWIGLRDKKKDFSWEWTDRSCTDYLTWDKNQPDHYQNKEFCVELVSLTGYRLWNDQVCESKDAFLCQCKF

Entity 2 Entity 2 branched

Description description	1-thio-beta-D-galactopyranose-(1-1)-beta-D-galactopyranose
Molecular weight formula_weight	358.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	beta-D-galactopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	151

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1muqa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1muqb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1muqc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1muqd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1muqe_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

CATH v4.4 (5 domains)

Domain ID domain_id	1muqA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1muqB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1muqC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1muqD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1muqE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

Unit-cell length a length_a	110.454 Å
Unit-cell length b length_b	151.234 Å
Unit-cell length c length_c	95.014 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	40

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	35.130 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2570

X-ray Crystal Structure of Rattlesnake Venom Complexed With Thiodigalactoside
