1kxg
The 2.0 Ang Resolution Structure of BLyS, B Lymphocyte Stimulator.

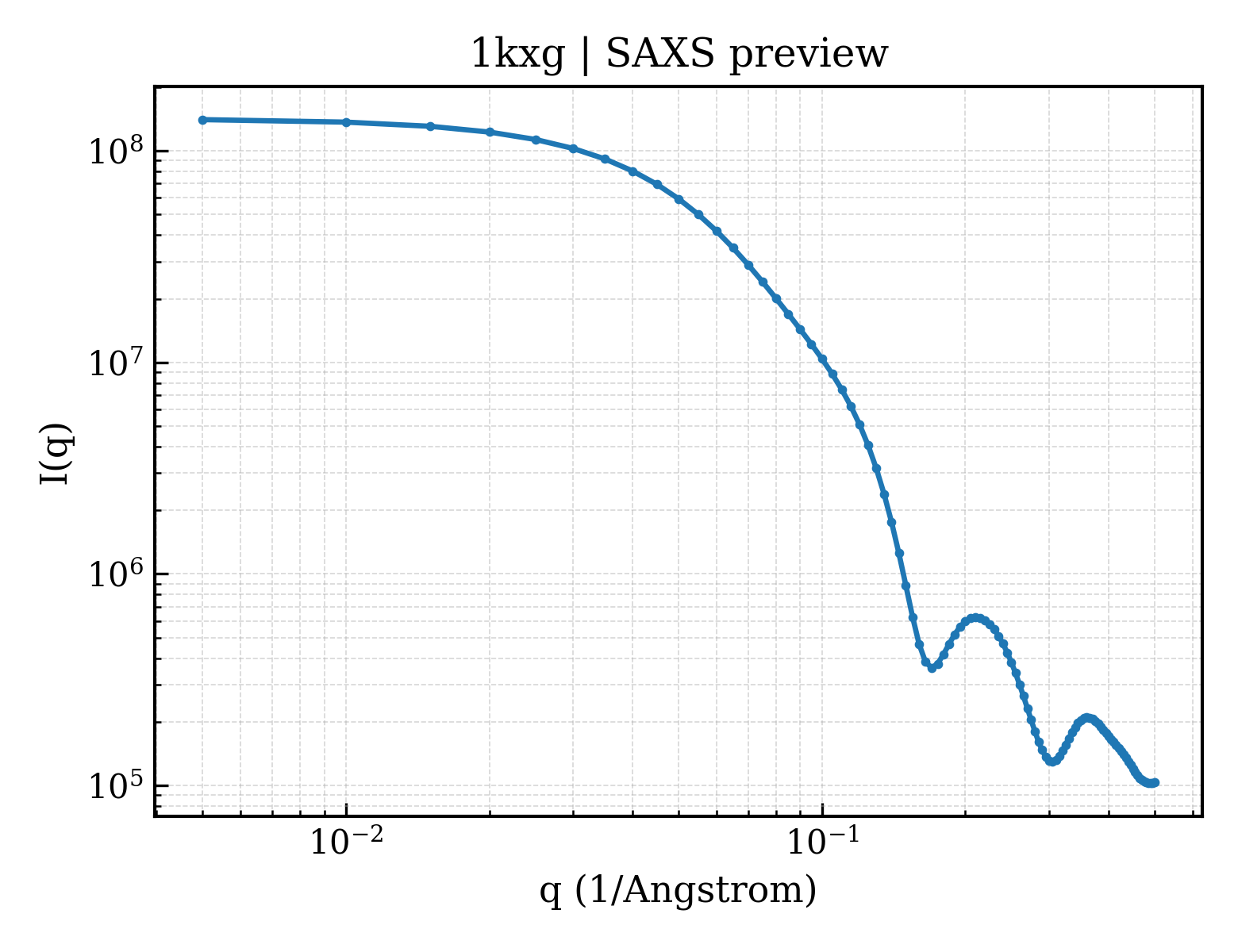

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1kxg |
| 沉积日期 deposition_date | 2002-01-31 |
| 结构标题 title | The 2.0 Ang Resolution Structure of BLyS, B Lymphocyte Stimulator. |
| 关键词 keywords | BAFF, TALL-1, THANK, zTNF4, cytokine, TNF superfamily, jellyroll, beta-sandwich; CYTOKINE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 32.80 Å |
| 回转半径 Rg (电子) rg_electron | 32.27 Å |
| 零角强度 I(0) i0 | 141755000.00 |
| 分子量 molecular_weight | 99664.0 kDa |
| 排除体积 excluded_volume | 126570 ų |
| 包络体积 envelope_volume | 152030 ų |
| 水化壳体积 shell_volume | 39198 ų |
| 包络直径 envelope_diameter | 109.4 Å |
| 壳层 Rg shell_rg | 38.94 Å |
| 包络 Rg envelope_rg | 32.53 Å |
| 形状 Rg shape_rg | 32.26 Å |
| 总 Rg total_rg | 32.85 Å |
| 总原子数 total_atoms | 7011 |
| 残基数 n_residues | 864 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

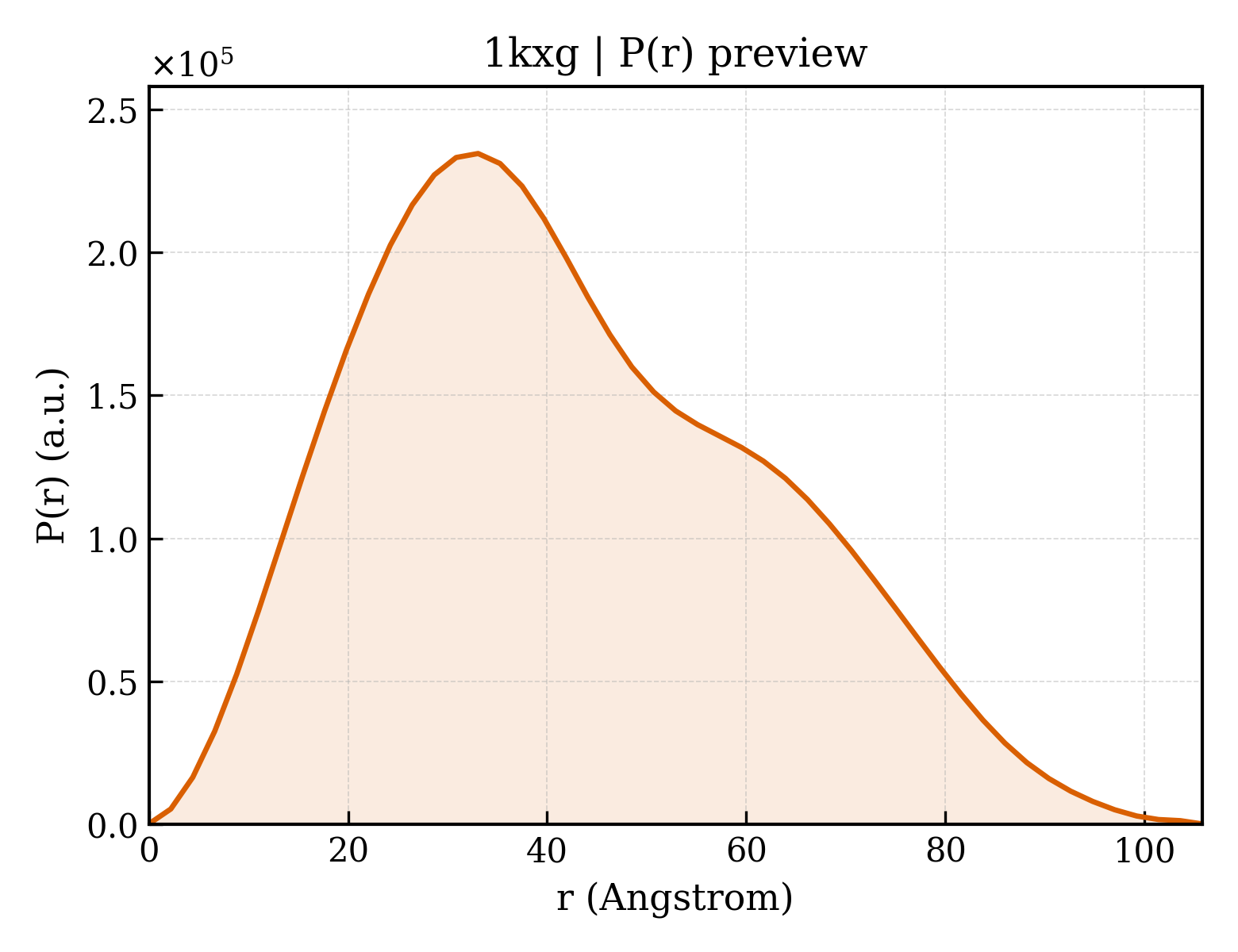

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 105.8 Å |
| Rg (实空间) rg_real | 32.95 Å |
| Rg 误差 (实空间) rg_real_error | 0.81 Å |
| I(0) (实空间) i0_real | 1.4180e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.3300e+06 |
| Rg (倒空间) rg_reciprocal | 32.89 Å |
| I(0) (倒空间) i0_reciprocal | 141700000.0000 |
| 解质量估计 total_estimate | 0.8598 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 33.1 Å |
| 偏度 Skewness skewness | 0.408 |
| 峰度 Kurtosis kurtosis | -0.537 |
| 角度范围 angular_range | — – 0.2400 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 38540000.0000 |
| 实空间数据点数 n_real_points | 49 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.946; Smooth: 0.718 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1kxga_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.22 — TNF-like |
| 超家族 Superfamily superfamily | b.22.1 — TNF-like |
| 家族 Family family | b.22.1.1 — TNF-like |
| 结构域编号 domain_id | d1kxgb_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.22 — TNF-like |
| 超家族 Superfamily superfamily | b.22.1 — TNF-like |
| 家族 Family family | b.22.1.1 — TNF-like |
| 结构域编号 domain_id | d1kxgc_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.22 — TNF-like |
| 超家族 Superfamily superfamily | b.22.1 — TNF-like |
| 家族 Family family | b.22.1.1 — TNF-like |
| 结构域编号 domain_id | d1kxgd_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.22 — TNF-like |
| 超家族 Superfamily superfamily | b.22.1 — TNF-like |
| 家族 Family family | b.22.1.1 — TNF-like |
| 结构域编号 domain_id | d1kxge_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.22 — TNF-like |
| 超家族 Superfamily superfamily | b.22.1 — TNF-like |
| 家族 Family family | b.22.1.1 — TNF-like |
| 结构域编号 domain_id | d1kxgf_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.22 — TNF-like |
| 超家族 Superfamily superfamily | b.22.1 — TNF-like |
| 家族 Family family | b.22.1.1 — TNF-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1kxgA00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 40 — |
| 结构域编号 domain_id | 1kxgB00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 40 — |
| 结构域编号 domain_id | 1kxgC00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 40 — |
| 结构域编号 domain_id | 1kxgD00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 40 — |
| 结构域编号 domain_id | 1kxgE00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 40 — |
| 结构域编号 domain_id | 1kxgF00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 40 — |
