1l3u

;Crystal Structure of Bacillus DNA Polymerase I Fragment product complex with 11 base pairs of duplex DNA following addition of a dTTP and a dATP residue. ;

Method: X-RAY DIFFRACTION D_max: 85.5 Å Quality: REASONABLE

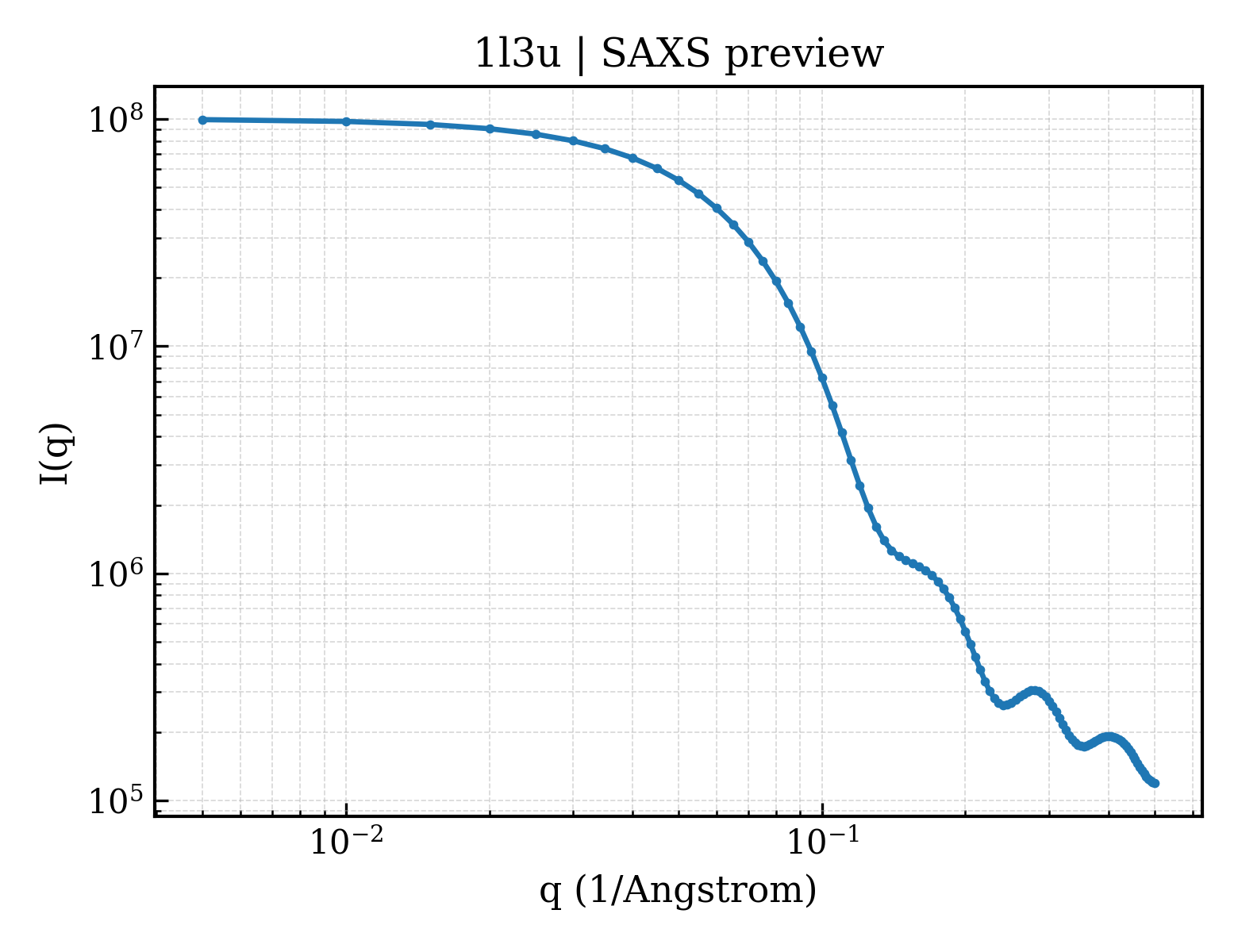

SAXS 散射曲线 SAXS Profile

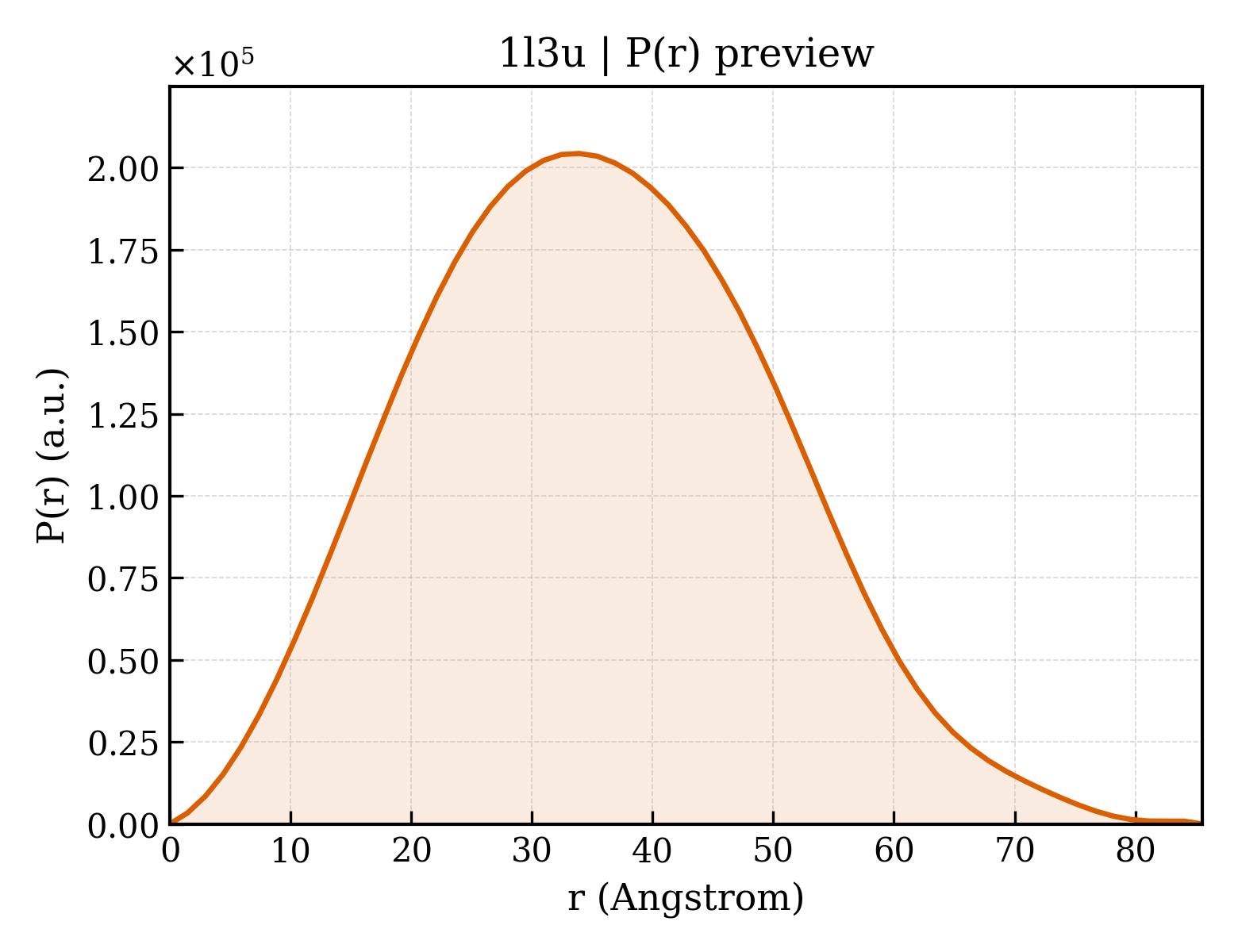

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l3u
沉积日期 deposition_date	2002-03-01
结构标题 title	;Crystal Structure of Bacillus DNA Polymerase I Fragment product complex with 11 base pairs of duplex DNA following addition of a dTTP and a dATP residue. ;
关键词 keywords	DNA Polymerase I, DNA Replication, Klenow Fragment, Protein-DNA Complex, TRANSFERASE-DNA COMPLEX; TRANSFERASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.14 Å
回转半径 Rg (电子) rg_electron	26.36 Å
零角强度 I(0) i0	99924800.00
分子量 molecular_weight	74348.0 kDa
排除体积 excluded_volume	91293 Å³
包络体积 envelope_volume	112460 Å³
水化壳体积 shell_volume	34930 Å³
包络直径 envelope_diameter	90.6 Å
壳层 Rg shell_rg	34.35 Å
包络 Rg envelope_rg	26.29 Å
形状 Rg shape_rg	26.37 Å
总 Rg total_rg	27.11 Å
总原子数 total_atoms	5200
残基数 n_residues	604
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.5 Å
Rg (实空间) rg_real	27.00 Å
Rg 误差 (实空间) rg_real_error	0.52 Å
I(0) (实空间) i0_real	9.9920e+07
I(0) 误差 (实空间) i0_real_error	1.4330e+06
Rg (倒空间) rg_reciprocal	27.04 Å
I(0) (倒空间) i0_reciprocal	99930000.0000
解质量估计 total_estimate	0.6963
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	33.9 Å
偏度 Skewness skewness	0.194
峰度 Kurtosis kurtosis	-0.386
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16340000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.902; Stabil: 1.000; Sysdev: 0.127; Positv: 1.000; Valcen: 0.988; Smooth: 0.972

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	5'-D(GPCPGPAPTPCPAPCPGPTP*A)-3'
分子量 formula_weight	3358.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B
原子数 atom_count	5781

GCGATCACGTA

Entity 2 polymer

描述 description	5'-D(GPAPCGPTPAPCPGPTPGPAPTPCPGPCPA)-3'
分子量 formula_weight	4923.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C

GACGTACGTGATCGCA

Entity 3 polymer

描述 description	DNA Polymerase I
分子量 formula_weight	66172.8 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

AKMAFTLADRVTEEMLADKAALVVEVVEENYHDAPIVGIAVVNEHGRFFLRPETALADPQFVAWLGDETKKKSMFDSKRAAVALKWKGIELCGVSFDLLLAAYLLDPAQGVDDVAAAAKMKQYEAVRPDEAVYGKGAKRAVPDEPVLAEHLVRKAAAIWELERPFLDELRRNEQDRLLVELEQPLSSILAEMEFAGVKVDTKRLEQMGKELAEQLGTVEQRIYELAGQEFNINSPKQLGVILFEKLQLPVLKKTKTGYSTSADVLEKLAPYHEIVENILHYRQLGKLQSTYIEGLLKVVRPDTKKVHTIFNQALTQTGRLSSTEPNLQNIPIRLEEGRKIRQAFVPSESDWLIFAADYSQIELRVLAHIAEDDNLMEAFRRDLDIHTKTAMDIFQVSEDEVTPNMRRQAKAVNFGIVYGISDYGLAQNLNISRKEAAEFIERYFESFPGVKRYMENIVQEAKQKGYVTTLLHRRRYLPDITSRNFNVRSFAERMAMNTPIQGSAADIIKKAMIDLNARLKEERLQAHLLLQVHDELILEAPKEEMERLCRLVPEVMEQAVTLRVPLKVDYHYGSTWYDAK

来源 Source

来源生物 organism	Geobacillus stearothermophilus
NCBI 分类编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	Escherichia coli

Entity 4 branched

描述 description	beta-D-fructofuranose-(2-1)-alpha-D-glucopyranose
分子量 formula_weight	342.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	581

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1l3ua1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1l3ua2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

CATH v4.4 (4 domains)

结构域编号 domain_id	1l3uA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1l3uA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1060 — Taq DNA Polymerase; Chain T, domain 4
同源超家族 H-superfamily homologous superfamily	10 — Taq DNA Polymerase; Chain T, domain 4

结构域编号 domain_id	1l3uA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1l3uA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	86.429 Å
晶胞边长 b length_b	93.018 Å
晶胞边长 c length_c	106.137 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	46.090 Å
R 因子 r_factor	0.1959
R_work r_work	0.1942
R_free r_free	0.2281

fit	/app/data/saxs_computation/l3/1l3u/1l3u.fit
pddf	/app/data/pr_computation/l3/1l3u/1l3u.pr.out
profile	/app/data/saxs_computation/l3/1l3u/1l3u.dat
