1l5u

;Crystal Structure of Bacillus DNA Polymerase I Fragment product complex with 12 base pairs of duplex DNA following addition of a dTTP, a dATP, and a dCTP residue. ;

Method: X-RAY DIFFRACTION D_max: 85.3 Å Quality: GOOD

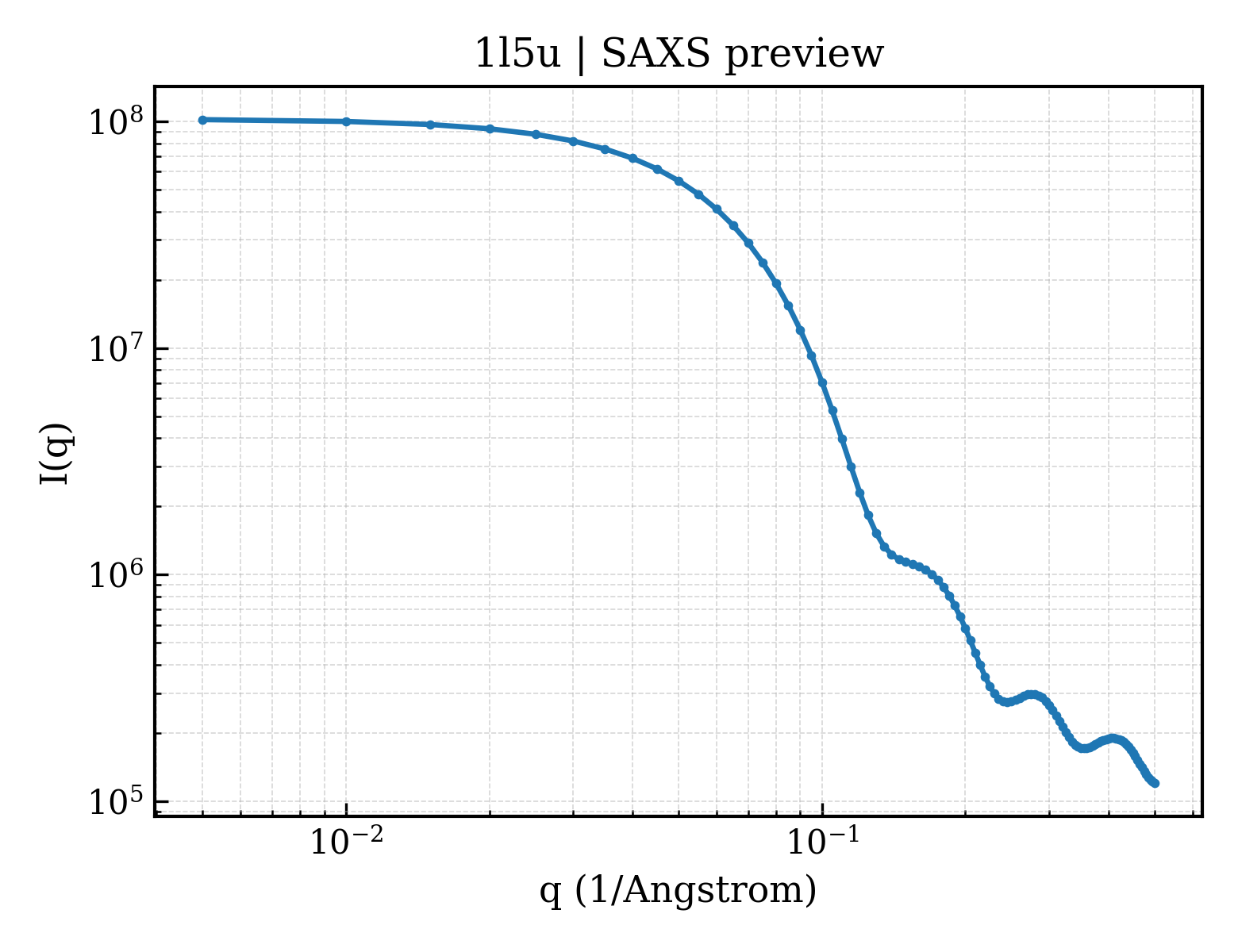

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l5u
沉积日期 deposition_date	2002-03-08
结构标题 title	;Crystal Structure of Bacillus DNA Polymerase I Fragment product complex with 12 base pairs of duplex DNA following addition of a dTTP, a dATP, and a dCTP residue. ;
关键词 keywords	DNA Polymerase I, DNA Replication, Klenow Fragment, Protein-DNA Complex, TRANSFERASE-DNA COMPLEX; TRANSFERASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.29 Å
回转半径 Rg (电子) rg_electron	26.48 Å
零角强度 I(0) i0	102483000.00
分子量 molecular_weight	74928.0 kDa
排除体积 excluded_volume	91859 Å³
包络体积 envelope_volume	114760 Å³
水化壳体积 shell_volume	35436 Å³
包络直径 envelope_diameter	89.4 Å
壳层 Rg shell_rg	34.53 Å
包络 Rg envelope_rg	26.39 Å
形状 Rg shape_rg	26.49 Å
总 Rg total_rg	27.24 Å
总原子数 total_atoms	5238
残基数 n_residues	606
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.3 Å
Rg (实空间) rg_real	27.13 Å
Rg 误差 (实空间) rg_real_error	0.67 Å
I(0) (实空间) i0_real	1.0250e+08
I(0) 误差 (实空间) i0_real_error	1.5920e+06
Rg (倒空间) rg_reciprocal	27.18 Å
I(0) (倒空间) i0_reciprocal	102500000.0000
解质量估计 total_estimate	0.8993
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.8 Å
偏度 Skewness skewness	0.181
峰度 Kurtosis kurtosis	-0.397
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16470000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.974

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	5'-D(GPCPGPAPTPCPAPCPGPTPAPC)-3'
分子量 formula_weight	3647.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B
原子数 atom_count	5728

GCGATCACGTAC

Entity 2 polymer

描述 description	5'-D(GPACPGPTPAPCPGPTPGPAPTPCPGPCPA)-3'
分子量 formula_weight	4923.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C

GACGTACGTGATCGCA

Entity 3 polymer

描述 description	DNA Polymerase I
分子量 formula_weight	66172.8 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

AKMAFTLADRVTEEMLADKAALVVEVVEENYHDAPIVGIAVVNEHGRFFLRPETALADPQFVAWLGDETKKKSMFDSKRAAVALKWKGIELCGVSFDLLLAAYLLDPAQGVDDVAAAAKMKQYEAVRPDEAVYGKGAKRAVPDEPVLAEHLVRKAAAIWELERPFLDELRRNEQDRLLVELEQPLSSILAEMEFAGVKVDTKRLEQMGKELAEQLGTVEQRIYELAGQEFNINSPKQLGVILFEKLQLPVLKKTKTGYSTSADVLEKLAPYHEIVENILHYRQLGKLQSTYIEGLLKVVRPDTKKVHTIFNQALTQTGRLSSTEPNLQNIPIRLEEGRKIRQAFVPSESDWLIFAADYSQIELRVLAHIAEDDNLMEAFRRDLDIHTKTAMDIFQVSEDEVTPNMRRQAKAVNFGIVYGISDYGLAQNLNISRKEAAEFIERYFESFPGVKRYMENIVQEAKQKGYVTTLLHRRRYLPDITSRNFNVRSFAERMAMNTPIQGSAADIIKKAMIDLNARLKEERLQAHLLLQVHDELILEAPKEEMERLCRLVPEVMEQAVTLRVPLKVDYHYGSTWYDAK

来源 Source

来源生物 organism	Geobacillus stearothermophilus
NCBI 分类编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	Escherichia coli

Entity 4 branched

描述 description	beta-D-fructofuranose-(2-1)-alpha-D-glucopyranose
分子量 formula_weight	342.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	490

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1l5ua1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1l5ua2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

CATH v4.4 (4 domains)

结构域编号 domain_id	1l5uA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1l5uA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1060 — Taq DNA Polymerase; Chain T, domain 4
同源超家族 H-superfamily homologous superfamily	10 — Taq DNA Polymerase; Chain T, domain 4

结构域编号 domain_id	1l5uA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1l5uA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	87.469 Å
晶胞边长 b length_b	93.418 Å
晶胞边长 c length_c	105.670 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.950 Å
最低分辨率 resolution_low	33.690 Å
R 因子 r_factor	0.1967
R_work r_work	0.1950
R_free r_free	0.2290

fit	/app/data/saxs_computation/l5/1l5u/1l5u.fit
pddf	/app/data/pr_computation/l5/1l5u/1l5u.pr.out
profile	/app/data/saxs_computation/l5/1l5u/1l5u.dat
