1l7e

Crystal Structure of R. rubrum Transhydrogenase Domain I with Bound NADH

Method: X-RAY DIFFRACTION D_max: 128.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

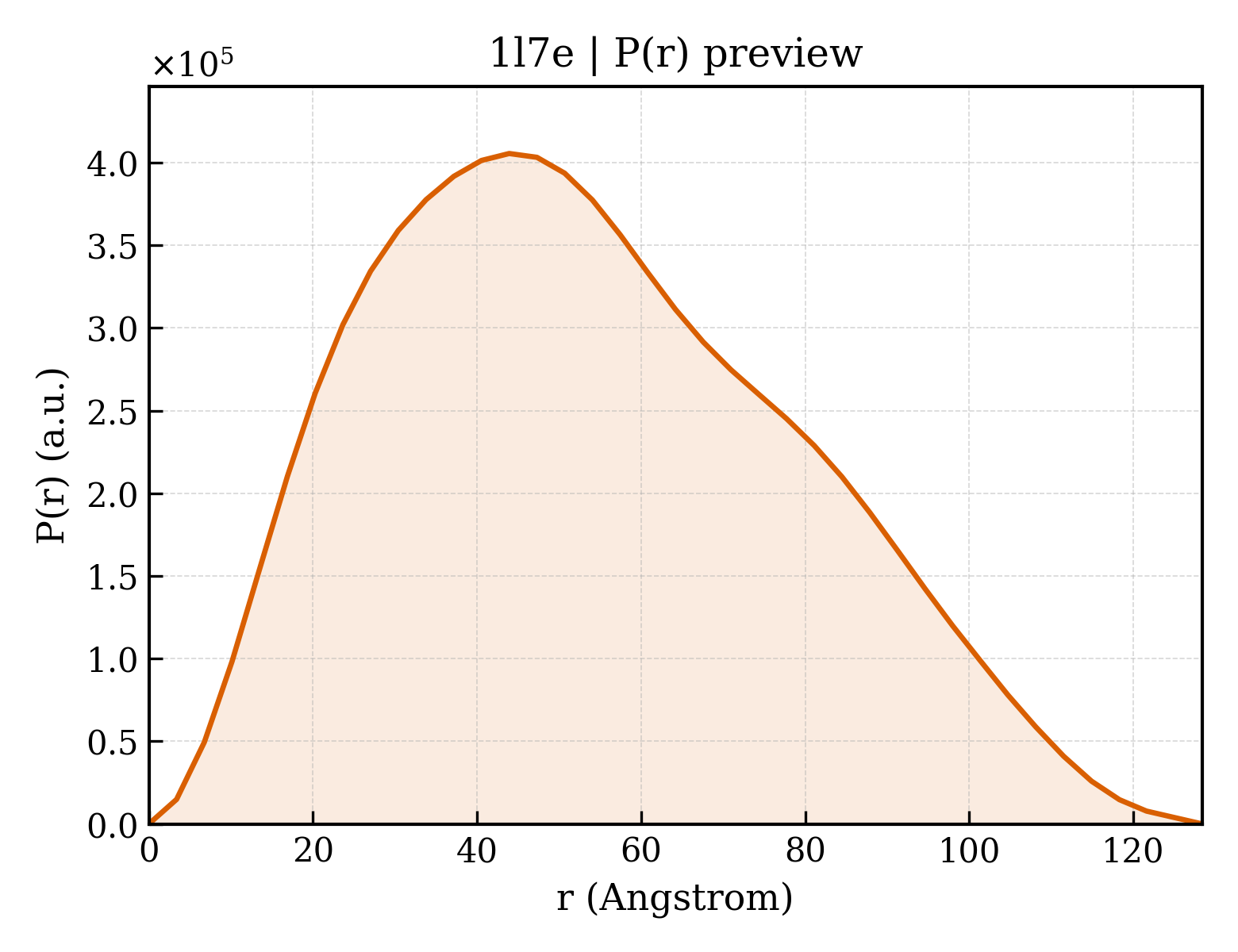

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l7e
沉积日期 deposition_date	2002-03-14
结构标题 title	Crystal Structure of R. rubrum Transhydrogenase Domain I with Bound NADH
关键词 keywords	Transhydrogenase domain I with NADH bound, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.57 Å
回转半径 Rg (电子) rg_electron	41.37 Å
零角强度 I(0) i0	339204000.00
分子量 molecular_weight	153280.0 kDa
排除体积 excluded_volume	193610 Å³
包络体积 envelope_volume	255260 Å³
水化壳体积 shell_volume	52987 Å³
包络直径 envelope_diameter	135.7 Å
壳层 Rg shell_rg	45.13 Å
包络 Rg envelope_rg	40.86 Å
形状 Rg shape_rg	41.35 Å
总 Rg total_rg	41.60 Å
总原子数 total_atoms	10720
残基数 n_residues	1449
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	128.4 Å
Rg (实空间) rg_real	41.67 Å
Rg 误差 (实空间) rg_real_error	0.90 Å
I(0) (实空间) i0_real	3.3920e+08
I(0) 误差 (实空间) i0_real_error	5.5490e+06
Rg (倒空间) rg_reciprocal	41.58 Å
I(0) (倒空间) i0_reciprocal	339200000.0000
解质量估计 total_estimate	0.8458
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.9 Å
偏度 Skewness skewness	0.334
峰度 Kurtosis kurtosis	-0.614
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	33270000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.125

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	nicotinamide nucleotide Transhydrogenase, subunit alpha 1
分子量 formula_weight	40324.8 kDa
EC 编号 ec_number	1.6.1.1
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	11327

MKIAIPKERRPGEDRVAISPEVVKKLVGLGFEVIVEQGAGVGASITDDALTAAGATIASTAAQALSQADVVWKVQRPMTAEEGTDEVALIKEGAVLMCHLGALTNRPVVEALTKRKITAYAMELMPRISRAQSMDILSSQSNLAGYRAVIDGAYEFARAFPMMMTAAGTVPPARVLVFGVGVAGLQAIATAKRLGAVVMATDVRAATKEQVESLGGKFITVDDEAMKTAETAGGYAKEMGEEFRKKQAEAVLKELVKTDIAITTALIPGKPAPVLITEEMVTKMKPGSVIIDLAVEAGGNCPLSEPGKIVVKHGVKIVGHTNVPSRVAADASPLFAKNLLNFLTPHVDKDTKTLVMKLEDETVSGTCVTRDGAIVHPALTGQGA

来源 Source

来源生物 organism	Rhodospirillum rubrum
NCBI 分类编号 ncbi_taxonomy_id	1085
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
分子量 formula_weight	665.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	607

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1l7ea1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.4 — Formate/glycerate dehydrogenases, NAD-domain

结构域编号 domain_id	d1l7ea2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.12 — Formate/glycerate dehydrogenase catalytic domain-like
家族 Family family	c.23.12.2 — L-alanine dehydrogenase-like

结构域编号 domain_id	d1l7eb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.4 — Formate/glycerate dehydrogenases, NAD-domain

结构域编号 domain_id	d1l7eb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.12 — Formate/glycerate dehydrogenase catalytic domain-like
家族 Family family	c.23.12.2 — L-alanine dehydrogenase-like

结构域编号 domain_id	d1l7ec1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.4 — Formate/glycerate dehydrogenases, NAD-domain

结构域编号 domain_id	d1l7ec2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.12 — Formate/glycerate dehydrogenase catalytic domain-like
家族 Family family	c.23.12.2 — L-alanine dehydrogenase-like

结构域编号 domain_id	d1l7ed1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.4 — Formate/glycerate dehydrogenases, NAD-domain

结构域编号 domain_id	d1l7ed2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.12 — Formate/glycerate dehydrogenase catalytic domain-like
家族 Family family	c.23.12.2 — L-alanine dehydrogenase-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1l7eA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1l7eD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	64.140 Å
晶胞边长 b length_b	116.680 Å
晶胞边长 c length_c	92.600 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	106.28 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2510
R_work r_work	0.2510
R_free r_free	0.2820
