SAXSdb — 2fsv

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fsv
沉积日期 deposition_date	2006-01-23
结构标题 title	Structure of transhydrogenase (dI.D135N.NAD+)2(dIII.E155W.NADP+)1 asymmetric complex
关键词 keywords	NAD(P) TRANSHYDROGENASE SUBUNITS, NAD+, NADP+, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.42 Å
回转半径 Rg (电子) rg_electron	30.74 Å
零角强度 I(0) i0	145198000.00
分子量 molecular_weight	96958.0 kDa
排除体积 excluded_volume	122140 Å³
包络体积 envelope_volume	150500 Å³
水化壳体积 shell_volume	40707 Å³
包络直径 envelope_diameter	104.1 Å
壳层 Rg shell_rg	37.90 Å
包络 Rg envelope_rg	30.89 Å
形状 Rg shape_rg	30.73 Å
总 Rg total_rg	31.39 Å
总原子数 total_atoms	6779
残基数 n_residues	901
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.4 Å
Rg (实空间) rg_real	31.38 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	1.4520e+08
I(0) 误差 (实空间) i0_real_error	2.4490e+06
Rg (倒空间) rg_reciprocal	31.40 Å
I(0) (倒空间) i0_reciprocal	145200000.0000
解质量估计 total_estimate	0.8946
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.5 Å
偏度 Skewness skewness	0.304
峰度 Kurtosis kurtosis	-0.402
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	124000000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.907; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.905

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	NAD(P) transhydrogenase subunit alpha part 1
分子量 formula_weight	40323.8 kDa
EC 编号 ec_number	1.6.1.2
突变 mutation	D135N
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7169

MKIAIPKERRPGEDRVAISPEVVKKLVGLGFEVIVEQGAGVGASITDDALTAAGATIASTAAQALSQADVVWKVQRPMTAEEGTDEVALIKEGAVLMCHLGALTNRPVVEALTKRKITAYAMELMPRISRAQSMNILSSQSNLAGYRAVIDGAYEFARAFPMMMTAAGTVPPARVLVFGVGVAGLQAIATAKRLGAVVMATDVRAATKEQVESLGGKFITVDDEAMKTAETAGGYAKEMGEEFRKKQAEAVLKELVKTDIAITTALIPGKPAPVLITEEMVTKMKPGSVIIDLAVEAGGNCPLSEPGKIVVKHGVKIVGHTNVPSRVAADASPLFAKNLLNFLTPHVDKDTKTLVMKLEDETVSGTCVTRDGAIVHPALTGQGA

来源 Source

来源生物 organism	Rhodospirillum rubrum
NCBI 分类编号 ncbi_taxonomy_id	1085
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	NAD(P) transhydrogenase subunit beta
分子量 formula_weight	21542.6 kDa
EC 编号 ec_number	1.6.1.2
突变 mutation	E155W
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MNRSIFNVILGGFGSEGGVAAAGGAAGDRSVKAGSAEDAAFIMKNASKVIIVPGYGMAVAQAQHALREMADVLKKEGVEVSYAIHPVAGRMPGHMNVLLAEANVPYDEVFELEEINSSFQTADVAFVIGANDVTNPAAKTDPSSPIYGMPILDVWKAGTVLFIKRSMASGYAGVENELFFRNNTMMLFGDAKKMTEQIVQAMN

来源 Source

来源生物 organism	Rhodospirillum rubrum
NCBI 分类编号 ncbi_taxonomy_id	1085
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	382

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d2fsva1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.4 — Formate/glycerate dehydrogenases, NAD-domain

结构域编号 domain_id	d2fsva2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.12 — Formate/glycerate dehydrogenase catalytic domain-like
家族 Family family	c.23.12.2 — L-alanine dehydrogenase-like

结构域编号 domain_id	d2fsvb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.4 — Formate/glycerate dehydrogenases, NAD-domain

结构域编号 domain_id	d2fsvb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.12 — Formate/glycerate dehydrogenase catalytic domain-like
家族 Family family	c.23.12.2 — L-alanine dehydrogenase-like

结构域编号 domain_id	d2fsvc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.31 — DHS-like NAD/FAD-binding domain
超家族 Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
家族 Family family	c.31.1.4 — Transhydrogenase domain III (dIII)

CATH v4.4 (5 domains)

结构域编号 domain_id	2fsvA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2fsvA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2fsvB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2fsvB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2fsvC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1220 — TPP-binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	72.912 Å
晶胞边长 b length_b	73.871 Å
晶胞边长 c length_c	205.172 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	31.370 Å
R 因子 r_factor	0.2039
R_work r_work	0.2016
R_free r_free	0.2481

fit	/app/data/saxs_computation/fs/2fsv/2fsv.fit
pddf	/app/data/pr_computation/fs/2fsv/2fsv.pr.out
profile	/app/data/saxs_computation/fs/2fsv/2fsv.dat

Structure of transhydrogenase (dI.D135N.NAD+)2(dIII.E155W.NADP+)1 asymmetric complex

SAXS 散射曲线 SAXS Profile

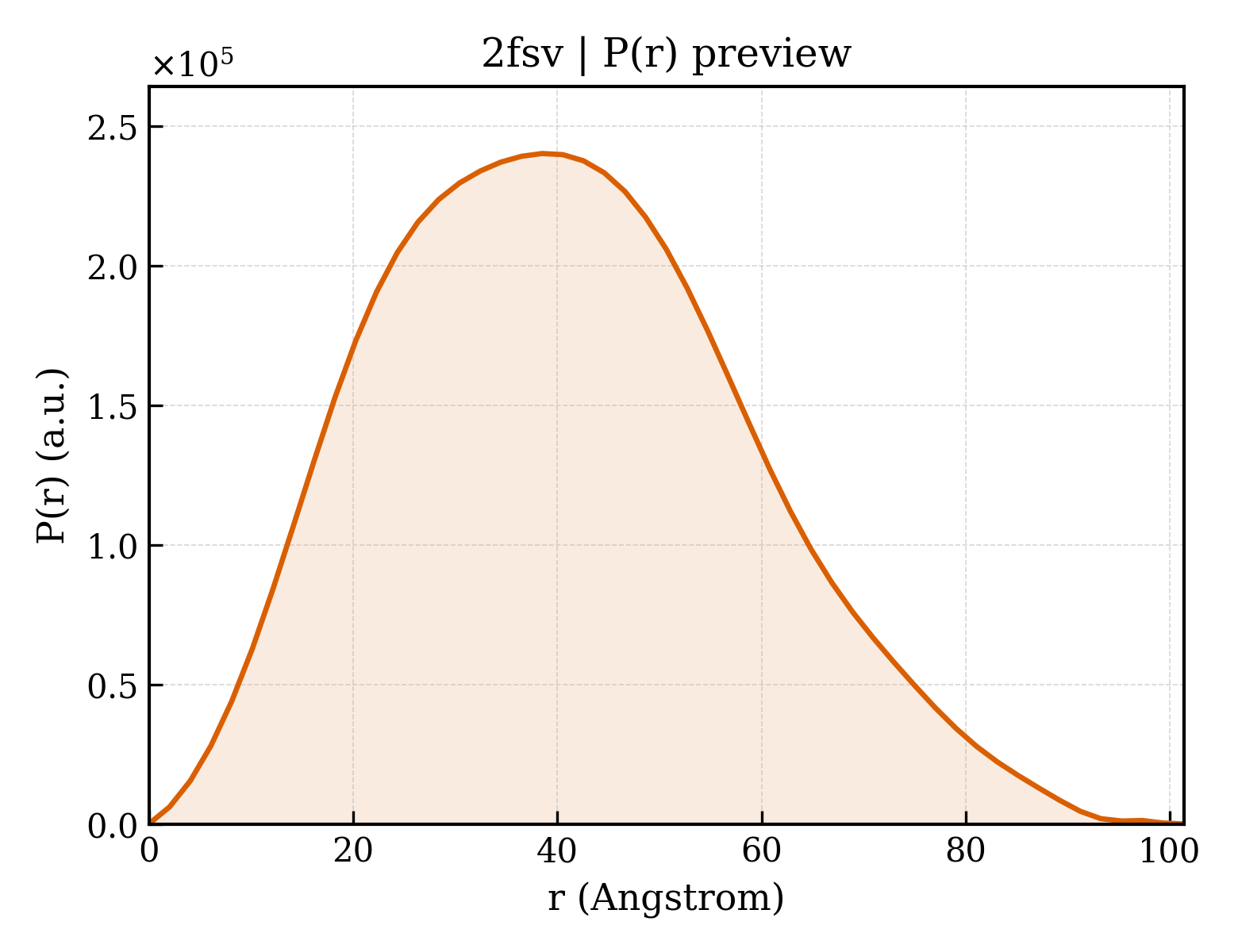

P(r) 距离分布 P(r) Distribution
