Toxoplasma gondii
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | ADK_TOXGO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–363； UniProt 1–363 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1lio |
| Deposition date deposition_date | 2002-04-17 |
| Structure title title | STRUCTURE OF APO T. GONDII ADENOSINE KINASE |
| Keywords keywords | ALPHA-BETA STRUCTURE, TRANSFERASE; TRANSFERASE |
| Experimental Method method | X-RAY DIFFRACTION |

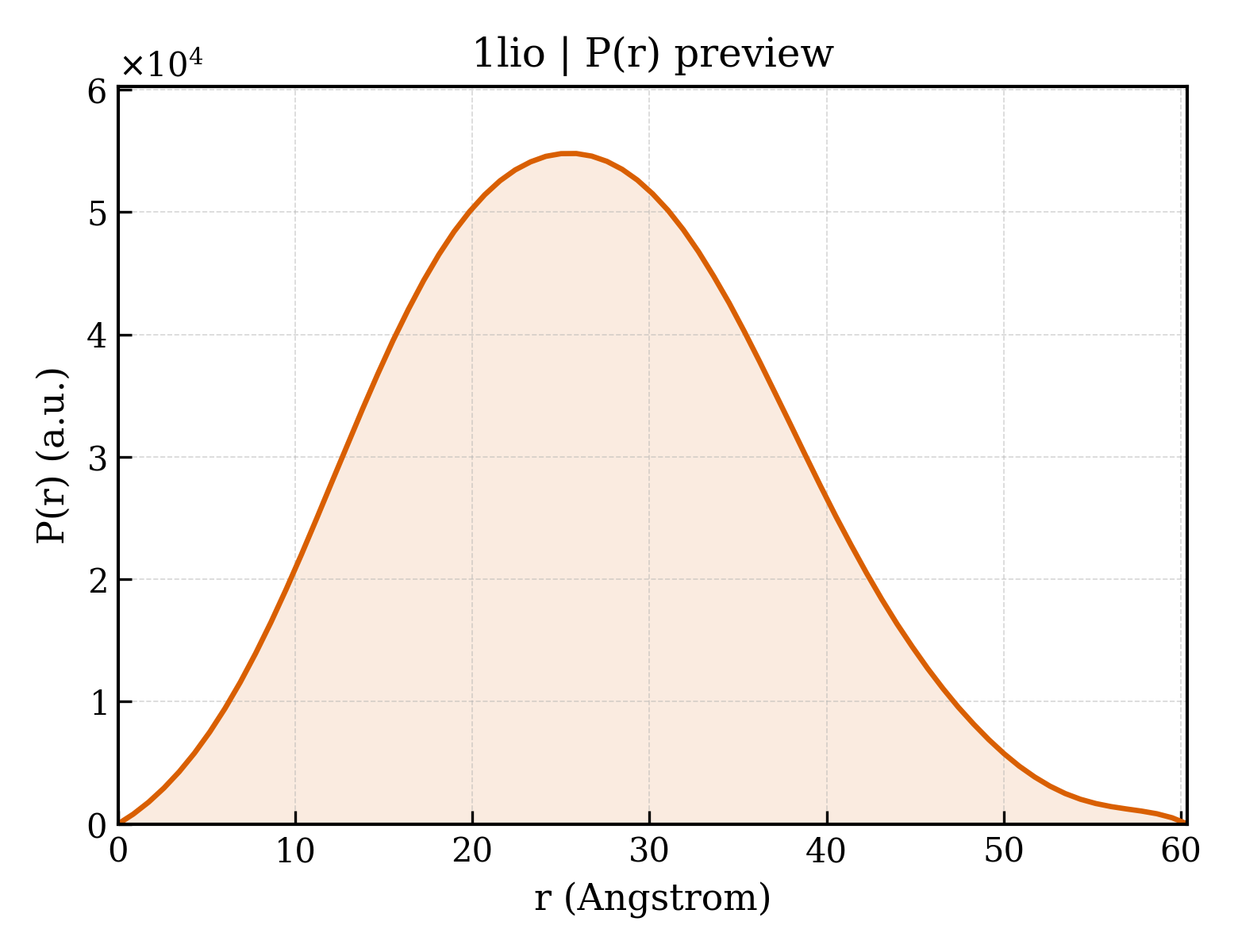

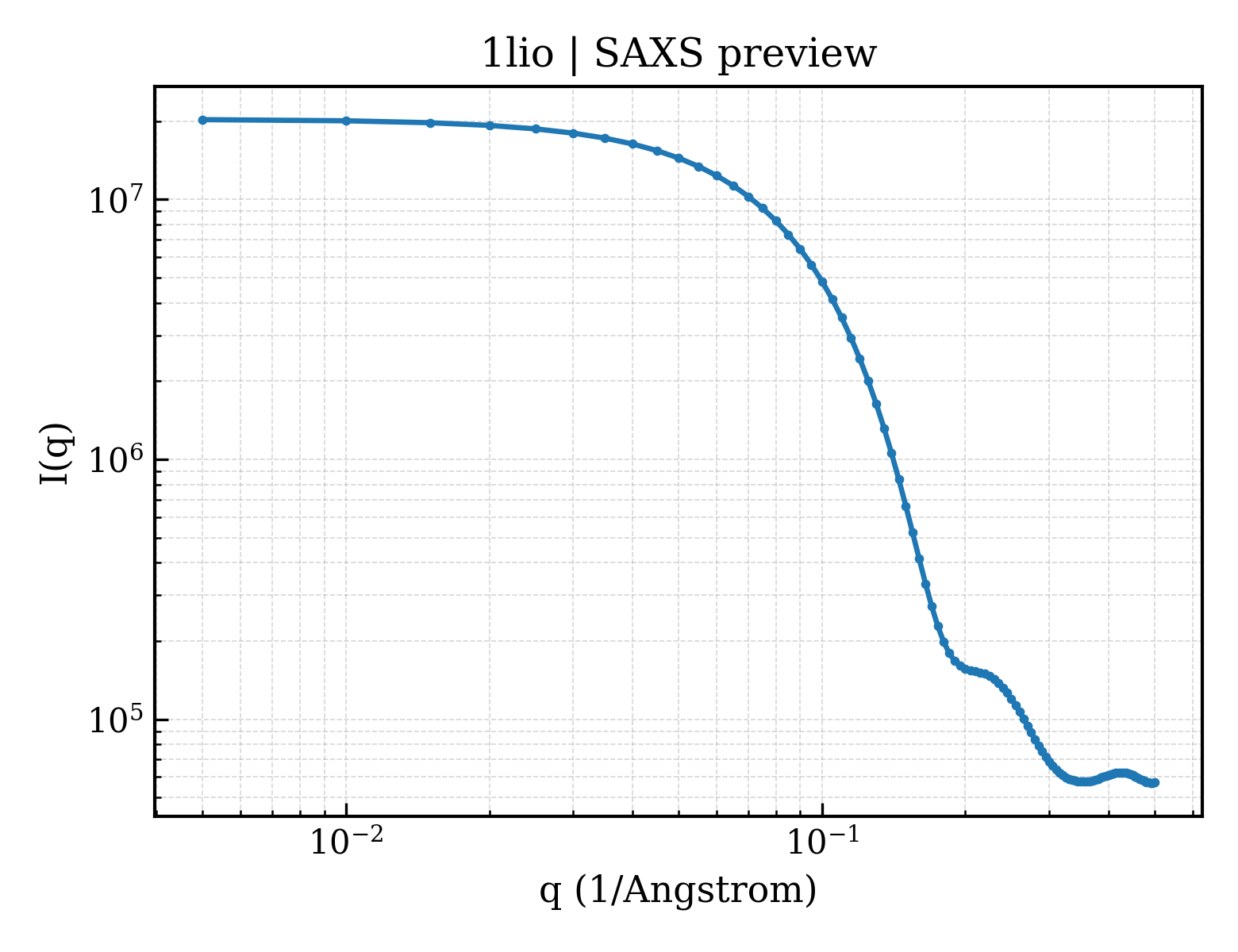

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.29 Å |
| Rg (electron density) | 19.21 Å |
| Total Rg | 20.12 Å |
| Atom count | 2420 |
| Residues | 329 |
| Excluded volume | 43201 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1lioa_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.72 — Ribokinase-like |
| Superfamily Superfamily superfamily | c.72.1 — Ribokinase-like |
| Family Family family | c.72.1.1 — Ribokinase-like |
| Domain ID domain_id | 1lioA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase |
| Homologous superfamily homologous superfamily | 20 — Ribokinase |
| Domain ID domain_id | 1lioA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 1110 — Adenosine kinase, small domain |
| Homologous superfamily homologous superfamily | 10 — |
