SAXSdb — 1lpq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA topoisomerase I

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 202–765	Mutation：Y723F	5'-D(APAPAPAPAPGPAPCPTPTP(8OG)PGPAPAPAPAPAPTPTPTPTPT)-3' × 1 5'-D(APAPAPAPAPTPTPTPTPTPCPCPAPAPGPTPCPTPTPTPTPT)-3' × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；Tris-HCl, MES, PEG 400, Magnesium chloride, dithiothreitol, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.14 Å R-free 0.298

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1LPQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A35 HUMAN TOPOISOMERASE I/DNA COMPLEX Deposited 1998-01-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 175–765（591 aa） Fragment：CORE DOMAIN AND C-TERMINAL DOMAIN	Mutation：Y723F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.7；295 K；pH 7.70, VAPOR DIFFUSION, SITTING DROP, temperature 295.00K	Resolution 2.50 Å R-free 0.308
1A36 TOPOISOMERASE I/DNA COMPLEX Deposited 1998-01-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 174–765（592 aa） Fragment：CORE DOMAIN AND C-TERMINAL DOMAIN	Mutation：Y723F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.7；pH 7.70	Resolution 2.80 Å R-free 0.312
1EJ9 CRYSTAL STRUCTURE OF HUMAN TOPOISOMERASE I DNA COMPLEX Deposited 2000-03-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 203–765（563 aa） Fragment：C-TERMINAL DOMAIN, RESIDUES 203-765	Mutation：Y723F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；295 K；27% PEG 400, 145 mM MgCl2, 20 mM MES pH 6.8, 5 mM Tris pH 8.0, 30 mM DTT, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.60 Å R-free 0.281
1K4S HUMAN DNA TOPOISOMERASE I IN COVALENT COMPLEX WITH A 22 BASE PAIR DNA DUPLEX Deposited 2001-10-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 174–765（592 aa） Fragment：Core Domain and C-Terminal Domain, Residues 174-765	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；PEG 8000, Tris-HCl, Na/K Phosphate, KCl, DTT, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.20 Å R-free 0.222
1K4T HUMAN DNA TOPOISOMERASE I (70 KDA) IN COMPLEX WITH THE POISON TOPOTECAN AND COVALENT COMPLEX WITH A 22 BASE PAIR DNA DUPLEX Deposited 2001-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 174–765（592 aa） Fragment：Core Domain and C-Terminal Domain, Residues 174-765	Non-standard monomer：Yes (specific site not provided by mmCIF)	TTG 2-(1-DIMETHYLAMINOMETHYL-2-HYDROXY-8-HYDROXYMETHYL-9-OXO-9,11-DIHYDRO-INDOLIZINO[1,2-B]QUINOLIN-7-YL)-2-HYDROXY-BUTYRIC ACID × 1 TTC (S)-10-[(DIMETHYLAMINO)METHYL]-4-ETHYL-4,9-DIHYDROXY-1H-PYRANO[3',4':6,7]INOLIZINO[1,2-B]-QUINOLINE-3,14(4H,12H)-DIONE × 1 HG MERCURY (II) ION × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；PEG 8000, Ammonium Sulfate, MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.10 Å R-free 0.269
1NH3 Human Topoisomerase I Ara-C Complex Deposited 2002-12-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 203–764（562 aa） Fragment：Core Subdomain, C-Terminal Domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.7；276 K；Tris, Magnesium Chloride, PEG 400, DTT, pH 7.7, VAPOR DIFFUSION, SITTING DROP, temperature 276K	Resolution 3.10 Å R-free 0.311
1R49 Human topoisomerase I (Topo70) double mutant K532R/Y723F Deposited 2003-10-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 174–765（592 aa） Fragment：Topo70	Mutation：K532R, Y723F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；PEG 3350 MME, Magnesium chloride, MES, TCEP, pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 3.13 Å R-free 0.339
1RR8 Structural Mechanisms of Camptothecin Resistance by Mutations in Human Topoisomerase I Deposited 2003-12-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 203–765（563 aa）	Mutation：F361S,Q634R Non-standard monomer：Yes (specific site not provided by mmCIF)	TTG 2-(1-DIMETHYLAMINOMETHYL-2-HYDROXY-8-HYDROXYMETHYL-9-OXO-9,11-DIHYDRO-INDOLIZINO[1,2-B]QUINOLIN-7-YL)-2-HYDROXY-BUTYRIC ACID × 1 TTC (S)-10-[(DIMETHYLAMINO)METHYL]-4-ETHYL-4,9-DIHYDROXY-1H-PYRANO[3',4':6,7]INOLIZINO[1,2-B]-QUINOLINE-3,14(4H,12H)-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；PEG 8000, 200mM Lithium Sulfate, 100mM Mes, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.60 Å R-free 0.294
1RRJ Structural Mechanisms of Camptothecin Resistance by Mutations in Human Topoisomerase I Deposited 2003-12-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 201–765（565 aa）	Mutation：Asn722Ser Non-standard monomer：Yes (specific site not provided by mmCIF)	TTG 2-(1-DIMETHYLAMINOMETHYL-2-HYDROXY-8-HYDROXYMETHYL-9-OXO-9,11-DIHYDRO-INDOLIZINO[1,2-B]QUINOLIN-7-YL)-2-HYDROXY-BUTYRIC ACID × 1 TTC (S)-10-[(DIMETHYLAMINO)METHYL]-4-ETHYL-4,9-DIHYDROXY-1H-PYRANO[3',4':6,7]INOLIZINO[1,2-B]-QUINOLINE-3,14(4H,12H)-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；PEG8000, 200mM lithium sulfate, 100mM Mes, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.278
1SC7 Human DNA Topoisomerase I (70 Kda) In Complex With The Indenoisoquinoline MJ-II-38 and Covalent Complex With A 22 Base Pair DNA Duplex Deposited 2004-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 174–765（592 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	M38 4-(5,11-DIOXO-5H-INDENO[1,2-C]ISOQUINOLIN-6(11H)-YL)BUTANOATE × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；PEG 8000, AMMONIUM SULFATE, MES, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.00 Å R-free 0.285
1SEU Human DNA Topoisomerase I (70 Kda) In Complex With The Indolocarbazole SA315F and Covalent Complex With A 22 Base Pair DNA Duplex Deposited 2004-02-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 174–765（592 aa）	Mutation：Asn722Ser Non-standard monomer：Yes (specific site not provided by mmCIF)	SA3 2,10-DIHYDROXY-12-(BETA-D-GLUCOPYRANOSYL)-6,7,12,13-TETRAHYDROINDOLO[2,3-A]PYRROLO[3,4-C]CARBAZOLE-5,7-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；PEG 8000, AMMONIUM SULFATE, MES, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.00 Å R-free 0.295
1T8I Human DNA Topoisomerase I (70 Kda) In Complex With The Poison Camptothecin and Covalent Complex With A 22 Base Pair DNA Duplex Deposited 2004-05-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 174–765（592 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EHD 4-ETHYL-4-HYDROXY-1,12-DIHYDRO-4H-2-OXA-6,12A-DIAZA-DIBENZO[B,H]FLUORENE-3,13-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；PEG 8000, ammonium sulfate, MES, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.00 Å R-free 0.292
1TL8 Human DNA topoisomerase I (70 kDa) in complex with the indenoisoquinoline AI-III-52 and covalent complex with a 22 base pair DNA duplex Deposited 2004-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 174–765（592 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	AI3 2,3-DIMETHOXY-12H-[1,3]DIOXOLO[5,6]INDENO[1,2-C]ISOQUINOLIN-6-IUM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；PEG 8000, MES, Ammonium Sulfate, pH 6.40, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.10 Å R-free 0.305

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–564； UniProt 202–765

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lpq
Deposition date deposition_date	2002-05-08
Structure title title	Human DNA Topoisomerase I (70 Kda) In Non-Covalent Complex With A 22 Base Pair DNA Duplex Containing an 8-oxoG Lesion
Keywords keywords	protein-DNA complex, DNA damage, induced conformational change, ISOMERASE-DNA COMPLEX; ISOMERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.54 Å
Radius of gyration Rg (electron density) rg_electron	28.56 Å
Forward intensity I(0) i0	115240000.00
Molecular weight molecular_weight	76791.0 kDa
Excluded volume excluded_volume	92826 Å³
Envelope volume envelope_volume	125250 Å³
Hydration-shell volume shell_volume	37041 Å³
Envelope diameter envelope_diameter	109.9 Å
Shell Rg shell_rg	35.15 Å
Envelope Rg envelope_rg	28.84 Å
Shape Rg shape_rg	28.54 Å
Total Rg total_rg	29.21 Å
Total atoms total_atoms	5354
Residues n_residues	600
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

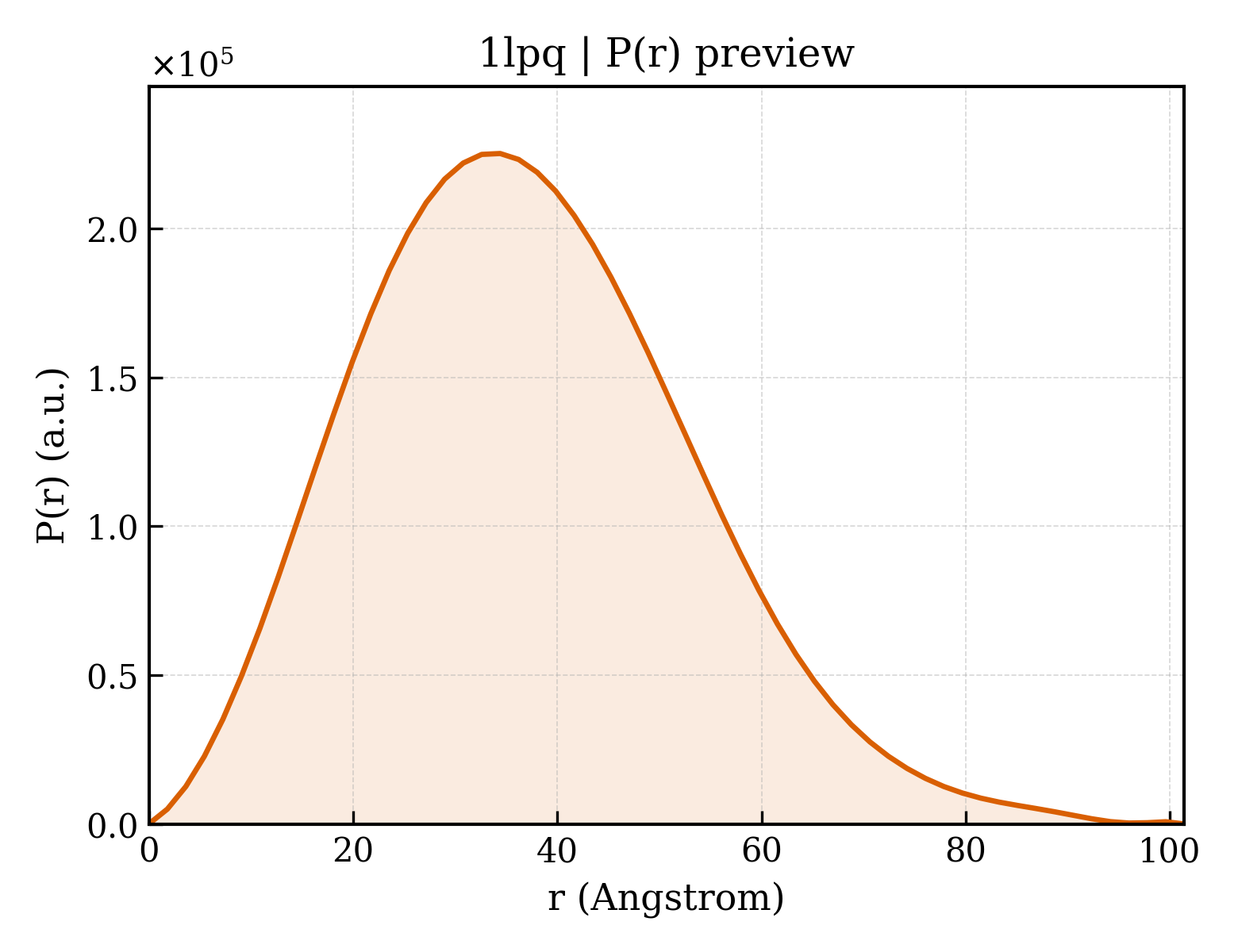

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.4 Å
Rg (real space) rg_real	28.53 Å
Rg uncertainty (real space) rg_real_error	0.78 Å
I(0) (real space) i0_real	1.1520e+08
I(0) uncertainty (real space) i0_real_error	1.8140e+06
Rg (reciprocal space) rg_reciprocal	28.54 Å
I(0) (reciprocal space) i0_reciprocal	115200000.0000
Solution quality estimate total_estimate	0.8527
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.4 Å
Skewness Skewness skewness	0.407
Kurtosis Kurtosis kurtosis	-0.027
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16700000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.709; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.982

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	5'-D(APAPAPAPAPGPAPCPTPTP(8OG)PGPAPAPAPAPAPTPTPTPTPT)-3'
Molecular weight formula_weight	6822.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	5381

AAAAAGACTTGGAAAAATTTTT

Entity 2 Entity 2 polymer

Description description	5'-D(APAPAPAPAPTPTPTPTPTPCPCPAPAPGPTPCPTPTPTPTPT)-3'
Molecular weight formula_weight	6690.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

AAAAATTTTTCCAAGTCTTTTT

Entity 3 Entity 3 polymer

Description description	DNA topoisomerase I
Molecular weight formula_weight	66767.1 kDa
EC 编号 ec_number	5.99.1.2
Mutation mutation	Y723F
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

KWKWWEEERYPEGIKWKFLEHKGPVFAPPYEPLPENVKFYYDGKVMKLSPKAEEVATFFAKMLDHEYTTKEIFRKNFFKDWRKEMTNEEKNIITNLSKCDFTQMSQYFKAQTEARKQMSKEEKLKIKEENEKLLKEYGFCIMDNHKERIANFKIEPPGLFRGRGNHPKMGMLKRRIMPEDIIINCSKDAKVPSPPPGHKWKEVRHDNKVTWLVSWTENIQGSIKYIMLNPSSRIKGEKDWQKYETARRLKKCVDKIRNQYREDWKSKEMKVRQRAVALYFIDKLALRAGNEKEEGETADTVGCCSLRVEHINLHPELDGQEYVVEFDFLGKDSIRYYNKVPVEKRVFKNLQLFMENKQPEDDLFDRLNTGILNKHLQDLMEGLTAKVFRTYNASITLQQQLKELTAPDENIPAKILSYNRANRAVAILCNHQRAPPKTFEKSMMNLQTKIDAKKEQLADARRDLKSAKADAKVMKDAKTKKVVESKKKAVQRLEEQLMKLEVQATDREENKQIALGTSKLNFLDPRITVAWCKKWGVPIEKIYNKTQREKFAWAIDMADEDYEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	27

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1lpqa1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.8 — Eukaryotic DNA topoisomerase I, dispensable insert domain
Family Family family	a.2.8.1 — Eukaryotic DNA topoisomerase I, dispensable insert domain

Domain ID domain_id	d1lpqa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.2 — Eukaryotic DNA topoisomerase I, catalytic core

Domain ID domain_id	d1lpqa3
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.15 — Eukaryotic DNA topoisomerase I, N-terminal DNA-binding fragment
Superfamily Superfamily superfamily	e.15.1 — Eukaryotic DNA topoisomerase I, N-terminal DNA-binding fragment
Family Family family	e.15.1.1 — Eukaryotic DNA topoisomerase I, N-terminal DNA-binding fragment

CATH v4.4 (4 domains)

Domain ID domain_id	1lpqA01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	11 — DNA Topoisomerase I; domain 2
Homologous superfamily homologous superfamily	10 — DNA Topoisomerase I, domain 2

Domain ID domain_id	1lpqA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	41 — Yeast DNA topoisomerase - domain 1

Domain ID domain_id	1lpqA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	15 — Topoisomerase I; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Topoisomerase I; Chain A, domain 3

Domain ID domain_id	1lpqA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	57.200 Å
Unit-cell length b length_b	122.500 Å
Unit-cell length c length_c	72.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.40 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.140 Å
Low-resolution limit resolution_low	19.870 Å
R factor r_factor	—
R_work r_work	0.2560
R_free r_free	0.2980

fit	/app/data/saxs_computation/lp/1lpq/1lpq.fit
pddf	/app/data/pr_computation/lp/1lpq/1lpq.pr.out
profile	/app/data/saxs_computation/lp/1lpq/1lpq.dat
